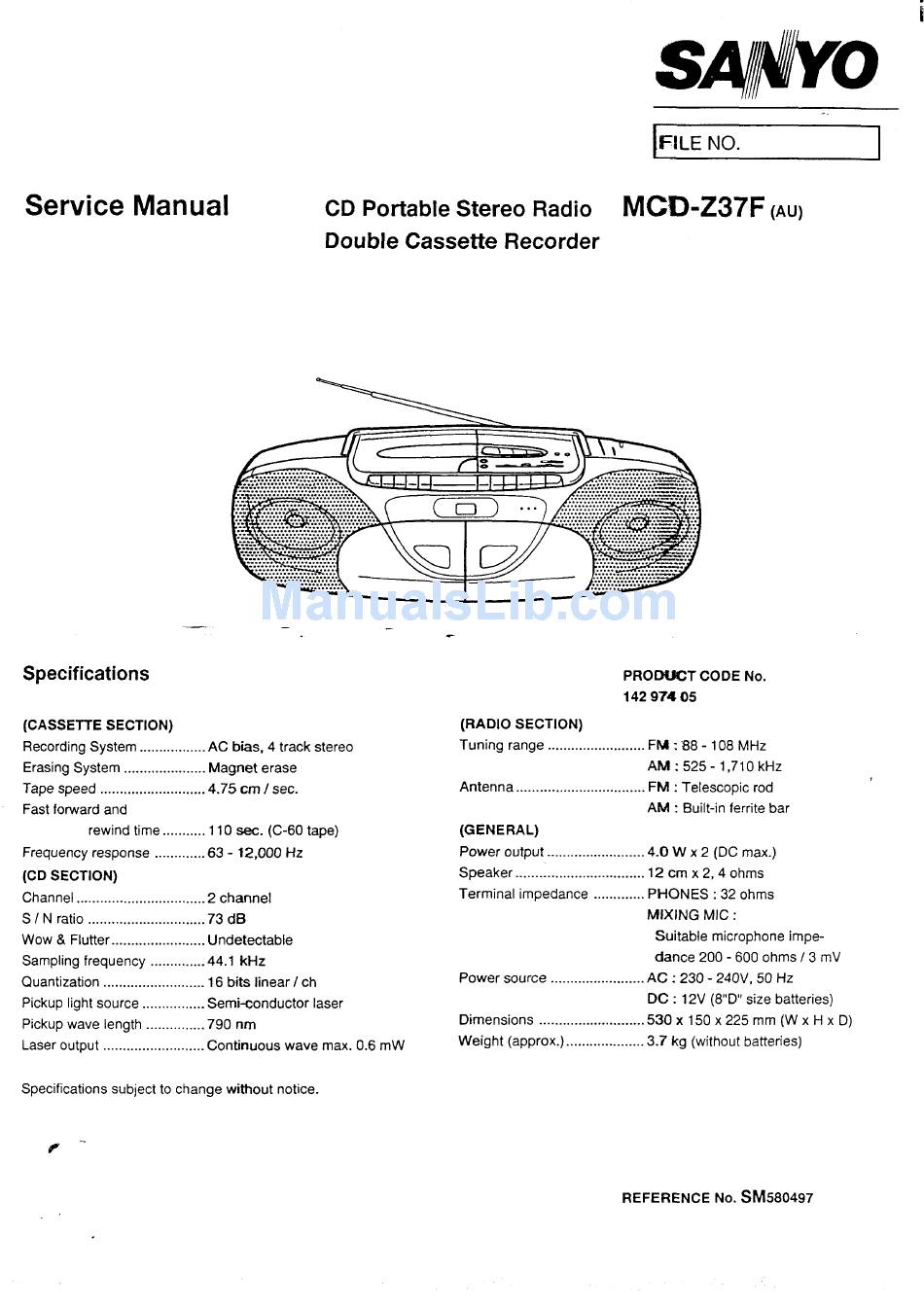

Sanyo mcd-z37f Service Manual

i
FILE No.
I
Service Manual
CD Portable Stereo Radio
MCO-237F
(AU)
Double Cassette Recorder
.-.-.".".".".".".-.
.............. ............ .
.......... .... . ... .
..... ........ ...... . ..
. . . .. .. . ..... .. ..... ... ....
. .. . . . ...... .... .... .........
........... ... .... .. . .. ..
.......... ..... .... —-...
................. .... —-... .
............ .. ...—
—
—
Specifications
(CASSETTE
SECTION)
Recording System ................. AC has, 4 track stereo
Erasing System ..................... Magnet erase
Tape speed ...........................4.75 cm Jsec.
Fast forward and
rewind time ........... 110 sec. (C-60 tape)
Frequency response .............63-12.000 Hz
(CD SECTION)
Channel .................................2channel
S/N ratio ..............................73 dB
Wow & Flutter ........................ Undetectable
Sampling frequency ..............44.1 kHz
Quantization
.......................... 16 bits linear/ch
Pickup light source ................ Semi-conductor laser
Pickup wave length ...............790 nm
Laser output .......................... Continuous
wave max. 0.6 mW
Specifications subject to change without notice.
f-
PRODUCT CODE
No.
14297405
(RADIO SECTION)
Tuning range ......................... FM :88-108 MHz
AM: 525- l,710kHz
Antenna .................................
FM :
Telescopic rod
AM : Built-in ferrite bar
(GENERAL)
Power output ......................... 4-0 W x 2 (DC max.)
Speaker ................................. 12 cm x2,4 ohms
Terminal impedance ............. PHONES :32 ohms
MIXING
MIC :
Suitable microphone impe-
dance 200-600
ohms / 3 mV
Power source ........................ AC. 230- 240V, 50 Hz
DC : 12V (8"D" size batteries)
Dimensions ........................... 530x150 x225mm(Wx HxD)
Weight (approx.) .................... 3.7 kg (without batteries)
REFERENCE
No.
SM580497
