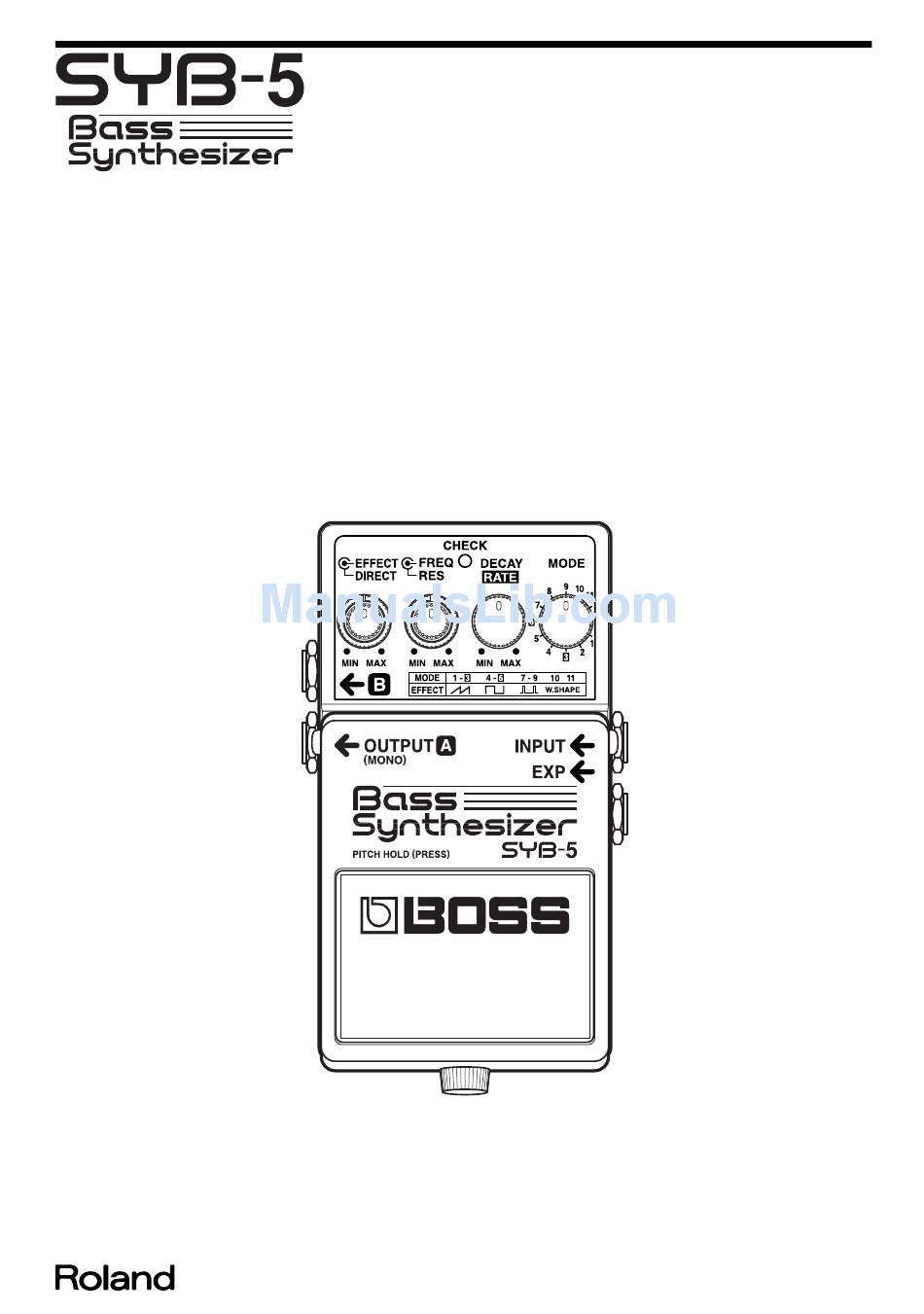

Sep.2004
SYB-5
SERVICE NOTES
Issued by RJA
CAUTIONARY NOTES ...................................................2
SPECIFICATIONS.............................................................2
LOCATION OF CONTROLS ..........................................3
LOCATION OF CONTROLS PARTS LIST ...................3
EXPLODED VIEW ............................................................4
EXPLODED VIEW PARTS LIST .....................................4
PARTS LIST........................................................................5
TEST MODE.......................................................................8
CIRCUIT BOARD............................................................12
CIRCUIT DIAGRAM......................................................14
Copyright © 2004 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission
of ROLAND CORPORATION.
17058286E0
Printed in Japan (0500) (TP)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the syb-5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Roland syb-5

  • Page 1: Table Of Contents

    PARTS LIST................5 TEST MODE...............8 CIRCUIT BOARD............12 CIRCUIT DIAGRAM............14 Copyright © 2004 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION. 17058286E0 Printed in Japan (0500) (TP)
  • Page 2: Cautionary Notes

    • Part is sold commercially Options AC Adaptor (PSA-series) SPECIFICATIONS Expression Pedal (Roland EV-5) 0 dBu = 0.775 Vrms In the interest of product improvement, the specifications and/or appearance of SYB-5: Bass Synthesizer this unit are subject to change without prior notice.
  • Page 3: Location Of Controls

    SYB-5 LOCATION OF CONTROLS fig.panel LOCATION OF CONTROLS PARTS LIST PART CODE CATEGORY PART NAME DESCRIPTION Q’TY 22480220 KNOB,BUTTON P R-KNOB (INTERNAL) (SS) BF BLK/LCG 22480221 KNOB,BUTTON P O-KNOB (EXTERNAL) (OUTER) S BLK/LCG F327985401 POTENTIOMETER POTENTIOMETER RD912D-20-20FWH-B54-6009 13449150MF JACK,EXT TERMINAL...
  • Page 4: Exploded View

    Sep.2004 EXPLODED VIEW fig.bunkaizu.eps EXPLODED VIEW PARTS LIST [PART] PART CODE PART NAME DESCRIPTION 13129710 SWITCH(PUSH) JM-0404 2226733300 CUSHION F3419102 BATTERY CONNECTOR G253751603 BOTTOM CAUTION PSA FCC/CE/C-TICK/EMC GRY 2235730500 BOTTOM BASE 2202785100 BOTTOM COVER G2167301 INSULATION SPACER 2215770201 PEDAL GUIDE BUSH 2217710900 COIL SPRING 2235730400...
  • Page 5: Parts List

    SYB-5 PARTS LIST fig.part1e Due to one or more of the following reasons, SAFETY PRECAUTIONS: parts with parts code ******** cannot be supplied as service parts. The parts marked have safety-related characteristics. Use • Part supplied only as a component in a complete assembly only listed parts for replacement.
  • Page 6 Sep.2004 RESISTOR F5399154 MTL.FILM RESISTOR 27K J F5399152 MTL.FILM RESISTOR 22K J R7,R8,R10,R15,R16,R24,R28,R31,R32,R36,R 37,R38,R42,R61,R62,R65 F5399190 MTL.FILM RESISTOR 220K J F5399130 MTL.FILM RESISTOR 2.2K J F5399200 MTL.FILM RESISTOR 1M J R13,R26,R30,R35,R41,R43,R47,R51,R55,R79 F5399128 MTL.FILM RESISTOR 1K J R34,R40,R67,R74,R88 F5399147 MTL.FILM RESISTOR 15K J R11,R23,R27 F5429386 MTL.FILM RESISTOR...
  • Page 7 SYB-5 MISCELLANEOUS 22257257 EARTH TERMINAL ET1,ET2 2226733300 CUSHION 226-333 2217710900 COIL SPRING 217-109 G253751603 BOTTOM CAUTION PSA FCC/CE/C-TICK/EMC GRY F3419102 BATTERY CONNECTOR (006P) ACCESSORIES (Standard) G6017385 OWNER’S MANUAL ENGLISH G6017386 OWNER’S MANUAL JAPANESE G2507107 MODE SEAL...
  • Page 8: Test Mode

    MODE 7: DSP MUTE Check MODE 8: ANALOG BYPASS Maximum Output Check • Monitor speakers MODE 9: ANALOG MUTE Check • Expression pedal (Roland EV-5) MODE 10: ANALOG NOISE Check MODE 11: MODE Volume Check Test Categories The volume checks can be run only in the following sequence: EFFECT- >DIRECT->FREQ->RES->DECAY/RATE.
  • Page 9 SYB-5 advances to the FREQ Volume Check. A(MONO) and OUTPUT B. Confirm that each waveform output is and between -28.5 dBm and -25.5 dBm(FLAT). The DIRECT Volume Check and EFFECT Volume maximum value are detected simultaneously. The DIRECT Volume Check is not run unless the EFFECT 10.
  • Page 10 Sep.2004 fig.test-MAX.eps_40 INPUT. • Check the waveform output from both OUTPUT A(MONO) and OUTPUT B with the oscilloscope. Confirm that the waveform is the same as that shown in the figure and that there is no distortion. fig.test-MUTE.eps_40 1V/DIV, 1mS/DIV •...
  • Page 11 SYB-5 18. Noise Check • Connect the DC plug to the adapter jack. As this check places a drain on the batteries, use the adapter when performing this check. • Confirm that CHECK is lit and that the effects are on.
  • Page 12: Circuit Board

    Sep.2004 CIRCUIT BOARD fig.board-2 fig.board-1...
  • Page 13 SYB-5...
  • Page 14: Circuit Diagram

    5MHz A2001WV2-7P RESET HC49SM DSP (MR3) D 3. 3 N.I. U CN2-9 CN5-9 VR3b N.I.U DRST D 3. 3 SYB-5 MAIN BOARD ASSY CTYPE uPD780034AGK-B20-9ET SYB-5 V1.00 CN2-6 CN5-6 MODE 11.2896MHz 75E193M000 0.001 HC49SM N.I.U RD901-20-15FP-B50K-0D (PCB F2927027 00 1/6) D 3.
