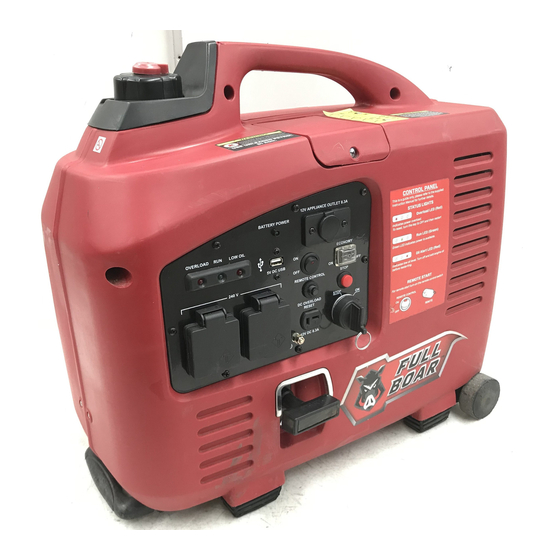

KNOW YOUR PRODUCT
INVERTER
GENERATOR
• 2200W MAX. POWER
• KEY START WITH REMOTE
• 2 X 240V 15A POWER OUTLETS
• USB PORT
• SMART THROTTLE
TECHNOLOGY
INSTRUCTION MANUAL
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1215
Advertisement
Table of Contents
Related Manuals for Full Boar FBT-3100
Summary of Contents for Full Boar FBT-3100
- Page 1 KNOW YOUR PRODUCT INVERTER GENERATOR • 2200W MAX. POWER • KEY START WITH REMOTE • 2 X 240V 15A POWER OUTLETS • USB PORT • SMART THROTTLE TECHNOLOGY INSTRUCTION MANUAL WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 1215...
-
Page 2: Specifications
SPECIFICATIONS - MODEL NO. FBT-3100 ENGINE GENERATOR Motor Type: 4-stroke, OHV, 1-cylinder AC Output: 240V 50Hz Displacement: 125cc 15Amp Engine Speed: 5000/min (ECON switch 2000W is off) 2200W Max. Ignition System: T.D.I DC output: 12V, 8.3Amp Oil Capacity: 450ml USB output: 5V, 5W, 1Amp... - Page 3 KNOW YOUR PRODUCT (cont.) Rear Front 12 V APPLIANCE OUTLET 8.3A BATTERY POWER OVERLOAD LOW OIL ECONOMY 5V DC USB STOP REMOTE CONTROL 240V DC OVERLOAD STOP RESET 12V DC 8.3A START 12 13 15 19 12 V APPLIANCE OUTLET 8.3A BATTERY POWER OVERLOAD LOW OIL...
-
Page 4: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS............Page 02 KNOW YOUR PRODUCT........... Page 02 INTRODUCTION............Page 05 SAFETY INSTRUCTIONS........... Page 05 EXPLANATION OF RISKS ......... Page 08 PRE-OPERATION CHECK.......... Page 12 OPERATION............... Page 15 MAINTENANCE............Page 24 TRANSPORTING & STORAGE ........Page 29 TROUBLE SHOOTING .......... -
Page 5: Introduction
The petrol generator has been designed to output 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Full Boar tools are interchangeable for Australia and New Zealand. - Page 6 SAFETY WARNINGS FOR GENERATORS IMPORTANT! When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place so that the information is available at all times.
- Page 7 SAFETY WARNINGS FOR GENERATORS (cont.) • Generator can be operated in light rain and mist. IP23M weather proof rating • Your power tool should only be passed on with these instructions. • Children should be supervised to ensure they do not play with the appliance. WARNING! Do not parallel connect other cables to receptacles, use special jack, or it may cause an electrical shock.
-
Page 8: Explanation Of Risks
RISK OF ELECTROCUTION AND FIRE Hazard What could happen How to prevent it Improper storage Extension cord can come into Remove extension cord from the of extension cord. contact with hot engine parts generator and store separately resulting in damage. Using a away from generator. - Page 9 RISK OF FIRE Hazard What could happen How to prevent it Attempting to fill Fuel and fuel vapours can Turn engine off and allow it to the fuel tank while become ignited by coming in cool before adding fuel to the the engine contact with hot components tank.
- Page 10 RISK OF INJURY AND PROPERTY DAMAGE WHEN TRANSPORTING GENERATOR Hazard What could happen How to prevent it Fire, Inhalation, Fuel or oil can leak or spill and Transport fuel only in an Damage to Vehicle could result in fire or breathing approved fuel container.
- Page 11 RISK OF UNSAFE OPERATION Hazard What could happen How to prevent it Operation of All sources of energy include Review and understand all of generator in careless the potential for injury. Unsafe the operating instructions and manner operation or maintenance of warnings in this manual.
-
Page 12: Pre-Operation Check
PRE-OPERATION CHECK Connect leads to battery terminal The Full Boar FBT-3100 contains a battery to power the starter motor and remote start function. In the case of a flat battery, the generator can still be started with the recoil starter. - Page 13 12 V APPLIANCE OUTLET 8.3A BATTERY POWER OVERLOAD LOW OIL ECONOMY 5V DC USB REMOTE CONTROL STOP 240V DC OVERLOAD STOP RESET KNOW YOUR PRODUCT PRE-OPERATION CHECK (cont.) 12V DC 8.3A START Checking the oil Note: The generator is shipped without oil and must be filled before starting. Oil tank capacity 450ml.
- Page 14 PRE-OPERATION CHECK (cont.) KNOW YOUR PRODUCT Refuelling the generator 1. Switch off engine by moving the engine switch (18) to the OFF position (Fig. 7) and switching off the remote control STOP switch (32). START Fig. 7 2. Remove the fuel cap (1) by rotating in a anti-clockwise direction (Fig.
-
Page 15: Operation
KNOW YOUR PRODUCT OPERATION Preparing to start Note. Before starting the engine, disconnect all appliances from the generator. 1. Turn the fuel cap lever fully (2) clockwise to the ON position (Fig. 11). Fig. 11 2. Set the fuel valve (6) to the “ON” position (Fig. 12). 12 V APPLIANCE OUTLET 8.3A BATTERY POWER OVERLOAD... - Page 16 OPERATION (cont.) Manual start 1. Follow steps 1 to 4 in the “Preparing to start” section on the previous page. 2. Hold the carrying handle firmly with one hand. With the other hand, pull slightly on the rip cord (5) until you feel resistance and then pull hard and swiftly on the cord (Fig.
- Page 17 OPERATION (cont.) Remote start 1. Follow steps 1 to 4 in the “Preparing to start” section on page 15. Note: The Battery power LED (14) illuminates when sufficient battery power is available for a remote start. 2. Make sure that the remote control switch (32) is in the “ON” position (Fig. 20). 3.
- Page 18 BATTERY POWER OPERATION (cont.) KNOW YOUR PRODUCT LOW OIL ECON Switch (Fig. 23) Fig. 23 ECONOMY When the Econ Switch (15) is turned ON, the engine will automatically enter idle mode after an electrical appliance has been disconnected. It will return to the proper speed required 5V DC USB when the appliance is connected.
- Page 19 12V APPLIANCE OUTLET 8.3A OPERATION (cont.) Output Indicator. OVERLOAD RUN LOW OIL • The power indicator LED (12) (green) illuminates when ECON power is available to outputs (Fig. 24). DC USB 5V DC US START Fig. 24 Overload Indicator. 240V AC •...
- Page 20 OPERATION (cont.) AC Applications Check the total rating of the appliance to be connected and ensure the rating of the appliance/s does not exceed the rating of the generator. 1. Start the engine and make sure the output indicator LED (green) Fig.
- Page 21 12 V APPLIANCE OUTLET 8.3A BATTERY POWER OPERATION (cont.) OVERLOAD LOW OIL ECONOMY 5V DC USB DC Applications 12 V APPLIANCE OUTLET 8.3A The DC output on this generator has a rated voltage of 12V with a rated current BATTERY POWER STOP REMOTE CONTROL 240V...
- Page 22 OPERATION (cont.) The 12V battery charging outlet (29) is suitable for charging most lead acid type car batteries. Before charging, remove the battery from the vehicle. The battery MUST be totally isolated from any other circuitry. 1. Connect the positive (+, RED) charging cord to the positive battery terminal.
- Page 23 OPERATION (cont.) Stopping the engine Emergency stop button If the situation arises that there is no key or remote control 12 V APPLIANCE OUTLET 8.3A BATTERY POWER on hand and the generator needs to be urgently stopped, OVERLOAD LOW OIL ECONOMY the emergency stop button (19) can be used.
-
Page 24: Maintenance
MAINTENANCE The purpose of the maintenance and adjustment schedule is to keep the generator in the best operating condition. Inspect or service as scheduled in the table below. WARNING! Shut off the engine before performing any maintenance. If the engine must be run, make sure the area is well ventilated. - Page 25 12 V APPLIANCE OUTLET 8.3A BATTERY POWER OVERLOAD LOW OIL MAINTENANCE (cont.) ECONOMY 5V DC USB REMOTE CONTROL STOP 240V DC OVERLOAD STOP RESET 12V DC 8.3A START Changing oil Drain the oil while the engine is still warm to ensure rapid and complete draining. WARNING! Make sure to turn the engine switch (15), the fuel cap vent lever (2) and remote control switch (19) OFF before draining.
- Page 26 12 V APPLIANCE OUTLET 8.3A BATTERY POWER OVERLOAD LOW OIL ECONOMY 5V DC USB REMOTE CONTROL STOP 240V DC OVERLOAD STOP RESET MAINTENANCE (cont.) KNOW YOUR PRODUCT 12V DC 8.3A START Air cleaner service A dirty air cleaner will restrict air flow to the carburettor. To prevent carburettor malfunction, service the air cleaner regularly.
- Page 27 MAINTENANCE (cont.) Spark plug servicing Use only good quality spark plugs. To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. 1. Remove the screw on the top maintenance cover Fig. 47 Fig. 46 (8) and slide the cover off (Fig.
- Page 28 MAINTENANCE (cont.) Muffler - Fire net An uncleaned muffler will make a lot of noise and affect the Fig. 49 engine’s performance. Clean the fire net periodically, to ensure normal operation. It is particularly important to maintain the fire net if the generator is being used in dirty/dusty environment.
-
Page 29: Transporting & Storage
TRANSPORTING & STORAGE To prevent fuel spillage when transporting or during temporary storage, the generator should be secured upright in its normal operating position, with the engine switch OFF. The fuel cap vent lever (2) and Fuel valve (6) should be turned to the OFF position. Allow the engine to cool well before turning the fuel cap vent lever to the OFF position. -
Page 30: Troubleshooting
TROUBLESHOOTING Engine will not start Enough Fuel? Add fuel Are the engine switch Turn them both to and fuel valve “on”? the “on” position. Enough lubricating Add good quality oil oil? Start a few times Is there fuel in the to ensure that carburettor? fuel enters the... -
Page 31: Description Of Symbols
DESCRIPTION OF SYMBOLS Read instruction manual Hot surface Do not parallel connect other cables to receptacles, use special jack, or it may cause an electrical shock. Extremely hot surface. Do not touch a hot mu er or exhaust system. You may get burned. These parts get extremely hot from operation and remain hot a short time after the unit is turned o . -
Page 32: Contents
CONTENTS 1 x FBT-3100 Inverter Generator 2 x Keys and remote 1 x Convertible screwdriver 1 x Fuse (spare) 1 x Oil drain tube 1 x Charging cable and clamp set 1 x Spark plug socket 1 x Spark Plug (spare) 1 x USB Adaptor Note. -
Page 34: Warranty
WARRANTY YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE (see www.bunnings.com.au or www.bunnings.co.nz for store locations) WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE: Australia 1800 069 486 New Zealand 0508 069 486...
