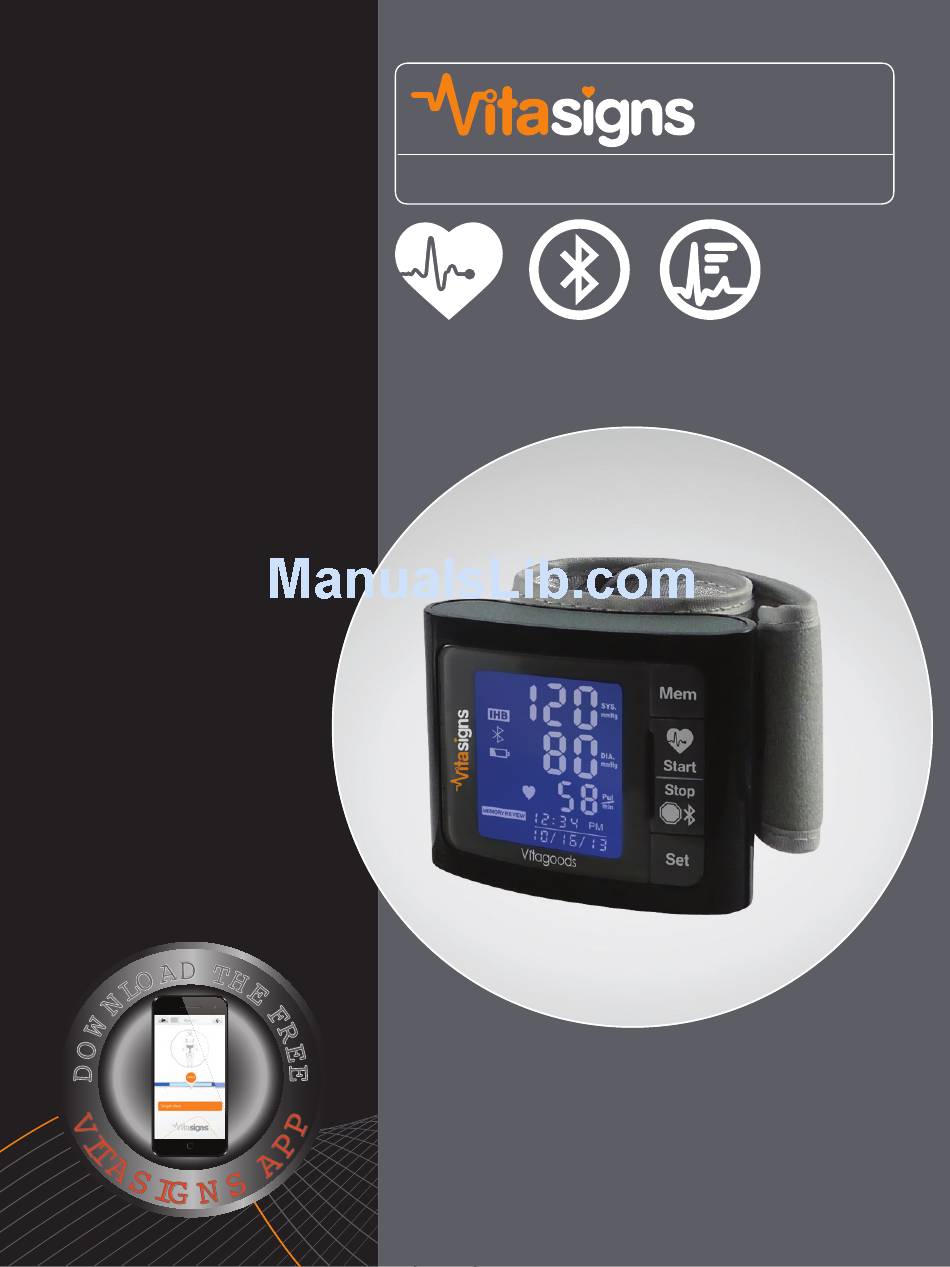

- Page 1 Bluetooth Travel Blood Pressure Monitor Heart Rate Data History Bluetooth LIFE REPORT SYSTEM Keeping you on track with all your vital signs VS-4300-B USER MANUEL...
- Page 2 Congratulations on your Vitasigns Life Report System by Vitagoods purchase. Using your Bluetooth Advanced Travel Blood Pressure Monitor VS-4300, you are now able to measure, track, and share vital blood pressure parameters from the comfort of your home. To get the most out of your new blood pressure monitoring device and ensure safety, read the user manuel prior to use.
-
Page 3: Table Of Contents
Hospital Versus Home Readings Wrist Choice INITIAL START-UP ...................... 5 Installing and Replacing the Batteries Setting Date, Time & Measurement Units VITASIGNS APP ......................9 Downloading the App/Compatible Devices Pairing the App WARRANTY ......................10 What is Covered TAKING MEASUREMENTS ..................11... -
Page 4: Introduction
SAFETY INFORMATION This Vitagoods Life Report System device measures systolic and diastolic blood pressure and pulse rate of an adult by using a pressurized cuff on the left wrist. The device is not intended for use on infants and children. The device is designed for home use only, and is not intended for ambulatory measurement (measurement recorded continuously throughout the day). -
Page 5: Safety Information
SAFETY INFORMATION THE FOLLOWING SYMBOLS, DEFINED BELOW ARE FOUND ON YOUR PRODUCT AND IN THIS USER MANUEL. THEY ARE REQUIRED AND STANDARD FOR USE. This part of the Operation Guide Indicates Type B Applied Parts Must be Read Indicates compliance with MDD ENVIRONMENT PROTECTION 93/42/ECC Requirements Electronic products should not be... -
Page 6: Features And Components
LCD DISPLAY TIME SET / DOWN BUTTON COMPONENT LIST MICRO CONTROL UNIT AMPLIFIER AIR PIPE PUMP VALVE CUFF BATTERY COMPARTMENT PRODUCT INCLUDES 1 - VS-4300 VITASIGNS BLOOD PRESSURE MONITOR 2 - AAA SIZE BATTERIES 1 - USER MANUAL Page 3... -
Page 7: About Blood Pressure
ABOUT BLOOD PRESSURE Measuring your own blood pressure is an important way of monitoring your health. High blood pressure (hypertension) is a major health problem, which can be treated effectively once detected. Measuring your own blood pressure between doctor visits on a regular basis and keeping accurate records helps monitor any significant changes in blood pressure. -
Page 8: Blood Pressure Fluctuations
BLOOD PRESSURE FLUCTUATIONS Why does my blood pressure measurement change within a one-day period? • Individual blood pressure varies throughout the day. Measurements are also affected by the way you fasten your cuff and your measurement position. Try to daily take measurements at the same time and in the same condition. •... -
Page 9: Installing And Replacing The Batteries
INSTALLING AND REPLACING THE BATTERIES 1. Open the Battery Door 2. Insert the batteries according to the polarity indications. (Always select the authorized / specified battery: Two LR03 AAA-size alkaline batteries). 3. Close the battery door. BATTERY LIFE: APPROXIMATELY 57 DAYS (Battery capacity: 600 mAH. -
Page 10: Setting Date, Time & Measurement Units
SETTING DATE, TIME & MEASUREMENT UNITS PLEASE SET THE TIME ON YOUR DEVICE BEFORE YOU USE IT. HAVING THE CORRECT TIME SET ENSURES THAT EACH RECORD IS LABELED WITH THE CORRECT TIME STAMP (YEAR RANGE: 2012-2052; TIME FORMAT: 12 HOURS). 1. - Page 11 4. Repeat steps 2 and 3 to confirm the selection of the [MINUTE}. 5. Repeat steps 2 and 3 to confirm the [MONTH], [DAY] and [YEAR]. 6. After confirming the [YEAR], the LCD will display “dONE” and the monitor will shut off automatically.
-
Page 12: Vitasigns App
Pairing Devices (if pairing with Vitasigns App) 1. Turn on the Bluetooth option and open the Vitasigns App on your iPhone, iPad, or iPod touch. 2. When the monitor is off, press and hold START/STOP button for two (2) seconds initiate the pairing. -
Page 13: Warranty
POSITIONING THE CUFF 1. Remove your watch and/or jewelry from your left hand. (If your physician has diagnosed you with poor circulation in your left wrist, use your right wrist.) 2. If applicable, roll or push up your sleeve to expose your skin. 3. -
Page 14: Taking Measurements
TAKING MEASUREMENTS 1. After correctly positioning the cuff, press START button to turn on the monitor. The measurement process will automatically. 1a. Adjust to Zero 1b. Inflating and Measuring 1c. Display and Save the Measuring Result Page 11... - Page 15 2. The device will proceed to transmit the data automatically after the measurement. The Bluetooth symbol will blink during transmission. 3a. If the data is successfully 3b. If the data transmission fails, the transmitted, the LCD will display as LCD will display “ERROR” as pictured above.
-
Page 16: Data Management
RECALLING THE RECORDS 1. Press the “Mem” button to access the devices memory. 2. Press the “Mem” button to scroll forward through the records and the “Set” button to scroll backward. CAUTION The most recent record (1) is shown first. Each new measurement is assigned to the first (1) record. -
Page 17: Deleting Records
DELETING THE RECORDS When you did not obtain the accurate measurement, you can clear all the measuring results by following below steps. 1. Under Memory Recalling Mode, press and hold both the “MEM” button and the “SET” button for 3 seconds. 2. -
Page 18: User Guidelines
MAINTENANCE To obtain the best performance, please follow the instructions below. Put in a dry place and avoid the Avoid immersing it in the water. Avoid shaking and collision. sunshine Clean it with a dry cloth in case Avoid dusty environment and Use the slightly damp cloth to Avoid washing the cuff unstable temperature surrounding... - Page 19 WARRANTY Vitagoods warrants device to the original purchaser or the person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase (“Warranty Period”) from an Authorized Dealer. The original sales receipt showing the product name and the purchase date from an authorized retailer is considered such proof.
-
Page 20: Troubleshooting
TROUBLESHOOTING This section includes a list of error messages and frequently asked questions for problems you may encounter with your blood pressure monitor. If the device is not operating properly, check here before arranging for service. PROBLEM SYMPTOM CHECK THIS REMEDY Batteries are exhausted Replace with new batteries... -
Page 21: Specifications
SPECIFICATIONS Power supply 2*AAA alkaline batteries Display mode Digital LCD V.A.36x41 mm Measurement mode Oscillographic testing moder Pressure: 0kpa - 40kpa (0mmHg-300mmHg) Measurement range Pulse value: 40 - 199 beats / minute Pressure: 41°F - 104°F within ±0.4kpa (3mmHg) Accuracy 32°F - 113°F (out of 41°F - 104°F) within ±0.7 kpa (5mmHg) pulse value ±5%... -
Page 22: Fcc Statement
FCC STATEMENT POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only) This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 23: Compiled Standards
COMPILED EUROPEAN STANDARDS LIST Risk Management EN/ISO 14971:2007 Labeling EN 980:2008 User Manuel EN 1041:2008 General Requirements EN 60601-1:2006/AC:2010 for Safety EN 62304:2006/AC:2008 EN 60601-1-6:2010 EN 60601-1-11:2010 Non-invasive EN 1060-1:1995+A2:2009 Sphygmomanometers EN 1060-3:1997+A2:2009 General Requirements EN 1060-4:2004 Electromagnetic EN 60601-1-2:2007/AC:2010 Compatibility Page 20... -
Page 24: Electromagnetic Compatibiility
EMC GUIDANCE Table 1 Guidance and manufacturer’s declaration – electromagnetic emissions for all EQUIPMENT and SYSTEMS Guidance and manufacturer’s declaration - electromagnetic emission The VS-4300 is intended for use in the electromagnetic environment specified below. The user of the monitor VS-4300 should assure that it is used in such an environment. The VS-4300 must emit electromagnetic energy RF Emissions Group 1... - Page 25 Table 2 Guidance and manufacturer’s declaration – electromagnetic immunity – for all ME EQUIPMENT and ME SYSTEMS Guidance and manufacturer’s declaration - electromagnetic immunity The VS-4300 in intended for use in the electromagnetic environment specified below. The user of the VS-4300 should assure that it is used in such an environment. IEC 6060 1 Compliance Electromagnetic environment...
- Page 26 Table 3 Guidance and manufacturer’s declaration – electromagnetic immunity –for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING Guidance and manufacturer’s declaration - electromagnetic immunity The VS-4300 in intended for use in the electromagnetic environment specified below. The user of the VS-4300 should assure that it is used in such an environment. IEC 6060 1 Compliance Immunity Test...
- Page 27 Table 4 Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM –for ME EQUIPMENT or ME SYSTEM that are not LIFE-SUPPORTING Recommended separation distances between portable and mobile RF communications equipment at the VS-4300 The VS-4300 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
- Page 28 Power 2 x AAA-size Battery Display Mode Digital LCD, V.A. = 41mm x 36mm Measurement Mode Oscillographic Testing Mode Measurement Range Pressure: 0-40 kPa (0-300 mm Hg) Pulse Value: 40-199 Beat/Minute Accuracy C-40 C within ±0.4 kPa (3 mm Hg) C-45 C (out of 5 C-40...
