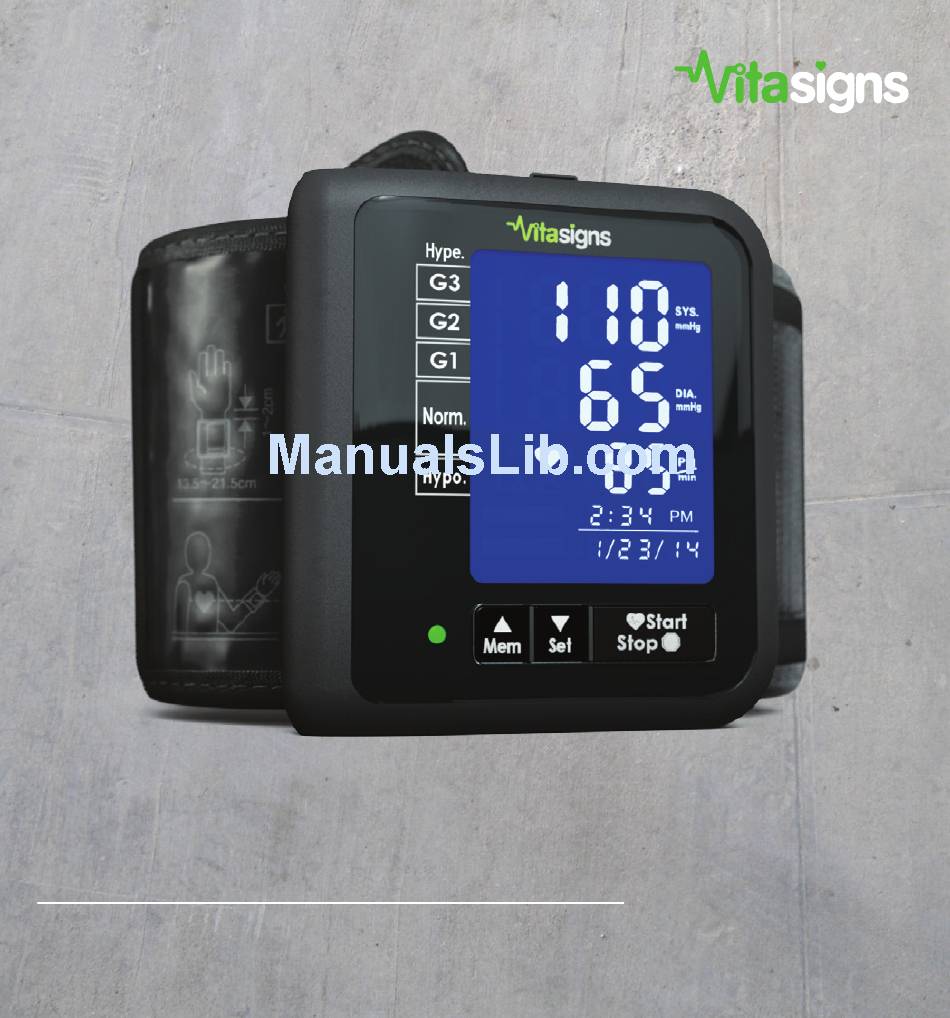

- Page 1 ProSeries 2 Blood Pressure Monitor Quick Start Guide A complete user guide is available at vitasigns.com VS47129-0200...
- Page 2 Welcome to Our mission is to empower you to live a healthy life. We’re passionate about creating simple technology that helps you monitor your vital signs so you can achieve your health and fitness goals. Our intelligent devices improve your health awareness by making it easy to measure, monitor, and track your weight, pulse rate, blood pressure, steps, activity, and more.
-
Page 3: Table Of Contents
Prepare to Measure ..................10 Measurement Tips..................... 11 Taking a Measurement ................... 12 Records Management ..................13 Maintenance......................14 Vitasigns Application ..................15 Systolic & Diastolic Pressure ................ 17 Standard Blood Pressure ................18 Irregular Heartbeat Detector ..............19 Frequently Asked Questions ............... 20 Troubleshooting .................... -
Page 4: Safety Information
In certain oscillometric cases, this measurement method may produce incorrect readings. This Vitasigns measurement device is not intended to be a diagnostic device. Contact your physician immediately if pre- hypertensive or hypertensive values are indicated. - Page 5 Safety Information Symbol Description The Operation Guide Must be Read Complies with FCC Rules Manufacturer Serial Number Indoor Use Only Class II Equipment Type BF Applied Parts Direct Current T1A/250V ø3.6*10CCC Manufacturer Date ENVIRONMENT PROTECTION - Wast electrical products should not be disposed of with house- hold waste.
- Page 6 Caution Read this user manual thoroughly before use. This device is designed and manufactured to operate within defined design limits. Misuse may result in harm. The following should be observed to best use and maintain your device: • This device is intended for adult use only. •...
- Page 7 Caution • If the pressure of the cuff exceeds 40 kPa (300 mmHg), the device will automatically deflate. Should the cuff not deflate when its pressure exceeds 40 kPa (300 mmHg), detach the cuff from the wrist and press START/STOP to stop inflation.
-
Page 8: Proseries2 Lcd Display
Hype. Norm. Hypo. Memory Review Start Stop... - Page 9 Important Symbols Systolic Diastolic Pulse Rate Date and Time Blood Pressure Blood Pressure Per Minute Indicator Low Battery Measurement Irregular Average of Last 3 Indicator Unites Heartbeat Detected Reading Showing Heartbeat In Memory User Indicators Appears Next to Detection Review Mode User 1, User 2 Blood Pressure Grade...
-
Page 10: Getting Started
Avoid direct contact with fire and the heat sources, as the can cause the battery to explode. Only use the Vitasigns authorized USB cable to charge your ProSeries2. The ProSeries 2 can not be used while charging. When the charging indicator disappears from the display charging... -
Page 11: Monitor Components
ProSeries2 Components USB Interface Systolic Pressure Diastolic Pressure Pulse Rate Date & Time Mem / Up Set/Down Start / Stop Button Button Button... -
Page 12: Configuring The Proseries2
Configuring the ProSeries2 Setting the Time and Date Before using your Pro Series 2 to take a Blood Pressure Measurement, you should set the date and time to ensure that measurement results store correctly. Follow these simple steps to set the time, date, and unit: With the Pro Series 2 off, press and hold in the “Set”... -
Page 13: Prepare To Measure
Preparing to Measure Positioning the Cuff Remove your watch and/or jewelry from your left hand (if your physician has diagnosed you with poor circulation in your left wrist, use your right wrist). If applicable, roll or push up your sleeve to expose your skin. Fasten the cuff around your wrist, palm facing up, and fasten. -
Page 14: Measurement Tips
Measuring Tips Tips for Measuring Sit comfortably on a chair, with your legs relaxed and your feet flat on the floor facing out with your back and arm supported. For meaningful comparisons try to take readings under the same conditions at the same times. Relax for at least 5 minutes before taking a measurement. -
Page 15: Taking A Measurement
Taking a Measurement Measuring After correctly positioning the cuff and selecting the user you are measuring for, press the “Start” button to activate and complete the measurement process. Press the “Stop” button at anytime during the process to stop the measurement. START STOP One completed, press the “Stop”... -
Page 16: Records Management
Records Management Recalling and Review Records To recall or review your records, press the “Mem” button. The first thing you will see is the calculated average for the last three measurements taken for the selected user. Use the “Mem/Up” and “Set/Down” buttons to navigate through the measurement history. -
Page 17: Maintenance
If you have any problems with this device, such as setting up, maintaining or using, please contact Vitasigns (info@vitasigns.com). Do not open or repair the device by yourself. Please report to Vitasigns if any unexpected operation or events occur. -
Page 18: Vitasigns Application
Track your Blood Pressure and Pulse Rate as part of your Smart Routine for health awareness. Enter your readings into the Vitasigns App to store data, monitor progress, set, and achieve goals or even share your information with a personal trainer or physician. - Page 19 You can also visit vitasigns.com/app Set Up Your Account After you launch the App it’s time to set up your Vitasigns account. To begin press the “Sign Up” button: Enter your email address and create a password. Enter your name and select your gender.
-
Page 20: Systolic & Diastolic Pressure
Systolic & Diastolic Blood Pressure What are systolic pressure and diastolic blood pressure? When ventricles contract and pump blood out of the heart, the blood pressure reaches its maximum value in the cycle, which is called systolic pressure. Systolic Diastolic blood entering blood discharging vein... -
Page 21: Standard Blood Pressure
Standard Blood Pressure The chart below shows the standard blood pressure classifications published by the American Heart Association (AHA). Blood Pressure Systolic mm Hg Diastolic Category (upper #) mm Hg (lower #) ormal less than 120 less than 80 Pr-hypertensive 120-139 80-89 High Blood Pressure Stage 1... -
Page 22: Irregular Heartbeat Detector
Irregular Heartbeat Detection This ProSeries2 Blood Pressure Monitor is equipped with an Irregular Heartbeat (IHB) Detector. During each measurement, it records your heartbeat intervals and works out the standard deviation. If the calculated value is larger than or equal to 15, the IHB symbol will display on the screen with the measurement result. -
Page 23: Frequently Asked Questions
Frequently Asked Questions Why does my blood pressure fluctuate? There are multiple reasons behind fluctuations in your readings. The way you tie the cuff on, the position in which you sit, level of exercise and activity. Taking your readings at the same time and in the same position every day will help to reduce fluctuations. -
Page 24: Troubleshooting
Troubleshooting PROBLEM SYMPTOM CHECK THIS REMEDY Display is dim or will Power are No Power Charge the Unit not light up. exhausted Low Battery Symbol Low Battery Charge the Unit Batteries displays The cuff is not Refasten the cuff and then E1 Shows secure measure again... -
Page 25: Specifications
Specifications Power supply 3.7V 420mAH Built-in rechargeable lithium-ion battery, 5V / 1A USB Display mode Digital LCD V.A.46.5x36.5mm Measurement mode Oscillographic testing mode Rated cuff pressure: 0kpa-40kpa (0mmHg-300mmHg) Measurement range Measurement pressure: 5.3kPa-30.7kPa (40mmHg-230mmHg) pulse value:(40-199)beat/minute Accuracy Pressure: 41˚F-104˚F within±0.4kpa(3mmHg); pulse value:±5% Temperature: 41°F - 104°F (5°C to 40°C) Normal working Relative humidity ≤85%... -
Page 26: Complied Standards
Complied Standards ISO/EN 14971:2012 Medical devices — Application Risk Management of risk management to medical devices ISO/EN 15223-1:2012 Medical devices. Symbols to Labeling be used with medical device labels, labeling and information to be supplied. General requirements EN 1041: 2008 Medical equipment manufacturers User manual to provide information IEC 60601-1: 2005+A1:2012 Medical electrical... -
Page 27: Fcc Statement
Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Guidance The Blood Pressure Monitor needs special precautions regarding EMC and needs to be installed and put into... - Page 28 T W O - Y E A R W A R R A N T Y This Vitasigns product is warranted to be free of manufacturer’s defects in materials or workmanship for two years from the date of purchase. Damage or wear resulting from an accident, misuse, abuse, commercial use, or unauthorized adjustment and/or repair are not covered under this warranty.
