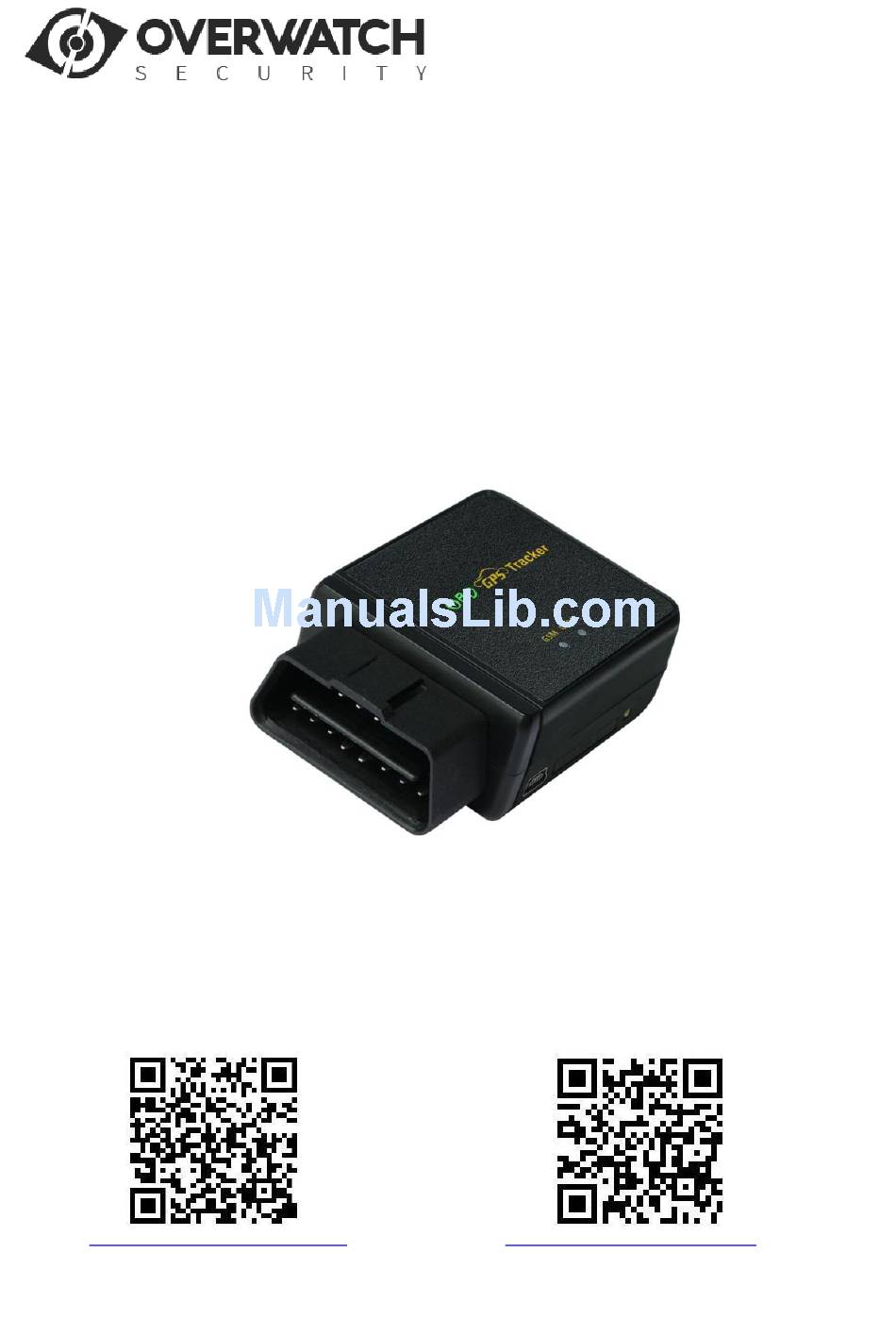

- Page 1 3G GPS Vehicle Tracker User Manual PL630 iPhone App Download QR Code Android App Download QR Code...
-
Page 2: Packing List
Packing list GPS Tracker LED Indicator OBD Interface SIM Card Holder Specification OBD interface, DIY no installation; Diagnostic Car Status(reply by SMS); Auto download & config APN & GPRS setting; Listen sound around tracker; ... - Page 3 Press the yellow switch button beside the tracker with a tool, the SIM card holder will come out. Pull it out and put the SIM card in the holder and then push the holder into the tracker again is OK (Pay attention to that the SIM card metal contact pin can not face down to the holder).
-
Page 4: How To Install
sending SMS. How to Install 1. First to buy a 2G GSM or 3G WCDMA mobile phone SIM card, which needs SMS service and incoming caller ID display and GPRS function, and please disable the PIN code of the SIM card, this SIM card phone number is the tracker number and all the operations (calling and sending SMS) to the tracker is this number. -
Page 5: Setting Instruction
and GPRS username & password sending SMS, you can check the APN & GPRS username password by sending SMS “CHECK*123456” to tracker, Sending SMS “APN*123456*apnname” to the tracker can set the APN, and sending SMS “USERNAME*123456*username*password” to the tracker can set the GPRS username &... - Page 6 830201512345678, and then the user name on the platform of this tracker is : 2345678, and the platform password for this user name also is :2345678,user can login the platform to change the password. 2. Set Server IP Send SMS “IP*123456*58.64.155.133,8011” to the tracker, in which, “IP” is the fixed command, “123456”...
- Page 7 4.1. Add authorized phone number by SMS Send SMS“ADDPHONE*123456*A*number”(Not including the quotation marks “ ”, Number means the telephone number you want authorized, the following is same) to tracker is OK, “ADDPHONE” is a command; “123456” is password; “A” is authorized number location, every tracker have 3 authorized phone number, A and B, and C, so you can set 3 phone numbers, if the add operation is success, the tracker will send back the information ”Add Authorized Phone OK”, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.
- Page 8 Send SMS “CALLON*123456” (Call to authorized number) or “CALLOFF*123456” (No calling) to the tracker, “CALLON” or “CALLOFF” is a command, “123456” is the tracker password, if the operation is success, the tracker will send back the information “Alarm by calling : ON” or “Alarm by calling :OFF”, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.
- Page 9 is success, the tracker will send back the information “GPS: Keep ON” or “GPS: Shock Control”, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”. the default setting is Shock Control, when the tracker begin to move, the tracker turn on GPS, if the tracker stop moving, the tracker will turn off GPS to save car battery power.
- Page 10 the tracker will send back information “Wrong Password”. The following is an example : V Mar 03 2014,TQ,CC0830C00820800,58.64.155.133,8011,30,A:13987654321, B:13876543210, GPS OK,+00,ShockControlGPS,-95dBm,ShockControlGPRS, CMNET,User,Password,46000,e1d/24a0,93% V Mar 03 2014, ;Software version date CC830, ;TCP/IP Protocol name CC0830C00820800, ;ID S/N number 58.64.155.133,8011, ;Server IP and Port 13987654321, ;Authorized number (A/B/C) GPS OK ,...
- Page 11 user have changed the setting, such as APN, IP, authorized number, etc, you need set this again after back to factory mode. if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”. Locate Operation Instruction 1.
- Page 12 https://maps.google.com/maps?q=22.67680N,114.15188E Battery:88% 3. Cell ID Locate with Google map link After sending SMS or calling the tracker to trigger locate, if the tracker can not receive GPS signal or GPS signal weak (underground park or indoor etc), the tracker will change to Cell ID locate, and reply a location with Google map link to the caller or sender.
- Page 13 answered then B and C, if 3 authorized all no answered, then stop calling, If the tracker is triggered continually, every authorized phone will receive max 3 alarm SMS per hour. If the authorized number have been set, use the authorized phone number to send SMS “ARM#”...
- Page 14 Battery:88% After disable the move alarm, the system will not check distance again. Also send SMS “CANCELALARM*123456” to the tracker can cancel this alarm setting. 7. Set Geo-fence Alarm by Sending SMS Send SMS “GEOFENCEALARMON*123456*yyy” (Enable break geo-fence alarm yyy km) or “GEOFENCEALARMOFF*123456”...
-
Page 15: Platform Operation
If the current speed is higher than the setting speed limited, the tracker will send alarm and location information by SMS to the authorized phone number. If the tracker is triggered continually, every authorized phone will receive max 3 alarm SMS per hour. The over speed alarm SMS is as follow: Over Speed Alarm, current speed:XXX km/h After disable the over speed alarm, the system will not check speed again. -
Page 16: Troubleshooting
Notes: Please confirm that the SIM card PIN code has been disabled, it means if mobile phone use this SIM card, it is not necessary to input any password. Otherwise the tracker can not find GSM or CDMA network, the Green LED will keep ON . This tracker use 2G GSM &... -
Page 17: Warranty
move, the tracker will not upload tracking, try to move the tracker. If the tracker can not send back information by SMS, please confirm the SIM card has ID caller display function and SMS service function, and you have set the center or slave center number (only center or slave center number can send SMS), and please read the SMS information of the tracker sending back, and check the instruction &... - Page 18 Warning: this device is just a auxiliary product that applying the location of current object, we have not any responsibility if you have damage or lost in using this tracker. Customer User Mobile Phone Tracker SIM card Date Year month Model CCTR-830G Serial Number...
