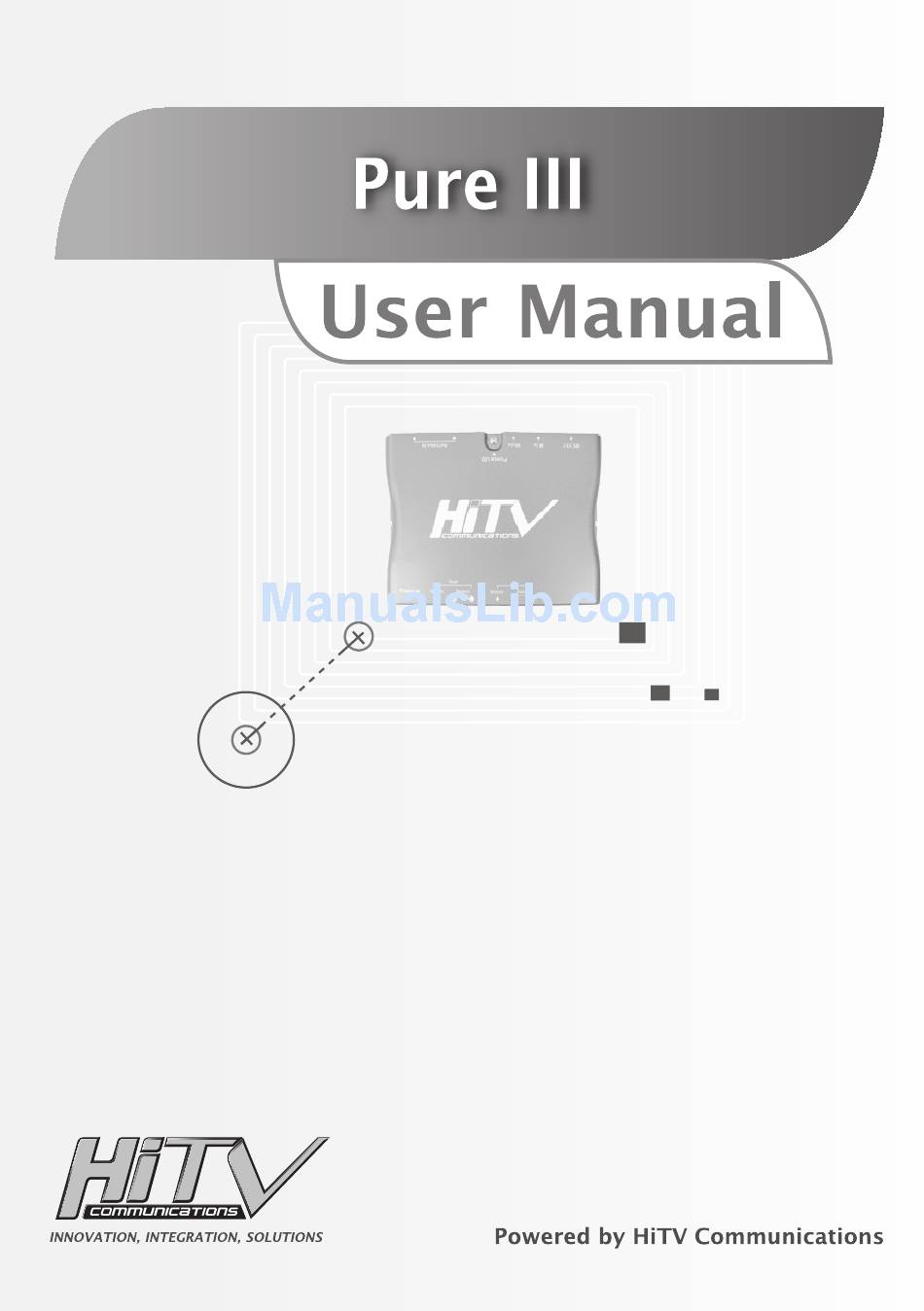

Summary of Contents for HiTV Pure III
- Page 2 Safety Guidelines • To ensure driving safety, the front screen must be connected to the video out “Handbrake” control cable. This will ensure the driver’s concentration while the vehicle is moving. The driver is able to watch TV once the handbrake is activat- ed.
- Page 3 Digital Set-top Box Special features • Suitable for DVB-T reception coverage area • Receives both VHF & UHF signals • Contains digital decoder & twin tuners • Digital decoder will automatically performs error correction, which increases Signal to Noise (S/N) ratio and reception capacity •...
-
Page 4: Table Of Contents
TABLE OF CONTENTS REMOTE CONTROL PRODUCT OVERVIEW Front Panel Rear Panel Getting Start Control Panel Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Channel Function Menu . -
Page 5: Remote Control
REMOTE CONTROL Power toggle button for Audio/Video power on or standby switching button mode Numeric Keys or Channel number channel number up or down Adjust the volume To exit menu Enter main menu Left or right arrow Up or down arrow Auto Scan Multi-channel Audio Channel Back... -
Page 6: Product Overview
PRODUCT OVERVIEW Front Panel ① ② ③ ④ DVD/VCD 1 .DC IN/SC/ANT-POWER 2 .VIDEO OUT DC 12V ~ 24V power input, ACC, handbrake Video output to external LCD screen panel control, power antenna, ground 3 .AUDIO OUT L/R 4 .A/V INPUT Audio output to external speakers Audio &... -
Page 7: Rear Panel
Rear Panel ⑤ ① ② ③ ④ 1 .RS232 2 .IR IN Connects to PC for updating software with Infra-red external cable connector RS232 cable 2 and 3 pin crossed 3 .MODE 4 .POWER LED Viewing mode (On/On), Erase EEPROM (On/ The green light lit indicates power on Off), software update (Off/On), PAL/NTSC/ SECAM mode switch (Off/Off) -
Page 8: Getting Start
Getting Start Control Panel Usage • Press the Menu button to display the control panel. • The default menu displayed will be the Channel menu. (The text of the selected menu will change its colour from white to yellow). • Use the Channel menu to preview the program parameters, to display the signal... -
Page 9: Channel Function Menu
Channel Function Menu • Press the Menu button to display the control panel. The default menu dis- played will be the Channel menu. • The small screen on the left shows the program being broadcasted on the chan- nel that is currently selected in the list below. -
Page 10: Setting Function Menu
Setting Function Menu Controlling the menu: • Press the Menu button to display the control panel. • While in the Channel menu, press the Menu button to enter the Setting menu. ▲▼ buttons to select a menu op- • Use the tion (on the left). -
Page 11: Factory Default
Local Time • If the TV program being broadcasted pro- vides time information in GMT (Green- wich Mean Time), then a local GMT offset must be provided. For example, the GMT offset for Sydney is +10 hours. Menu Transparency • Use this menu option to change the trans- parency of the menu. -
Page 12: Search Function Menu
Search Function Menu Controlling the menu: • Press the Menu button to display the control panel. • While in the Channel menu, press the Menu button twice to enter the Search menu. ◀▶ buttons to select a scan • Use the method. - Page 13 Delete a Carrier Scan Mode select Delete Car- • From rier. • Select your country from Country. • Select a carrier from the carrier window and press OK to delete. Auto Scan Fast • From Scan Mode select Fast. • Once your country has been selected, press OK to run the scan (the scan is per- formed quickly).
-
Page 14: Epg (Electronic Program Guide)
(Electronic Program Guide) • Press the EPG button to enter the EPG window. • Press the buttons (Page+, Page- & Fav+) to select the following modes: NO W(Page+):Program guide for cur- rently showing programs. Ne xt(Page-):Program guide for upcom- ing programs. We ekly(Fav+):Weekly program guide. -
Page 15: Specifications
SPECIFICATIONS Hardware Specifications POWER SUPPLY Input voltage DC 12V~24V Power consumption Max. 10W DEMODULATION Waveform COFDM Modes supported 2K & 8K FEC combinations including hierarchical modes Constellation QPSK, 16-QAM, and 64-QAM TUNER Input connector F Type, Female Input frequency 170MHz ~ 230MHz (VHF) 470MHz ~ 862MHz (UHF) Bandwidth 6MHz or 7MHz or 8MHz or 7/8MHz... - Page 16 M063U00700Y0 W: www.hitv.com.au INNOVATION, INTEGRATION, SOLUTIONS E: support@hitv.com.au...
