  • Page 1 User Manual DVR208 MDVR SERIES Mobile Digital Video Recorder...
  • Page 2 Copyright Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Premier Hazard.
  • Page 3 Keep gaps not less than 3cm around the device to facilitate ventilation for cooling. 6) Accessories Only use accessories supplied by Premier Hazard. Insulate circuit ground and metal shell for all the peripherals. Before installation, please open the package and ensure that all parts are included. If...

  • Page 4: Table Of Contents

    Contents PRODUCT CHARACTERISTICS........................3 1.1. OVERVIEW............................3 1.2. FEATURES............................3 1.3. FUNCTIONS............................3 1.4. SPECIFICATIONS..........................4 1.5. SYSTEM DIAGRAM..........................5 1.6. EXTERNAL INTERFACE......................... 6 SETTING................................8 2.1. REMOTE CONTROL PANEL......................8 2.2. CP163-003 CONTROL PANEL.......................9 OPERATING INSTRUCTIONS........................10 3.1. LOCAL LOGIN..........................10 3.2. RECORD SEARCH AND EXPORT:..................... 12 3.3.

  • Page 5: Product Characteristics

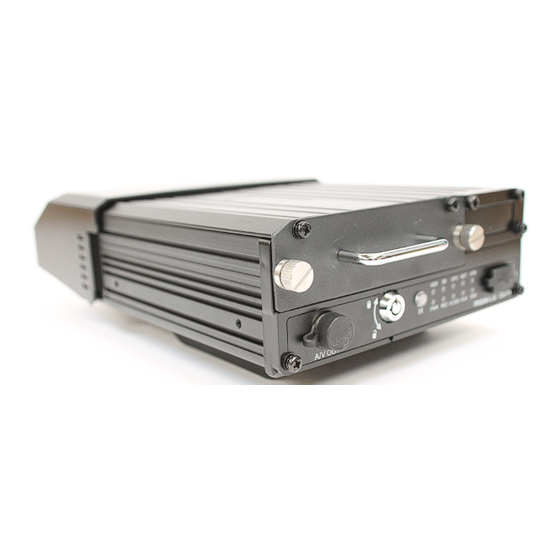

    1. PRODUCT CHARACTERISTICS 1.1. OVERVIEW DVR208 is an advanced and function-extensive Mobile Video Recorder specially designed for It uses high-speed processor and an network high definition, analog audio & video input . embedded operating system, combining with H. 264 video compression / decompression technology, network technology and GPS locating technology.

  • Page 6: Specifications

    1.4. SPECIFICATIONS Function Overview Preview, Recording, Playback, Network, Locating Linux 3.0.8 System Control Mode CP4, Easy Check, IR Remote Control, Network 8channel WD1+4channel IPC(720P) or Input 4channel WD1+8channel IPC (720P) Output 2 channels (8 x 25)FPS WD1 @ PAL / (8 x 30)FPS WD1 @ NTSC +(4 Video x 30)FPS 720P or Total Resource...

  • Page 7: System Diagram

    RS232 RS232 X 2 RS485 RS485 X 2 Sensor 8 inputs, 2 outputs Serial G-sensor (Internal) Speed 1 channel pulse speed detection Interface Interface (CP4) Optional Input DC8-36V Power Output 1A@12V,1A@5V Others Water Proof Rate IP54 1.5. SYSTEM DIAGRAM Diagram1 (POE Switch RJ45)

  • Page 8: External Interface

    Diagram 2 ( POE Switch Aviation-din) 1.6. EXTERNAL INTERFACE 1) Dimension...

  • Page 10: Setting

    2. SETTING 2.1. REMOTE CONTROL PANEL Remote control key directions 1）when the password is turned off, in preview screen, press this bottom standby (soft start key), press again the device turn on. 2）When the password is enabled, ON/OFF in preview screen, press this key, the password prompt box appears, enter the administrator password to restart the machine...

  • Page 11: Cp163-003 Control Panel

    Pressing the fast forward button FAST during playback image speeds up FORWARD by 2X, 4X, 8X playback speed Rewind button during plays back REWIND image speeds by 2X,4X, 8X STOP ■ Stop manual recording button RECORD ● Start manual recording button During playback, turn the page / DOWN ▼...

  • Page 12: Operating Instructions

    Operation Instrument Remark: When reporting to CMS server, use serial number. When using Android pad, you need to select vehicle number, as when insert the wifi hot spot to USB port of the 4120, the hot spot will get the vehicle number and change its SSID to vehicle number. 3.
  • Page 13 User can enter the operation interface if entering the right password; Click cancel to exit the login interface;  Language： Support the language switch. "language" (Lang) means the current interface adopts English; It will automatically switch once Selecting the language. Currently, it supports English and Chinese.

  • Page 14: Record Search And Export

    Move Cursor to【Esc】 position, Press【Enter】or the left click D-PAD to exit the keypad, the entered contents will not be written to the edit box 3.2. RECORD SEARCH AND EXPORT: Video search interface contains video file search, video data backup and video playback function. When there is a hard disk or SD card, enter the video search interface.
  • Page 15  Time Bar: Time bar shows three time points, 0 o'clock, 12 o'clock, 24 o'clock. It shows what type of videos during the time according to the marked channel.  Channel No: According to the situation of video for each channel video the day , the video will be displayed on the time line.

  • Page 16: Log Search And Export

    Video export: Select the channel that has the video files, click this button, all the video files in  the effective time period will be exported to the external USB peripherals, file format can be.264<comprehensive file >, also can be avi format. User can also pull out the hard drive or SD card, export and playback the video by professional software.
  • Page 17 Log search interface instruction:   Start time: the start time for searching log files  End time: the end time for searching log files Log types: classification of log search, including the operation log and alarm log and locking log ...

  • Page 18: System Status

    3.4. SYSTEM STATUS User can login the interface with no access restrictions. System- Version information   System- Modules System-Server status ...

  • Page 19: Basic Setup

    System - Environment   System-Storage: 3.5. BASIC SETUP Click setup button and enter the following interfaces: 3.5.1. REGISTER INFOMATION (SETUP VEHICLE INFORMATION)  Register information-Device info:...

  • Page 20: Time Setup

    Register information- Vehicle info   Vehicle Number：When connected with PAD, the vehicle number is needed.  Vehicle plate：Input manually.  Line number：Input manually. Register information—About the driver’s information:   Driver number: Input manually.  Driver name: Input manually. 3.5.2.

  • Page 21: Start Up

    Time setup-General   Date format: Setup the date format of device  Time format: 24 hours or 12 hours Time zone: Select correct time zone   Time-Time Sync Date/Time: Device time, from 2000-01-01 to 2037-12-31   Satellite: Synchronize time with GPS satellite. Once GPS signal changes to valid, device will synchronize time ...

  • Page 22: User Setting

    ON/OFF mode: 3 modes, including ignition, timer and ignition or timer. Ignition: Input ignition delay time for shutdown delay function Timer: When setup the start mode as Timer, please setup the start time and end time Under this mode, MDVR’s start up or shut down time will not affect the ignition. Note: If use setup as Ignition or Timer Mode, Ignition ON or Timer start time can trigger MDVR start up.
  • Page 23 User name: The default ones are admin and user.   User Group: It is divided into administrator and ordinary user.  Supports delete user function. Select the user and click "Delete User" button. Please be noted that the administrator can not be deleted. ...

  • Page 24: Network Settings

    Modify the user name and password to confirm the operation temporarily. There is no need to verify the old password, Administrator user name can not be modified. 3.5.5. NETWORK SETTINGS In the basic settings, click Network Settings, enter the following interface, user can set the network parameters.
  • Page 25 WEB port No.: The default is 80, will be used in IE to access this port.   Media Port No.: The default is 81, the forwarding server will use this port.  Net working settings- Instruction of wifi network： Enable : Select to enable WIFI ...

  • Page 26: Video Surveillance

    Network type: The default one is Mix, 2G/3G or 2G/3G/4G optional.   Dialing parameter：It includes access point, user name, password, data service number, and enter SIM parameters provided by the manufacturer. The default is empty.  Certification：Supports PAP or CHAP. Remark: When there is SIM and normal 3G/4G signal, it will dial automatically.
  • Page 27 Startup Screen: Set the live-view screen, it can be single-screen or quad screen or nine screen   Channel: Set the channel when live-view Auto Looping Setting Interface:   Screen: Totally 32 screens can be added.。 Mode: 1x1, 2x2, 3x3 optional. ...

  • Page 28: Record

    Display the information on screen, time is always default, and the screen position cannot be set. 4.2. RECORD Surveillance-->Record  Record Setting Interface: Video type: Default is PAL, NTSC optional   Overwrite: Enable the HDD to be overwritten when it is full ...
  • Page 29 supports 720P  Frame Rate: Frame Rate of the recording.  Picture Quality: Picture Quality of the recording. Record T ype: Ignition, Time, Event are optional . Each channel can be set separately .  The sub-stream and mirror record are the same. Audio: Enable the audio.

  • Page 30: Ipc Setup

    Record-OSD  Embedded key information to video file for easily check when playing back. 4.3. IPC SETUP  IPC setup: Channel: 1-8 are default for analog cameras. If selected, then analog camera is invalid. 9-12  channel are for IP cameras Enable IPC: Enable to operate ...

  • Page 31: Data Collection

    4.4. DATA COLLECTION GENERAL General- IO sensor  Sensor number: 1~8 optional.   Sensor name: IO sensor name. OSD name: The on screen information embedded to video image.  Copy: Copy the configuration and use it for other sensors. ...

  • Page 32: Alarm

     Unit: KM/H and MPH selectable.  Source: GPS, pulse or both optional. Calibration mode: No need to calibrate if setup as satellite mode.  4.5. ALARM GENERAL  General --Speed alarm  Name: The current name is Overspeed  Enable：Enable or disable, tick to enable Alarm type: 3 levels ...
  • Page 33  Name：The current name is panic.  Enable：Enable or disable  Alarm type: 3 levels Trigger: Low or high voltage to trigger alarm.   Linkage: When alarm is triggered, link to alarm output, full screen live video, report to server and so on ...

  • Page 34: Maintenance

     CH：Associated recording, optional Post-recording：When the alarm is canceled, the time continue to record for set amount of time.   Lock：Only for alarm video  3G Network: It means when the alarm triggered, should it active the 3G module to dial or not. Linkage output: When alarm triggered, associate with which sensor output ...

  • Page 35: Data Export

    “IMPORT” to import the parameters, and it will display the notice when import success. Note: it won’t import the register info and speed adaption info.  4.6.2. DATA EXPORT In the Data export page, you can export the appointed file in any time, such as black box data, log file etc.

  • Page 36: Storage

    4.6.4. STORAGE In this page, user can format all the storage.  Storage type: HDD, SD card (Internal), SD card(External), USB drive  Free/Total Not exist: Didn’t find the HDD (not installed or faulty) Unformatted: Means the HDD has been detected, but unformatted.(New HDD) Capacity info: Display the correct info means HDD working fine ...

  • Page 37: Reference Appendix

    Note: Language, MAC address, register info, CMS server info, speed adaption parameter will not be changed if default is selected. 5. REFERENCE APPENDIX 5.1. STORAGE CAPACITY CALCULATION Image Quality & Streams Image Stream 2048 1536 1230 1024 (Kbps) 1280 Record File Size Calculation Rec.

  • Page 38: Frequently Asked Questions

    Image Quality 540 450 395 Reso 337 281 246 lution 176 153 5.2. FREQUENTLY ASKED QUESTIONS The system will not start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition and correct rating.
  • Page 39 Environmental influence such as dense forestry, being inside tunnel, driving near tall building or elevated roads, thunderstorms or other weather influence, etc . can also cause signal loss or receiving wrong signals. The device will not shutdown in ignition switch mode? Please follow below steps to check it: Check if the ACC line connection mode is correct;...
