Summary of Contents for HCI Fitness UBE Rehab Table

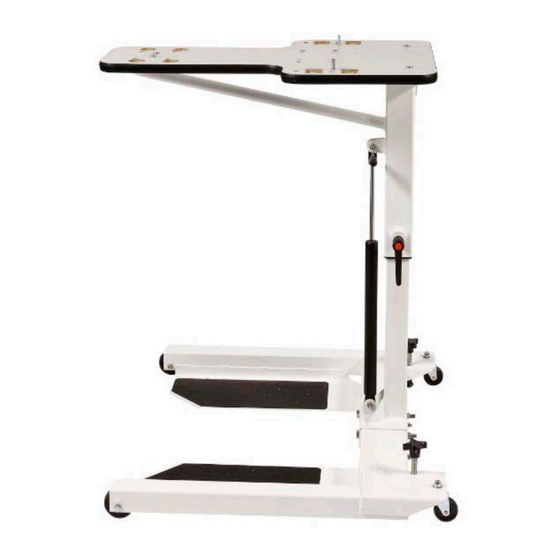

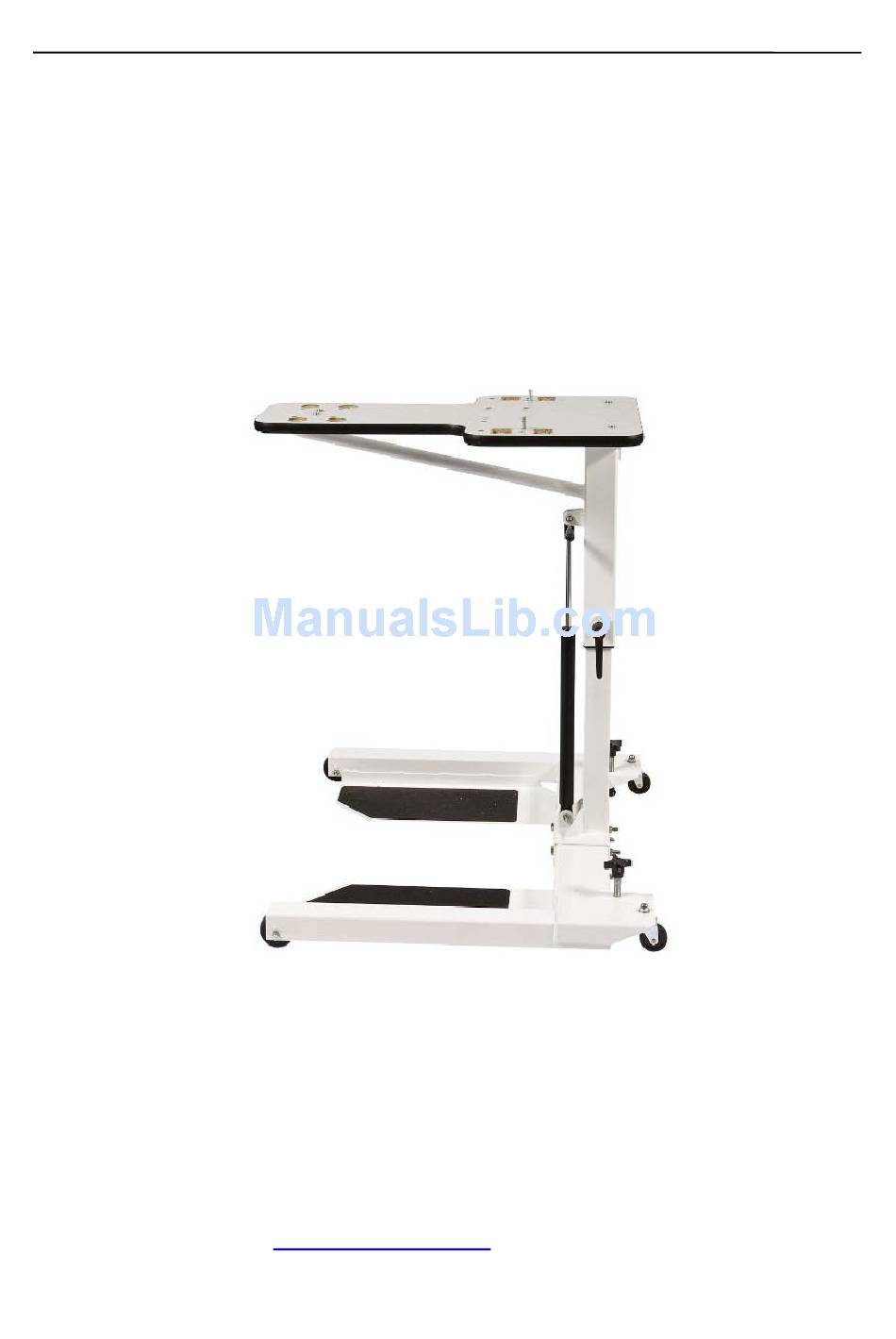

- Page 1 HCI Fitness UBE Rehab Table OWNER’S MANUAL HealthCare International, Inc. PO Box 1509, Langley, WA 98260 www.HCIFitness.com, p.360.321.7090...
-
Page 2: Safety Precautions
10. Keep clothes, jewelry or loose items away from moving parts. Please note: Maximum weight limit for the UBE Rehab Table is 65 lbs (29 kg) WARNING BEFORE BEGINNING ANY EXERCISE PROGRAM CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PEOPLE WITH PRE-EXISTING HEALTH PROBLEMS. -
Page 3: Assembly Overview
HCI Fitness - UBE Rehab Table Thank you for your purchase! At HealthCare International, our goal is to provide high-quality and affordable products for Health, Wellness, Fitness & Active Aging. We wish you continued success in your journey towards optimum health and fitness! Assembly Overview When you receive your UBE Table, some assembly is required. - Page 4 UBE Table Exploded Drawing...
- Page 5 UBE Table Parts List Description Qty No. Description Base Frame Wing Nut 1/4” Lower Frame Hex cap nut ⅜ ” Upper Frame Flat Washer⅜” Stabilizer Plate Hex bolt ⅜” L5” Table Board Hexagonal Nut ⅜” Cylinder Flat Washer Clamp Levers Hex head Screw 5/16”L½...
-
Page 6: Hardware Kit
Hardware Kit (08)Knob1/2” x 4” -2pcs (16)Plate washer18x96x2T -4pcs (19)Wing nut 5/16” -10pcs (20)Wing nut 1/4”-2pcs (21)Hex cap nut 3/8”-2pcs (22)Flat washer 3/8”-4pcs (23)Hex bolt 3/8”-2pcs (24)Hexagonal nut 3/8”-2pcs (25)Flat washer 5/16”-10pcs (26)Hex head screw 5/16”x 1/2” -2pcs (27)Hex bolt 5/16” x1 1/2” -2pcs (28)Hex bolt 5/16”... -
Page 7: Assembly Instructions
Assembly Instructions Step 1: a. Attach the Lower Frame (02) to the Base Frame (01). Insert the front tow sets of Hex Bolts (23), Flat Washers (22) and Nuts (24) as shown in the illustration below. b. Insert the two Knobs (08) toe the Base Frame. Tighten the Knobs until the rubber ends come in contact with the floor. - Page 8 Step 3: a. Connect the Stabilizer Plate (05) toe the Frame (03) with two Hex Head Screws (26) as illustrated below. Securely tighten the bolts. Step 4: a. Attach the Table Board (05) onto the Plate (04) using 4 Bolts (32) and two Mushroom Screws (31) with Wing Nut (20) as shown in the illustration below.
