Summary of Contents for ChoiceMMed BP201

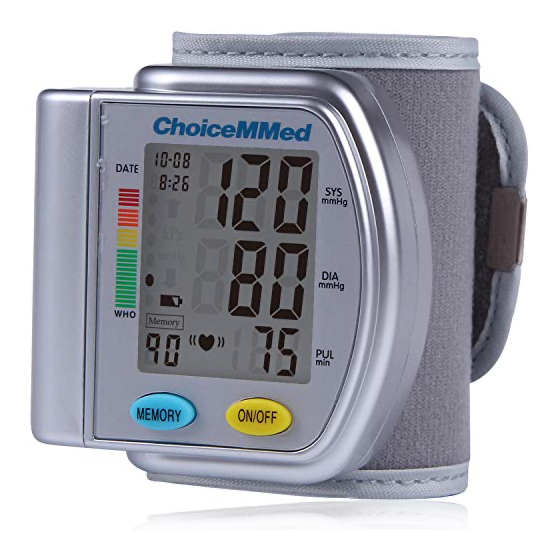

- Page 1 WRIST BLOOD PRESSURE MONITOR INSTRUCTION MANUAL Models: BP201 English Instruction Guide Ver1.0...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT INFORMATION ………….………. (3) DELETING MEASUREMENT FROM THE MEMORY.…….. (10) PRECAUTION FOR USE……..…………….…….(4) EVALUATING BLOOD PRESSURE FOR ADULT..(11) BEFORE YOU START….………..………. ……(4)(5) SPECIFICATIONS……………………………….….. (12) MONITOR COMPONENTS…...…..…………. .(5) TROUBLE SHOOTING…………………………(13)(14) DISPLAY OF LCD……………..……………….. . (6) BOX CONTENTS…….…………………….. ……….(15) SYMBOLS………………………..…………………..(15）... -
Page 3: Important Information
IMPORTANT INFORMATION Please read this instruction manual thoroughly so that you completely understand the operations, cautions, performance and limitations with this monitor. After reading this manual, please keep it for future reference. You should not use this blood pressure monitor for self-diagnosis, self-treatment or to change medication without consulting your physician or other health care professional. -
Page 4: Precaution For Use
PRECAUTION FOR USE The BP201 Wrist Automatic Blood Pressure Monitor is designed to be operated by anyone who is eighteen years and older or by medical professionals to monitor blood pressure (systolic and diastolic) and pulse rate. BEFORE YOU START Please make sure you have installed 2 AAA (3 volt) batteries (alkaline batteries recommended), to install batteries or replace them if the “Low Battery”... -
Page 5: Monitor Components
Note： ★ When the LCD display shows “Low Battery” signal ,the batteries must be replaced for accurate readings. ★ Do not use rechargeable batteries with a voltage of 1.2Veach because they are not suitable for this product and will cause inaccurate readings. ★... -
Page 6: Display Of Lcd
DISPLAY OF LCD Mode for LCD display: (1) Date: Month - Day (2) Time: Hour - Minute (3) Systolic Blood Pressure (unit: mmHg) (4) Diastolic Blood Pressure (unit: mmHg) (5) Pulse (unit: beat/minute) (6) WHO BP Classification Indicator (7) Inflation / Deflation Indicator (8) Blood Pressure Measurement Unit (9) Low Battery Indicator (10) Irregular heartbeat Indicator... -
Page 7: Tips For Blood Pressure Monitoring
TIPS FOR BLOOD PRESSURE MONITORING ★ Relax for about 5 minutes before measurement. ★ Do not smoke or ingest caffeine at least 30 minutes prior to measurement. ★ Remove any constricting clothing or watch and place the cuff on a bare wrist. ★... -
Page 8: Lcd Display For Blood Pressure
(2) HOW TO WRAP THE CUFF ★ Place the cuff around a bare wrist ½ or ¾ of an ON YOUR WRIST? inch above the wrist joint on the opened-hand side of the wrist. ★ Keep the cuff at the same level as your heart. ★... -
Page 9: Clock And Date Adjustment
CLOCK AND DATE ADJUSTMENT ★ When the monitor is turned off, press ON/OFF and the ‘MEMORY’ buttons for 3 seconds at the same time. The number of the year will blink on the LCD display. When the MEMORY button is again pressed and released, the month will blink. -
Page 10: Irregular Heartbeat Indicator
IRREGULAR HEARTBEAT INDICATOR If an irregular heartbeat is detected, the Irregular Heartbeat symbol will appear and blink in the display window. DELETING MEASUREMENT FROM THE MEMORY Press and hold the ‘MEMORY’ BUTTON until all numbers change to ‘ZERO’. -
Page 11: Evaluating Blood Pressure For Adult
EVALUATING BLOOD PRESSURE FOR ADULTS The following standards for assessing high blood pressure (without regard to age or gender) have been established as a guide according to WHO (World Health Organization). Please note that other risk factors (e.g. diabetes, obesity, smoking, etc.) need to be taken into consideration and may affect these figures. -
Page 12: Specifications
SPECIFICATION Model No.: BP201 Operation Environment: Temperature: 5~40°C ------------------------------------- Humidity: < 85%RH Type: Oscillometric; Automatic air ---------------------------------------- inflation by air pump and Storage Environment: Temperature: -20~60°C automatic deflation Humidity: < 95%RH ------------------------------------- Classification: Class II, type B Measurement Pressure: 40~280mmHg... -
Page 13: Trouble Shooting
TROUBLE SHOOTING (1) Abnormality Probable Reason Corrective action LCD shows Low Batter Batteries are low. Install new batteries. symbol Pneumatic system blocked or cuff Make certain the cuff is wrapped around is too tightly wrapped. your arm correctly and re-measure. The unit does not Pressure system was unstable Measure again. - Page 14 TROUBLE SHOOTING (2) Abnormality Reason Checkout LCD shows “Er U” Insufficient inflation Wait for 5 minutes and re-measure. LCD shows “Er H” Inflation over 305 mmHg operation still abnormal, contact manufacture or agent (see the last page) LCD shows “Er 1” Undetectable the pulse LCD shows “Er 2”...
-
Page 15: Box Contents
Box Contents 1 Wrist Blood Pressure Monitor 1 Plastic Carrying Box 1 Product Instructions 2 AAA Alkaline Batteries Symbols Type B Applied Part Attention and Caution Serial Number Date of Manufacture Consult Accompanying Documents Storage Temperature & Relative Humidity... -
Page 16: Limited One Year Warranty
LIMITED ONE YEAR WARRANTY ChoiceMMed America Co. warrants to the original purchaser that this equipment will be free from defects in materials and workmanship for a period of one year from the date of purchase. To obtain full warranty coverage, please be sure to complete your product registration within 30 days from date of purchase.
