Summary of Contents for ChoiceMMed MDBP13
- Page 1 Ver 2.0 Owner's Manual Arm-type Fully Automatic Digital Blood Pressure Monitor Model: MDBP13 - 1 -...
-
Page 2: Table Of Contents
Contents Safety Notice ..................1 Unit Illustration ................... 3 Important Testing Guidelines ............. 6 Quick Start ..................7 Unit Operation ..................8 Blood Pressure Information ............... 14 Blood Pressure Q & A ................. 16 Maintenance ..................17 Specifications ..................19 Declaration .................... -
Page 3: Safety Notice
MDBP13 Digital Blood Pressure Monitor Safety Notice Thank you for purchasing the MDBP13 Blood Pressure Monitor. The unit has been constructed using reliable circuitry and durable materials. Used properly, this unit will provide yeas of satisfactory use. This device is intended for non-invasive measuring an adult individuals’ systolic, diastolic blood pressure and heart rate using the oscillometric method. - Page 4 Digital Blood Pressure Monitor MDBP13 2. Contact your physician if test results regularly indicate abnormal readings. Do not attempt to self-treat these symptoms without consulting your physician first 3. Product is designed for its intended use only. Do not misuse in any way.
-
Page 5: Unit Illustration

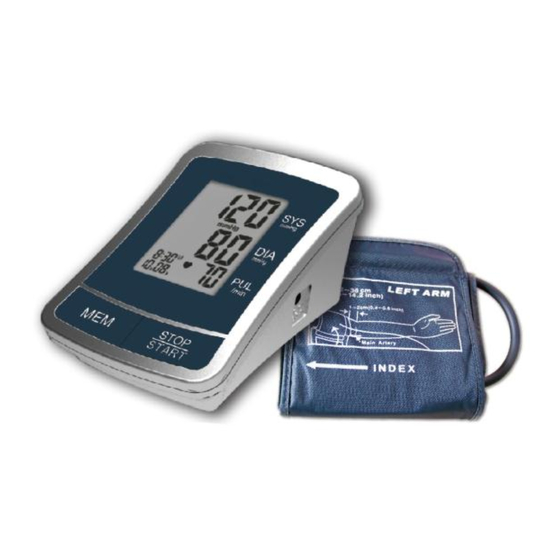

Digital Blood Pressure Monitor MDBP13 Unit Illustration Monitor Unit Systolic Blood Pressure Diastolic Blood Pressure “STOP/START” Button “MEM” Button Battery Cover AC Adapter Jack - 3 -... - Page 6 MDBP13 Digital Blood Pressure Monitor Arm Cuff Display Systolic Blood Pressure Battery Indicator Diastolic Blood Pressure Time Pulse Rate Date - 4-...
-
Page 7: Medical Ac Adapter (Dc6
MDBP13 Digital Blood Pressure Monitor Contents 2. Owner’s Manual 1. Monitor Unit 4. Storage Case Cuff 5. Medical AC Adapter (DC6 600mA) recommended provided) - 5 -... -
Page 8: Important Testing Guidelines
MDBP13 Digital Blood Pressure Monitor Important Testing Guidelines 1. Avoid eating, exercising, and bathing for 30 minutes prior to testing. 2. Sit in a calm environment for at least 5 minutes prior to testing. 3. Do not stand while testing. Sit in a relaxed position while keeping your arm level with your heart. -
Page 9: Quick Start
MDBP13 Digital Blood Pressure Monitor Quick Start 1. Install batteries. (See Figure A ) 2. Insert cuff air plug into the left side of monitor unit.(See Figure B) 3. Remove thick clothing from the arm area. 4. Rest for several minutes prior to testing. Sit down in a quiet place, preferably at a... -
Page 10: Unit Operation
MDBP13 Digital Blood Pressure Monitor Unit Operation Battery Installation Slide battery cover off as indicated by arrow. Install 4 new AA alkaline batteries according to polarity. Close battery cover. AC Adapter jack is on the right side of the monitor. Medical AC adapter(DC 6.0 V, 600mA) can be used with the device (recommended, not provided). - Page 11 MDBP13 Digital Blood Pressure Monitor Note: if unit is left on and not in use for 3 minutes, it will automatically save all infor- mation and shut of . Applying the Arm Cuff 1. Firmly insert air plug into opening located on left side of monitor unit.
- Page 12 MDBP13 Digital Blood Pressure Monitor appear for one second as unit performs a quick diagnosis. A long tone indicates device is ready for testing. Note: Unit will not function if residual air from previous testing is present in cuff. The LCD will flash “...
- Page 13 MDBP13 Digital Blood Pressure Monitor MDBP13 Note: Keep relaxed during testing. Avoid speaking or moving body parts. 4. Result Display Three short beeps sound when testing is complete. The screen will display mea- surements for systolic and diastolic blood pressure.
- Page 14 MDBP13 Digital Blood Pressure Monitor Memory Deletion Which in memory check made. Press " START / STOP" and hold on for about 3 seconds to delete all history results and the LCD screen display“- - -” with beep sounds: Then press " START/ STOP" button to turn off the unit.
- Page 15 MDBP13 Digital Blood Pressure Monitor Troubleshooting Problem Possible Cause Solution Cuff is too tight or not Firmly reposition cuff approximate- properly positioned on ly 1-2cm (1/2") above the elbow joint the arm ( See Page 9) Blood pressure Sit in a relaxed position with arm...
-
Page 16: Blood Pressure Information
MDBP13 Digital Blood Pressure Monitor Blood Pressure Information Blood Pressure Blood pressure is the force of blood pushing against the walls of arteries. It is typi- cally measured in millimeters of mercury (mmHg.) Systolic blood pressure is the maximum force exerted against blood vessel walls each time the heart beats. Dia- stolic blood pressure is the force exerted on blood vessels when the heart is resting between beats. - Page 17 MDBP13 Digital Blood Pressure Monitor Note: Do not be alarmed if an abnormal reading occurs. A better indication of an in- dividual’s blood pressure occurs after 2-3 readings are taken at the same time each day over an extended period of time. Consult your physician if test results remain abnormal.
-
Page 18: Blood Pressure Q & A
MDBP13 Digital Blood Pressure Monitor Blood Pressure Q & A Q: What is the difference between measuring blood pressure at home or at a pro- fessional healthcare clinic? A: Blood pressure readings taken at home are now seen to give a more accurate account as they better reflect your daily life. -
Page 19: Maintenance
MDBP13 Digital Blood Pressure Monitor Maintenance 1. Avoid dropping, slamming, or throwing the unit. 2. Avoid extreme temperatures. Do not expose unit directly under sunshine. 3. When cleaning the unit, use a soft fabric and lightly wipe with mild detergent. Use a damp cloth to remove dirt and excess detergent. - Page 20 MDBP13 Digital Blood Pressure Monitor MDBP13 4. Cuff Cleaning: Do not soak cuff in water! Apply a small amount of rubbing alcohol to a soft cloth to clean cuff’s surface. Use a damp cloth (water-based) to wipe clean. Allow cuff to dry naturally at room temperature.
-
Page 21: Specifications
MDBP13 Digital Blood Pressure Monitor Specifications Product Description Arm-type Fully Automatic Digital Blood Pressure Monitor Model MDBP13 LCD Digital Display Size: 62.7mm×46.4mm (2.47” x Display 1.83”) Measurement Method Oscillometric Method Pressure 0mmHg~300mmHg Measurement Range Pulse 30 to 180 Beats/Minute Pressure ±3mmHg... -
Page 23: Declaration
MDBP13 Digital Blood Pressure Monitor Temperature: C ~ 55 C (-4 F ~131 Storage Environment Humidity 15%-90% RH Pressure 525mmHg~795mmHg Internal Powered Equipment, Type BF ,Cuff is the Applied Part Specifications are subject to change without notice. This Blood Pressure Monitor complies with the European regulations and bears the CE mark “CE 0123”.This blood pressure monitor also complies with mainly following... - Page 24 Guidance and manufacture’s declaration – electromagnetic emission The MDBP13 Digital Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer of the user of the MDBP13 Digital Blood Pressure Monitor should assure that it is used in such an environment.
- Page 25 (60% dip in UT) for 5 cycles for 5 cycles it is recommended that the MDBP13 be powered from 70% UT 70% UT an uninterruptible power (30% dip in UT) (30% dip in UT) for 25 cycles supply or a battery.
- Page 26 Guidance and manufacturer’s declaration – electromagnetic immunity The MDBP13 Digital Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer or the user of MDBP13 Digital Blood Pressure Monitor should assure that it is used in such an environment.
-
Page 27: Warranty
RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MDBP13 Digital Blood Pressure Monitor is used exceeds the applicable RF compliance level above, the MDBP13 Digital Blood Pressure Monitor should be observed to verify normal operation. - Page 28 MDBP13 Digital Blood Pressure Monitor Warranty The Blood Pressure Monitor is guaranteed for 2-year from the date of purchase. If the Blood Pressure Monitor does not function properly due to defective components or poor workmanship, we will repair or replace it freely. The warranty does not cover damages to your Blood Pressure Monitor due to improper handling.
- Page 29 Made in China © 2016 Beijing Choice Electronic Technology Co., Ltd. ALL RIGHTS RESERVED Revised Date: Mar. 21 2016...
