Summary of Contents for FMN alpha open air

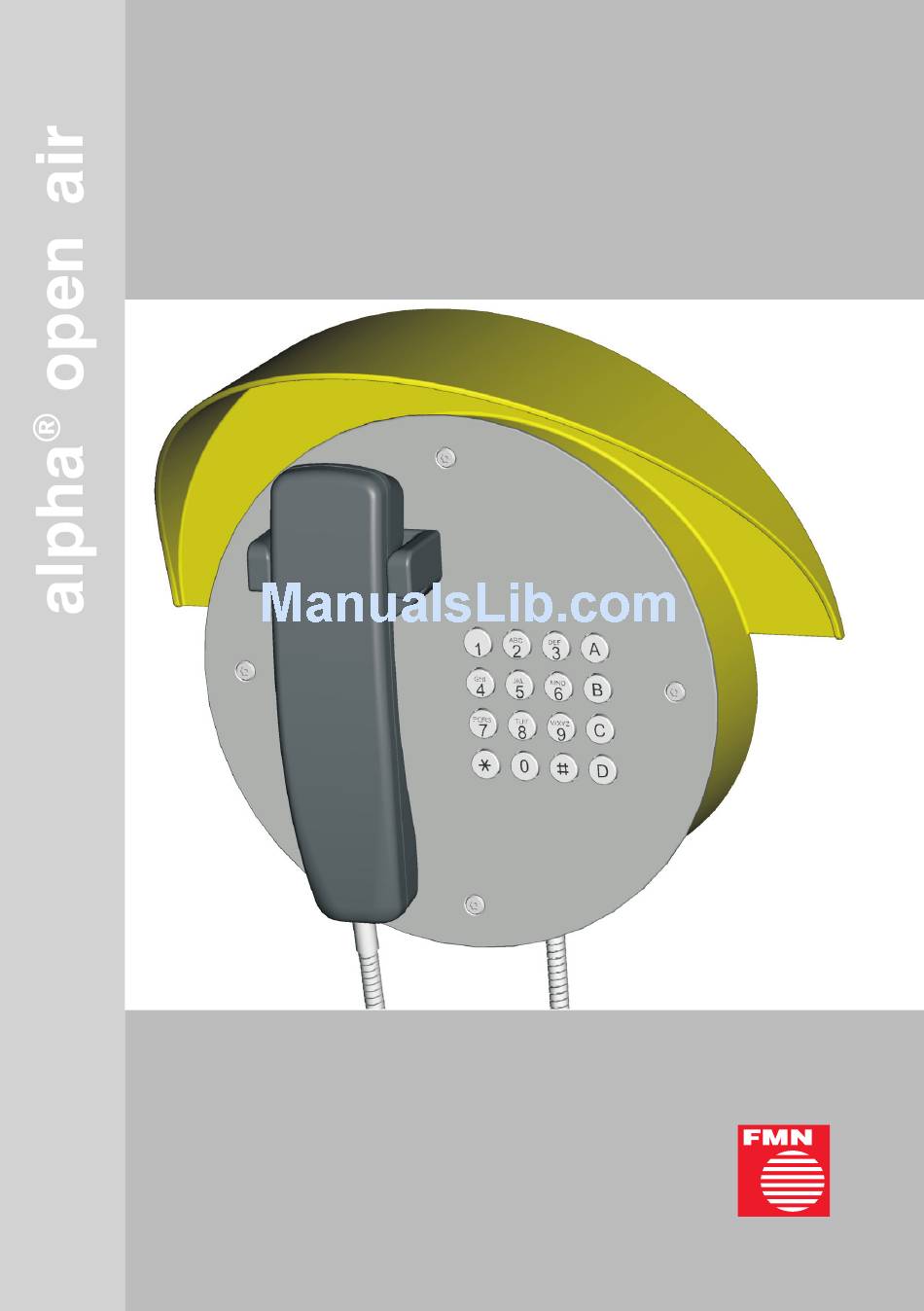

- Page 1 Instructions for use...
-
Page 2: Safety Precautions
In no event shall FMN be liable for any damages caused by such unauthorized modification of the unit. Especially all kinds of repair and soldering works on the main board (PCB) are prohibited. -
Page 3: Table Of Contents
Table of contents Safety precautions ................2 Table of contents ................3 Versions of the alpha open air / Mounting........4 1. Versions of the alpha open air ..............4 2. Delivery scope .....................4 3. Mounting instructions ..................4 3.1 Mounting on a wall with cable entry at the bottom of the casing .....4 3.2 Mounting on a wall with the cable leading through the back panel of... -
Page 4: Versions Of The Alpha Open Air / Mounting
• 1 offset screw driver 3. Mounting instructions You can mount the alpha open air on a wall or a pole. It can be mounted on a pole using two mounting clips (not within the delivery scope) which are screwed on the 4 fixing holes of the back panel of the casing. -
Page 5: Mounting On A Wall With The Cable Leading Through The Back Panel Of The Casing
3. Cable entry on the back panel: drill a hole (min. ∅ 6 mm) into the marked point. 4. Take the alpha open air out of the packaging. Remove the front panel from the back compartment by loosening the 4 Security-TORX screws (tool: offset screw driver). -
Page 6: Installation
Drawing 3 Each version of the alpha open air has a different default setting. The default settings are described in points 5.2.1 and 5.3.1. If you want to make any changes, follow the instructions on the following pages. -
Page 7: Telephone With 4 Destination Dialling Keys
Telephone with 4 destination dialling keys 5. Settings The alpha open air needs to be opened in order to be able to make settings and program the destination dialling keys (remove the front panel from the casing by unscrewing the 4 Security-TORX screws). -
Page 8: Normal Telephone Function (Default Setting)
Telephone with 4 destination dialling keys - handset is off-hook - press Set key (see drawing 3) - press Digit key 1 - press Set key 5.2.3 Programming the flash key The second destination dialling key has a double function. It is the flash key in this mode. -
Page 9: Programming Automatic Direct Station Selection
Telephone with 4 destination dialling keys / automatic direct station selection - handset is off-hook - press Set key - press Digit key 4 - press Set key Note: The telephone is in working condition if the destination dialling key 1 is programmed with a call number. -
Page 10: Telephone With Automatic Direct Station Selection
Telephone with automatic direct station selection / Connection permit Description of the operating panel Back view of main board keypad key F key E Drawing 6 5.3.1 Default setting l telephone with automatic direct station selection - DTMF dialling l 1 destination dialling memory with a maximum of 20 digits, (the memory is empty or preprogrammed by default with a call number (option)) 5.3.2 Programming the destination dialling key... -
Page 11: Warranty
40 Euro, the regular costs of sending back the goods will have to be paid by the consumer. 9. Conformity The FMN communications GmbH declares that the telephone “alpha open air” complies with the essential requirements and the other relevant provisions of the directive 1999/5/EG (R&TTE Directive). - Page 12 ∅8 (Mounting using dowels e. g. solid wall) ∅4 (Mounting without dowels e. g. wood wall) Drilling template FMN communications GmbH Grimmelallee 4 99734 Nordhausen min.∅6 P . O. Box 10 04 65 99724 Nordhausen Phone +49 (36 31) 56-50 00...
