Summary of Contents for FMN B122plus

  • Page 1: Instructions For Use

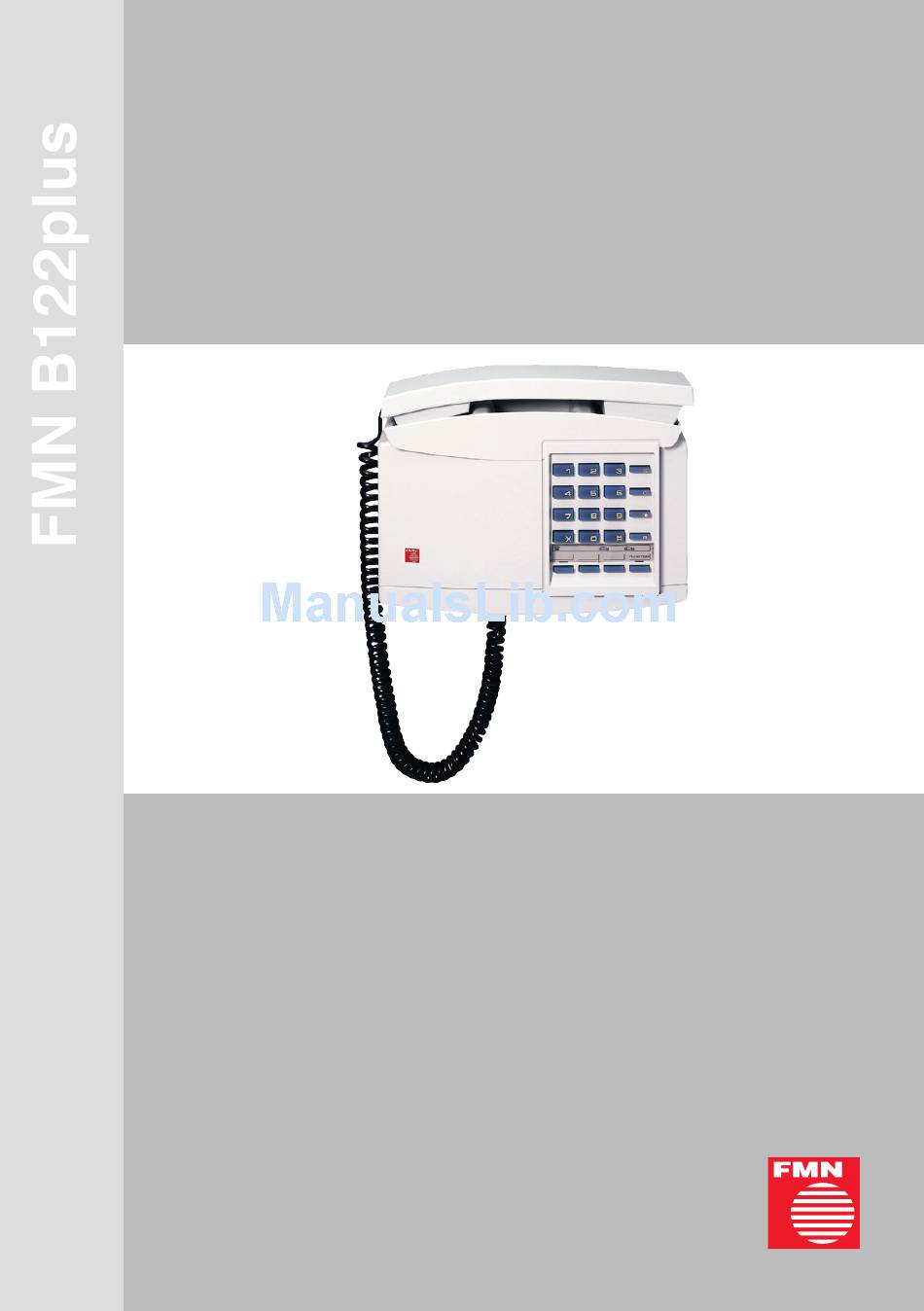

    Instructions for use FMN B122plus...

  • Page 2: Safety Precautions

    Safety precautions Safety precautions Do not open the device yourself, allow repairs by authorised specialists only! Do not use or install your telephone in rooms with danger of explosion and near electromagnetic fields (e.g. domestic appliances, TV or video recorders)! The telephone is not splash-proof.

  • Page 3: Table Of Contents

    Table of contents Safety precautions .................... 2 Introduction ...................... 4 Dialling method (pulse / DTMF dialling) ............4 Setting up and putting into operation..................4 Plugging in the handset cord ....................4 Connecting the telephone ......................4 Labelling ..........................4 Installation and maintenance ................5 Operating panel / key assignment ..............

  • Page 4: Introduction

    Please read the following instructions carefully in order to get fully acquainted with all the functions of the telephone. Dialling method (pulse / DTMF dialling) The FMN B122plus has been designed for use on public telephone lines and telephone systems with PD or DTMF dialling. = Pulse dialling DTMF = Dual Tone Multifrequency dialling See chapter 11 “Changing the dialling method (PD / DTMF) and the basic settings”...

  • Page 5: Installation And Maintenance

    Installation / Maintenance / Operating panel Installation and maintenance The wall-mounted telephone is rugged and maintenance-free. The telephone should be installed close to a TAE jack (German standard) at a conventional height of about 145 cm. The design of the case leaves the option (when the wall socket is installed by authorised specialists) of covering both the TAE jack and the telephone connecting cord.

  • Page 6: Recall Key

    Fast dialling keys The threee fast dialling keys of the FMN B122plus (available except during ABCD opera- tion) enable the user to store 3 frequently used call numbers. Each fast dialling key can store up to 20 digits.

  • Page 7: Storing A Call Number On A Fast Dialling Key

    Shortcode memory The FMN B122plus (available except during ABCD operation) can store up to 10 numbers on shortcode memories. Each digit key provides a memory for this and has a capacity of 16 digits.

  • Page 8: Deleting A Stored Call Number

    Shortcode memory / Temporary switching dialling Enter the PIN. Press the shortcode key Press the desired digit key. Enter the call number. 8.1. If you want to store another call number: Press the shortcode key and then another digit key and enter the call number. 8.2.

  • Page 9: The Pin And It's Purpose

    The PIN and it's purpose / Ringer The PIN and it's purpose PIN = Personal Identification Number Unauthorised tampering with the telephone settings can be prevented by entering a PIN that is known only to authorised persons. The PIN is a number with three digits using the digits 0 to 9. As delivered ex works, the telephone has the PIN “0 0 0”.

  • Page 10: Locking The Keypad (Except During Abcd Mode)

    Locking the telephone / Changing the dialling method Locking the telephone (except during ABCD mode) Locking the keypad (except fast and shortcode dialling keys) For locking the keypad, follow the instructions below: Lift the handset and await the dial tone. Press the programming key Press the digit keys 8 and 11.

  • Page 11: Operation In A Telephone System (Pbx)

    Operation in a telephone system (PBX) Trunk codes The FMN B122plus offers the possibility to program 2 trunk codes, each with up to two digits. After dialling these codes, a pause of approx. 3 seconds is automatically produced. Programming a trunk codes Lift the handset and await the dial tone.

  • Page 12: Programming An Automatic Flash On The Abcd Keys

    If you encounter problems when operating the telephone, please contact your specialist dealer. The FMN communications GmbH declares that FMN B122plus complies with the basic requirements and the other relevant provisions of the directive 1999/5/EC (R&TTE directive).
  • Page 13 Drilling template...
  • Page 14 Labelling card Use for clipping or copying Clip and label labelling card Lift the plastic cover with a screwdriver or something similar, take the protection foil off the cover at both sides Insert labelling card, insert plastic cover...
  • Page 15 Notes...
  • Page 16 99724 Nordhausen Phone +49 (36 31) 56-50 00 +49 (36 31) 56-32 24 Email info@fmn.de Internet www.fmncom.com HOTLINE +49 (36 31) 56-34 16 We are at your disposal to answer your questions. Subject to change. FMN B122plus: 1103.3.0500.01 Edition: 05/04 (1111-4858)
