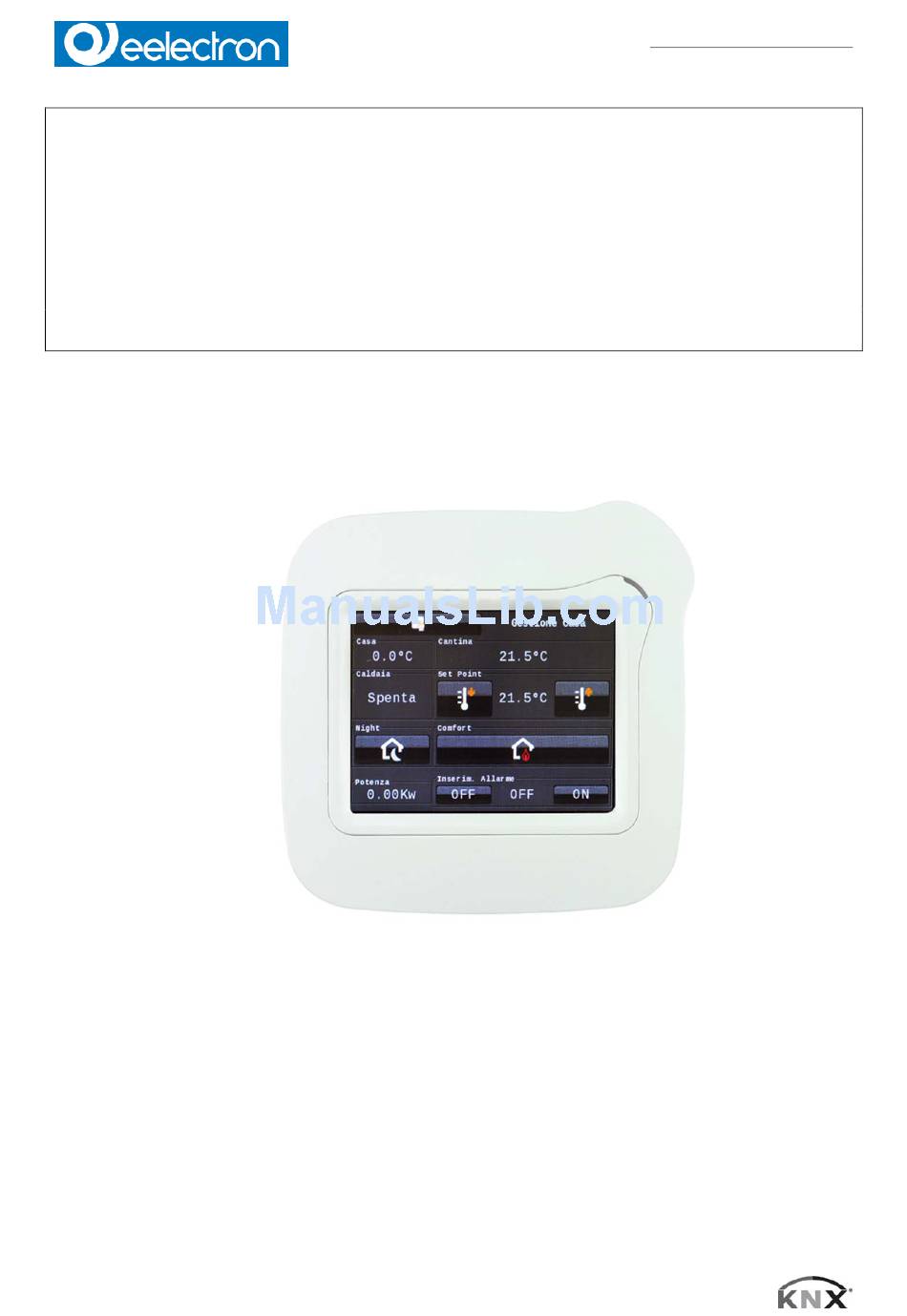

Page 1 Touch Panel 3,5 KNX VS00ExxKNX Product Handbook Product: Touch Panel 3,5 KNX Order Code: VS00ExxKNX 1/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 2: Table Of Contents
1-Byte-Value-Text-Button 0..360° ................41 5.11 1-Byte-Value-Picture-Button 0..360° ................ 42 5.12 1-Byte-Value-Slider 0..360° ..................43 2/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 3 4-Bit-Dimmer-Start-Stop ................... 90 12.2. 4-Bit-Dimmer-Repeat ....................91 12.3. 8-Bit-Dimmer-Repeat ....................92 3/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 4 Controller Fan Limit 1 [%] (Controller Page Fan) ........... 122 18.8. Controller Fan Limit 2 [%] (Controller Page Fan) ........... 123 4/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 5 19.7. Input, Set Protection Mode [202] ................137 19.8. Input, Set Comfort Mode (overwrite) [203] ............. 137 5/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 6 19.56. Output, Heating 2nd Stage, PWM Output [212] ............. 143 19.57. Output, Heating 2nd Stage, Steady Output [211] ........... 143 19.58. Output, Heating 2nd Stage, Steady Output non-zero [212] ........143 6/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 7 We therefore cannot accept any liability for this. Any necessary corrections will be incorporated into newer versions of this manual. 7/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 8: Application Description
In case that the password is „1“, „0001“ must be entered on the Eelecta Touch Panel in order to access the protected page or to execute a function of the protected element. 8/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 9: Main Format String And Additional Parameters
Standby Screensaver Wake-Up Wake-Up Wake-Up Wake-Up Wake-Up 9/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 10: Pages
Element 1A is active on page 1 and defined as a 1-bit object. Topology will change as follows: 10/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 11: Product Page
2.1 Installation 3,5" display for visualization and control in a KNX bus, Installation is carried out using a mounting ring. 11/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 12: Technical Data
VS00E40KNX 3,5" TOUCH PANEL KNX EELECTA - GOLD VS00E50KNX 3,5" TOUCH PANEL KNX EELECTA - BRONZE 12/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 13: Commissioning
60 seconds. After entering the 5 calibration points, you can download your application once again. If the reset ex fabrica is performed all the default icons must be reload, to perform this operation follow the instruction described in the document downloadable from eelectron website: http://www.eelectron.com/download/120911042536_VS00E01KNXFI01020004.zip...
Page 14 VS00E01KNXFI01010007. Eelecta® Touch Panel 3,5 KNX – Product Handbook (in case that the expand-settings (vertically and horizontally) are enabled). 14/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 15: Description Of The Control Elements
Maximize control element vertically. Element Size Determines, which element size is used. There are 4 sizes available (Small, Normal, Large, X- Large). 15/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 16: Overview 1Bit Elements
4x 0/1 LABELS,N,W,NOBG,SWAP 4.12 1-bit-Quad-Value-Pushbutton-Picture 4x 0/1 IMGSETS,N,W,NOBG,SWAP 16/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 17: 1-Bit-On/Off-Toggle-Text
Alarm upper limit / ONLY ON ALARM SIDE examples: 1Bit-Toggle-T; B0=UP; B1=DOWN 1Bit-Toggle-T; B0=OFF; B1=ON 17/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 18: 1-Bit-On/Off-Toggle-Picture
Alarm upper limit / ONLY ON ALARM SIDE examples: 1Bit-Toggle-P; IMGSET=lightbulb; 1Bit-Toggle-P; IMGSET=dnd ; 18/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 19: 1-Bit-On/Off-Toggle-Text With Value
1Bit-Toggle-T; B0=UP; B1=DOWN; L0=UP;L1=DOWN; BSWAP 1Bit-Toggle-T; B0=DOWN; B1=UP; L0=DOWN;L1=UP 1Bit-Toggle-T; B0=OFF; B1=ON; L0=OFF;L1=ON; LSWAP 1Bit-Toggle-T; B0=OFF; B1=ON; L0=OFF;L1=ON; w=80 19/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 20: 1-Bit-On/Off-Toggle-Picture With Value
1Bit-Toggle-P; B0=UP; B1=DOWN;IMGSET=lightbulb 1Bit-Toggle-P; L0=UP; L1=DOWN;IMGSET=lightbulb 1Bit-Toggle-P;IMGSET=lightbulb;BSWAP 20/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 21: 1-Bit-On/Off-Text With Value
1Bit-T; B0=DOWN; B1=UP; L0=DOWN;L1=UP; BSWAP 1Bit-T; B0=DOWN; B1=UP; L0=DOWN;L1=UP; 1Bit-T; B0=OFF; B1=ON; L0=OFF;L1=ON; w=80 21/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 22: 1-Bit-On/Off-Picture With Value
Alarm up limit / ONLY ON ALARM SIDE examples: 1Bit-P; B0=DOWN; B1=UP;IMGSET=lightbulb 1Bit-P;IMGSET=lightbulb;BSWAP 1Bit-P;IMGSET=lightbulb; 1Bit-P; L0=UP; L1=DOWN;IMGSET=lightbulb 22/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 23: 1-Bit-Value-Pushbutton
PIN examples: 1Bit; PRESS=0;LABEL=ON 1Bit; PRESS=1;IMG=bell 1Bit; RELEASE=1;LABEL=OFF 1Bit; RELEASE=0;IMG=sound 23/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 24: 1-Bit-Timer-Profile
Pressing the options button will open a dialog box where time allowances can be set, according to which the ETS object is then controlled. 24/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 25 It is possible to determine up to 6 times for each weekday, at which freely selectable values out of the object value range can be sent. 25/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 26: 1-Bit-Quad-On/Off-Status/Toggle-Text
PIN examples: 4x1Bit-T;LABELS=10,11,20,21,30,31,40,41; 4x1Bit-T; LABELS=OFF1,ON1,OFF2,ON2,OFF3,ON3; N=3;NOBG; 4x1Bit-T;LABELS=OFF1,ON1,OFF2,ON2;N=2;SWAP; 26/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 27: 1-Bit-Quad-On/Off-Status/Toggle-Picture
4x1Bit-P;IMGSETS=lightbulb 4x1Bit-P; IMGSETS=lightbulb,sound,dnd; N=3;NOBG; 4x1Bit-P;IMGSETS=window,door;N=2;SWAP; 27/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 28: 1-Bit-Quad-Value-Pushbutton-Text
PIN examples: 4x1Bit-T;LABELS=10,11,20,21,30,31,40,41; 4x1Bit-T; LABELS=OFF1,ON1,OFF2,ON2,OFF3,ON3; N=3;NOBG; 4x1Bit-T;LABELS=OFF1,ON1,OFF2,ON2;N=2;SWAP; 28/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 29: 1-Bit-Quad-Value-Pushbutton-Picture
4x1Bit-P;IMGSETS=lightbulb; 4x1Bit-P; IMGSETS=lightbulb,sound,dnd; N=3;NOBG; 4x1Bit-P;IMGSETS=window,door;N=2;SWAP; 29/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 30: Overview 1Byte Elements
1-Byte-Value-Picture- Button 0..100% W,PF,IMGSET,STEPS,MIN, 0...255 MAX,AL,AH,NOBG,REP, IMGVAL,PIN 30/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 31 1-Byte-Quad- 5.18 Value/Change 0..100% 1-Byte-Quad- 5.19 Value/Change 0..360° 31/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 32: 1-Byte-Value-Text-Button 0
SIDE examples: 1Byte-Text;PF=lux;B+=UP;B-=DOWN;MIN=50;MAX=200; STEPS=15;REP=1000; 1Byte-Text;PF=Pos;B+=DOWN;B-=UP;MIN=20;MAX=100; STEPS=16;REP=500; 1Byte-Text; 32/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 33: 1-Byte-Value-Picture-Button 0
1Byte-Picture;IMGSET=lightbulb;MIN=50;MAX=200; STEPS=15;REP=1000; 1Byte-Picture;IMGSET=volume;MIN=20;MAX=100; STEPS=16;REP=500; 1Byte-Picture; 33/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 34: 1-Byte-Value-Slider 0
Alarm upper limit / ONLY ON ALARM examples: 1Byte-Slider;IMGSET=light;MIN=50;MAX=200; STEPS=15;REP=1000; 1Byte-Slider;IMGSET=volume;MIN=20;MAX=100; STEPS=16;REP=500; 34/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 35: 1-Byte-Value-Text-Button -128
1Byte-Text;PF=lux;B+=UP;B-=DOWN;MIN=-50;MAX=100; STEPS=15;REP=1000; 1Byte-Text;PF=Pos;B+=DOWN;B-=UP;MIN=- 20;MAX=100; STEPS=16;REP=500; 1Byte-Text; 35/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 36: 1-Byte-Value-Picture-Button -128
1Byte-Picture;IMGSET=light;MIN=-50;MAX=100; STEPS=15;REP=1000; 1Byte-Picture;IMGSET=volume;MIN=-20;MAX=100; STEPS=16;REP=500; 1Byte-Picture; 36/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 37: 1-Byte-Value-Slider -128
SIDE examples: 1Byte-Slider;IMGSET=light;MIN=-50;MAX=100; STEPS=15;REP=1000; 1Byte-Slider;IMGSET=volume;MIN=-20;MAX=100; STEPS=16;REP=500; 1Byte-Slider; 37/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 38: 1-Byte-Value-Text-Button 0
Alarm upper limit / ONLY ON ALARM examples: 1Byte-Text;PF=lux;B+=UP;B-=DOWN;MIN=50;MAX=80; STEPS=15;REP=1000; 1Byte-Text;PF=Pos;B+=DOWN;B-=UP;MIN=20;MAX=70; STEPS=16;REP=500; 1Byte-Text; 38/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 39: 1-Byte-Value-Picture-Button 0
1Byte-Picture;IMGSET=light;MIN=50;MAX=80; STEPS=15;REP=1000; 1Byte-Picture;IMGSET=volume;MIN=20;MAX=70; STEPS=16;REP=500; 1Byte-Picture; 39/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 40: 1-Byte-Value-Slider 0
1Byte-Slider;IMGSET=light;MIN=50;MAX=80; STEPS=15;REP=1000; 1Byte-Slider;IMGSET=volume;MIN=20;MAX=70; STEPS=16;REP=500; 1Byte-Slider; 40/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 41: 1-Byte-Value-Text-Button 0
Alarm upper limit / ONLY ON ALARM examples: 1Byte-Text;PF=lux;B+=UP;B-=DOWN;MIN=50;MAX=280; STEPS=15;REP=1000; 1Byte-Text;PF=Pos;B+=DOWN;B-=UP;MIN=20;MAX=300; STEPS=16;REP=500; 1Byte-Text; 41/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 42: 1-Byte-Value-Picture-Button 0
1Byte-Picture;IMGSET=light;MIN=50;MAX=280; STEPS=15;REP=1000; 1Byte-Picture;IMGSET=volume;MIN=20;MAX=300; STEPS=16;REP=500; 1Byte-Picture; 42/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 43: 1-Byte-Value-Slider 0
SIDE examples: 1Byte-Slider;IMGSET=light;MIN=50;MAX=280; STEPS=15;REP=1000; 1Byte-Slider;IMGSET=volume;MIN=20;MAX=300; STEPS=16;REP=500; 1Byte-Slider; 43/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 44: C.f. E P.iva
PIN examples: 1Byte; PRESS=115;LABEL=DOWN 1Byte; PRESS=112;IMG=bell_b_on 1Byte; RELEASE=71;LABEL=UP 1Byte; RELEASE=0;IMG=sound_b_off 44/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 45: Byte-Timer-Profile 0..100
Pressing the options button will open a dialog box where time allowances can be set, according to which the ETS object is then controlled. 45/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 46: Byte-Timer-Profile 0..255
In case "Use PIN" is selected, an functions of this object. individual password for the secondary function can be assigned using PPIN 46/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 47: Eelectron Spa, Via Magenta 77/22, I-20017 Rho (Mi), Italia
It is possible to determine up to 6 times for each weekday, at which freely selectable values out of the object value range can be sent. 47/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 48: Byte-Quad-Value/Change 0..255
Declaration of the unit according to the measured value. Number of buttons displayed examples: 4x1Byte;N=4; 48/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 49: Byte-Quad-Value/Change 0..100
Declaration of the unit according to the measured value. Number of buttons displayed examples: 4x1Byte;N=4;PF=°; 49/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 50: Overview 2Byte Elements
DC,IMGVAL,PIN,* 670760,96 2-Byte-Float-Slider W,PF,IMGSET,STEPS,MIN,MAX,AL,AH,NOBG,REP, 671088.64 DC,PIN,* 670760,96 50/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 51: Eelectron Spa, Via Magenta 77/22, I-20017 Rho (Mi), Italia
LOGICR,PIN 670760,96 2-Byte-Float-Timer-Profile 6.12 671088.64 W,PF,MIN,MAX,STEP,OVRTO,NOBG,IMG,PIN.PPIN 670760,96 51/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 52: Byte-Value-Text-Button 0..65535
2Byte-Text;PF=°C;B+=UP;B-=DOWN;MIN=50;MAX=200; STEPS=75;REP=500; 2Byte-Text;PF=ppm;B+=DOWN;B- =UP;MIN=300;MAX=1100; STEPS=400;REP=500; 2Byte-Text; 52/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 53: Byte-Value-Picture-Button 0..65535
SIDE examples: 2Byte-Picture;IMGSET=bass;MIN=50;MAX=200; STEPS=75;REP=500; 2Byte-Picture;IMGSET=volume;MIN=300;MAX=1100; STEPS=400;REP=500; 2Byte-Picture; 53/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 54: Byte-Value-Slider 0..65535
SIDE examples: 2Byte-Slider;IMGSET=bass;MIN=50;MAX=200; STEPS=75;REP=500; 2Byte-Slider;IMGSET=volume;MIN=300;MAX=1100; STEPS=400;REP=500; 2Byte-Slider; 54/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 55: Byte-Value-Text-Button -32768..32767
Alarm upper limit / ONLY ON ALARM SIDE examples: 2Byte-Text;B+=UP;B-=DOWN;MIN=-2000;MAX=100; 2Byte-Text;B+=DOWN;B-=UP;MIN=-18000;MAX=2000; 2Byte-Text; 55/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 56: Byte-Value-Picture-Button -32768..32767
SIDE detected. examples: 2Byte-Picture;IMGSET=bass;MIN=-3000;MAX=-100; 2Byte-Picture;IMGSET=volume;MIN=-20000;MAX=10000; 2Byte-Picture; 56/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 57: Byte-Value-Slider -32768..32767
SIDE detected. examples: 2Byte-Slider;IMGSET=bass;MIN=-3000;MAX=-100; 2Byte-Slider;IMGSET=volume;MIN=-20000;MAX=10000; 2Byte-Slider; 57/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 58: Byte-Float-Text-Button
Alarm upper limit / ONLY ON ALARM SIDE examples: 2Byte-Text;B+=UP;B-=DOWN;PF=°C;DC=2; 2Byte-Text;B+=HIGH;B-=LOW;PF=°C;DC=3;*=100; 2Byte-Text; 58/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 59: Byte-Float-Picture-Button
SIDE detected. examples: 2Byte-Picture;IMGSET=treble;DC=0;PF= ; 2Byte-Picture;IMGSET=bass;DC=3;*=0,01;PF= ; 2Byte-Picture;PF= ; 59/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 60: Byte-Float-Slider
SIDE detected. examples: 2Byte-Slider;IMGSET=treble;DC=0;PF= ; 2Byte-Slider;IMGSET=bass;DC=3;*=0,01;PF= ; 2Byte-Slider;PF= ; 60/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 61: Byte-Value-Pushbutton
PIN examples: 2Byte; PRESS=6500;LABEL=LOW 2Byte; PRESS=10050;IMG=bell 2Byte; RELEASE=1;LABEL=HIGH 2Byte; RELEASE=0;IMG=sound 61/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 62: Byte-Float-Value-Pushbtton
PIN examples: 2Byte; PRESS=32,5;LABEL=LOW 2Byte; PRESS=-12,25;IMG=bell 2Byte; RELEASE=0,01;LABEL=HIGH 2Byte; RELEASE=0;IMG=sound_b_off 62/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 63: Byte-Float-Timer-Profile
It is possible to determine up to 6 times for each weekday, at which freely selectable values out of the object value range can be sent. 63/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 64: Overview Time/Date Elements
Pressing the time button will open a dialog box where time allowances can be set, according to which the ETS object is then controlled. 64/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 65: Byte-Date
Pressing the date button will open a dialog box where date allowances can be set, according to which the ETS object is then controlled. 65/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 66: Alarmclock
Pressing the time button will open a dialog box where time allowances can be set, according to which the ETS object is then controlled. Format (hh:mm) 66/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 67: Alarmtimer
Pressing the time button will open a dialog box where time allowances can be set, according to which the ETS object is then controlled. Format (hh:mm) 67/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 68: Overview 4Byte Elements
IMG,PRESS,RELEASE,LABEL,NOB G,JUMP,LOGIC, LOGICR,PIN 4-Byte-Float-Value-Pushbutton IEEE 754 IMG,PRESS,RELEASE,LABEL,NOB G,JUMP,LOGIC, LOGICR,PIN 68/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 69: Byte-Float-Text-Button
Examples: 4Byte-Text;B+=UP;B-=DOWN;PF=°C;DC=2; 4Byte-Text;B+=LOW;B-=HIGH;PF=°C;DC=3;*=100; 4Byte-Text; 69/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 70: Byte-Float-Picture-Button
SIDE detected. Examples: 4Byte-Picture;IMGSET=treble;DC=0;PF= ; 4Byte-Picture;IMGSET=bass;DC=3;*=0,01;PF= ; 4Byte-Picture;PF= ; 70/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 71: Byte-Float-Slider
Examples: 4Byte-Slider;IMGSET=treble;DC=0;PF= ; 4Byte-Slider;IMGSET=bass;DC=3;*=0,01;PF= ; 4Byte-Slider;PF= ; 71/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 72: Byte-Value-Pushbutton
PIN Examples: 4Byte; PRESS=6500;LABEL=DOWN 4Byte; PRESS=10050;IMG=bell 4Byte; RELEASE=1;LABEL=LOW 4Byte; RELEASE=0;IMG=sound_b_off 72/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 73: Byte-Float-Value-Pushbutton
PIN Examples: 4Byte; PRESS=32,5;LABEL=DOWN 4Byte; PRESS=-12,25;IMG=bell_b_on 4Byte; RELEASE=0,01;LABEL=LOW 4Byte; RELEASE=0;IMG=sound_b_off 73/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 74: Overview 14Byte Elements
14-Byte-String-Pushbutton 14Byte MG,PRESS,RELEASE,LABEL,NOBG,JUMP,LOGIC, LOGICR,PIN 14-Byte-String 14Byte NOBG,TEXT 74/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 75: Byte-String-Pushbutton
Pressing the button will open a dialog box in which an alpha numeric input will be effected, according to which the ETS object is then controlled. 75/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 76: Byte-String
Text default NOBG No button background Examples: 14Byte; TEXT=Hallo; 14Byte; TEXT=UG; 76/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 77: Overview Scene Elements
N,MOD,Nx, SCENES=x ( x = 1..64),NOBG,PIN Scene-Control-Save-Only (from FW v 2.16) 0...63 N,MOD,Nx, SCENES=x ( x = 1..64),NOBG,PIN 77/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 78: Scene-Control-Recall-Save (Until Fw Version 2.15)
PPIN Examples: Scene-RS; TO=500;N=3;MOD=DUAL;N1=AN;N2=AUS;N3=ROT;S1=1;S 2=2;S3=3; Scene-RS; TO=1000;N=2;MOD=DIFF;N1=ON;N2=OFF;S1=4;S2=5; 78/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 79: Scene-Control-Recall-Save (From Fw Version 2.16)
PPIN of this object. Examples: Scene-RS; TO=500;N=3;MOD=DUAL;LABELS=AN,AUS,ROT;SCENES=1,2,3; 79/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 80: Scene-Control-Recall-Only (Until Fw Version 2.15)
N=3;MOD=DIFF;N1=AN;N2=AUS;N3=ROT;S1=1;S2=2;S3=3 ; Scene-R; N=2;MOD=DIFF;N1=ON;N2=OFF;S1=4;S2=5; Scene-R; N=4;MOD=SINGLE;N1=ON;N2=OFF;N3=ROT;N4=BLAU;S1 =6;S2=7;S3=8;S4=9;NOBG 80/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 81: Scene-Control-Recall-Only (From Fw Version 2.16)
PPIN Examples: Scene-RS; TO=500;N=3;MOD=DUAL;LABELS=AN,AUS,ROT;SCENES=1,2,3; Scene-RS; TO=1000;N=2;MOD=DIFF;LABELS=ON,OFF;SCENES=4,5; 81/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 82: Scene-Control-Save-Only (Until Fw Version 2.15)
N=3;MOD=DIFF;N1=AN;N2=AUS;N3=ROT;S1=1;S2=2;S3=3 ; Scene-S; N=2;MOD=DIFF;N1=ON;N2=OFF;S1=4;S2=5; Scene-S; N=4;MOD=SINGLE;N1=ON;N2=OFF;N3=ROT;N4=BLAU;S1 =6;S2=7;S3=8;S4=9;NOBG 82/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 83: Scene-Control-Save-Only (From Fw Version 2.16)
Examples: Scene-RS; TO=500;N=3;MOD=DUAL;LABELS=AN,AUS,ROT;SCENES=1,2,3; Scene-RS; TO=1000;N=2;MOD=DIFF;LABELS=ON,OFF;SCENES=4,5; 83/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 84: Overview Rgb Elements
,B+,NOBG,RGBH,RGBW,PIN RGB-Dimmer-D 11.4 4x (0...255) W,STEPS,IMGSET,B- ,B+,NOBG,RGBH,RGBW,PIN 84/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 85: Rgb-Dimmer-A
Pressing the per cent button will open a dialog box where colour defaults can be set, according to which the ETS objects adjust themselves. 85/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 86: Rgb-Dimmer-B
Pressing the per cent button will open a dialog box where colour defaults can be set, according to which the ETS objects adjust themselves. 86/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 87: Rgb-Dimmer-C
Pressing the per cent button will open a dialog box where colour defaults can be set, according to which the ETS objects adjust themselves. 87/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 88: Rgb-Dimmer-D
Pressing the per cent button will open a dialog box where colour defaults can be set, according to which the ETS objects adjust. 88/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 89: Overview Dimmer Elements
12.2 0...15 W,B-,B+,STEP,REP,TO,IMGSET,PIN,NOBG 8-Bit-Dimmer-Repeat 12.3 0...255 W,B-,B+,STEP,REP,TO,IMGSET,PIN,NOBG 89/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 90: Bit-Dimmer-Start-Stop
PIN Examples: 4-Bit-Dimmer;B-=Down;B+=Up;STEP=10;REP=1000 4-Bit-Dimmer; 90/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 91: Bit-Dimmer-Repeat
PIN Examples: 4-Bit-Dimmer;B-=Down;B+=Up;STEP=10;REP=1000 4-Bit-Dimmer; 91/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 92: Bit-Dimmer-Repeat
PIN Examples: 8-Bit-Dimmer;B-=Down;B+=Up;STEP=10;REP=1000 8-Bit-Dimmer; 92/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 93: C.f. E P.iva
W,B-,B+,STEP,REP,TO,IMGSET,PIN,NOBG 13.2 Shutter-Blinds-Control-B W,B-,B+,STEP,REP,TO,IMGSET,PIN,NOBG 13.3 Shutter-Blinds-Control-C W,B-,B+,STEP,REP,TO,IMGSET,PIN,NOBG 93/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 94: Shutter-Blinds-Control-A
PIN is not set. Using PIN, an individual password can be assigned. Examples: Blindcontrol A;B-=Down;B+=Up;STEP=10;REP=1000 Blindcontrol A; 94/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 95: Shutter-Blinds-Control-B
PIN is not set. Using PIN, an individual password can be assigned. Examples: Blindcontrol B;B-=Down;B+=Up;STEP=10;REP=1000 Blindcontrol B; 95/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 96: Shutter-Blinds-Control-C
PIN is not set. Using PIN, an individual password can be assigned. Examples: Blindcontrol C;B-=Down;B+=Up;STEP=10;REP=1000 Blindcontrol C 96/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 97: Overview Hvac Elements
14.3 W,NOBG,MASK,PIN 1-Byte-Timer-Profile HVAC 14.4 0...255 W,PF,MIN,MAX,STEP,OVRTO,NOBG,IMG,PIN.P 97/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 98: Hvac Setpoint-Control
In order to activate temperature defaults select the respective circuit element. The displayed control element changes temporarily. The user can set manual defaults. 98/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 99: Hvac Mode-Control
PIN password can be assigned. Examples: HVAC-Mode-Control;INTERN TSET;TSET;INTERN FAN;FAN;INTERN; 99/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 100: Hvac Mode-Control-Text
PIN Examples: HVAC-Mode-Control; TSET;TSET;INTERN 100/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 101: Byte-Timer-Profile Hvac
Pressing the options button will open a dialog box where time allowances can be set, according to which the ETS object is then controlled. 101/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 102: System Settings
• Layouts & language These settings can be changed and adjusted to individual defaults by the user at any time. 102/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 103: Time & Date
As soon as a minute default between 1 and 60 is set, the respective function will be effected after this time has elapsed. 103/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 104: Audio Signals
Large ↔ large X-Large ↔ extra large 104/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 105: System & Sd Card
After inclusion, the free memory space will be displayed and the logging starts automatically. 105/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 106: Layouts & Language
•Analog clock •Time •Slideshow •Static screen 106/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 107: Screensaver
Positioning can be carried out as in the case of the analog time. Additionally, the font color can be defined. ( SCRDCLK=200,0,80,lightgrey oder SCRDCLK=200,0,80,#4433FA ) 107/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 108: Eelectron Spa, Via Magenta 77/22, I-20017 Rho (Mi), Italia
The origin of all elements (including the entire display itself) is the upper left corner. All elements are positioned in relation to the origin in the upper left corner. 108/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 109: Rtc General Information
Parameter "Controller type (Temp. Controller Heating/Cooling), Page xxx" The string in the brackets stands for the tab in the ETS parameter of the device. 109/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 110: Eelectron Spa, Via Magenta 77/22, I-20017 Rho (Mi), Italia
For more details, see the list of all parameters and objects including their descriptions. For some special parts, see the following sections. 110/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 111: Overview
VS00E01KNXFI01010007. Eelecta® Touch Panel 3,5 KNX – Product Handbook 17.3. Overview 111/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 112: Important
For a more detailed description of the PI controller process, please refer to relevant technical literature. Two other example methods to determine the controller‘s parameter are the Ziegler-Nichols tuning method and the pole 112/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 113: General Basic Rules
"Heating/cooling bandgap (Temp. Controller Settings), Page 129 " (the spacing between the comfort setpoints of heating and cooling corresponds to this value), but the output value at the object "Output, Setpoint" is not 113/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 114: Illustrated Examples
Subsequently, the setpoints for the cooling part are calculated by mirroring the values at the comfort setpoint. 114/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 115: Eelectron Spa, Via Magenta 77/22, I-20017 Rho (Mi), Italia
VS00E01KNXFI01010007. Eelecta® Touch Panel 3,5 KNX – Product Handbook 115/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07 CCIAA Milano 148549...
Page 116: Room Temperature Controllers
20 °C. If the temperature still rises and then exceeds 22 °C (20 °C + 2 °C), the second stage starts working and tries to keep the temperature below 22 °C. 116/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 117: Heating/Cooling Switched Vs. Gap Controller
This makes it possible to e.g. use the remaining heat in the radiator after the controller is shut offf. 117/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 118: Eelectron Spa, Via Magenta 77/22, I-20017 Rho (Mi), Italia
If the object value of "Input, Fan Speed" is changed, the fan automatically starts (only if value is changed) for the set amount of time.. 118/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 119: Vs. 4-Pipes Fancoil
This one comes with the 3-point controller and is one of the two 1-bit outputs of this controller. The following figure shows the output values for a simple 3-point heating controller. 119/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 120: Eelectron Spa, Via Magenta 77/22, I-20017 Rho (Mi), Italia
This one comes with the 2-point controller. It is a 1-bit value and outputs a simple switching signal, corresponding to the figure that shows the output values for a simple 2-point heating controller 120/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 121: Rtc Parameter
See also section „3-point controller, Page 126“. This sets the bandgap between the two 2-point controllers of the 3-point controller. See figure. 121/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 122: Absolute/Relative Setpoints (Temp. Controller Settings)
The comfort setpoint is always set as an absolute temperature. It is used as mirror point for the economy and stand-by setpoints. 18.7. Controller Fan Limit 1 [%] (Controller Page Fan) See also article "Fancoil, Page 117". 122/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 123: Controller Fan Limit 2 [%] (Controller Page Fan)
See Parameter "Controller Fan Limit 1 [%] (Controller Page Fan), Page 122“. 18.9. Controller Fan Limit 3 [%] (Controller Page Fan) See Parameter "Controller Fan Limit 1 [%] (Controller Page Fan), Page 122“. 123/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 124: C.f. E P.iva
Equation for controller variable: 18.12. Symmetric to setpoint (for Kp and Ki see parameter „Controller type (Temp. Controller Heating/Cooling), Page 125“) 124/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 125: Asymmetric To Setpoint
100%. Between these two points, it increases linearly. Equation for controller variable: 18.14. Controller type (Temp. Controller Heating/Cooling) See also article "Controller output objects, Page 119“. 125/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 126: Point Controller
"Hysteresis" (Temp. Controller Heating/Cooling). The gap between the two levels is set by the 3-point bandgap. For cooling mode, the figure can be viewed mirror-inverted at the 126/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 127: Pi-Controller
Controller Heating/Cooling), Page 132“ sets the time for the cycle and for the duty cycle according to the control variable There is a steady 1-byte and a 1-bit PWM output. 127/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 128: Economy Setpoint Temperature (Absolute) (Temp. Contr. Settings)
Defines the weight of the external temperature (object "Input, Actual Temperature") in relation to the temperature measured by the sensor that is directly connected to the device. The temperature. For the calculation see equation: 128/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 129: Fan Lag-Time [Sec] (Controller Page Fan)
In the area between these two points, both controllers are inactive. 129/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 130: Heating/Cooling Changeover Deadtime (Temp. Contr. Settings)
100% or 0%, see figure. Some steady valves have problems in there marginal areas. With this, it is possible to "jump" over these areas 130/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 131: Output Send On Change Off (Temp. Controller Heating/Cooling)
The timer with the set timeout starts. If the mode is not changed otherwise (e.g. by higher prioritized mode selectors like object "Input, Set Protection Mode") and the timer elapses, the controller returns to stand-by mode. 131/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 132: Proportional Band (Temp. Controller Heating/Cooling]
Vice versa, a longer cycle time means a slower response and more temperature fluctuations, but also less stress for the valve or relay. This strongly depends on the used heating and/or cooling system. 132/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 133: Setpoint Adjustment Range (Temp. Controller Settings)
Selection "-3 °C .. +0 °C" and "-5 °C .. +0 °C" as 1 byte unsigned in which 0 corresponds to +0 °C and 255 to -3 °C or -5 °C. 133/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 134: Stand-By Setpoint Temperature (Absolute) (Temp. Contr. Settings)
The output is only sent if the value passes the corresponding limit of the limits set by the parameters "Controller Fan Limit X [%]" (Controller Page Fan). 134/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 135: Temperature Offset [ * 0,1 °C ] (Temp. Controller Settings)
This affects the output of the object "Output, actual Temperature" and determines how much the temperature has to change until the temperature is sent again. 135/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 136: Rtc Communication Objects
Comfort Mode Standby Mode Economy Mode Protection Mode 5...255 Not used 136/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 137: Input, Setpoint Comfort Mode ( Absolute ) [199]
19.10. Input, Set Economy Mode [205] Priority: 2 (low value low Priority) See Object "Input, Set Comfort Mode [204], Page 137". 137/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 138: C.f. E P.iva
19.16. Input, Setpoint Economy Mode de-/increase [200] Allows to set the economy setpoint for a heating/cooling controller, set as temperature difference to the comfort setpoint (relative). 138/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 139: Input, Setpoint Economy Mode Increase [200]
If a room controller type with heating/cooling and a gap is used, this output indicates if the controller is in heating or in cooling mode.) Input, heating/cooling Value Heating Cooling 139/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 140: Output, Heating/Cooling, 1St Level Switch [210/214]
See also article "Controller output objects, Page 119“. 19.33. Output, Cooling 1st Stage, Steady Output [213] See also article "Controller output objects, Page 119“. 140/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 141: Output, Cooling 1St Stage, Steady Output Non-Zero [214]
See also article "Controller output objects, Page 119“. 19.44. Output, Cooling, PWM Output [214] See also article "Controller output objects, Page 119“. 141/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 142: Output, Cooling, Steady Output [216]
See also article "Controller output objects, Page 119“. 19.55. Output, Heating 2nd Stage, 2nd Level Switch [212] See also article "Controller output objects, Page 119“. 142/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 143: Output, Heating 2Nd Stage, Pwm Output [212]
See also article "Controller output objects, Page 119“. 19.65. Output, Heating, Switch [210] See also article "Controller output objects, Page 119“. 143/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 144: C.f. E P.iva
"Input, Fan Speed". This value remains active for the time set in the parameter "Overwrite timeout [ minutes ] (Temp. Controller Settings), Page 131“. Afterwards, it returns to the given value of the controller. 144/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc...
Page 145: Input, Fan Speed [218]
Indicates if in Protection mode and 1=active 0=inactive controller is active (controller output not equal zero) 145/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 146: Output, Status2" [221]
Default 1 Byte 2 Bytes 4 Bytes 23x 1 Bit 146/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 147: Functions
Converts an integer value into a 2-Byte float value . knx.tx_idle(a) knx.tx_idle(6) Tests a communication object whether it has completed the sending process. 147/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 148: System Functions
Is carried out when the value of a logical object is updated. X is the object number. settings_set(x) Is carried out when a settings dialog (x = name of the table) is closed by pressing “OK“. 148/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F.
Page 149: Example Applications
ETS: Parameter Setting •Main Topology 149/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 150: Eelectron Spa, Via Magenta 77/22, I-20017 Rho (Mi), Italia
•Limit 2 (e.g. 2500W) The operating page displays the current performance values. The graphics depend on the pre-defined limits. 150/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€...
Page 151: Eelectron Spa, Via Magenta 77/22, I-20017 Rho (Mi), Italia
(state ~= last_states[1]) then last_states[1]=state; knx.set_integer(232,1,state) if ( x == 249 ) then val=knx.get_float(x); 151/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato...
Page 152: Eelectron Spa, Via Magenta 77/22, I-20017 Rho (Mi), Italia
(state ~= last_states[3]) then last_states[3]=state; knx.set_integer(234,1,state) function knx_value_update(x) knx_value_changed(x) sys.read_settings("settings") 152/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 153: Custom Properties
• 1-bit-ON/OFF-Toggle-Picture with value • 1-bit-ON/OFF-Picture with value shutter_b_off.png shutter_l_on.png shutter_l_off.png 153/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 154: Eelectron Spa, Via Magenta 77/22, I-20017 Rho (Mi), Italia
• 4-Byte-Float-Value-Pushbutton • 14-Byte-String-Pushbutton bell.png ETS Parameter Element name;format ;IMG=bell.png; 154/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 155: Default Set Of Icons
;IMGSET=lightbulb; 21.2. Default set of icons See online document on www.eelectron.com 155/156 Eelectron SpA, Via Magenta 77/22, I-20017 Rho (MI), Italia +39 02.9316681 +39 02.93507688 info@eelectron.com www.eelectron.com VS00E01KNXFI01010007.doc C.F. e P.IVA 11666760159 Capitale sociale: 250.000,00€ interamente versato Tribunale di Milano 359157-8760-07...
Page 156: C.f. E P.iva
The choice of the devices and the assessment of their suitability for a specified purpose lie solely in the responsibility of the buyer. Eelectron SpA does not take any liability or warranty for their suitability. Product specifications in catalogues and data sheets do not represent the assurance of certain properties, but derive from experience values and measurements.

Eelectron VS00ExxKNX Manual

1 Application Description

2 Product Page

3 Description of the Control Elements

4 Overview 1Bit Elements

5 Overview 1Byte Elements

Quick Links

Need help?

Questions and answers

Related Manuals for Eelectron VS00ExxKNX

Summary of Contents for Eelectron VS00ExxKNX
