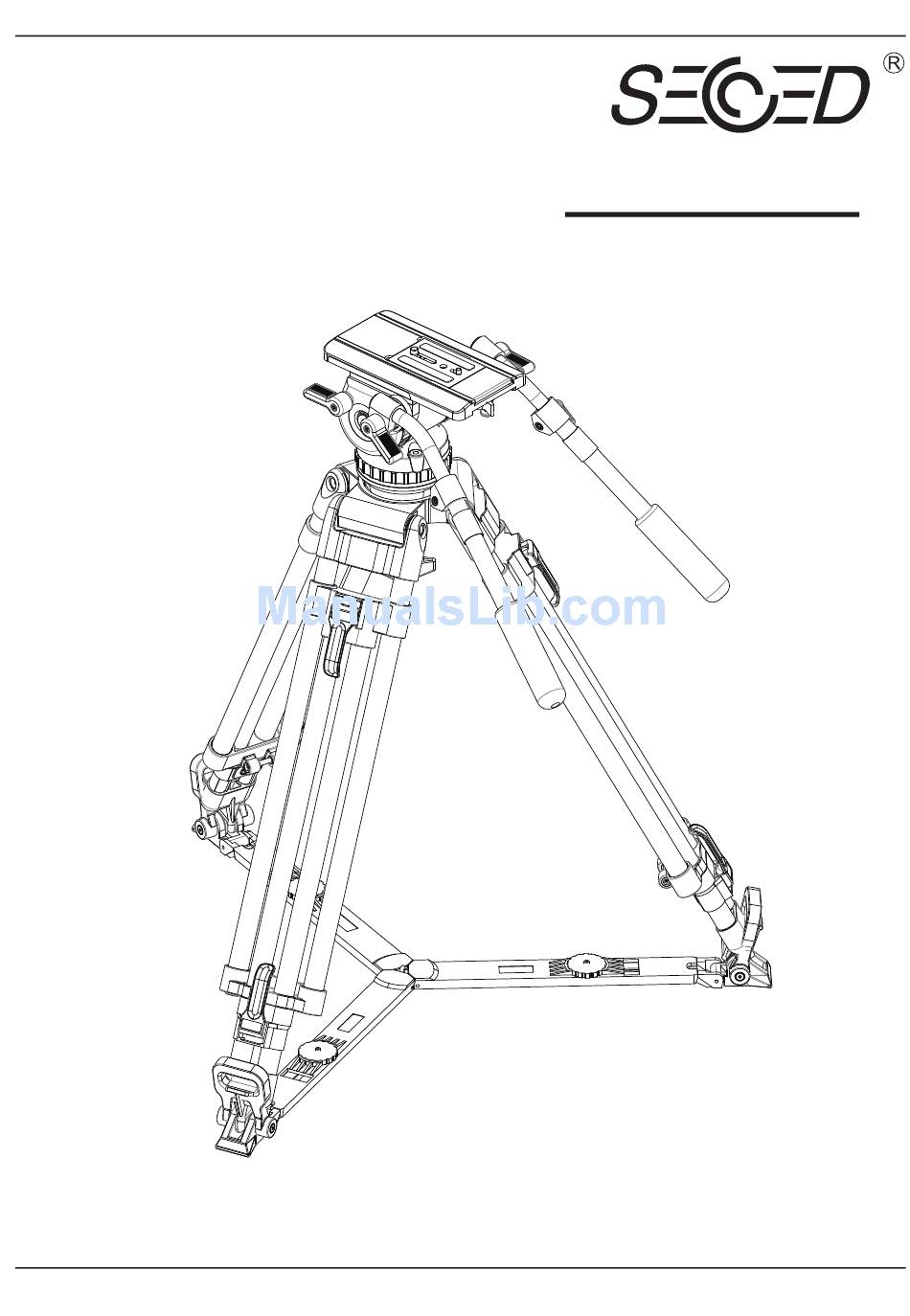

  • Page 1 Maintenance Manual Professional Tripod REACH 10 Tripod Kit www.secced.com...
  • Page 2 Fig 1 REACH 10 Pan and Tilt Fluid Head...
  • Page 3 Fig 1 Reach 10 Pan and Tilt Fluid Head Item Part Nomenclature Price ($) SC349-00-12 Wedge plate unit SC350-00-05 Sliding plate unit GBT818-2000 Screw, pan head, Pozidriv, M4x10 GBT65-2000 Screw, cheese head, slotted M4x8 SC350-00-10 Slide plate lock unit Tilt unit assembly SC326-00-07 Right hand telescopic pan bar unit Pan unit assembly...
  • Page 4 Fig 2 Reach 10 Fluid Head - Telescopic Pan Bar Unit Assembly...
  • Page 5 Fig 2 Reach 10 Fluid Head - Telescopic Pan Bar Unit Assembly Item Part Nomenclature Price ($) SC326-00-07-14 Telescopic pan bar cap SC316-03-01-01 Pan bar clamping sleeve GB-T894.1 Rubber ring, O-sealing, 8x1.8 GB-T97.1 Washer, plain, 8 SC326-00-07-09 Pan bar clamping shaft SC324-00-06-10 Pan bar clamping lever S-HCH-4x8...
  • Page 6 Fig 3 Reach 10 Fluid Head - Wedge Plate Unit Assembly...

  • Page 7: Wedge Plate Unit

    Fig 3 Reach 10 Fluid Head - Wedge Plate Unit Assembly Item Part Nomenclature Price ($) SC349-00-12-08 Non-slip plate, leather SC349-00-12-01 Wedge plate SC324-00-12-03 3/8” screw SC324-00-12-04 1/4” screw...

  • Page 8: Sliding Plate Unit

    Fig 4 Reach 10 Fluid Head - Sliding Plate Unit Assembly...
  • Page 9 Fig 4 Reach 10 Fluid Head - Sliding Plate Unit Assembly Item Part Nomenclature Price ($) SC350-00-05-01 Slide plate SC324-00-05-02 Wedge plate block P-TS-4x12 Pin, thread, slotted 4X12 SC324-00-05-03 Axle sleeve SC334-00-06-06 Eccentric axle P-SS-3x14 Pin, spring-type, slotted, 3X14 SC324-00-11 Quick release knob Assembly SC324-00-06-08 Washer...
  • Page 10 Fig 5 Reach 10 Fluid Head - Slide Plate Lock Assembly...
  • Page 11 Fig 5 Reach 10 Fluid Head - Slide Plate Lock Assembly Item Part Nomenclature Price ($) SC324-00-10-04 SC324-00-10-05 Shaft sleeve SC324-00-10-07 Sliding clamp pad SC350-00-10-01 Dovetail-formed plate S-HCH-4x8 Screw, cheese head, hex socket, M4x8 SC324-00-10-07 Slide plate clamp SC324-00-10-06 Slide plate clamp shaft W-P-6 Washer, plain, 6 SC344-00-10-02...
  • Page 12 Fig 6 Reach 10 Fluid Head - Tilt Brake and Drag Unit Assembly...
  • Page 13 Fig 6 Reach 10 Fluid Head - Tilt Brake and Drag Unit Assembly Item Part Nomenclature Price ($) SC350-00-01-01 Main body 349FY2 Tilt drag disk assembly SC326-00-03-16 Adjusting washer 61804 GB Bearing, deep groove ball SC324-00-03-09 Locating spring SC349-00-03-04 Locating pillar I SC349-00-03-05 Locating pillar II SC348-00-03-06...
  • Page 14 Fig 6 Reach 10 Fluid Head - Tilt Brake and Drag Unit Assembly (Cont) Item Part Nomenclature Price ($) GBT70.3-2000 Screw, csk head, hex socket, M4x12 GBT70.3-2000 Screw, csk head, hex socket, M10x25 Left Label...
  • Page 15 Fig 7 Reach 10 Fluid Head - Balance Mechanism Assembly...
  • Page 16 Fig 7 Reach 10 Fluid Head - Balance Mechanism Assembly Item Part Nomenclature Price ($) GBT70.3-2000 Screw, csk head, hex socket, M10X25 SC326-00-02-19 Steel compression ring GBT119-1986 Pin, dowel, parallel, uhd steel, A3x8 GBT119-1986 Pin, dowel, parallel, uhd steel, A3x8 SC349-00-02-02 Counterbalance knob SC349-00-02-17...

  • Page 17: Pan Unit Assembly

    Fig 8 Reach 10 Fluid Head - Pan Unit Assembly...

  • Page 18: Sc326-00

    Fig 8 Reach 10 Fluid Head - Pan Unit Assembly Item Part Nomenclature Price ($) GBT70.1-2000 Screw, chs head, hex socket, M4x8 SC324-00-00-01 Brake knob SC326-00-01-05 Pan brake shaft PP-3x6 Plain pin 3x6 SC326-00-01-04 Screwed socket (pan brake) GBT70.1-2000 Screw, chs head, hex socket, M5x16 Level bubble, φ15x9 LB-15x9 SC349-00-01-02...
  • Page 19 Fig 8 Reach 10 Fluid Head - Pan Unit Assembly (Cont) Item Part Nomenclature Price ($) GBT70.3-2000 Screw, cks head, hex socket, M10x25 SC324-00-03-09 Locating spring SC326-00-04-05 Bowl base GBT70.1-2000 Screw, chs head, hex socket, M4x12...
  • Page 20 Fig 10 311 Tripod Leg Assembly...
  • Page 21 Fig 10 311 Tripod Leg Assembly Item Part Nomenclature Price ($) SC311-00-00-01 Tripod Bowl SC311E-00-02 Single leg section SC311-00-00-02 Tripod bowl joint SC311-00-01-11 Leg top bracket shaft sleeve GBT70.3-2000 Screw, csk head, hex socket, M6x35 Screw nut GBT823 Screw, pan head, pozidriv, M5x12...
  • Page 22 Fig 11 311 Single Leg Section Assembly...
  • Page 23 Fig 11 311 Single Leg Section Assembly Item Part Nomenclature Price ($) SC311-00-01-01 Leg top bracket SC311-00-01-02 Upper lock sleeve SC311E-00-01-30 Upper lock plate ASP-6x50 Articulated screwed pin M6x50 PPUS 5X32 Connecting pin 5x32 SC311E-00-01-32 Outer leg tube I SC311-00-01-03 Sliding block SC318E-00-01-42 Mid spreader fixing shaft...
  • Page 24 Fig 12 Floor Spreader...
  • Page 25 Fig 12 Floor Spreader Item Part Nomenclature Price ($) Ring SC318-02-00-01 Connecting core SC317-00-01 Floor spreader single leg assembly PPDB4x40 Pin, dowel, parallel, B4x40...
  • Page 26 Fig 13 Floor Spreader Single Leg Assembly...
  • Page 27 Fig 13 Floor Spreader Single Leg Assembly Item Part Nomenclature Price ($) SC317-01-00-05 Retaining strap SC317-01-00-04 Shaft GBT 70NCM5*10 Screw, csk head, hex socket, M4x10 SC317-01-00-06 Blocking washer SC317-01-00-03 Wheel SC317-01-00-01 Foot base PPDB4x40 Pin, dowel, parallel, B4x40 SC318-02-01-02A Inner leg SC318-02-01-03A Outter leg SC318-02-01-05A...
