FUSE PANEL DESCRIPTION

G200C03FC-GAT

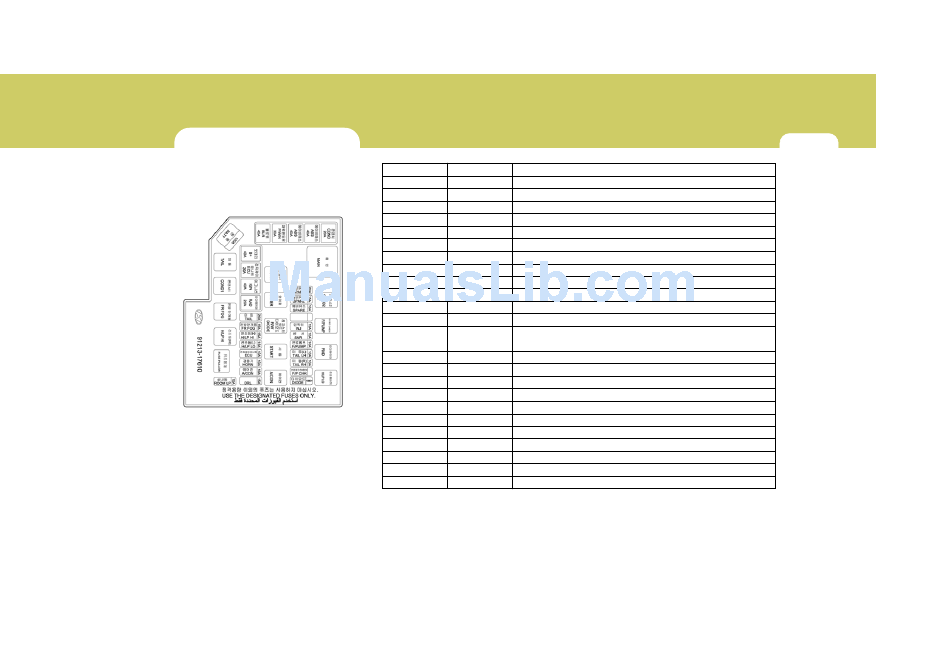

Engine Compartment
(Gasoline Engine)
G200C03FC
NOTE:
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of
printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
DESCRIPTION FUSE RATING
ALT 120A Generator
B+ 40A (A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse
ECU 30A Generator, Engine control relay, ECM
RAD 20A Radiator fan relay
IGN 40A Start relay, Ignition switch
BLR 40A Blower relay
P/WIN 30A Power window relay
COND 20A Condenser fan relay #1
ABS 40A ABS control module, ABS bleeding connector, ESP
ABS 40A ABS control module, ABS bleeding connector, ESP
F/PUMP 10A Fuel pump relay
INJ 15A Injector, lgnition coil
MAP sensor, Oxygen sensor, CP sensor, Knock sensor,
SNSR 10A
Throttle position sensor
Audio, Room lamp, Overhead console lamp, lnstrument cluster
ROOM LP 10A
DRL 15A DRL control module
Horn relay
HORN 10A
A/CON 10A A/C relay
FR FOG 15A Front fog lamp relay
ECU 10A ECM, TCM
LP 20A Tail lamp relay
TAIL LH 10A Left rear combi lamp, Left position lamp, Left License lamp
TAIL RH 10A Right rear combi lamp, Right position lamp, Right License lamp
H/LP LH 15A Left head lamp
H/LP RH 15A Right head lamp, (H/LP IND) Fuse
DO-IT-YOURSELF MAINTENANCE
PROTECTED COMPONENTS
