3.1.1

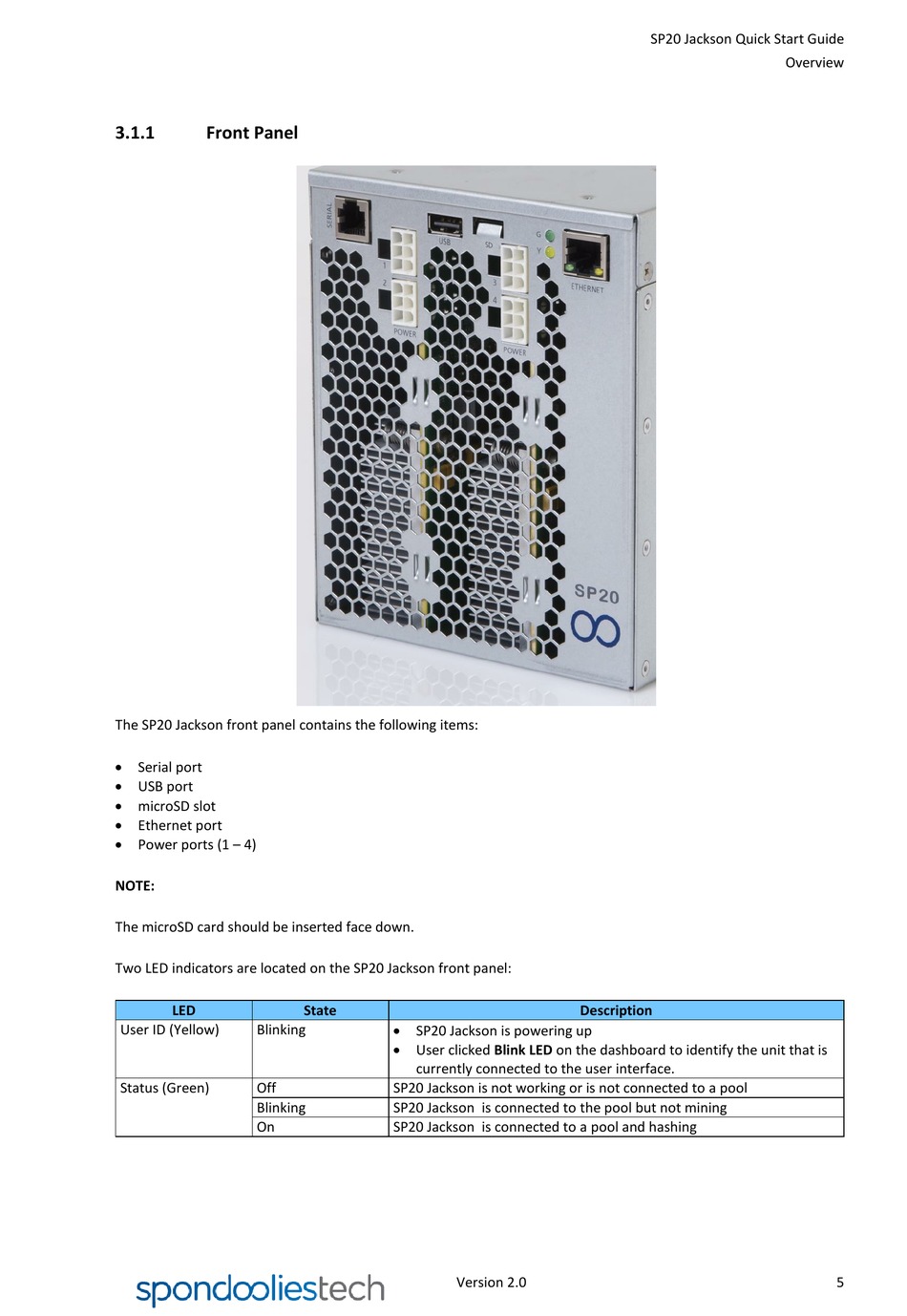

Front Panel

The SP20 Jackson front panel contains the following items:
 Serial port
 USB port
 microSD slot
 Ethernet port
 Power ports (1 – 4)
NOTE:
The microSD card should be inserted face down.
Two LED indicators are located on the SP20 Jackson front panel:
LED
User ID (Yellow) Blinking
Status (Green) Off
Blinking
On
State
 SP20 Jackson is powering up
 User clicked Blink LED on the dashboard to identify the unit that is
currently connected to the user interface.
SP20 Jackson is not working or is not connected to a pool
SP20 Jackson is connected to the pool but not mining
SP20 Jackson is connected to a pool and hashing
