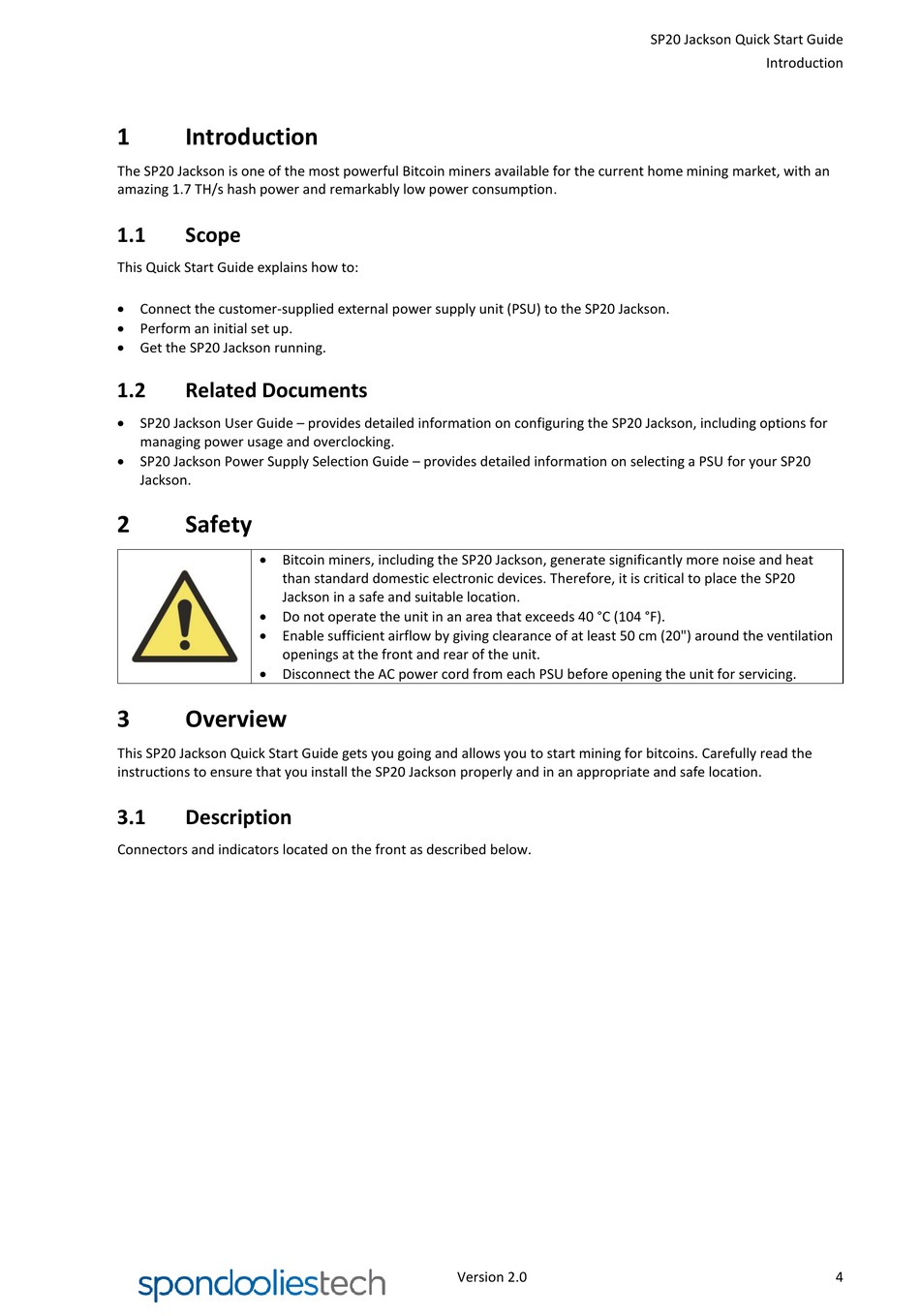

Introduction; Scope; Related Documents; Safety - Spondoolies tech SP20 Jackson Quick Start Manual

1

Introduction

The SP20 Jackson is one of the most powerful Bitcoin miners available for the current home mining market, with an
amazing 1.7 TH/s hash power and remarkably low power consumption.
1.1

Scope

This Quick Start Guide explains how to:
 Connect the customer-supplied external power supply unit (PSU) to the SP20 Jackson.
 Perform an initial set up.
 Get the SP20 Jackson running.
1.2

Related Documents

 SP20 Jackson User Guide – provides detailed information on configuring the SP20 Jackson, including options for
managing power usage and overclocking.
 SP20 Jackson Power Supply Selection Guide – provides detailed information on selecting a PSU for your SP20
Jackson.
2

Safety

 Bitcoin miners, including the SP20 Jackson, generate significantly more noise and heat
than standard domestic electronic devices. Therefore, it is critical to place the SP20
Jackson in a safe and suitable location.
 Do not operate the unit in an area that exceeds 40 °C (104 °F).
 Enable sufficient airflow by giving clearance of at least 50 cm (20") around the ventilation
openings at the front and rear of the unit.
 Disconnect the AC power cord from each PSU before opening the unit for servicing.
3

Overview

This SP20 Jackson Quick Start Guide gets you going and allows you to start mining for bitcoins. Carefully read the
instructions to ensure that you install the SP20 Jackson properly and in an appropriate and safe location.
3.1

Description

Connectors and indicators located on the front as described below.
