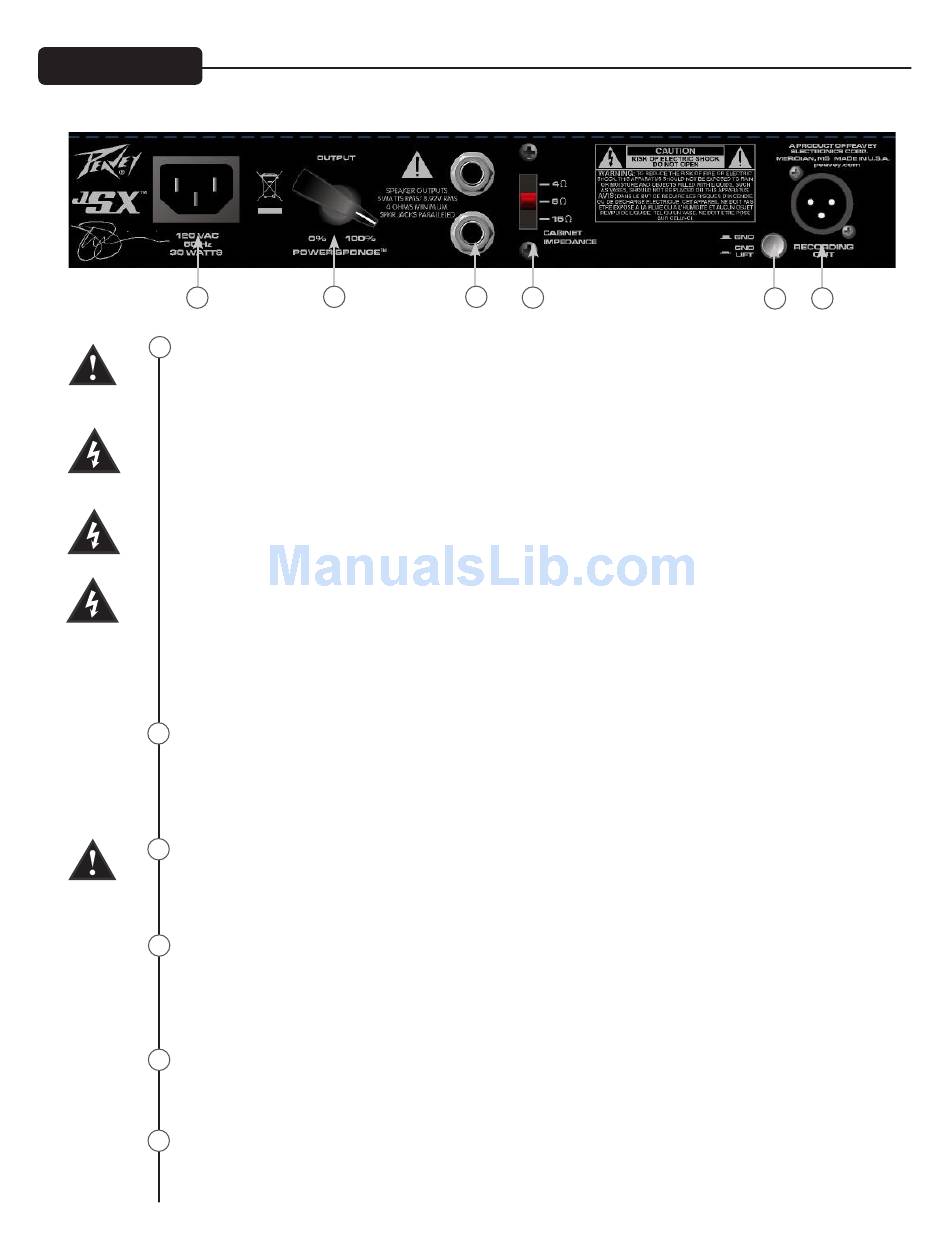

Rear Panel
10
IEC MAINS CONNECTOR
10
This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings
for the intended operating voltage is included in the carton. The mains cord should be connected to the
amplifier before connecting to a suitable AC outlet.
U.S. DOMESTIC AC MAINS CORD
The mains cord supplied with the unit is a heavy-duty, 3-conductor type with a conventional 120 VAC
plug with ground pin. If the outlet used does not have a ground pin, a suitable grounding adapter
should be used, and the third wire should be grounded properly.
Never break off the ground pin on any equipment. It is provided for your safety.
NOTE: FOR U.K. ONLY
If the colors of the wires in the mains lead of this unit do not correspond with the colored markings iden-
tifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must
be connected to the terminal that is marked by the letter E, the earth symbol, colored green, or colored
green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked
with the letter N or the color black. (3) The wire that is colored brown must be connected to the terminal
that is marked with the letter L or colored red.
POWER SPONGE™
11
This unique control allows the user to adjust the nominal output power level of the amplifier. It can be
used in conjunction with the VOLUME (2) control to attain infinite combinations of power amp and pre-
amp distortion at any volume level. This control DOES NOT affect the level of the Microphone Simulated
Recording output and provides an appropriate load to the amplifier at all settings.
SPEAKER OUTPUTS
12
These paralleled 1/4" mono (TS) jacks are provided for the connection of speaker enclosure(s). Mini-
mum speaker impedance is 4 Ohms. The CABINET IMPEDANCE SELECTOR switch (13) must be set to
match the load of the speaker cabinet(s). The internal speaker is 8 Ohms.
CABINET IMPEDANCE SELECTOR
13
This three-position switch allows for appropriate selection of speaker cabinet impedance. If two enclo-
sures of equal impedance are used, the switch should be set to half the individual value. For example,
two 16 Ohm enclosures necessitate an 8 Ohm setting, while two 8 Ohm enclosures would require a 4
Ohm setting. Minimum speaker impedance is 4 Ohms.
GROUND LIFT
14
Depress this switch to break any ground loops that may be causing hum between your amplifier and
recording device or PA system.
RECORDING OUT
15
This XLR jack is used to route a Microphone Simulated signal (tapped directly from the speaker being
used) from the amplifier to an external recording device or public address system. It utilizes a 100%
passive circuit to avoid clipping, noise, and other shortcomings of solid-state circuitry.
11
12
9
13
14
15
