Robin EX13D Owner's Manual

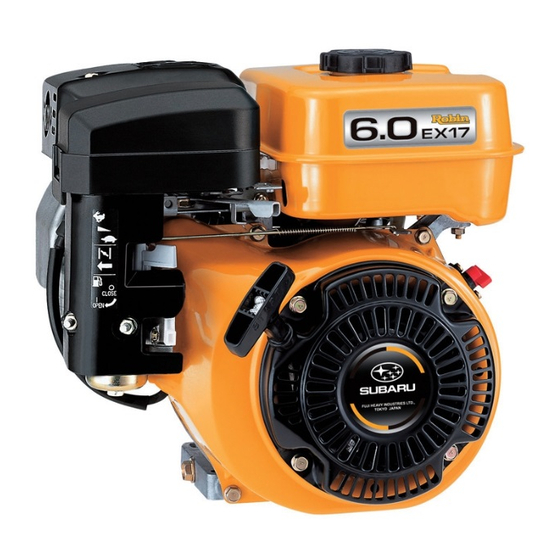

Air-cooled, 4-cycle single cylinder, overhead camshaft, gasoline engine
Hide thumbs Also See for EX13D:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Use Manual
Thank you very much for purchasing a ROBIN ENGINE.
Your ROBIN ENGINE can supply the power to operate various sorts of machines and
equipment.
Please take a moment to familiarize yourself with the proper operation and maintenance
procedures in order to maximize the safe and efficient use of this product.
Keep this owner's manual at hand, so that you can refer to it at any time.
Due to constant efforts to improve our products, certain procedures and specifications are
subject to change without notice.
When ordering spare parts, always give us the MODEL, PRODUCTION NUMBER and SERIAL
NUMBER of your engine.
Please fill in the following blanks after checking the production number on your engine.
(Location of label is different depending on the engine specification.)
PROD No. / SER No.
( Label )
The engines which have emission label are allowed to be exported to USA. The emission
label placed on the engine indicates that the engine is complied with EPA (Environmental
Protection Agency) and CARB (California Air Resources Board) emission regulations in USA.
Exporting any engine to USA which does not have the emission label is a violation of EPA/
CARB emission law subject to civil penalty.
1. SAFETY PRECAUTIONS ................................................................................... 2
2. COMPONENTS .................................................................................................. 4
3. PRE-OPERATION CHECKS .............................................................................. 5
4. ELECTRIC STARTER MODELS ........................................................................ 5
6. OPERATING YOUR ENGINE ............................................................................. 8
7. MAINTENANCE ................................................................................................. 9
8. PREPARATIONS FOR STORAGE ................................................................... 11
9. OIL SENSOR INSTRUCTIONS (OPTIONAL) .................................................. 11
10. EASY TROUBLESHOOTING ......................................................................... 11
11. SPECIFICATIONS .......................................................................................... 12
NOTE Please refer to the illustrations on the back page of the front
cover or back cover for Fig. 1 1 1 1 1 to 8 8 8 8 8 indicated in the sentence.
FOREWORD
PROD No.
SER No.
( Stamping )
NOTICE
CONTENTS
SER No.
EN
Page
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX13D and is the answer not in the manual?

Questions and answers

Related Manuals for Robin EX13D

Summary of Contents for Robin EX13D

  • Page 1: Table Of Contents

    FOREWORD Thank you very much for purchasing a ROBIN ENGINE. Your ROBIN ENGINE can supply the power to operate various sorts of machines and equipment. Please take a moment to familiarize yourself with the proper operation and maintenance procedures in order to maximize the safe and efficient use of this product.

  • Page 2: Safety Precautions

    1. SAFETY PRECAUTIONS Please make sure you review each precaution carefully. Pay special attention to statement preceded by the following words. WARNING “WARNING” indicates a strong possibility of severe personal injury or loss of life if instructions are not followed. CAUTION “CAUTION”...
  • Page 3 Do not touch the spark plug and ignition cable when starting and operating the engine. ■ Never make adjustments on the machinery while it is connected to the engine, without ■ first removing the ignition cable from the spark plug. Turning the crankshaft by hand during adjusting or cleaning might start the engine, and cause serious injury to the operator.

  • Page 4: Components

    SYMBOLS SY2241 Shutt off fuel valve Read manual. when the engine is not in use. Check for leakage Stay clear of the hot surface. from hose and fittings. Exhaust gas is poisonous. Fire, open flame and smoking Do not operate in an unventilated prohibited.

  • Page 5: Pre-Operation Checks

    3. PRE-OPERATION CHECKS 4. ELECTRIC STARTER MODELS For electric starter operation, proper electric wiring NOTE arrangements are needed before normal engine operation. Engine shipped from our factory is without oil. 1. BATTERY Before starting engine, fill with oil. Do not over-fill. Use a battery rated 12V-24AH or larger.

  • Page 6: Belt Pulley Installation Onto Keyway-Type Crankshaft

    4. WIRING WIRING DIAGRAM (ELECTRIC STARTER MODELS) MAGNETIC SWITCH CABLE To LED Lamp Spark plug Black To KEY SWITCH (TERMINAL "ST") Oil sensor control unit Ignition coil Key switch Magneto EARTH WIRE Charge coil Diode Oil sensor rectifier BATTERY LA106 LA406 LA306 Battery...
  • Page 7 (18 to 27 mm) Strength “8T” or higher Tightening 20 - 22 N•m 50 - 60 N•m Torque (204 - 224 kgf•cm) (510 - 612 kgf•cm) Crankshaft (PTO) (14.8 - 16.2 ft•lb.) (36.9 - 44.3 ft•lb.) (No ROBIN genuine part is available.)

  • Page 8: Operating Your Engine

    6. OPERATING YOUR ENGINE (See Fig. 4 4 4 4 4 ) 1. STARTING 2. RUNNING (1) Open the fuel cock. (See Fig.4-q) (1) After the engine starts, set the speed control lever at the low speed position (L) and warm it up without load for a few minutes.

  • Page 9: Maintenance

    7. MAINTENANCE (See Fig. 7 7 7 7 7 ) 1. DAILY INSPECTION (See Fig.7 7 7 7 7 -q q q q q ) (2) Check electrode gap. The gap should be 0.6 mm to 0.7 mm (0.02 inch.-0.03 inch.). Adjust the gap, if necessary, Before running the engine, check the following service items.
  • Page 10 5. CLEANING FUEL CUP (See Fig. 7 7 7 7 7 -t t t t t ) D. For Generator Type (See Fig.7-i) EX17/21 (See Fig.7 7 7 7 7 - - - - - i i i i i - - - - - q,w) ■...

  • Page 11: Preparations For Storage

    Perform the following checks before you take the engine to WARNING Flame Prohibited your Robin dealer. If you still have trouble after completing If you do not use the engine more than 1 month, discharge the checks, take the engine to your nearest Robin dealer.

  • Page 12: Specifications

    11. SPECIFICATIONS MODEL EX13D EX17D EX21D EX27D Type Air-cooled, 4-cycle single cylinder, overhead camshaft, gasoline engine Displacement mL (cc) kW/rpm 2.2/3600 2.9/3600 3.7/3600 5.1/3600 Continuous Output (HP/rpm) (3.0/3600) (4.0/3600) (5.0/3600) (7.0/3600) kW/rpm 3.2/4000 4.2/4000 5.1/4000 6.6/4000 Maximum Output (HP/rpm) (4.3/4000) (5.7/4000)
  • Page 13 EX17, 21 EX27...
  • Page 14 ISSUE EMD-EU2293 FUJI HEAVY INDUSTRIES LTD. I N D U S T R I A L P R O D U C T S C O M P A N Y 4-410 ASAHI,KITAMOTO-SHI,SAITAMA,364-8511,JAPAN TEL:+81-48-593-7798,FAX:+81-48-593-7946 h t t p : / / w w w . f h i . c o . j p / r o b i n /...

This manual is also suitable for:

Ex27dEx17dEx21d
