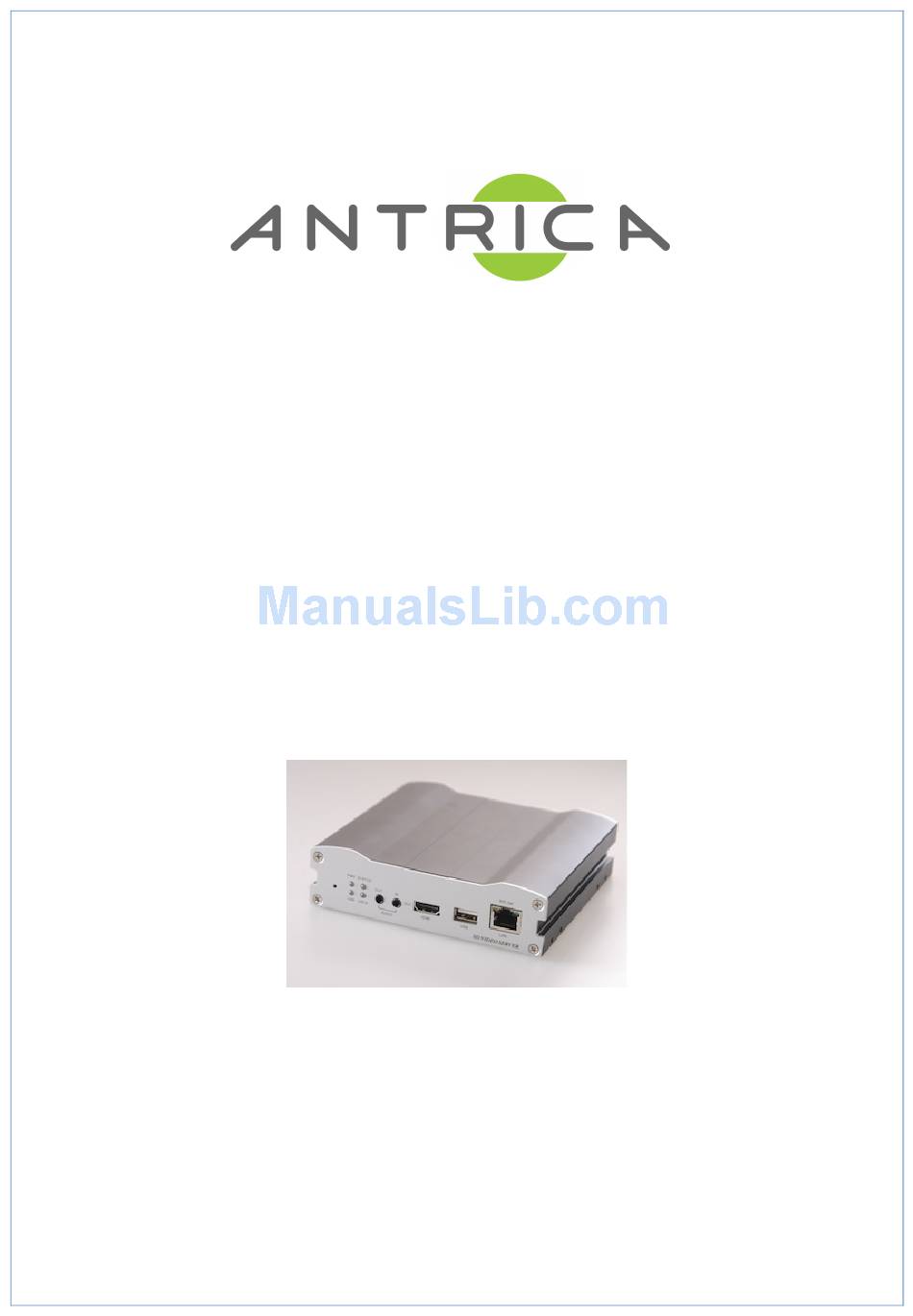

  • Page 1 ANT$3300' H.264'Dual'Stream'Video'Server'+'Decoder' admin 1234 User name and password User'Manual' Ver.'1.1...
  • Page 2 We appreciate you purchasing ANT-3300 series. Before installing the product, please read the following with care. ! Make sure to turn off the power before installing ANT-3300. ! Do not install under the direct sunlight or in dusty areas. ! Make sure to use the product within the temperature and humidity specified in the specification.

  • Page 3: Table Of Contents

    ANT-3300 User Manual Table of Contents Table of Contents ........................... 2 1. Introduction ............................4 1. About User Manual ........................4 2. Features ............................4 3. Product and Accessories ......................6 4. Part Names and Description ....................... 7 5. System Modes and Connections ....................9 2.
  • Page 4 ANT-3300 User Manual 3. Server Connection Management ....................47 4. Server Status Monitoring ......................48 5. Network and System Diagnostics ..................... 49 6. F/W Upgrade ..........................52 7. Remove Configuration and Video Monitoring ................53 6. Trouble Shooting ..........................53 Appendix A: Sensor and Alarm Port ....................

  • Page 5: Introduction

    ANT-3300 2. Feature ANT-3300 is a video and audio surveillance transmission system based on IP network through LAN, ADSL/VDSL, and Wireless LAN. The ANT-3300 series operates in one of the two modes: Encoder, Decoder. Encoder system compresses and transmits video data. The Decoder receives and decompresses the video data.
  • Page 6 ANT-3300 User Manual ! Sensor and Alarm Support direct connections of external sensors and alarm devices. Event Alarms ! USB Connection to internal or external USB storage for remote access ! User Interface System status display utilizing OSD (On Screen Display)

  • Page 7: Product And Accessories

    ANT-3300 User Manual 3. Product and Accessories ANT-3300 System Quick Manual (optional) Power adaptor and cable User Manual & S/W CD Screws Brackets <Picture 1> Product and Accessories...

  • Page 8: Part Names And Description

    ANT-3300 User Manual 4. Part Names and Description ! Front View & " Parts Function " LEDs Display power On/Off condition, Link, Status and data # Audio In, Out Audio Input and Output $ HDMI Output HDMI Output % USB USB port for any USB device &...
  • Page 9 ANT-3300 User Manual ! Rear View " & Terminal Function " POWER IN DC 12V power input # SENSOR Sensor input $ ALARM Relay output % RS-422/485 Serial port 2 (COM2) for PTZ control and etc. Support RS-422 and (COM2) RS-485 protocol &VIDEO OUT...

  • Page 10: System Modes And Connections

    ANT-3300 User Manual 5. System Modes and Connections The ANT-3300 system operates in one of two modes: Encoder, Decoder. ANT-3300 systems can be connected in either 1-to-1 where one encoder is connected one decoder or 1-to-many where one encoder connected to many decoders.
  • Page 11 ANT-3300 User Manual " 1:N Connection (Unidirection) Remote Center Site Decoder Encoder Decoder Decoder In this configuration, a site can be monitored from many remote central locations. Although up to 64 decoders can be connected to on encoder, in the real network environment, network bandwidth can limit the maximum connections.
  • Page 12 ANT-3300 User Manual " CMS (Central Monitoring System) Site Remote Center Encoder Site Remote Center Encoder Decoder CMS (Central Monitoring System) is a Windows based remote monitoring program to access multiple encoders for real-time monitoring or control of the encoders and connected cameras. Please refer to CMS User Manual for more information on CMS.

  • Page 13: Installation

    ANT-3300 User Manual 2. Installation 1. Connecting Video " Encoder System Connect camera video output line to the encoder (ANT-3300) video input port. " Decoder System Connect monitor video input line to the decoder (ANT-3300) video output port. 2. Connecting Audio Audio is bi-directional in any configuration regardless of the system mode.

  • Page 14: Checking Operating

    ANT-3300 User Manual 6. Checking Operating Once the power is supplied to the camera, it will start booting. The system will boot up to an operating mode after approximately 40-60 seconds. The green LED on the Ethernet port will flash indicating the system is ready.

  • Page 15: System Operation

    ANT-3300 User Manual 3. System Operation 1. LED Display ! Description of LEDs System status can be monitored with LEDs. State Description No power Power on Green blinking Normally operating System failure: Needs diagnostics Constant change of colors NTSC/PAL setting does not match with input...

  • Page 16: Remote Video Monitoring

    ! Video Monitoring using Internet Explorer If ANT-3300’s IP address in entered in Internet Explorer, the system will ask for confirmation to install Active-X control. Once authorized, Internet Explorer will start to display video images from the encoder as shown below.
  • Page 17 ! Focus Near, Focus Far, Auto Focus Adjust the focus ! Sensor Input When the sensor on the ANT-3300 is connected and working, the light turns red. ! Alarm Output Alarm Output button can triggered from an event directly from the Live View page.

  • Page 18: Initialization Of Ip Address

    ANT-3300 User Manual 3. Initialization of IP Address If a system IP address is lost, the system can be reset to a known IP address using the reset button in the back of the system: (pin Hole) ) While system is in operation, press the reset button more than 5 seconds.

  • Page 19: Remote Configuration

    4. Remote Configuration 1. Remote Configuration The server can be configured using a web browser. Type the IP address of the ANT-3300 in the address input area of Internet Explorer, then a live view screen will be displayed. Press Setup button located in the upper right area of the monitoring screen, then the setup page for server setup will be displayed.

  • Page 20: System Configuration

    ANT-3300 User Manual 2.1 System Configuration ! System Mode System mode: Select Encoder, Decoder. ! System ID System ID: Alphanumeric System ID to be transferred to remote software -19-...
  • Page 21 Language to be used for web-based configuration ! Firmware version Current firmware version ! Board ID Network board ID of ANT-3300 recognized by system ! Start Time Latest system boot date and time ! Current Time Current date & time: Enter a new date and time and press Set Current Time button to update date &...

  • Page 22: Video Configuration

    ANT-3300 User Manual 2.2 Video Configuration -21-...
  • Page 23 ANT-3300 User Manual - ENCODE ! Input Format Select input format ; Composite NTSC or PAL ! Resolution Selectable video compression resolutions as below: NTSC : 720 x 480, 720x 240, 352 x 480, 352 x 240 PAL : 720 x 576, 720 x 288, 352 x 576, 352 x 288 ! Frame Rate Select video frame rate (the maximum number of frames of video images to compress.)
  • Page 24 ANT-3300 User Manual - DUAL ENCODE ! Use Dual Encode Select On to use dual encode ! Dual Encode Algorithm H.264 and MJPEG can be selected for secondary streaming. Maximum resolution is 720 x 480 and there are 8 steps of resolution. If MJPEG is selected, Preference supports only Quality mode.
  • Page 25 ANT-3300 User Manual ! Sensitivity A condition to trigger an event of motion detection. The value determines the sensitivity of the motion detection within a block: the smaller, the more sensitive. It is selectable from from 0 to 10. ! Information Display System ID and/or server time can be displayed in the video window in Web View.

  • Page 26: Audio Configuration

    ANT-3300 User Manual 2.3 Audio Configuration ! Mode Select audio operation mode. Mode Status No operation TX-Only Transmit only RX-Only Receive only TX & RX Transmit and Receive ! Input Gain Set audio input gain. -25-...

  • Page 27: Network Configuration

    ANT-3300 User Manual 2.4 Network Configuration -26-...
  • Page 28 RTSP port used for RTSP-based connection ! SNMP ANT-3300 can be used as an SNMP agent. It is compatible to both SNMPv1 and SNMPv2c. Vender specific MIBs for IP camera/server are defined. SNMP listen port can be set and disabled when it is 0. SNMP trap is also supported. Destination IP and port can be set. If one of these values is 0, SNMP trap will be disabled.
  • Page 29 ANT-3300 User Manual ! DDNS Select the DDNS(Dynamic DNS) server to use. One of the two servers can be selected. - True DNS : use True DNS service. Systems can be registered on the website for TrueDNS service: http://ns1.truecam.net. System will get a domain name of xxx.truecam.net style.

  • Page 30: Serial Port Configuration

    ANT-3300 User Manual 2.5 Serial Port Configuration -29-...
  • Page 31 ANT-3300 User Manual ! Serial Port Configuration There are two serial ports, (COM1 and COM2) in ANT-3300. While COM1 port is fixed to RS- 232C, COM2 port can be set to RS-422 or RS-485 protocol. The serial ports can be configured as follows.
  • Page 32 ANT-3300 User Manual ! Sensor Schedule Each sensor port can be enabled or disabled in day(of a week) and hour unit. Sensor is disabled for grey-colored duration. -31-...

  • Page 33: Event Configuration

    ANT-3300 User Manual 2.6 Event Configuration -32-...
  • Page 34 ANT-3300 User Manual The event configuration configures the actions for each event type. Local section configures the actions for events from local (self) system and configuration activates local devices and Remote sections configures the actions for events from remote (peer) systems.
  • Page 35 ANT-3300 User Manual requires authentication, ID and password of an E-mail account need to be entered . Destination address needs to be entered in the Destination Address field. More than one address can be entered by delimiting comma(,) or semi-colon(;). Destination addresses can take up to 63 characters.

  • Page 36: Preset Configuration

    ANT-3300 User Manual 2.7 Preset Configuration * Preset Name ) Move PTZ Camera to normal view + Press Set Button , Save Configure up to 15 preset positions. Preset function is not available on some PTZ receivers. Make sure to check if a PTZ receiver supports preset.

  • Page 37: User Configuration

    ANT-3300 User Manual 2.8 User Configuration User can be registered and privilege levels of a user can be specified. User configuration is allowed only to admin user. Max 16 users can be registered and each user can have one of f our privilege.
  • Page 38 ANT-3300 User Manual ! Add User Page for adding a user appears after pressing Add button. User ID and password need to be entered and privilege level needs to be selected. User ID and password consist of alphanumeric strings of max 15 characters.
  • Page 39 ANT-3300 User Manual Pressing Modify Password button after selecting a user shows a page for changing password. In case changing admin password, old password is checked. ! Modify Privilege Level Pressing Modify Privilege button after selecting a user shows a page for changing the privilege.

  • Page 40: Decoder System

    ANT-3300 User Manual 3. Decoder System Once system mode is changed to decoder, Firmware version shows Dec xxxxxxx which means decoder mode. -39-...

  • Page 41: Video Configuration

    ANT-3300 User Manual 3.1 Video Configuration Regardless of input resolution of Encoder or IP camera, the Decoder system of ANT-3300 can display video format as follows; Composite NTSC & HDMI 480i (720 x 480) Composite PAL & HDMI 576i (720 x 576) HDMI &...

  • Page 42: Network Configuration

    ANT-3300 User Manual 3.2 Network Configuration Network page of Decoder has a section for specifying the remote system to connect. -41-...
  • Page 43 ANT-3300 User Manual ! Remote Address Address of the remote system to connect. ! Remote Channel The channel can be selectable when the remote system has multiple video channels. ! Media Protocol Protocol used for delivery of audio and video data between remote system and Decoder.

  • Page 44: Event Configuration

    ANT-3300 User Manual 3.3 Event Configuration The event configuration configures the actions for each event type. Local section configures the actions for events from local (self=Decoder) system, and configuration activates local devices and Remote sections configures the actions for events from remote (Encoder or IP Camera) system.
  • Page 45 ANT-3300 User Manual ! Sensor1 / Sensor2 Configure the actions when the sensor 1 or 2 is activated. Multiple actions can be set for a single event. ! On Video Loss Configure the actions when video input signal is lost. Multiple actions can be set for a single event.

  • Page 46: True Manager

    ANT-3300 User Manual 5. True Manager 1. True Manager Software True Manager is a program used for basic configuration, diagnostics and F/W upgrade of video servers or IP cameras. True Manager provides the following features. - Finding servers on the LAN and assigning IP address - Monitoring server status: encoding/decoding, serial, sensor etc.
  • Page 47 ANT-3300 User Manual If the server is registered on DDNS server, domain name can be used instead of IP address. When the IP address of the server is forgotten, it is possible to find the IP address of the server with IP Discovery function.

  • Page 48: Server Connection Management

    ANT-3300 User Manual If you press Select button after selecting a server, the information for the server is automatically entered in Add Server dialog. Pressing IP Change button after selecting a server invokes a dialog on which IP addresses of the server can be changed.

  • Page 49: Server Status Monitoring

    ANT-3300 User Manual Manager periodically retries connections to servers with check box checked. ! Server disconnection If the check box is unchecked, the connection to the server is released and State displays Disconnected. 4. Server Status Monitoring ! Servers tab – General information Servers tab shows general information for a connected server: MAC address, product model, system mode(Type) F/W version and startup time.

  • Page 50: Network And System Diagnostics

    ANT-3300 User Manual Peripherals tab displays the status of serial, sensor and relay port. Item Displays COM1-TX Activity of RS-232C port COM1-RX - TX: server -> external equipment - RX: external equipment -> server COM2-TX Activity of RS-422/485 port COM2-RX - TX: server ->...
  • Page 51 ANT-3300 User Manual Server executing Ping Destination of Ping Ping test is useful for checking if one or more remote systems are reachable from a server. Up to 4 systems can be registered as the targets of Ping test, which makes it possible to identify the hop (segment of network) where network failure may happen.
  • Page 52 ANT-3300 User Manual and PC running True Manager by generating test traffic of constant bitrate. This feature is useful for identifying the reason why video quality is lower than expected. TCP protocol can be selected for measuring effective bandwidth, while UDP protocol is appropriate for checking if the network is not reliable.

  • Page 53: F/W Upgrade

    ANT-3300 User Manual number of received bytes are equal. ! Viewing server’s log The log in a server can be viewed by selecting Log on Tools menu. ! Remote rebooting of a server A server can be rebooted by selecting Reboot on Tools menu.

  • Page 54: Remove Configuration And Video Monitoring

    ANT-3300 User Manual upgraded simultaneously. * Select an upgrade file. + Press Upgrade button. , Wait until Progress is changed to Upgrade succeeded. Caution: Don’t power-off the server while upgrade is in progress. The server may go in to a irrecoverable state.

  • Page 55: Appendix A: Sensor And Alarm Port

    ANT-3300 User Manual Appendix A: Sensor and Alarm Port 1. Sensor Port ! Terminal Type * Voltage Rating: 150VAC * Current Rating : 2A * Color : Red ! Sensor Signal Input Type * NO Contact Signals ! Connection to External Device 2.

  • Page 56: Appendix B: Serial Port

    ANT-3300 User Manual ! Connection to External Device Appendix B: Serial Port 1. RS-232 Port ! Port Type * 3 PIN * Pin Arrangement * Pin Description Pin NO Pin Name Description RS232 TX(Transmit) RS232 RX(Receive) Ground -55-...

  • Page 57: Rs-422/485 Port

    ANT-3300 User Manual 2. RS-422/485 Port ! Port Type * 4 PIN * Pin Diagram * Pin Description Pin No. Pin Name Description RS422 RX- RS422 RX+ RS422 TX- or RS485 TRX- It is selectable by S/W Setup RS422 TX+ or RS485 TRX+...
