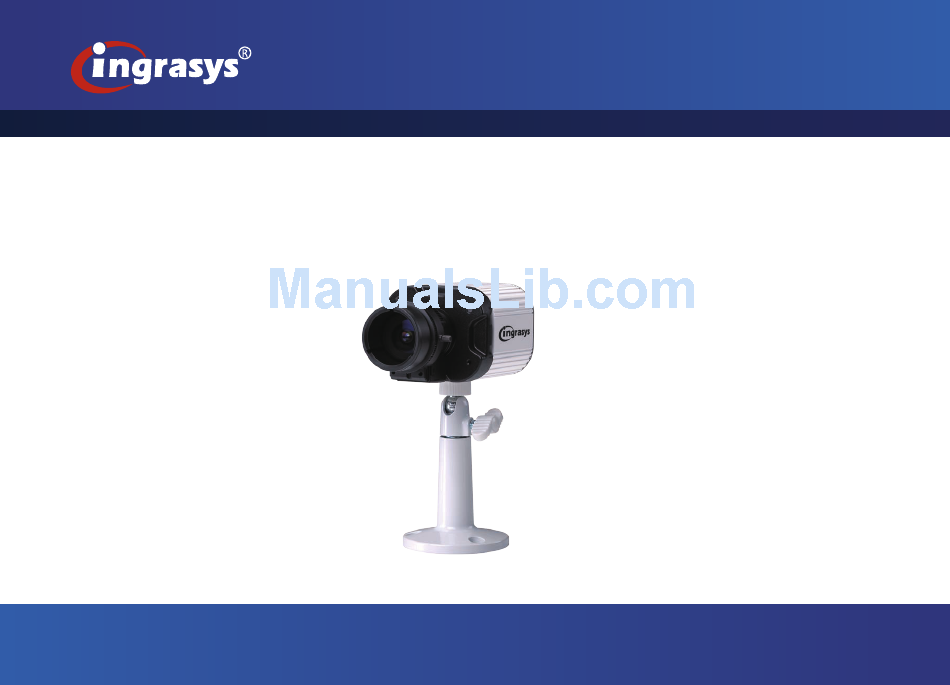

- Page 1 Quick Installation Guide B3210E Ver: v1.00...
- Page 2 B3210E Quick Installation Guide v1.00 Quick Installation Guide Package Contents B3210E Camera Stand Fixed Lens Power Adapter Screws Pack (Optional) (Optional) screws Quick Installation Product CD Warranty Card VIP Card (Optional) Guide Ingrasys Technology Inc.
- Page 3 B3210E Quick Installation Guide v1.00 Physical Description & Connection RJ-45 LED Indicator AC-24V Light Sensor Terminal Block DC-12V Reset Micro SD Focus Microphone Assist Video DC IRIS MIC in 66mm 65.5mm Button Audio Connections Define the type of network device.
- Page 4 B3210E Quick Installation Guide v1.00 Assigning IP address Launch Ingrasys Discovery Tool (IngrasysDiscovery.exe). The tool will start searching and then displaying the cameras on the Device List after they are found. Check the checkbox to select a camera device from the list.
-
Page 5: Accessing The Camera
Accessing the camera Launch IE browser and input the IP address of the camera, or click on “Browse” button on Ingrasys Discovery Tool. The web page with video will then be shown as below. The live video of the camera can be played with a RTSP player, such as VLC or QuickTime. -
Page 6: Cable Management
B3210E Quick Installation Guide v1.00 Cable Management A considerate design of groove located on the sides. Users can arrange the DC-Iris cable neatly. Ingrasys Technology Inc. - Page 7 B3210E Quick Installation Guide v1.00 Focus Assist Button Focus Assist Button allows users to adjust the camera focus with precision by a simple click. Step 1: "Press" Focus Assist Button ● Rotate the lens focus clockwise or anticlockwise to either end (N or ∞).
- Page 8 Ingrasys Technology Inc.
