2.2 Description of the Device

The GMDE Hybrid inverter is a three-phase transformerless inverter, which could help customers to
reduce their electricity expense by optimizing use of PV and battery energy.
① Heat is dissipated by the heatsink and fan equipped at the bottom of this device.
② One AC output connector, which connect to AC grid and local load. (Rated conductor size: Ø
2
6 mm ).
③ Two pairs of PV-input terminals, each input pair consists of positive and negative terminals.
④ One pair of battery input terminals.
⑤ Integrated DC switch to switch on/off the PV and battery.
⑥ The GMDE hybrid inverter provides multiple communication choice: RS485/USB.
⑦ 320x240 pixels display screen, on which the operation related information can be displayed.
Global Mainstream Dynamic Energy Technology Ltd.

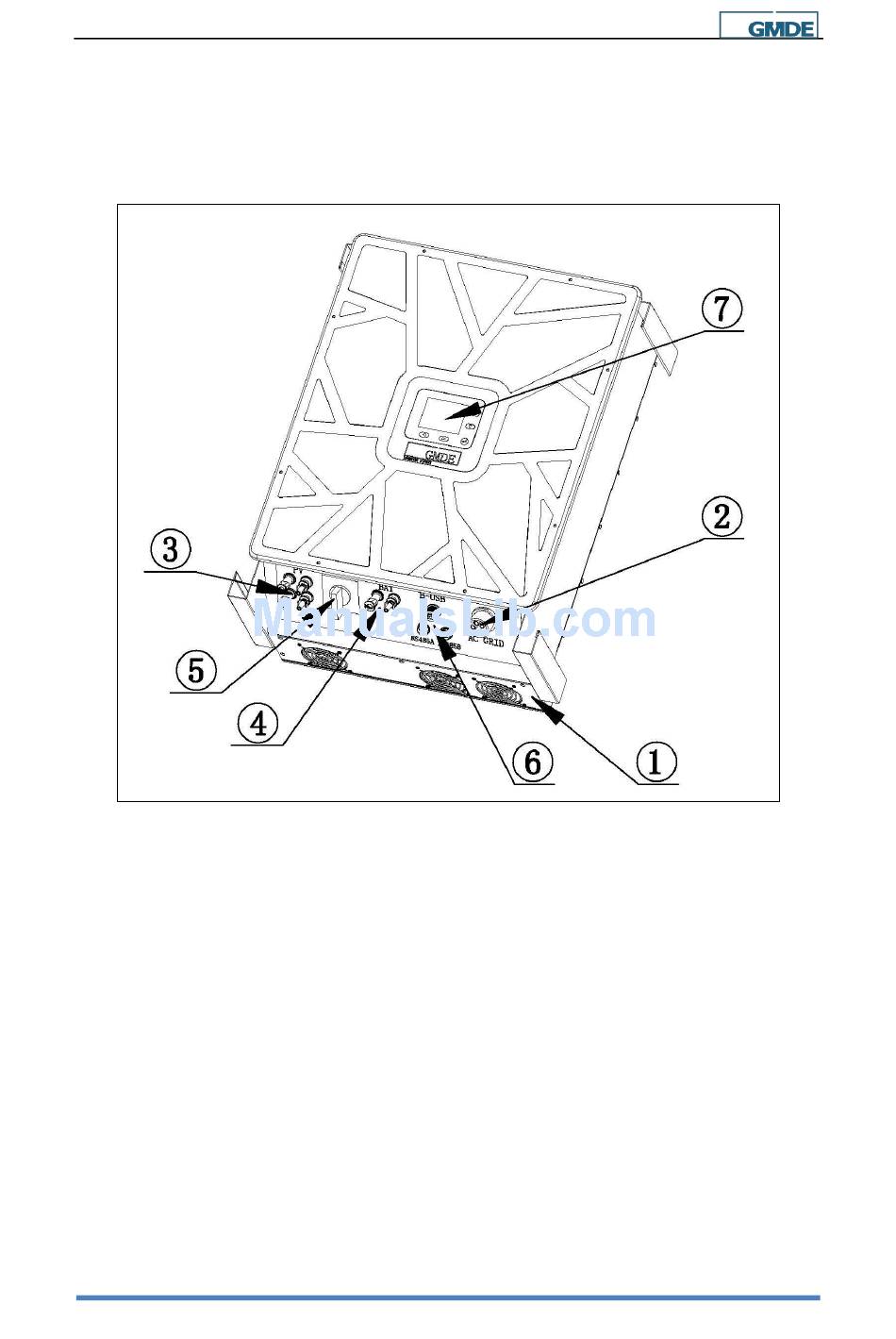

Figure 4 GMDE Powervortex306KTL
