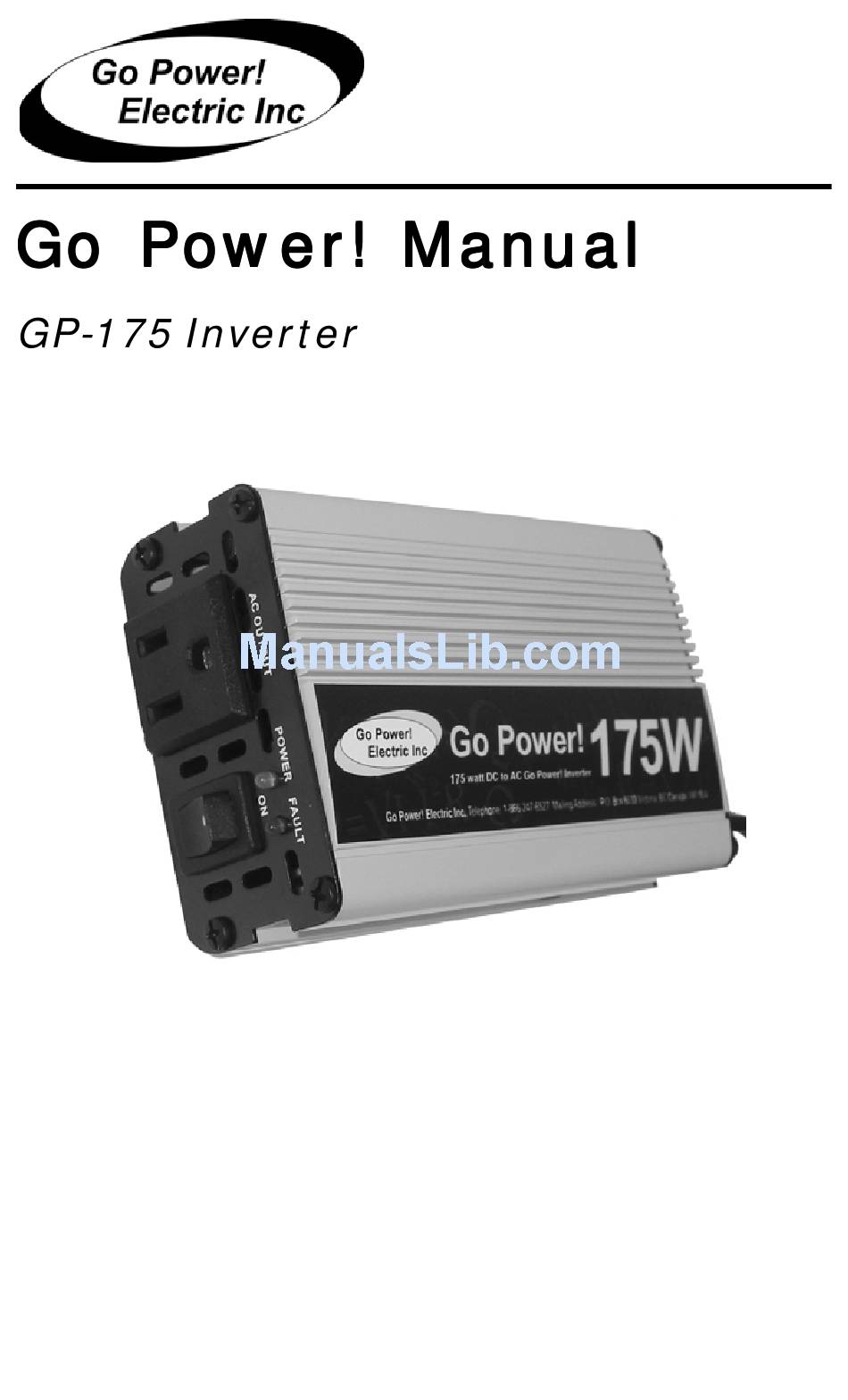

Summary of Contents for Go Power! Electric GP-175
- Page 2 To get the most out of your power inverter, it must be installed and used properly. Please read the instructions in this manual before installing and using your inverter. 2.1 GP-175 Inverter Output 175 W Output wave form...
- Page 3 Power b) ON/ OFF switch a) AC outlet AC outlet: Outlet sockets available: North America ON/ OFF switch: Leave in the OFF position during installation. Power: Lights green when GP-175 inverter is on. Fault: Lights red when fault has occurred.
-
Page 4: Where To Install
Go Power! Modified Sine Wave Inverter Owner’s Manual 3.1 Rear view – GP-175 b) DC input plug a) Ventilation port a) Ventilation port: Do not obstruct, allow at least 1 inch for air flow. b) DC input plug: Plugs into any car lighter. -
Page 5: Controls And Indicators
Go Power! Modified Sine Wave Inverter Owner’s Manual Caution Do not connect this inverter and another AC source (generator or utility power) to the AC wiring or AC loads at the same time. Doing so will destroy the inverter and void the warranty, regardless whether the inverter is switched on or off. -
Page 6: Input Voltage
Go Power! Modified Sine Wave Inverter Owner’s Manual 6.2 Overload The fault LED will come on when the power inverter has shut itself down because its output circuit has been short-circuited or drastically overloaded. Switch the ON/ OFF switch to OFF, correct the fault condition, and then switch the ON/OFF switch back to ON. -
Page 7: Troubleshooting Guide
Go Power! Modified Sine Wave Inverter Owner’s Manual as short as possible and twist them together with about 2 to 3 twists per foot. This minimizes radiated interference from the cables. 7.2 Troubleshooting guide Problem and Symptoms Possible Cause Solution Low AC output voltage Using standard voltmeter.
