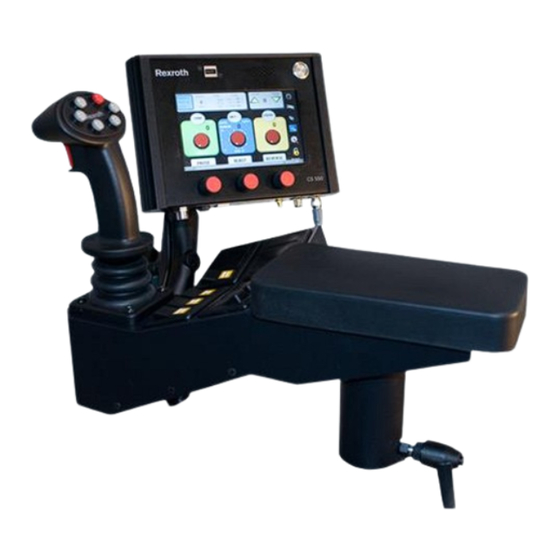

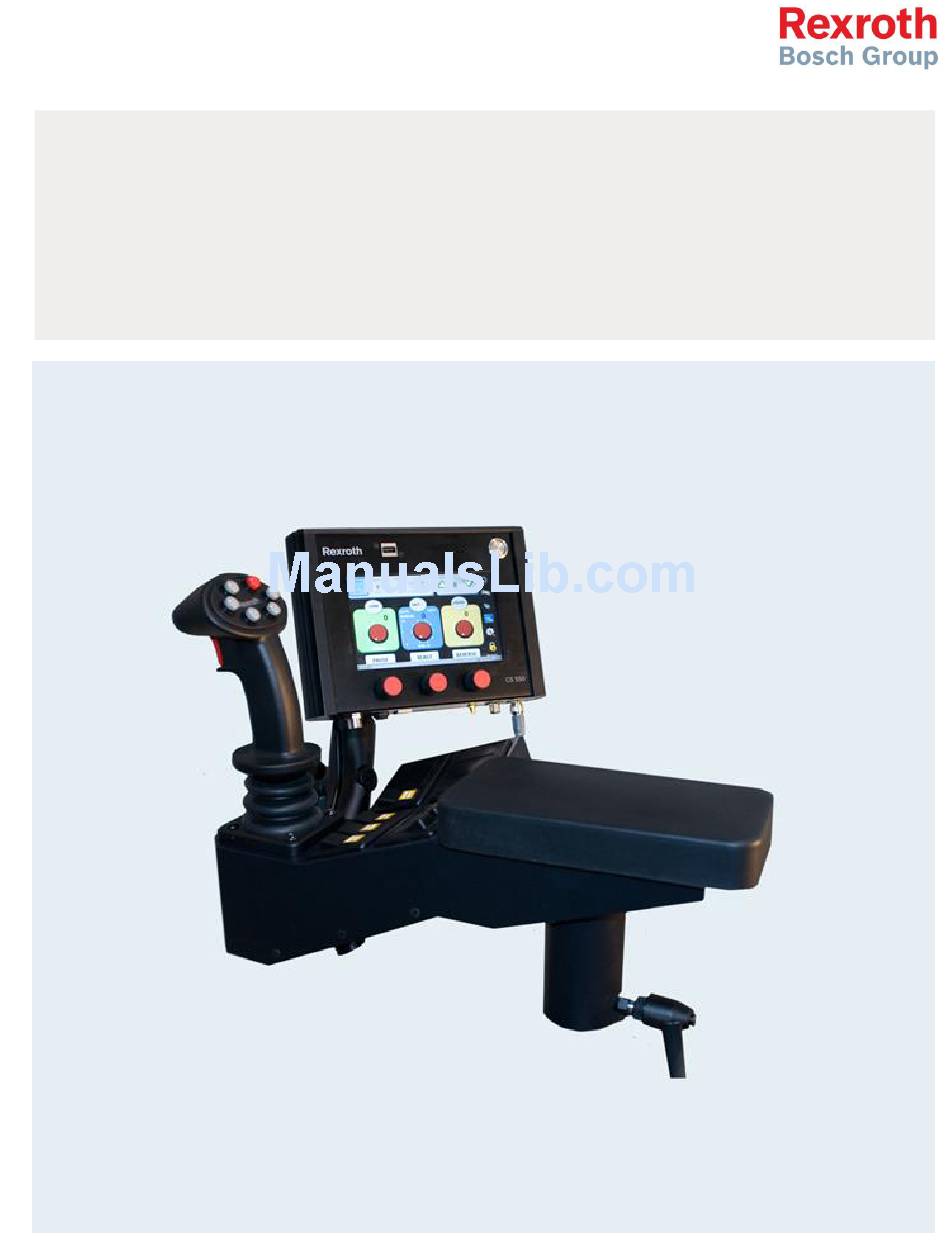

- Page 1 CS 550/150RC Spreader Joystick Controller Operator Manual...
-
Page 2: Table Of Contents
Error Codes Warning Bosch Rexroth Canada Corp. reserves the right to revise this information at any time and for any reason and reserves the right to make changes at any time, without notice or obligation, to any of the information contained in this piece of literature. -
Page 3: Panel Controls
3/18 Panel Controls Turn knobs clockwise to increase. Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 4: Program Screen Layout
Gate Position/Conv Set. Liquid Setpoint Spinner Mode Conveyor Mode Liquid Mode Pause Button Blast Button Reverse Button Trip Summary Toggle between Total and Spreading Distance (S) Total Quantity Total Prewet Volume Total Anti-icing Volume Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 5: Screen Controls
Press the Blast button to increase the spreading output, and press again to resume regular rate. 3.3 Reverse Press and hold the Reverse button to change the direction of the Auger (an optional feature to dislodge obstructions). Release the button to resume spreading. Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 6: Change Solid Material
3.6 Manual Gate Adjustment For Manual Gate operation ONLY. Press the Gate Position Number to select the gate adjustment mode. Use the up and down arrows to adjust. Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 7: Error Messages
When the vehicle is stationary press the ‘Gear’ symbol to display most recent error messages. If a hydraulic pressure&temperature sensor is connected both readings will be displayed on the top right of the screen. Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 8: Unloading - Unload Symbol
4.2 UNLOADING Press the ‘Unload’ symbol to enter into unload mode. (Note: The vehicle must be stationary.) Turn the dials until the desired speed is achieved. Press the Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 9: Data Retrieval/Clear Trip Summary - Usb Symbol
Press the ‘Bright/Vol’ symbol to enter into adjustment mode, volume or bright. Press again to toggle the other mode. Use the up and down arrows to adjust (only adjustable with vehicle stationary). Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 10: Manual Hydraulic Gate Adjustment - Cylinder Symbol
4.6 Programming Mode Press the ‘Lock’ symbol to enter into programming mode. (Note: A valid ‘PROGRAMMING KEY’ must be inserted into the USB port.) See Calibration Manual for programming details. Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 11: Joystick Control
Joystick Screen Available only when equipped with a CS-150 Armrest Console. Screen flips when the Deadman Trigger is pressed. When the trigger is released, the screen reverts back to the spreader layout. Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 12: Anti-Ice Mode
Use the dial on the right to select the desired liquid flow rate. The reverse button is de-activated for this mode. 6.2 Single Boom Use the upper right arrows to select the desired liquid flow rate. Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 13: Pattern Mode
Use the controls on the top right of the screen to control the Air Gate. When vehicle is stationary click on left or right button to toggle between two materials, and automatically set the operation gate to the calibrated gate for the material selected. Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 14: Liquid+ Mode
Use the controls on the top right of the screen to control the Cross Conveyors. Select left or right with the circular buttons. Use the up and down arrows to adjust the speed. Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 15: Spinner Reverse Mode
“R” button of conveyor knob to control conveyor forward/reverse. When the “R” button is pressed the controller would ramp down the spinner from the speed selected and ramp up to the opposite direction to the speed selected. Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... -
Page 16: Error Codes
Rate or speed too high, incorrect calibration UNDER APPLICATION-ANTI-ICING Rate or speed too high, incorrect calibration CALIB:GND SPD PULSES TOO LOW Too few or no pulses, recalibrate SPINNER MAX RPM TOO LOW Bad or no sensor Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0... - Page 17 Range between Joy2 Min and Max too small REQUIRED CONV RPM TOO HIGH Setpoints too high, incorrect wt/rev REQUIRED PREWET FLOW TOO HIGH 69 Setpoints too high, incorrect pulses/gallon REQUIRED ANTI-ICING FLOW TOO HI Setpoints too high, incorrect pulses/gallon Bosch Rexroth Canada ıJune, 2016 ı Revision 3.0...
-
Page 18: Warning
If the glass chips or cracks, discontinue use and contact Bosch Rexroth Canada to have it replaced - do not touch or attempt to remove the broken glass. Any misuse/abuse causing damage, whether intended or not, will become the sole responsibility of the owner/buyer which will render the warranty of this product, void.
