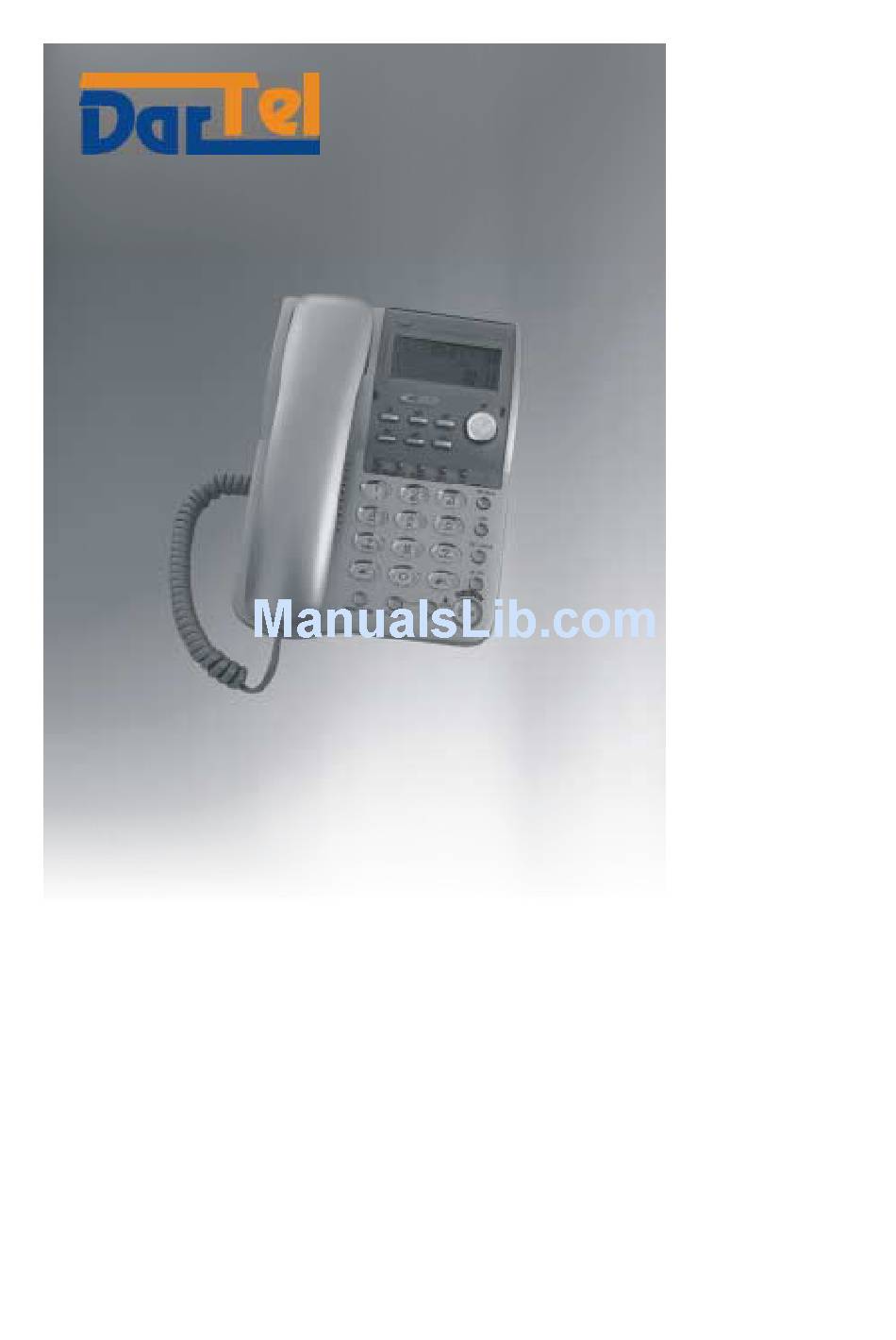

Page 1: User Guide
User guide Please read these instructions LJ-110B carefully before use and keep this User Guide for future reference! - Page 2 User Guide LJ-110B Please read these instructions carefully before use and keep this User Guide for future reference.
-
Page 3: Table Of Contents
Contents LJ- 110B Contents I. Introduction..................Telephone features................Function button index................II. Getting started................... How to connect the batteries..............How to connect the handset and telephone line........How to set the dial mode for your type of telephone exchange.... III. Using the telephone................. How to set the display contrast............. -
Page 4: Introduction
I. Introduction LJ-110B I. Introduction Important! Please read these instructions carefully before use and keep this User Guide for future reference. Telephone components supplied: telephone set (base unit + handset), handset cord, line cord, user guide, guarantee card. Telephone features ♦... - Page 5 I. Introduction LJ-110B ♦ 2-way speaker function ♦ Pre-dial function ♦ Flash ♦ 16 types of ringer sound selectable (8 melody ringers) ♦ Ringer volume control ♦ „Don’t disturb” function ♦ Music on hold ♦ Tone/pulse dialing ♦ Lock for long distance calls ♦...
-
Page 6: Function Button Index
I. Introduction LJ-110B Function button index 1. Handset loudspeaker 2. Wall clip 3. Hook switch 4. Line socket TEL IN 5. Second line socket TEL OUT 6. DIAL MODE T/P switch 7. RINGER Hi-Low switch 8. VOLUME Hi/Low switch 9. DC9V socket for connecting the adaptor 10. - Page 7 I. Introduction LJ-110B Note! The line sockets, the RINGER Hi/Low switch, the VOLUME Hi/Low switch, the DIAL MODE T/P switch, the DC9V socket, the handset socket are located on the side of the base unit. In addition, on the bottom of the base unit, is the socket for blocking telephone numbers.
-
Page 8: Getting Started
II. Getting started LJ-110B II. Getting started How to connect the batteries Remove the cover of the battery ♦ compartment on the underside of the base unit. ♦ Fit three 1,5V AA batteries, being careful to match the “+” and “-“ signs on the batteries to the signs marked on the battery compartment itself. -
Page 9: How To Set The Dial Mode For Your Type Of Telephone Exchange
II. Getting started LJ-110B After connecting the telephone, the display shows the following settings: 00- counter of CLIP numbers, 00:00- clock, - month, - day, 2003 – year, WED – Wednesday. These symbols will be always displayed in the standby mode. -
Page 10: Using The Telephone
III. Using the telephone LJ-110B III. Using the telephone How to set the display contrast The display contrast can be set in two ways. 1. The first way. To set the display contrast: ♦ press the SET/HOLD button. The display SET / HOLD will show - 0 1 2 3 4 5 6 7 -. -
Page 11: How To Set Date And Time
III. Using the telephone LJ-110B How to set date and time To set date and time: ♦ SET / HOLD press the SET/HOLD button. The display will show - 0 1 2 3 4 5 6 7 -. ♦ Press the 1 button. The display will show the symbol 2003 indicating the year. -
Page 12: Ringer Volume Control
III. Using the telephone LJ-110B MON- Monday, TUE- Tuesday, WED- Wednesday, THU- Thursday, FRI- Friday, SAT- Saturday, SUN- Sunday. Ringer volume control The volume at which the base unit will ring for an incoming call can be adjusted. To select the volume you prefer: ♦... -
Page 13: 2-Way Speaker Function
III. Using the telephone LJ-110B Note! a)The melody ringers are available only, when the batteries are placed in the battery compartment. If there are no batteries, only the normal ringer will sound. b)If batteries are not inserted in the battery compartment, the ringer signal (melody) will not sound during the set-up procedure. -
Page 14: How To Receive A Call
III. Using the telephone LJ-110B ♦ To end your conversation, replace the handset on the base unit or press the SP-PHONE button. The time of your last call will continue to be displayed for several seconds,after which the telephone will return to the standby mode. The time... -
Page 15: How To Delete The Out Number
III. Using the telephone LJ-110B ♦ Press the OUT/X button again. The display shows the number, stored in the lower memory location. By pressing the OUT/X button, the remaining numbers can be reviewed. If the OUT/X button is not pressed, the telephone will return to standby mode after several seconds. -
Page 16: Redial Function
III. Using the telephone LJ-110B Last number redial Your telephone automatically stores the last number dialled of up to 16 digits long. This function can be used, when the number is busy. To redial: ♦ lift the handset or press the SP-PHONE button. -
Page 17: Two Touch Dial Memory
III. Using the telephone LJ-110B To switch the hold music on: ♦ inform the person on the other end of the line about a music pause. ♦ Press the SET/HOLD button. The display SET / HOLD will show Hold. The telephone will start to play music. - Page 18 III. Using the telephone LJ-110B ♦ Press the STORE/VIP/÷ ÷ ÷ ÷ button a second time. ♦ Now press one of the number buttons (M1-M7). This gives you the code under which your number will be stored. The telephone will return to standby mode.
-
Page 19: Flash Function
III. Using the telephone LJ-110B To delete a number from it’s memory location: ♦ press the RECALL button. The display will RECALL show rECALL. ♦ Next press the appropriate code number key. The number will be displayed. ♦ Press the DEL button twice. The number will be removed. -
Page 20: How To Lock Telephone Numbers
III. Using the telephone LJ-110B How to transfer a call. To transfer a call from one internal number to another: ♦ press the FLASH button. FLASH ♦ Enter the number, to which you want to transfer the call. PQRS WXYZ ♦... - Page 21 III. Using the telephone LJ-110B To programme the alarm: SET / HOLD 1. press the SET/HOLD button. The display will show - 0 1 2 3 4 5 6 7 -. 2. Press the 5 button. The display will show 123.
-
Page 22: Don't Disturb" Function
III. Using the telephone LJ-110B 14. Press the DEL button. The telephone will return to the standby mode. If the DEL button is not pressed, the telephone will return to standby mode after several seconds. The setting will be stored. -
Page 23: Calculator
III. Using the telephone LJ-110B ♦ Press the DEL button. The telephone returns to the standby mode and the display shows UNCALL and clock. Note! a) If no further buttons are pressed, the telephone will return to standby mode after several seconds. -
Page 24: Clip (Caller Id)- Calling Line Identification Presentation
IV. Clip (Caller ID)- Calling line identification presentation LJ-110B IV. Clip (Caller ID)- calling line identification presentation Note! CLIP function is only available if you have subscribed to the relevant TP S.A. services or those of another Provider. If more information is required, please contact the BOK (Customer Service Office) office in your area.. -
Page 25: How To Review Clip Numbers
IV. Clip (Caller ID)- Calling line identification presentation LJ-110B How to review Clip numbers If new numbers are stored, the display shows the NEW symbol. The number is displayed until the UP/+ or DOWN/- button is pressed or the handset lifted. -
Page 26: Vip Function
IV. Clip (Caller ID)- Calling line identification presentation LJ-110B VIP function VIP function allows important CLIP numbers to be saved from deletion. Every number, which is saved from deletion, will be indicated by the “padlock” symbol. Note! When the „No-disturb” function is used, VIP numbers are treated very specifically. The telephone will ring, when a signal is received from one of these numbers. -
Page 27: How To Set The Local Area Code
IV. Clip (Caller ID)- Calling line identification presentation LJ-110B Special case! It may happen, that the number identified was stored without a prefix, which is necessary to make long distance calls. Your telephone allows a prefix to be added at the beginning of the number automatically. A prefix is added after pressing the BACK button twice. - Page 28 IV. Clip (Caller ID)- Calling line identification presentation LJ-110B ♦ Press the 3 button. The display will show ArEA 0 2 2 -. ♦ Press the # button. The display will show symbol ArEA - - - - .P ♦...
-
Page 29: Wall Mounting
V. Wall mounting LJ-110B V. Wall mounting The wall mount brackets are located underneath the telephone base unit. The telephone can be conveniently wall mounted near the PTT line socket. To mount the base onto the wall: drill two holes into the wall in the correct position, a distance of 133mm apart. -
Page 30: Help
VI. Help LJ-110B VI. Help Please read this Troubleshooting Guide in case of difficulty. ♦ No signal in the the handset: check that the telephone is connected to the telephone line. ♦ No dial tone: check that the telephone is connected to... -
Page 31: Important Advice
VI. Help LJ-110B Important advice ♦ Never use your telephone during a thunderstorm. Unplug it from the telephone line and the mains socket when there are storms in your area ♦ The telephone should not be installed near a sink, bath or shower. Electrical appliances can cause serious injury if the user is wet or standing in water. -
Page 32: Declaration Of Conformity
Declaration of Conformity (CE) LJ-110B DECLARATION OF CONFORMITY MANUFACTURER'S NAME: Przedsiębiorstwo “DARTEL” ADDRESS: 29-100 Włoszczowa, Podlipie 26 TYPE OF PRODUCT: Corded phone PRODUCT NAME: LJ-110B We inform, our products conform to the requirements of the following Directives and Norms: 1) Radio & Telecom Terminal Equipment Directive 99/5/EEC,...
