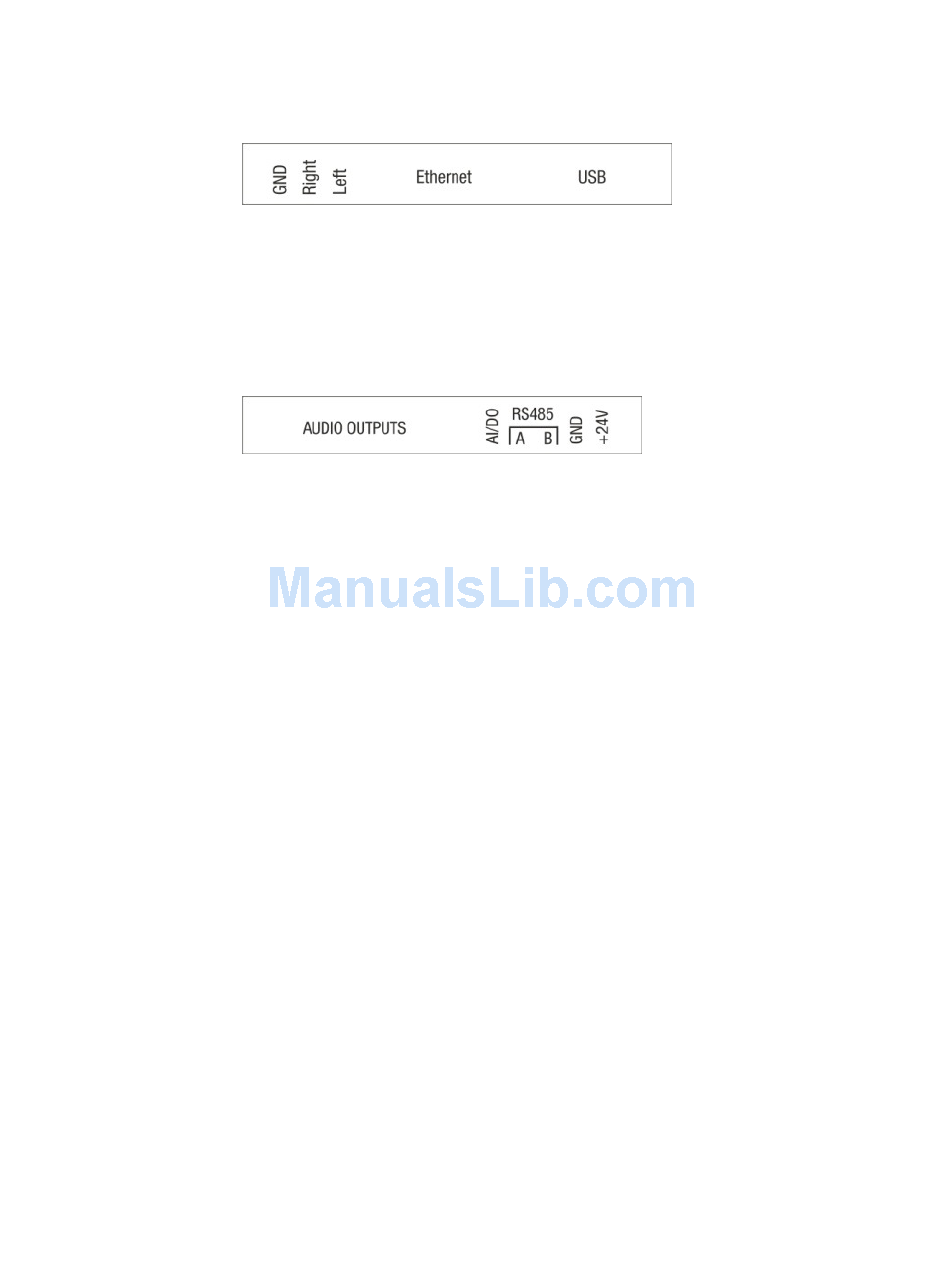

4. Connections – Streaming player WITHOUT amplifier
Upper side
GND – ground
Right – analog line in (right)
Left – analog line in (left)
Ethernet – Ethernet port
USB – 2 x USB interfaces for connection of external flash (music playback) or external WiFi
adapter
Bottom side
Audio outputs– LAN interface to interconnect with local Ethernet network
AI/DO – analog input or digital output
RS485 – RS485 serial port
GND – ground of power supply, -
+24V – power supply, +
