2. Connections – Streaming player WITH amplifier

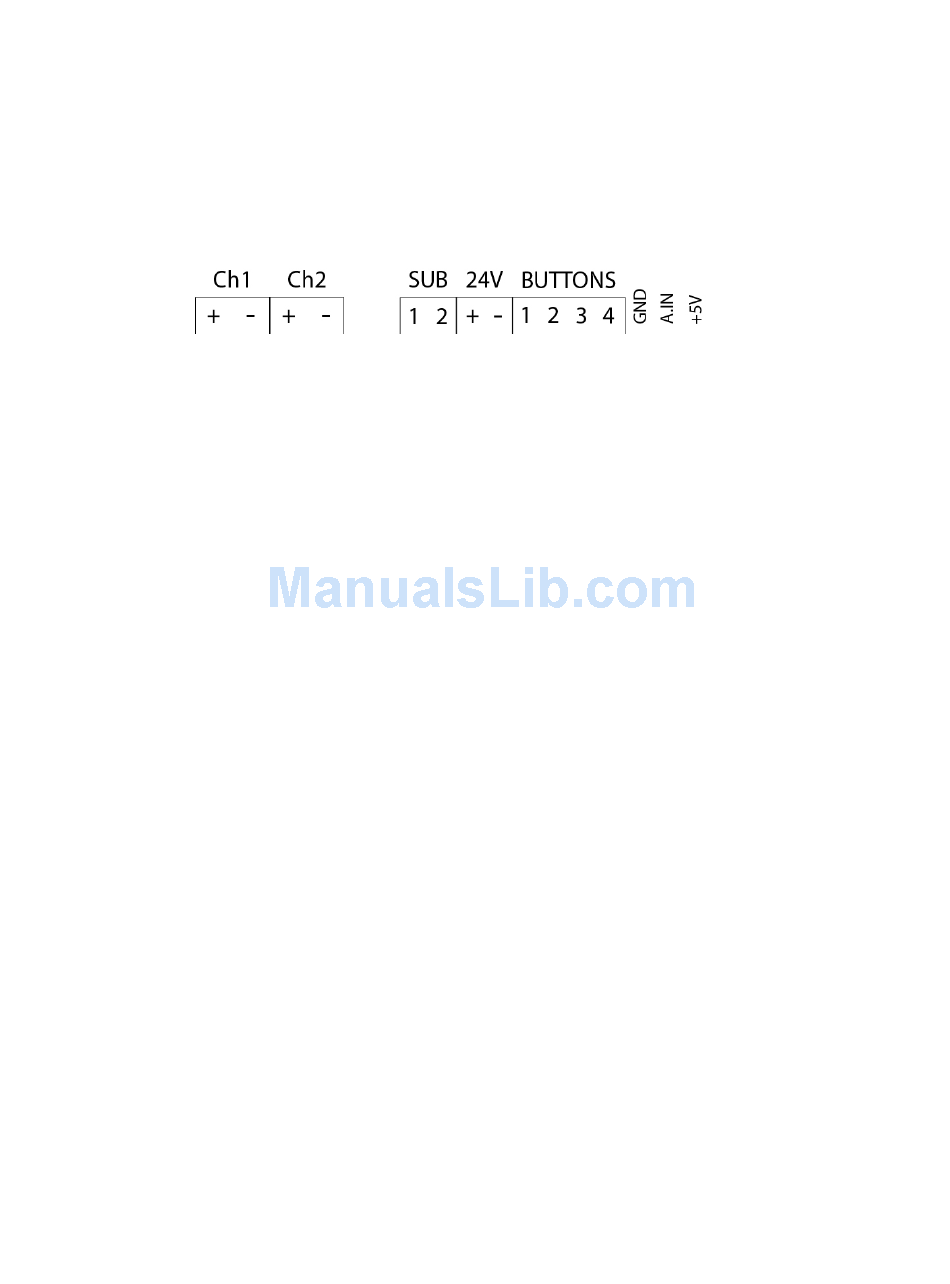

Bottom side
Ch1–stereo loudspeaker output (left)
Ch2 – stereo loudspeaker output (right)
SUB– analog subwoofer output (1 is -, 2 is +)
24V – power input 24V for the player
BUTTONS – digital inputs for push-buttons. Configuration is located in Quick Setup
Cont. –control IO ports
IN – binary/analog input, to connect e.g. potentiometer for volume control
OT – binary output, to control e.g. external relay/contactor
GND – ground for Buttons
A.IN – Analog input for manual volume control (0-5V, 1-10V, 0-10V)
+5V – Voltage output for volume control via potentiometer 5 kOhm
Upper side
ETH – LAN interface to interconnect with local Ethernet network
USB – 2 x USB interfaces for connection of external flash (music playback) or external WiFi
adapter
IR-control – 3.5 mm input for external IR emitter
Reset – Reset button. If pressing >10sec once, the device will be set to default IP 192.168.0.10
with mask 255.255.255.0. If pressing >10sec another time, the device will be completely reset – IP
settings set to DHCP, DLNA and Internet radio library as well as all user settings.
