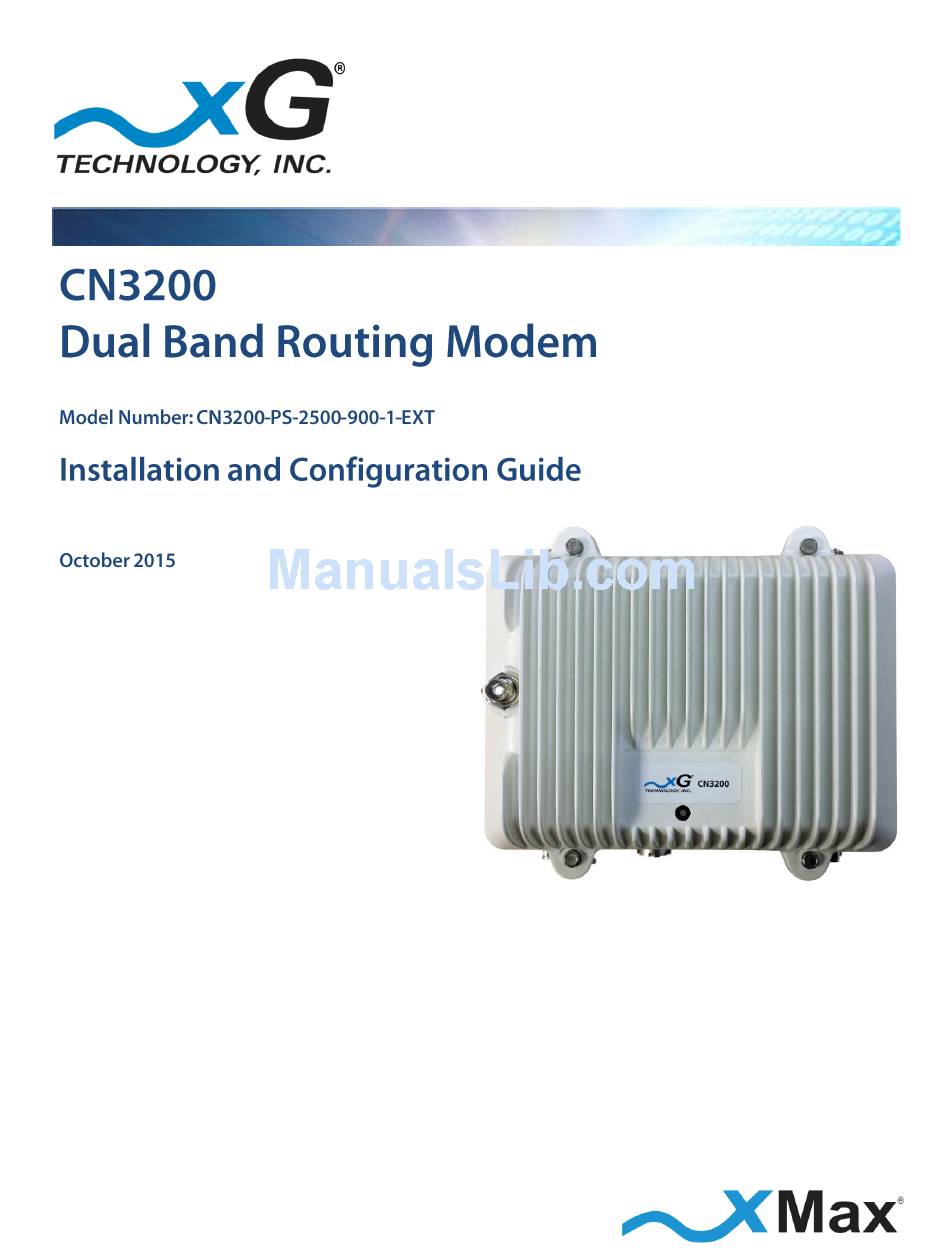

xG Technology CN3200 Installation And Configuration Manual

Dual band routing modem cn3200-ps-2500-900-1-ext
Hide thumbs Also See for CN3200:

Advertisement

Quick Links

G7603 - Release 3.3

Advertisement

Table of Contents
loading

Summary of Contents for xG Technology CN3200

  • Page 1 G7603 - Release 3.3...
  • Page 2 For the latest product documentation and software updates, please refer to our Web site at www.xGTechnology.com/support xG Technology, Inc. 240 South Pineapple Avenue, Suite 701 Sarasota, FL 34236 (941) 953-9035 www.xGTechnology.com CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 3: Table Of Contents

    Antenna Configuration ......................18 Installation Preparation .................... 19 Assemble Your Parts and Tools ....................19 Equipment Provided in the Standard CN3200 Dual Band Routing Modem Kit ..... 21 Installation Procedure Overview ................22 Antenna Cabling Identification ....................23 Antenna Orientation Overview ....................24 Antenna Alignment .........................
  • Page 4 U-Bolts ............................. 30 2.4 GHz Panel Antenna ........................30 Installation Procedure ......................31 Connecting the CN3200 Dual Band Routing Modem to the xMax Network ....34 Wired Internet Connectivity and Setting Up a WiFi Hotspot ........35 Wired Internet Connectivity ....................35 Technical Specifications ....................
  • Page 5 List of Figures Figure 1 — Antenna Configuration ......................18 Figure 2 — CN3200 Dual Band Routing Modem Parts Checklist .............. 19 Figure 3 — Installation Tool Kit Checklist ....................20 CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 6 THIS PAGE INTENTIONALLY LEFT BLANK CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 7: Introduction

    The CN3200 Dual Band Routing Modem is an all-IP, high-capacity and high-performance wireless access point. It is waterproof and made to handle wide temperature ranges. The CN3200 Modem is designed for installation in fixed locations such as towers and buildings.
  • Page 8: Hardware Overview

    The CN3200 Dual Band Routing Modem is a compact form-factor base station used for communicating wirelessly with xMod Mobile Hotspots. The xMax CN3200 Modem is an all-IP, high- capacity, high-performance wireless access point that that delivers wide-area coverage and reliability, even when there is significant interference.
  • Page 9: Connectors

    Tx 3 Tx 1 Tx/Rx 4 Unused Port Ethernet Tx/Rx 2 The CN3200 Modem Status LED indicates power, network status, and hardware fault conditions. Under normal operating conditions, the LED glows GREEN. 2.4 GHz ANTENNA CONNECTOR xMax Network SOLID CONNECTED...
  • Page 10: Important Installation And Safety Notices

    Keep a copy of these instructions for future reference. FCC Part 15 Requirement The CN3200 Dual Band Routing Modem MUST only be installed by a professional installer. It is the responsibility of the installer to adjust the transmit power level to ensure that the output power plus antenna gain does not cause the device to exceed FCC Part 15 output power regulations.
  • Page 11: Fcc Compliance

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio technician for help. CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 12: Before Powering The Cn3200 Dual Band Routing Modem

    (PoE) is applied to the unit. Applying power without proper RF port termination might damage the unit and void the product warranty. TERMINATE BEFORE POWER UP ETHERNET CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 13: Configuring The Cn3200 Dual Band Routing Modem

    These steps set up the CN3200 Dual Band Routing Modem for use. After completing these configuration steps, the CN3200 Modem will be fully functional and ready for operation. The CN3200 modem will provide any Internet-ready device the ability to connect to a public network via both xMax and WiFi using a hardwired connection to either an Ethernet switch/hub or an external WiFi hotspot connected through the Ethernet port on the CN3200.
  • Page 14: Xmax Network Management

    DNS servers are static, change the setting to Obtain DNS server addresses automatically 2. Using an Ethernet cable, connect the computer to the Ethernet connector on the CN3200 Modem. 3. Connect the power cable on the PoE++ Power Supply to a 110 to 240 VAC power source.
  • Page 15: Wifi Network Management

    User password was successfully updated is displayed. NOTE DO NOT SET OR USE THE WIFI OPTION WITH THE CN3200 Modem. 5. At the bottom of the page, click Save Changes, and then on the right side of the menu bar,...
  • Page 16: Connect To The Wifi Access Point

    Save & Apply. The WiFi network is now available. IMPORTANT  All other configuration settings must remain unchanged.  Only an advanced user should attempt to adjust any other settings. CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 17: Antenna Considerations

     The CN3200 Modem is a 2x4 MIMO device with four antenna connectors — two Tx/Rx and two Rx-only.  All connectors are always used.  Omni, Panel and Sector antenna configurations are supported.  For optimum performance, the CN3200 Modem should be placed as close as possible to the antennas.
  • Page 18: Antenna Configuration

    This is a typical tower-mounted CN3200 Modem installation with a 2x4 MIMO Panel Antenna. xMax ANTENNA 2.4 GHz ANTENNA IMPORTANT Install the provided six (6) ferrite beads as shown by this marker in the wiring diagram. Tx/Rx Tx/Rx PoE++ 110-240 VAC,...
  • Page 19: Installation Preparation

    NOTE xG Technology recommends that the CN3200 Dual Band Routing Modem be configured on a bench before installing the device in the field. Please refer to the topic Configuring the CN3200 Dual Band Routing Modem on page 13. This checklist may assist you in assembling the parts needed to complete the installation.
  • Page 20 Cat 5 Crimp Tool Digital Inclinometer  Magnetic Angle Locator Magnetic Compass  Smart Phone Compass App Colored Weatherproof Tape  (if installing multiple units) Figure 3 — Installation Tool Kit Checklist CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 21: Equipment Provided In The Standard Cn3200 Dual Band Routing Modem Kit

    2.4 GHz Panel Antenna with Mounting Bracket and Cable PoE++ Power Supply and AC Power Cord Weatherproof Ethernet Kit Ferrite Beads (6) CN3200 Dual Band Routing Modem Installation Bracket and Hardware CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 22: Installation Procedure Overview

    Before beginning the installation steps, the installer should carefully read all of the work orders, blueprints, plans, datasheets, and site drawings to determine work to be done, and then plan out the deployment. CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 23: Antenna Cabling Identification

    When installing multiple CN3200 Dual Band Routing Modem devices at a site, color code each sector. Use colored weatherproof tape on each end of each Ethernet cable run, and then record the azimuth and tilt of each sector. Refer to the example shown.
  • Page 24: Antenna Orientation Overview

    Downward tilt (downtilt) is most common. Inclination up, called uptilt, is very rare and only used in extreme cases. Antenna tilt is typically adjusted to zero degrees. The site installation plan indicates any deviation from the normal zero inclination for each antenna. CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 25: Estimating Installation Times

    This guide may assist in estimating the time required to complete each xMax CN3200 site installation. Every installation has its own unique requirements, specifications, and challenges. The provided activities and timelines are subjective. Estimated Installation Times ACTIVITY TIME NOTES Unpack and inventory CN3200 shipment box...
  • Page 26: Completion And Quality Control Check List

    Each CN3200 fully tested and operational Site photos taken and documented Optional surge arrestors installed Customer signed off on installation Signature Printed Name Date Installation Completed By: Inspected By: Date: NOTES: CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 27: Installation Details

    The rest of the equipment is then installed and connected. This example assumes that the xMax Network tower is located at 90° (degrees) magnetic in relation to the CN3200 location. The steps in this example assume that two antennas, one xMax one 2.4 GHz, are to be installed.
  • Page 28 Securely tighten all mounting bolts. Complete the remaining installation steps required to connect these components to the power supply and xMax network, as described in the topic Installation Procedure starting on page 31. CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 29: Cn3200 Modem / Xmax Panel Antenna Assembly

    These steps outline the basic tasks required to prepare for a successful installation of the CN3200 Dual Band Routing Modem using the two provided panel antennas. These initial steps prepare the CN3200 for placement in a service location. 1. Locate the supplied mounting bracket and secure the CN3200 Modem to the bracket with four (4) hex-head screws, as shown.
  • Page 30: U-Bolts

    2.4 GHz Panel Antenna Locate the supplied 2.4 GHz Panel Antenna and 24 inch cable. The CN3200 Modem / xMax Panel Antenna array is now prepared for installation. CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 31: Installation Procedure

    10. Attach the supplied weatherproof Ethernet connector onto the CN3200 end of the data cable. 11. Attach two of the supplied ferrite cores to the CN3200 end of the Ethernet cable, as shown in the wiring diagram in the topic Antenna Configuration on page 18.
  • Page 32 Complete the remainder of the installation at the indoor CN3200 PoE power supply location. 13. At the end of the Ethernet cable running from the location where the CN3200 Modem and antennas are installed, install a PoE Surge Protector at the location where the cable enters the building.
  • Page 33 Refer to the xDrive User Guide for instructions. 23. Document the installation with site photos of the completed work performed. In multiple CN3200 Dual Band Routing Modem device installations, be sure to record the device cable color-code and azimuth for each sector.
  • Page 34: Connecting The Cn3200 Dual Band Routing Modem To The Xmax Network

    Within 15 seconds after the power source is applied, the Status LED glows RED. If the CN3200 Modem is within range of an xMax Network, it connects within 2 minutes and the LED glows GREEN. The CN3200 Dual Band Routing Modem is now fully functional.
  • Page 35: Wired Internet Connectivity And Setting Up A Wifi Hotspot

    CN3200 Dual Band Routing Modem for Internet access. 1. Configure the device network interface for DHCP operation. 2. Using an Ethernet cable, connect the device to the CN3200 Dual Band Routing Modem. The CN3200 Modem can be used to create a WiFi hotspot.
  • Page 36: Technical Specifications

    FCC CFR 47 Part 15 Class B Vibration and Shock: MIL-STD 810F Method 514.5 Vibration (constant acceleration), MIL-STD 810F Method 516.5 Shock MANAGEMENT ® NMS: xMonitor Proprietary Event/Fault Manager SNMP v2 Management CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 37: Warranty

    Resellers, and is not assignable or transferable to any subsequent purchaser or end- user. xG’s warranty applies only to a Product that is manufactured by or for xG Technology and is identified within xG’s price book at time of purchase . Any products not covered by xG’s warranty,...
  • Page 38: Additional Provisions Of The Warranty

    Product will meet the purchaser’s requirements or that the operation of the Product will be uninterrupted or error-free. xG is not responsible for problems caused by the interaction of the Product with any other software or hardware. CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 39: Obtaining Service And Support Under Warranty

    PARTICULAR PURPOSE, AND IT CONSTITUTES THE ONLY WARRANTY MADE WITH RESPECT TO THE GOODS COVERED BY THESE TERMS AND CONDITIONS. xG SHALL UNDER NO CIRCUMSTANCES BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. CN3200 Access Point - Installation Guide - G7604 - Release 3.3...
  • Page 40 Technology, Inc. 240 South Pineapple Avenue, Suite 701 Sarasota, FL 34236 (941) 953-9035 © Copyright xG Technology, Inc. 2015. All Rights Reserved www.xGTechnology.com G7603 - Release 3.3...
