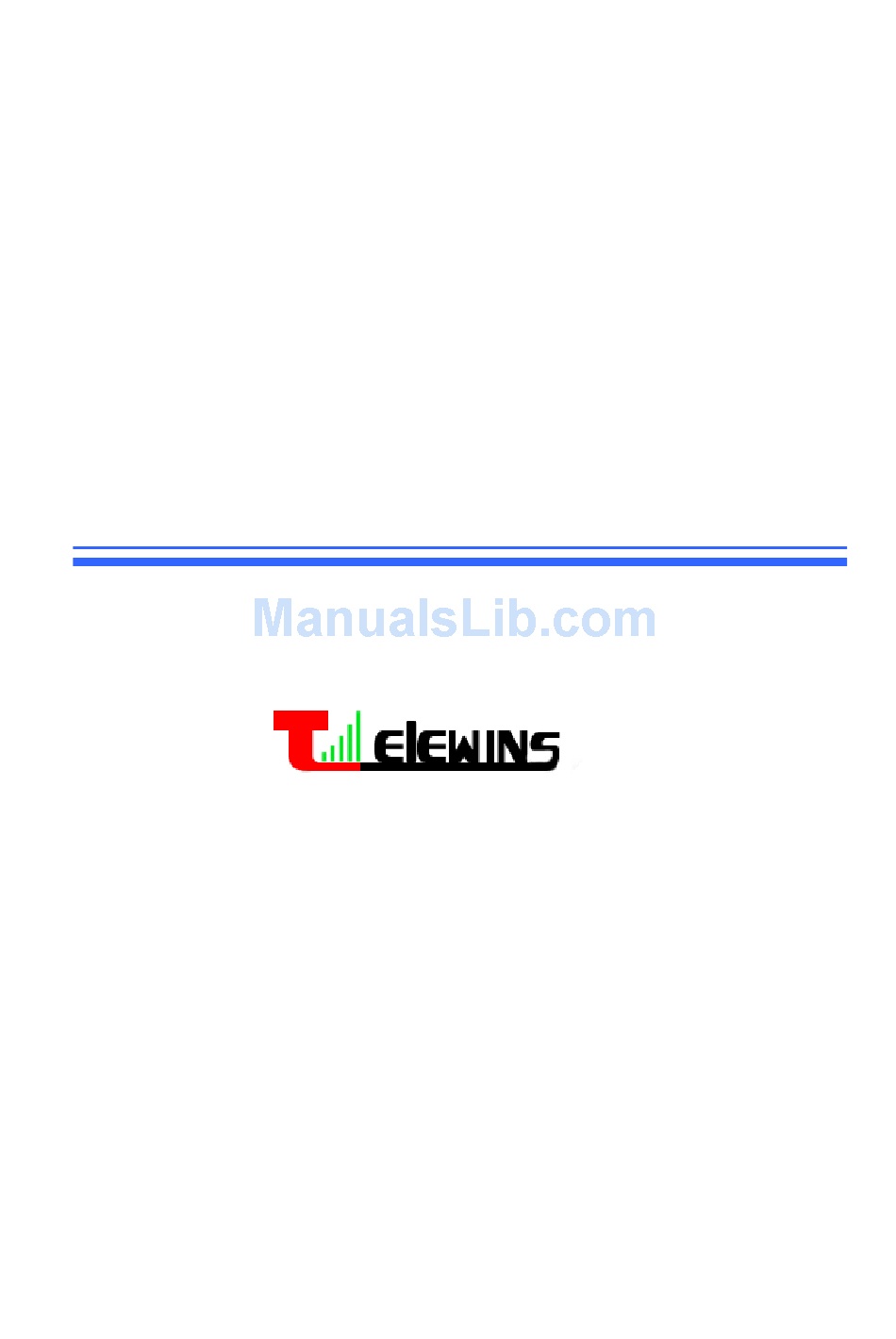

Page 1: User Manual
Super 3G Router USER MANUAL Module name: Wifi-TW550R Wireless Router Instruction Manual TeleWins ( HK).Co., Ltd. Bldy1, Xiandaichenghuating, Chuangye Road Nanshan District, Shenzhen 518054, P.R.China Tel.: +86-755-86217635 V1.0.0... -
Page 2: Table Of Contents
TeleWins(HK).,Co.LTD Table of Contents Chapter I Product Profile ..........................3 1.1 Product Specifications .......................... 3 1.2 Packing List ............................3 1.3 LED indicators and Interface Specifications..................3 Chapter II Installation ............................ 4 2.1 Hardware Installation ..........................4 Step 1: Connect with the data card through the USB interface............5 Step 2: Connect to a PC ........................ -
Page 3: Chapter I Product Profile
TeleWins(HK).,Co.LTD 9.1 Management ............................37 9.1.1 Domain Server ........................37 9.2 System Upgrade ..........................38 9.3 Equipment Management ........................38 Chapter I Product Profile 1.1 Product Specifications ◆ Supports PSTN Phone ◆ Supports IEEE802.11b/g/n, speed rate up to 300Mbps. ◆ NAT & NAPT with VPN pass-through Virtual Server. -
Page 4: Chapter Ii Installation
TeleWins(HK).,Co.LTD Chapter II Installation 2.1 Hardware Installation Please make the correct connection as per the following steps before setting up a router. Please place the router in the central part of the coverage area to maximize its wireless performance. -
Page 5: Step 1: Connect With The Data Card Through The Usb Interface
TeleWins(HK).,Co.LTD Step 1: Connect with the data card through the USB interface. (Figure 2) Step 2: Connect to a PC If the indicator of the Ethernet interface connecting with a network cable is on, the connection is successful. The Ethernet cable cannot be longer than 100 meters (328 feet). -
Page 6: Step 3: Connect To The Power Adapter
TeleWins(HK).,Co.LTD (Figure 3) Step 3: Connect to the power adapter Use a power adapter that is compatible with the device; otherwise, the device may be damaged. (Figure 4) Step 4: Power On/Off Switch on will supply power to device Switch off will cut the power... - Page 7 TeleWins(HK).,Co.LTD Step1: On the desktop, right-click on “My Network Places”, select “Properties”. (Figure 6) Step2: In the following pop-up window, right-click on “Local Area Connection” and select “Properties”. (Figure 7) Step3: In the following window, select “Internet Protocol (TCP/IP)” option, then...
- Page 8 TeleWins(HK).,Co.LTD Step4: In the following pop-up window, select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Then click “OK”. (Figure 9) Step5: If you selected LAN connection. Please double check if the Gateway is really connected to your computer, when “Local Connection” is showing already connected.
-
Page 9: Configure 3G Router
TeleWins(HK).,Co.LTD Step6: Input order “ping 192.168.1.1” and click “Enter”, it will get the following result which is showing the above configuration is successful. (Figure 11) 3.2 Configure 3G Router Step 1、Open Web Management Open Web browser, input 192.168.1.1 at Address bar, then press “Enter”. -
Page 10: Chapter Iv Quick Start Guide
TeleWins(HK).,Co.LTD Chapter IV Quick Start Guide Step 1、Intelligent Guide Click “Quick Setup Guide” as displayed on the major interface and make use of the intelligent guide functions of the router. It enables the one-time configuration of the router’s time, administrator information, internal and external network ports. -
Page 11: Step 3、Configure The System Time
TeleWins(HK).,Co.LTD Click “Next” to Configure the System Time Step 3、Configure the System Time Current time: display the system time of the router. Sync with host: make sure that the router’s time settings are consistent with those of the PC. NTP Server: set up an Internet-based time server. Every once in a while, the router sets up its time and makes sure that its time is consistent with that of the server. -
Page 12: Step 4、Configure 3G Mode
TeleWins(HK).,Co.LTD Step 4、Configure 3G Mode （图 10） Run Type: under the “Keep Alive ”mode, the router will dial up automatically and get connected to the Internet when 3G equipment is plugged in. Under the “Manual” mode, the access internet through dial-up will not be launched until the user clicks “Connection”... -
Page 13: Step 5、Configure Lan Information
TeleWins(HK).,Co.LTD PIN settings: If your 3G Internet access equipment has a PIN code, you shall select “Use PIN” and fill in the PIN code in the following Input Box. Otherwise, you shall select “Unused PIN”. APN: If you select “Auto APN”, then information such as “APN Information”, “Dial Number”, “User”... -
Page 14: Step 6、Configure Wlan Information
TeleWins(HK).,Co.LTD Intranet ports and DHCP settings IP address: set up IP address for Intranet ports. Subnet mask: set up masks for the Intranet. MAC address: display the physical address of Intranet ports. DHCP type: Select “Server” to open DHCP services and then the host in the Intranet could obtain IP dynamically. - Page 15 TeleWins(HK).,Co.LTD “Enable”, they could not get Wi-Fi connectivity to the Intranet of the router. Network mode: select standards used by wireless networks. Options are 802.11b, 802.11g and 802.11n, or mix standards 802.11b/g,802.11b/g/n. Network Name（SSID） ：Enter a name for your wireless local area network (WLAN).
-
Page 16: Chapter V System Status
TeleWins(HK).,Co.LTD Chapter V System Status 5.1 Status (current work conditions of the router) SDK Version: indicates the router’s current software versions and the release date. System Up Time: indicates the system operation time after the router is loaded with a power supply. Such time will be cleared to zero after the power supply is unloaded. -
Page 17: Statistical Information
TeleWins(HK).,Co.LTD connect the 3G network. Signal: signal intensity of the 3G network. NetType: current 3G network that is connected (such as WCDMA, TD or EVDO). WAN IP address: current WAN IP address of the router. If the router’s connection type is dynamic IP. -
Page 18: Chapter Vi Network Settings
TeleWins(HK).,Co.LTD Chapter VI Network Settings 6.1 WAN Settings Please refer to the Extranet configurations of the “Intelligent Guide” for the online configurations. MAC replication: If MAC address replication is initiated, the MAC address of the Intranet’s Internet access data packet shall be changed to the MAC address of the router while accessing the Internet via the router. - Page 19 TeleWins(HK).,Co.LTD MAC address: indicated physical addresses of the Intranet ports. DHCP type: Select “Server” to open DHCP services and then the host in the Intranet could obtain IPs dynamically. Start IP address-End IP address: IPs obtained by the host in the Intranet via DHCP mode are included in this range.
-
Page 20: Dhcp Client List
TeleWins(HK).,Co.LTD LLTD: Identify whether LLTD (Link-Layer Topology Discovery Responder) protocol is supported. This network protocol could intelligently identify which network equipment or computers are connected in the LAN network. IGMP Proxy: Confirm whether the router supports the IGMP protocol. This protocol operates between the host and the multicast router that is directed connected to the host. - Page 21 TeleWins(HK).,Co.LTD This function may be used when it is required to add a specific routing for a certain host. The proper use of static routing could reduce routing issues, alleviate the overload of routing data flows and enhance the transmission speed for the data packets.
-
Page 22: Chapter Vii Wireless Network Configurations
TeleWins(HK).,Co.LTD Chapter VII Wireless Network Configurations 7.1 Basic Settings Radio On/Off: Switch on/off wireless functions of the router. Network mode: Wireless application standards for the router. The router supports 802.11b, 802.11g, 802.11n or mix modes. Multiple SSID: Network name of the wireless signals. This router supports... - Page 23 TeleWins(HK).,Co.LTD scan the router’s SSID. If you select “Isolated”, you can prevent this network from communicating with other networks. Broadcast network Name: You can select “Disable” to forbid the router to broadcast SSID. After that, the wireless clients cannot scan the router’s SSID. The clients cannot communicate with the router if they fail to know the router’s SSID.
-
Page 24: Advanced Settings
TeleWins(HK).,Co.LTD interval shall be provided to reach good BER performance. Channel bandwidth: Please select the channel bandwidth to enhance the wireless performance. MCS: Vertices control signals with the value ranging from zero to thirty-two. The default setting is “Automatic”. Reverse direction authority: You can choose to “Enable” or “Prohibit” this authority. - Page 25 TeleWins(HK).,Co.LTD Fragment Threshold: Specific fragment thresholds of the data packets. When the length of the data packet exceeds such threshold, multiple data packets will be created automatically. RTS threshold: A RTS (Request to Send) threshold specified by the data packets. When the length of the data packets exceeds this threshold, the router will send RTS to the target sites for negotiation.
- Page 26 TeleWins(HK).,Co.LTD WI-FI Multimedia It provides configurations for the wireless multimedia parameters. WMM enables the wireless communications to define a priority range according to the data types. Time-sensitive data such as video/audio data have higher priority than that of the normal data. Wireless clients shall support WMM to maintain WMM...
-
Page 27: Safety Settings
TeleWins(HK).,Co.LTD Wi-Fi multimedia capabilities: Enable WMM functions. WMM function will not take effect until the WIFI is enabled. Direct online capabilities: The enablement will weaken the wireless performance, but could save the energy and electricity. 7.3 Safety Settings The router supports the safety modes (DisableOpen,SHARED:WEPAUTO,WPA-KEY:(WPA-Personal), WPS2-KEY:( WPA-Personal), WPA and WPA2). -
Page 28: Wds Configurations
TeleWins(HK).,Co.LTD forbidden to gain access. “Disable” means that all clients could gain access. 7.4 WDS Configurations Wireless Distribution System (WDS) is used to expand current wireless network coverage. The router supports three modes, namely Lazy Mode, Bridge Mode and Repeater Mode. -
Page 29: Wps Configurations
TeleWins(HK).,Co.LTD Then, you click “Save as” to realize the wireless connection for two wire networks. Repeater Mode: Under this mode, you can manually add MAC on the opposite side to corresponding AP MAC address lists or do this through “Scan Options”. - Page 30 TeleWins(HK).,Co.LTD PBC: select PBC and click "Save as" or press WLAN / WPS button on the back panel for about one second while activating WPS / PBC to connect in the client port. Operation Process: after clicking the WLAN / WPS button for one second, WPS light will blink about 2 minutes, indicating that the function is activated.
- Page 31 TeleWins(HK).,Co.LTD WPS Overview: Display relevant information including current WPS status, authentication modes and encryption types applied, and default private key indexing. WPS Current Status: “Idle” means the idle status. “Start MSC Process” means that the process is enabled and the access is on the way. “Success” means that the server and the client have reached an agreement during the negotiation.
-
Page 32: Chapter Viii Firewall
TeleWins(HK).,Co.LTD Chapter VIII Firewall 8. 1 MAC/IP/Port Filtering This function is aimed at restricting and managing the client ports of the router. If you need to limit Internet use of the machine of the router, you could use this function. To use this function, you should first activate it and then select a default strategy (accept or reject), which means the data packets that do not comply with the rules to be accepted or rejected. -
Page 33: Port Transmission (Virtual Host)
TeleWins(HK).,Co.LTD Default Strategy: Select “Abandon” or “Accept”. This strategy shall be implemented if rules are not matched as what is defined below. MAC Address: Fill in MAC addresses that you plan to define rules. Source IP Address: Enter local IP address that needs filtering. You shall fill in rules that correspond to this IP. -
Page 34: Dmz Settings
TeleWins(HK).,Co.LTD Virtual Server Settings: Enable or disable functions of the virtual servers. IP Address: It is used to input necessary IP addresses, such as192.168.1.103. Port Range: It is used to input necessary port ranges, such as 80-80. Protocol: Select protocols that are used by controllable data packets. -
Page 35: Content Filtering
TeleWins(HK).,Co.LTD Remote management: Identify whether it is permitted to access WEB management pages via Extranet ports. Ping form WAN Filter: Identify whether it is permitted to PING the router via Extranet port SPI firewall: Identify whether to enable the SPI firewall. - Page 36 TeleWins(HK).,Co.LTD Chapter IX System Management 9.1 Management 9.1.1 Domain Server DDNS has another name of dynamic DNS whose main function is to achieve parse between the fixed domain name and dynamic IP. For users who use dynamic IP addresses, the dynamic name software installed in the host would send the IP address to the dynamic parse server provided by DDNS servers every time when getting a new IP from Internet and database of dynamic name parse.
-
Page 37: Chapter Ix System Management
TeleWins(HK).,Co.LTD domain name service. Password: the password you register in the websites that provide dynamic domain name service. DDNS: the domain name you register in the websites that provide dynamic domain name service Note: before using Dynamic Domain Name function, please register the dynamic DNS address services in the website listed in drop-down box of service providers and ensure that this account is effective. - Page 38 Your satisfaction is our priority. Offering a quick and effective technical support, we always put the customer first. Please don’t hesitate to contact us by the following ways if you have any questions. TeleWins( HK).Co., Ltd. Bldy1, Xiandaichenghuating, Chuangye Road Nanshan District, Shenzhen 518054, P.R.China Tel.: +86-755-86217635...
