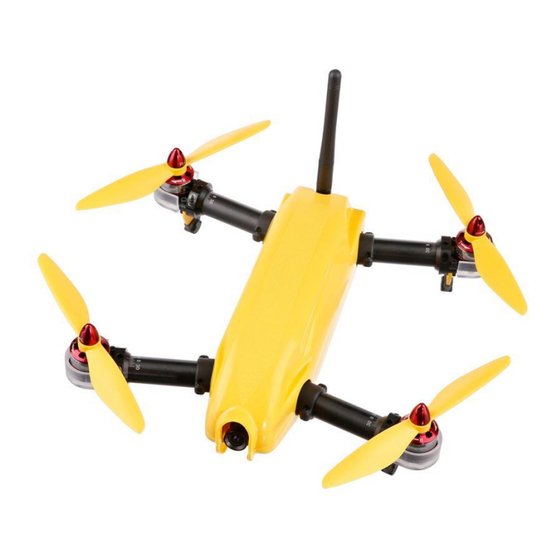

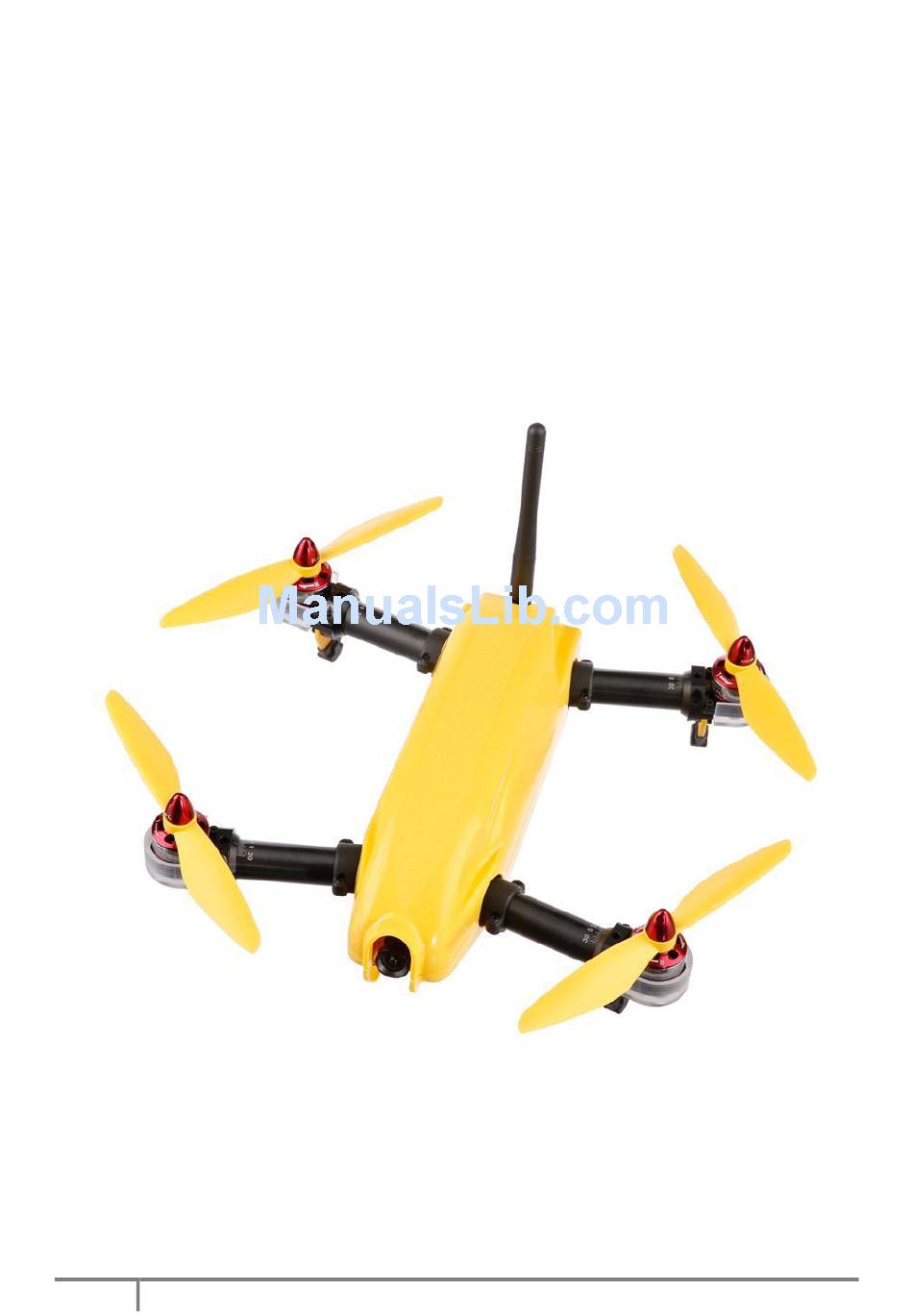

- Page 1 Align MR25 Racing Quad w/RadioLink AT9 Radio Controller USER MANUAL Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 2 DISCLAIMER Please read this disclaimer carefully before using this product. This product is a hobby with motors but not a toy which is not suitable for people under the age of 18. By using this product, you hereby agree to this disclaimer and signify that you have read them fully.
- Page 3 Package includes: 1. Fully-Assembled and Ready-to-Fly Align MR25 FPV Drone (w/ RadioLink R9D Receiver with conventional connection) 2. RadioLink AT9 Radio System 3. 4pcs of 5" Propeller 4. 4pcs of 6" Propeller 5. English Manual and Decals 6. 5.5mm Hex Nut Cross Wrench (for airframe locknut)
- Page 4 Receiver and Quad. III. For Advance Flight controller parameters setup requires, you need to use the ALIGN MRS App which can be found with the link below http://www.align.com.tw/download-en/mrs/ IV. Always make sure the center of gravity in the correct level position as imbalance CG would affect flight stability and performance Copyright@2015 HeliPal.com.
- Page 5 Quick Start Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 6 Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 7 How to start recoding? Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 8 FPV System Align video transmitter has up to 32 different video channels available to avoid interference with other channels. If two or more drones are flying at the same time, try to select different video frequency to avoid video interference.
- Page 9 Lost connection with radio controller If you’re the drone cannot response to the radio controller stick travel, the connection between radio controller and receiver may lost and you can try to re-bind them by following the procedure below: Press the switch inside the receiver twice with small screwdrivers to make LED indicator turns RED to set the control mode to Conventional Mode.
- Page 10 3) [TYPE] = AIRCRAFT [SELECT] = 01 [NAME] = SRD-CC3D (Any name you want) Go to [AUX-CH] -> ATTITUDE, apply the setting below: [CH5] = SwF [CH6] = ----- [CH7] = SwE [CH] = CH6 [SW3] = SwG [SW2] = NUL [CH8] = VrA [CH9] = SwA [CH10] = SwD [NORMAL] = 0% [ATTI.] = 50% [GPS] = 100% [HOVER] = 25% [F/S] = 75% [AUX] = 50%...
