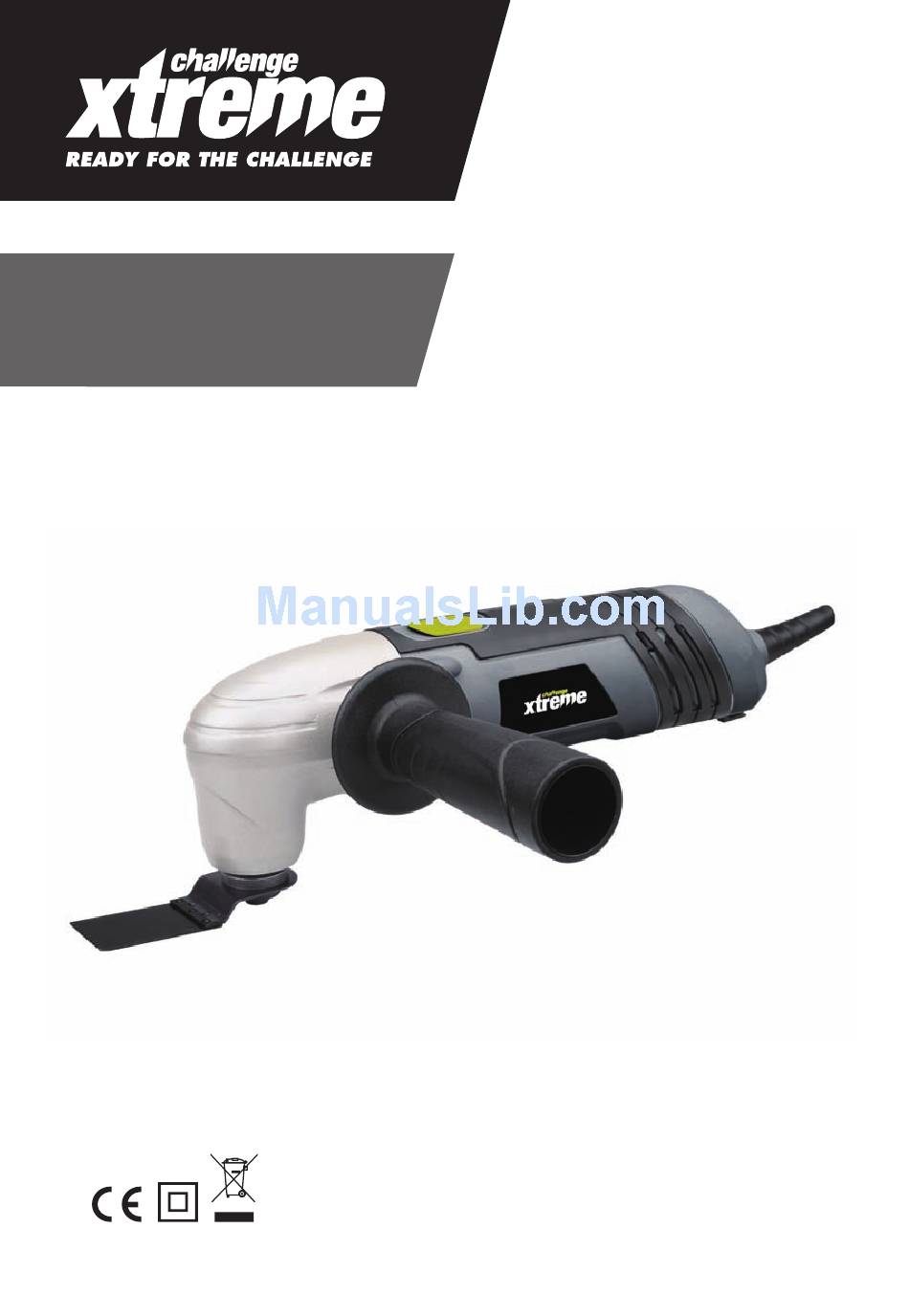

- Page 1 250W MULTI TOOL PT100941 ORIGINAL INSTRUCTIONS...
-
Page 2: General Power Tool Safety Warnings
There is an increased working close to edges and for flush cutting. risk of electric shock if your body is Your multi tool can fit any Challenge Xtreme earthed or grounded. multi tool accessories and Bosch multi tool • Do not expose power tools to rain accessories as well. - Page 3 ORIGINAL INSTRUCTIONS • Do not use the power tool if the • Use personal protective equipment. switch does not turn it on and off. Always wear eye protection. Any power tool that cannot be controlled Protective equipment such as dust mask, with the switch is dangerous and must be non-skid safety shoes, hard hat, or hearing repaired.
- Page 4 ORIGINAL INSTRUCTIONS • Never use the machine with a This will ensure that the safety of the damaged cable. Do not touch the power tool is maintained. damaged cable and pull the mains plug when the cable is SAFETY WARNINGS FOR damaged while working.
- Page 5 ORIGINAL INSTRUCTIONS SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Wear eye protection Wear ear protection Wear dust mask Double insulation Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 6 ORIGINAL INSTRUCTIONS Pic A HELPLINE NO 08454 505299...
-
Page 7: Components List
ORIGINAL INSTRUCTIONS COMPONENTS LIST 1. On/Off switch 2. Oscillation speed setting wheel 3. Tool holder 4. Clamping screw with washer 5. Plunge cut blade 6. Soft grip handle 7. Auxiliary handle 8. Sanding sheet 9. Sanding pad 10. Segment cut blade 11. -
Page 8: Technical Data
ORIGINAL INSTRUCTIONS TECHNICAL DATA Voltage 230-240V~50Hz Rated power 250W No load speed 15000-21000/min Oscillating angle ±1.4 Protection class NOISE INFORMATION A weighted sound pressure 82.4dB(A) A weighted sound power 93.4dB(A) KPA & KWA 3.0dB(A) Wear ear protection when sound pressure is over 80dB(A) VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745:... - Page 9 ORIGINAL INSTRUCTIONS WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled.
- Page 10 ORIGINAL INSTRUCTIONS ASSEMBLY necessary, and press the new sandpaper in place.(Fig C) 1. INSTALLING AND REMOVING After considerable use the backing pad ACCESSORIES surface will become worn, and the backing pad must be replaced when it no longer offers 1. To install accessories, align holes in accessory with locating pins on accessory a firm grip.
- Page 11 ORIGINAL INSTRUCTIONS 3. SELECTING THE APPLICATION ACCESSORY The following table shows examples for application tools. You can buy other accessories from Argos stores. Our multi tool can use both challenge xtreme and Bosch accessories. Accessory Material Application 50CrV Wooden materials, Separating and plunge cuts;...
-
Page 12: Operation
ORIGINAL INSTRUCTIONS When sawing light building OPERATION materials, observe the statutory SLIDE "ON/OFF" SWITCH provisions and the recommendations The tool is switched "ON" by the slide switch of the material suppliers. located on the topside of the motor housing Plunge cuts may only be applied to Switching on: soft materials, such as wood, gypsum TO TURN THE TOOL "ON"... -
Page 13: Maintenance
ORIGINAL INSTRUCTIONS PLUG REPLACEMENT 5. Move the tool in long steady strokes parallelto the grain using some lateral Your Power Tool is supplied with a fitted motion to overlap the strokes by as much plug, however if you need to fit a new plug as 75%. - Page 14 ORIGINAL INSTRUCTIONS DISPOSAL Do not dispose of electrical appliances with your domestic waste! The packaging comprises exclusively environmentally- friendly material. Dispose of it in your local recycling containers. GUARANTEE This product is selected for DOMESTIC USE ONLY and not for business use. This product is guaranteed against manufacturing defects for a period of 12 months.
- Page 15 We hereby certify that the product stipulated above complies with all the relevant provisions of the following EC new approach directive/s. This declaration of conformity is issued under the sole responsibility of the manufacturer 250W Multi Tool PT100941 Type of Product: Model Number:...
