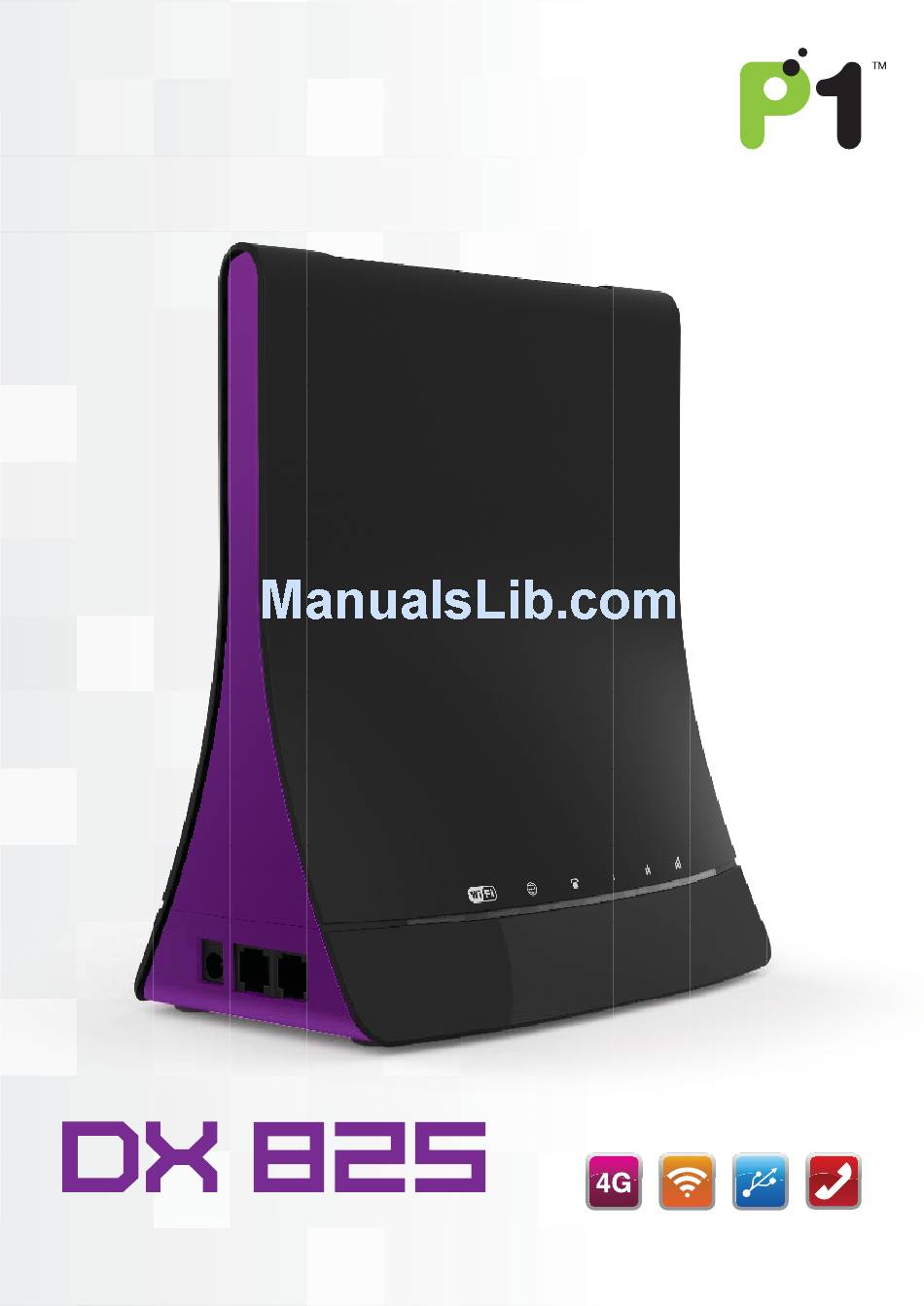

- Page 1 QUICK INSTALLATION GUIDE 4G Desktop Modem WiFi Plug Voice Speed Access and Play Service...

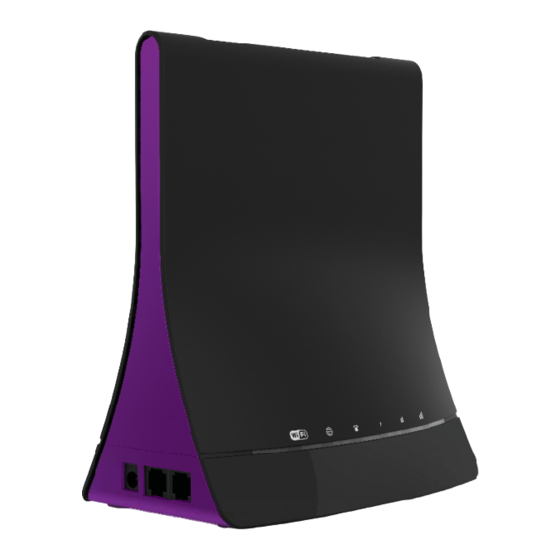

- Page 2 Contents Your 4G box contains the following items: 4G Desktop Modem (DX 825) Power Adapter LAN Cable Get to know your modem Note: It is recommended that the modem is placed near a window Power VOIP WiFi Status Authentication 4G Signal LAN Ports Connector Ports...
- Page 3 Connecting your devices Window Communication Tower 4G Desktop Modem (DX 825) LAN Port DC Power Port Phone Port Phone Cable (not included)
- Page 4 How do you set up your 4G connection? 4G Setup Procedure Step 1: Position Modem Place the modem near a window for better signal reception. Window P1 DX 825 Desktop modem (Near the window) WiFi enabled computers Step 2: Power On Plug the Power Adapter into the Wall Socket and the Power Adapter’s tip into the modem’s DC...
- Page 5 Step 3: Establish 4G Connection Once powered on, the modem will automatically connect to the 4G network. The following will occur in order. One green LED is blinking: Searching for 4G signal Two green LEDs are blinking: Connecting to 4G network Three green LEDs are blinking: Obtaining IP address When the modem has successfully logged on to the network, the following LED pattern will remain ON to indicate the signal strength.
- Page 6 Step 4: Connect Your Computer Connect one end of the LAN Cable to your modem’s LAN Port and the other end to your Computer/Laptop’s LAN Port. Once the connection is secured, the LAN Port’s green LED (next to the LAN Port) will light up. The LAN Port amber LED may blink, indicating that data is being transferred between your Computer/Laptop and the modem.
- Page 7 How do you set up your phone service? Follow these simple steps to activate your subscribed phone services. For more information on P1 Voice service subscription, please contact our P1 Careline at p1.com.my/customercare or visit http://www.p1.com.my/voice/ Phone Service Setup Procedure...
- Page 8 Step 2: Establish Phone Service Connection Once the Phone Cable (RJ-11) is connected to both your modem and phone, the blue phone LED will light up. You can now access your subscribed P1 Voice service. Phone LED indicates blue: Phone service is ready...
