Summary of Contents for La Crosse Technology 330-2315
Page 1

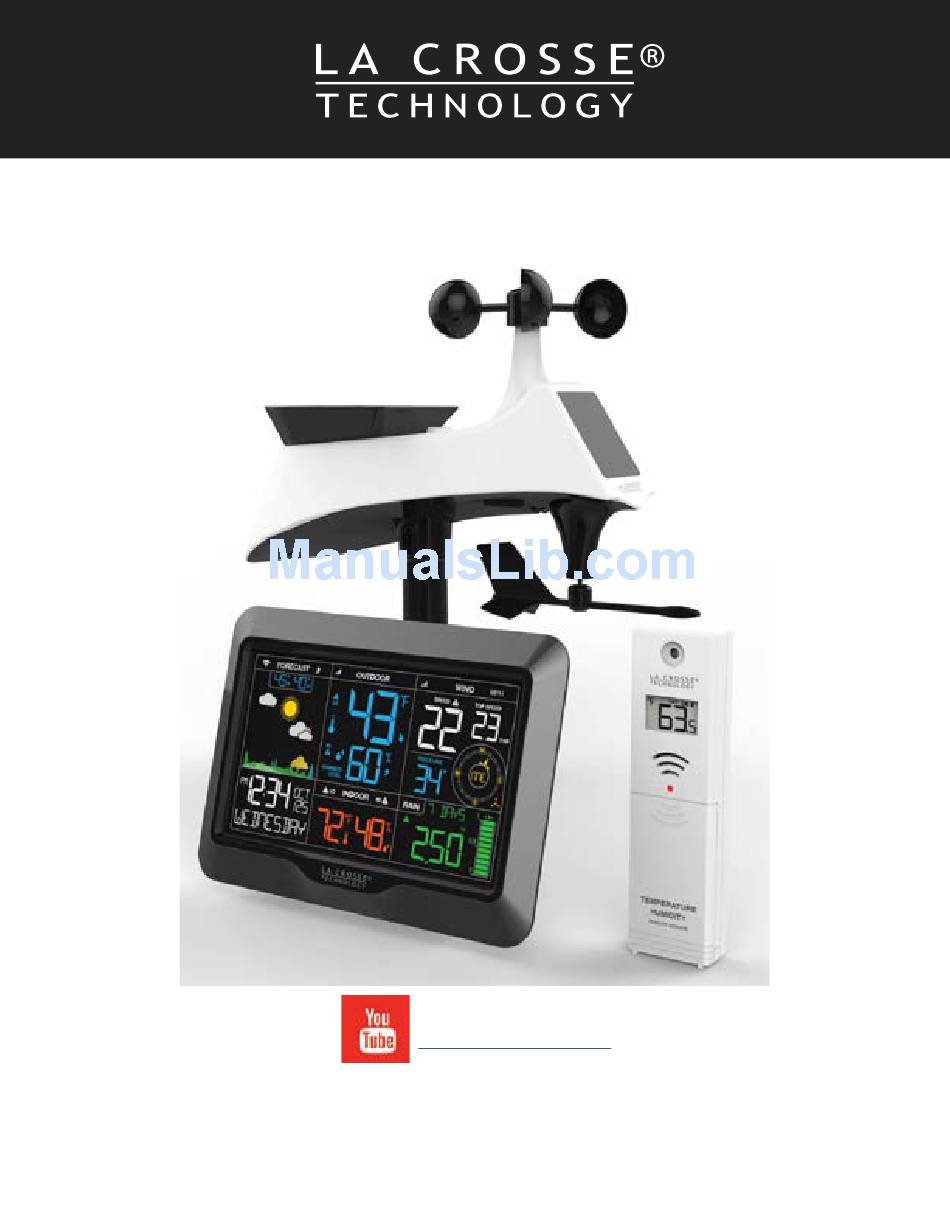

Professional Weather Station For online video support: http://bit.ly/LaxTechTalk Instructional Manual Model: 330-2315 DC:110316 Protected under U.S. Patents: 5,978,738 | 6,076,044 | RE43903...
3. Place outdoor sensor in a shaded location after 5 minutes. Optional: insert 3-AAA batteries into the weather station. Thermo-hygro sensor Multi-sensor Weather Station TX233TH TX233RW 330-2315 Power Cable 1 2 3 °C/°F Optional Note: Batteries are not included When station is powered...
10. Temperature (C/F) 11. Wind degree or direction (letters) select 12. Wind speed select (mph/kmh) 13. Rainfall unit select (in/mm) Note: Press only one button at a time while setting time, date, etc. Back 330-2315 Professional Weather Station Page | 4...
Page 5
13. Rain (INCH | MM) • Press the LIGHT button at any time to exit. • After 20 seconds with no button press, the station will default back to normal Back time display. 330-2315 Professional Weather Station Page | 5...
Display Icons WiFi Icon Temperature Sensor Strength Forecast Icon Humidity Wind Direction Seasonal Trees HI | LO Alert Wind Speed AM | PM Fahrenheit | Celsius Rainfall Graph Trend Arrows Percent Humidity Back 330-2315 Professional Weather Station Page | 6...
• Press the WIND button to view individual wind speed readings. • Hold the MINUS button for five seconds to reset the individual value. • Wind speed reading will reset to current wind speed. Back 330-2315 Professional Weather Station Page | 7...
(each resets individually): • Press the RAIN button to view individual rain readings. • Hold the MINUS button for five seconds to reset the individual value. • Individual rainfall reading will reset to 0.00 Back 330-2315 Professional Weather Station Page | 8...
Reset Temperature/Humidity Readings • Press the TEMP button to view individual rain readings. • Hold the MINUS button for five seconds to reset the individual value. Back • Individual readings will reset to 0.00 330-2315 Professional Weather Station Page | 9...
• 24-hour Rainfall Value 0-393 inches (0-99.9mm) • High Wind Speed ON/OFF (CURRENT wind) • High Wind Speed Value 0-111.8 (0-180kph) (CURRENT wind) Alert OFF use +/- to arm Alert ON use +/- to set value Back 330-2315 Professional Weather Station Page | 10...
Down Arrow: Fallen in past hour Forecast Trend Arrows Forecast trend arrows indicate the rise and fall of barometric pressure. Up Arrow: Pressure is rising. Down Arrow: Pressure is falling. Weather will improve. Weather may worsen. Back 330-2315 Professional Weather Station Page | 11...
• The trees and foliage color will change seasonally. The dates are programmed into the weather station for the scene to change automatically. Spring Summer June 21st – Sept. 20th March 20th – June 20th Autumn Winter Sept. 21st – Dec 20th Dec 21st – Mar 19th Back 330-2315 Professional Weather Station Page | 12...
(dashes). 3. Press the + button to search. 4. Press the TX button on sensor. 5. When sensor connects, its ID and readings will show on the display. Back 330-2315 Professional Weather Station Page | 13...
Red LED Reset Light button Battery compartment RESET Drain holes for multi sensor Rain funnel (collector) Drain vents for rain sensor The Multi sensor provides wind speed, wind direction and rainfall readings. Back 330-2315 Professional Weather Station Page | 14...
• The sensor can be mounted from the bottom or from the side. Alternatively: • Insert your own mounting pole into the sensor base. • Tighten screws • Mounting bracket would not be used. Back 330-2315 Professional Weather Station Page | 15...
2. Gently remove debris or insects inside the rain sensor. 3. Clear debris from drain vents. 4. Clear debris from the rain funnel. 5. Reinstall the rain funnel. Note: Do not oil the rain sensor. Back 330-2315 Professional Weather Station Page | 16...
Check the Wifi setting on your mobile device. • During setup, weather station and mobile device must be in close proximity. • Weather station must be powered with AC adapter for the WiFi to work. Back 330-2315 Professional Weather Station Page | 17...
Page 18
1. Start the Weather Connect app and enter the password for the new WiFi network. 2. Hold the PLUS and MINUS buttons on the station for 3 seconds to search for the network. 3. Enter Weather Underground station ID and password. Back 330-2315 Professional Weather Station Page | 18...
Internet via Weather Connect App). Not displayed -Not connected to WiFi router-check router Visit Us on Social Media Latest video content http://bit.ly/LaxTech_YouTube For personalized interaction http://bit.ly/LaxTech_Facebook Join the conversation http://bit.ly/LaxTech__Twitter Pin and share http://bit.ly/LaxTech_Pinterest Back 330-2315 Professional Weather Station Page | 19...
• Promptly remove expired batteries. Warranty and Support La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. Before returning a product, please contact our friendly customer support with questions...
13.61” W x 8.55” H x 5.14” D (345.69 W x 217.17 H x 130.55 D mm) Back TX233TH Thermo-hygro 1.67” W x 6.14” H x 0.83” D (42.42 W x 155.96 H x 21.08 D mm) 330-2315 Professional Weather Station Page | 21...
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu’aucune autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps. Back 330-2315 Professional Weather Station Page | 22...
