Connect to the Network
The Metrobility 2131 media converter offers the ease of plug-and-play
installation.
Each 2131 media converter provides one shielded RJ-45 connector and
supports a maximum segment length of 100 meters for Category 5 twisted-
pair.

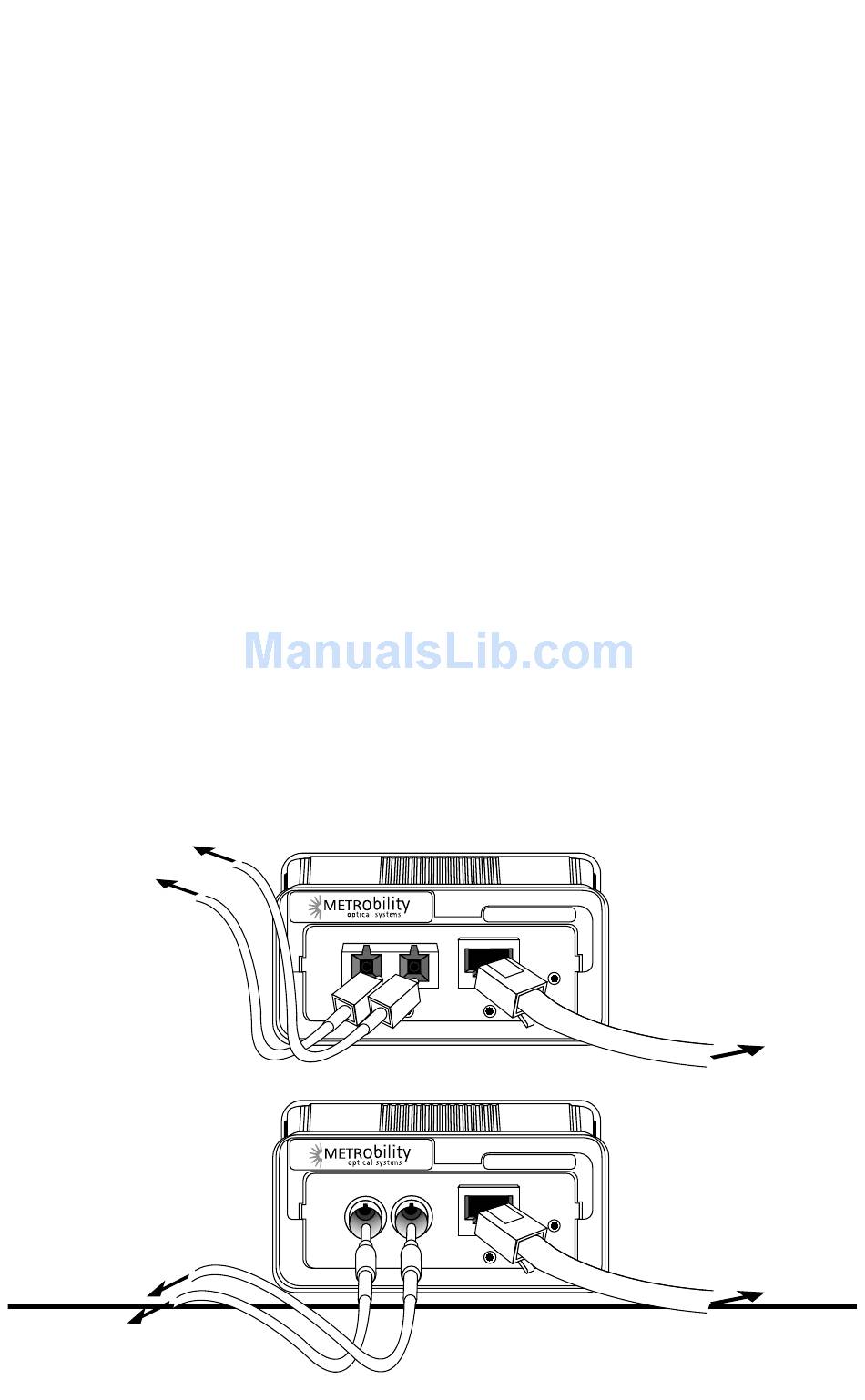

The 2131 also comes with the following connectors:
• The 2131-13-01 and 2131-15-01 provide one set of FX multimode SC/
ST connectors, respectively, and supports a maximum segment length of
up to 2km for remote links.
• The 2131-14-01 provides one set of FX singlemode SC connectors and
supports a maximum segment length of up to 15km for remote links.
• The 2131-17-01 provides one set of FX singlemode SC connectors and
supports a maximum segment length of up to 40km for remote links.
• The 2131-1J-01 provides one set of FX singlemode SC connectors and
supports a maximum segment length of up to 100km for remote links.
• The 2131-16-01 provides one set of FX singlemode ST connectors and
supports a maximum segment length of up to 15km for remote links.
"twister"
100BASE-FX
100BASE-TX
TX
RX
SM
AT
LK
AT
"twister"
100BASE-FX
100BASE-TX
TX
RX
SM
AT
LK
AT
"twister" 2131 Media Converter
™
2131
PWR
LK
™
2131
PWR
LK
9
