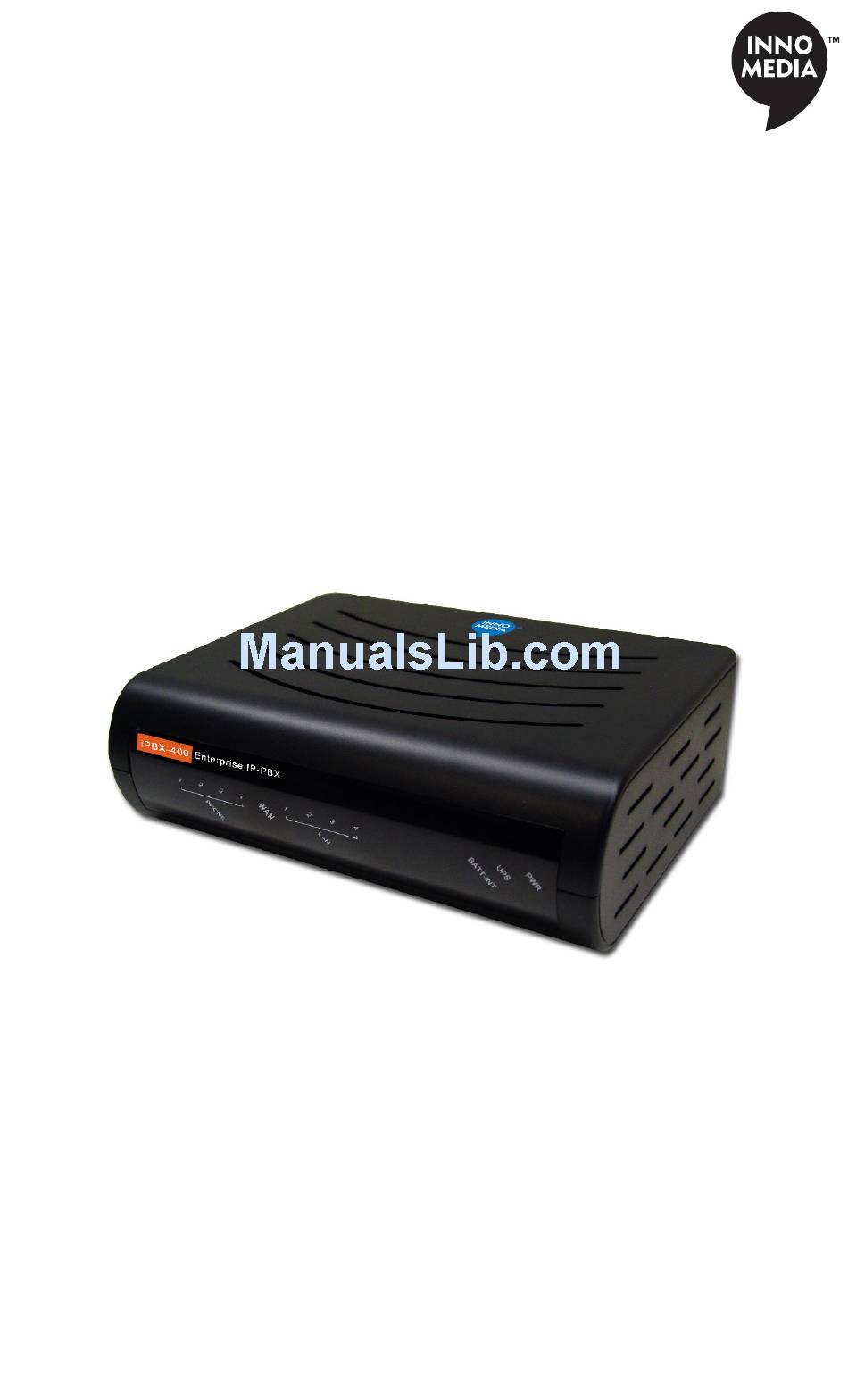

  • Page 1 InnoMedia iPBX-400 Quick Install Guide www.innomedia.com...
  • Page 2: Table Of Contents

    Table of Contents Introduction 2 Package Contents 2 Installation 3 Wall-Mounting Instructions Troubleshooting Appendix A. LED Status Summary Specifications Federal Communication Commission Interference State- ment 8...
  • Page 3: Introduction

    Introduction The InnoMedia iPBX comes with all the IP-PBX features you’d expect and SIP Trunking, the industry-accepted approach for direct IP peering to VoIP Service Providers. With SIP Trunking enabled, the iPBX is capable of managing in a secured manner, an enterprise’s telephony network.
  • Page 4: Installation

    Installation 1. Connect the RJ-45 cable to the “WAN” connector. 2. Connect a grounding cable to be connected to the ground screw terminal as shown in the diagram. 3. Connect any standard analog telephone or fax machine to iPBX’s “PHONE” connec- tor, labeled 1-4.
  • Page 5 7. Power on iPBX-400. If you have analog phones that are connected to iPBX-400 Phone interface, you may start placing and receiving telephones with the default extension numbers, from 400 to 403. 8. Please refer to the administrative guide (in the CD), to start the network placement and telephony plan for your enterprise.
  • Page 6: Wall-Mounting Instructions

    Wall-Mounting Instructions Optionally, you may choose to mount your iPBX-400 on the wall. 1. Use the provided template to drill two holes on the wall. 2. Use a screwdriver to install one #6 metal screw in each hole. Leave the screw heads 1/4 to 3/8 inch away from the wall.
  • Page 7: Troubleshooting

    Troubleshooting Problem: Telephone has no dial tone Solution: 1. Ensure that all cables (power, Ethernet, telephone) are properly connected to the iPBX. Ensure that iPBX’s AC power adapter is plugged in, and “PWR” indicator lights are ON (see Front Cover Picture). 2.
  • Page 8: Appendix A. Led Status Summary

    Appendix A. LED Status Summary LED / Control Blinking State iPBX-400 State Steady Green Device power is on Device power is off Solid Orange Battery Fully Charged Blinking Orange Battery is charging (AC power on) Solid Green Battery is in use (AC power off )
  • Page 9: Federal Communication Commission Interference State

    This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. © 2010 InnoMedia Incorporated. All rights reserved. InnoMedia and the InnoMedia logo are trademarks of InnoMedia Incorporated. All other brand and product names may be trademarks of their respective companies.
