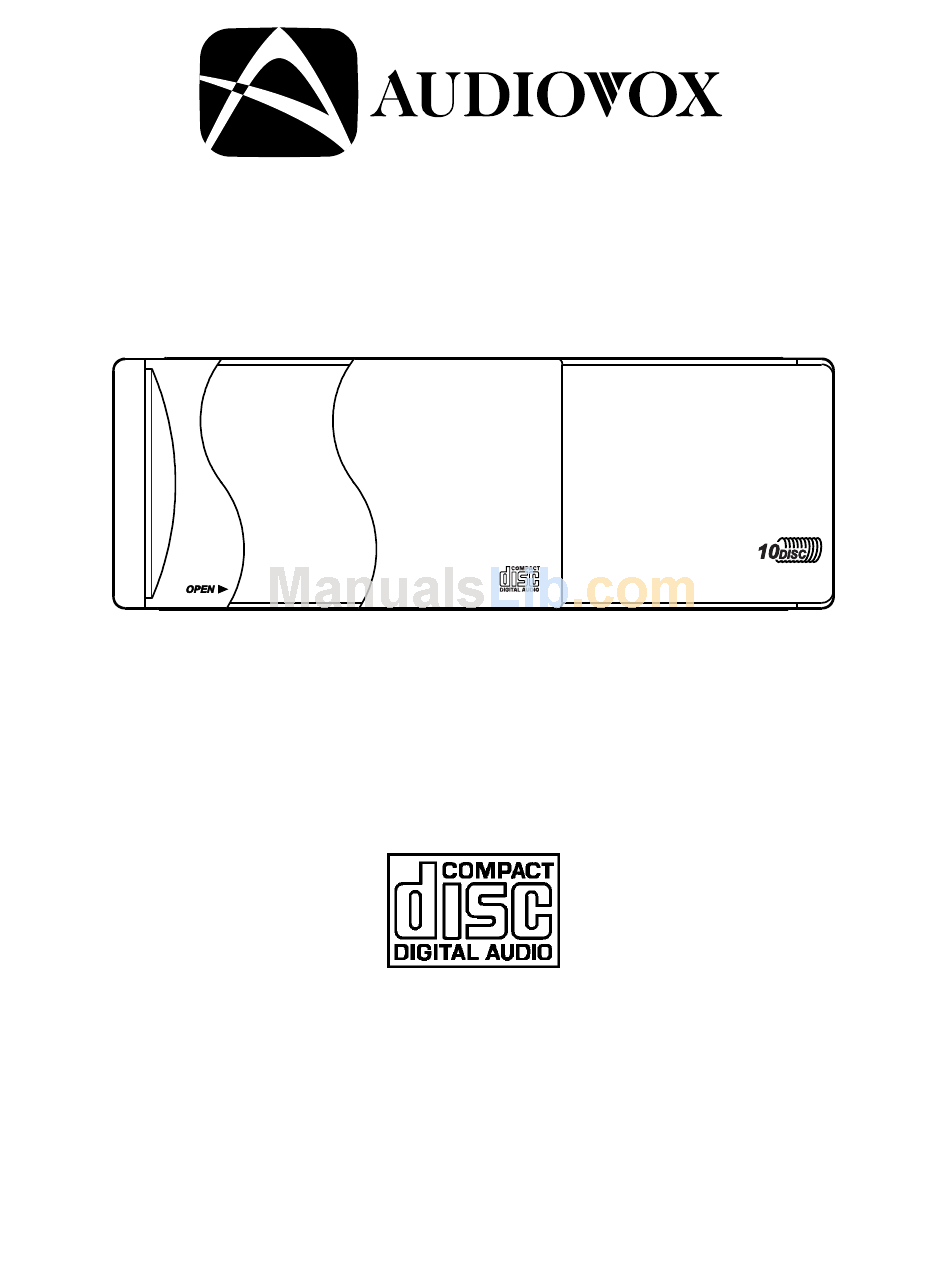

- Page 1 SP-11CDS DIGITAL AUDIO/COMPACT DISC CHANGER 10 DISC AUTO CHANGER COMPACT DISC AUDIO CHANGER SYSTEM MODEL SP-11CDS 10-DISC CD CHANGER INSTALLATION MANUAL...
-
Page 2: Packing List
Machine Screw Screw Hole Cover Labels (M4x 10) 4 pcs. OTHER ACCESSORIES CD Magazine (P/N SP11M) 1 pc. Changer SP-11CDS DIGITAL AUDIO/COMPACT DISC CHANGER Stud Bracket Hexagonal Bolt (M6 x 15) 2 pcs Index seal sheet 1 pc. Installation Manual 1 pc. -
Page 3: Before Installing The Unit
BEFORE INSTALLING THE UNIT Transport Lock Screws The mechanism in the CD changer is "locked" into place during shipment by the transport screws. Be sure to remove the screws prior to installation. l Caution l After removing the transport lock screws, place a piece of masking tape over each screw hole. -
Page 4: Installation
INSTALLATION The unit can be installed horizontally, vertically or at a 45° angle. The position of the built-in anti-vibration springs (left and right side), must correspond to the mounting position chosen. If the springs are not set correctly for the type of installation chosen, the anti-vibration compensation will not be effective and vibration may cause the disc to skip. - Page 5 PROCEDURE FOR VERTICAL INSTALLATION W/O STUDS Note If the anti-vibration spring position has been changed and verified for vertical mounting (as shown on page 4), start with step 2. Set the 2 anti-vibration springs to position "90". Determine the mounting location, and drill four mounting holes.
- Page 6 PROCEDURE FOR 45° ANGLE INSTALLATION W/O STUDS Note If the anti-vibration spring position has been changed and verified for 45° angle mounting (as shown on page 4), start with step 2. Set the 2 anti-vibration springs to position "45°". Determine the mounting location, and drill four mounting holes.
- Page 7 PROCEDURE FOR CHANGER INSTALLATION USING MOUNTING STUDS Note: Make sure the anti-vibration spring position has been changed and verified for the proper angle mounting (as shown on page 4). Determine mounting location. If unit is to be installed onto mounting studs located under carpet, lift carpet to expose metal chassis and mark position of each stud as shown below in detail A and B.
- Page 8 VEHICLE WIRING Mating 8-pin DIN socket on rear of compatible radio chassis (see note 1 below). NOTE: 1. Check with your Audiovox car audio dealer to be © 2000 AUDIOVOX CORP., HAUPPAUGE, NY Car Stereo with CD Changer Controls sure your stereo is directly compatible with this CD changer.
