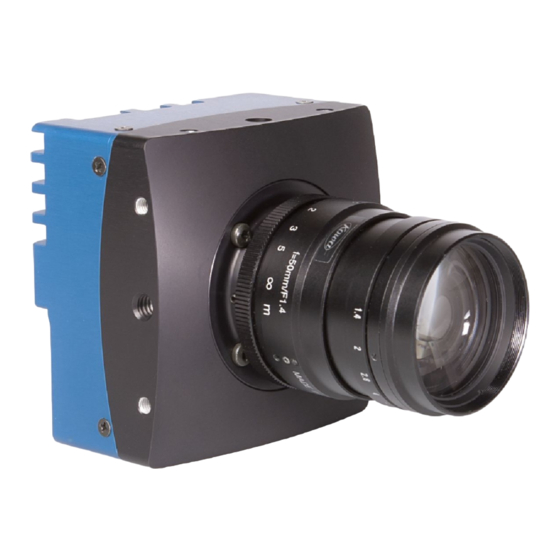

4CXP MC408x Camera Manual Rev. 1.24
Camera-Firmware:
Camera ID:
Copyright © 2013 Mikrotron GmbH
Mikrotron GmbH
Landshuter Str. 20-22
D-85716 Unterschleissheim
Germany
MC408
● H
IGH
MC0000408x-V0.23.1-F0.28.670
MC408x
Tel.: +49 89 726342 00
Fax: +49 89 726342 99
info@mikrotron.de
www.mikrotron.de
C
M
X
AMERA
S
● H
R
PEED
IGH
ESOLUTION
ANUAL
●
Advertisement
Table of Contents
Related Manuals for CoaxPress MC408x
Summary of Contents for CoaxPress MC408x
- Page 1 MC408 AMERA ANUAL ● H ● H ● PEED ESOLUTION 4CXP MC408x Camera Manual Rev. 1.24 Camera-Firmware: MC0000408x-V0.23.1-F0.28.670 Camera ID: MC408x Copyright © 2013 Mikrotron GmbH Mikrotron GmbH Tel.: +49 89 726342 00 Landshuter Str. 20-22 Fax: +49 89 726342 99 D-85716 Unterschleissheim info@mikrotron.de...
-
Page 2: Table Of Contents
CoaXPress MC408x Camera Manual Table of contents 1 General......................4 1.1 For customers in the U.S.A..........................4 1.2 For customers in Canada..........................4 1.3 Pour utilisateurs au Canada.......................... 4 1.4 Life Support Applications..........................4 1.5 Declaration of conformity..........................5 1.6 Warranty Note............................... 6 1.7 Remarks, Warnings............................ - Page 3 CoaXPress MC408x Camera Manual 6.3.4 ExposureMode............................. 27 6.3.5 ExposureTime............................27 6.3.6 ExposureTimeMax..........................27 6.3.7 AcquisitionFrameRate.......................... 28 6.3.8 AcquisitionFrameRateMax........................28 6.3.9 TriggerSelector............................. 28 6.3.10 TriggerMode[ TriggerSelector ]......................29 6.3.11 TriggerSource[ TriggerSelector ]......................29 6.3.12 TriggerActivation[ TriggerSelector ]....................30 6.3.13 AcquisitionBurstFrameCount......................30 6.3.1 SoftwareTrigger............................
-
Page 4: General
General CoaXPress MC408x Camera Manual 1 General 1.1 For customers in the U.S.A. This equipment has been tested and found to comply with the limits for a Class A digital de - vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial envi- ronment. -
Page 5: Declaration Of Conformity
General CoaXPress MC408x Camera Manual 1.5 Declaration of conformity Mikrotron GmbH Manufacturer: Landshuter Str. 20-22 Address: 85716 Unterschleissheim Germany Camera MC4080 - MC4083 Product: The dedicated products conform to the requirements of the Council Directives 2004/108/EG for the approximation of the laws of the Member States relating to electromagnetic consis- tency. -
Page 6: Warranty Note
General CoaXPress MC408x Camera Manual 1.6 Warranty Note Do not open the body of the camera. The warranty becomes void if the body is opened. 1.7 Remarks, Warnings This document contains important remarks and warnings. See the corresponding symbols: ... -
Page 7: Introduction
® high speed interface technology allows transfer rates up to 6.25 Gbps. But our CoaXPress cameras support all CoaXPress Link Speeds from 1.25 Gbps to 6.25 Gbps (depending on the camera model). Although the camera already offers a very high frame rate with more than 560 fps at full reso - lution, you can get even 1000ths of frames by reducing the camera resolution. -
Page 8: Differences Between The Camera Types
2336 x 1728 pixel. The color version uses a Bayer Filter at the top of the sensor to code the color information in the image pixels. The camera models also differ in the maximal CoaXPress Link Speed they support.. The table below shows the different camera models and their max. frame rate:... -
Page 9: Hardware
No matter what interface technology the cameras are using or what features they are implementing, the application programming interface (API) should be always the same (GenICam Specification 1.0 ).” Although CoaXPress do not support the full GenICam standard, it uses parts of the specifica- tion to ease the interchangeability between different CoaXPress ®... -
Page 10: Power Supply
Hardware CoaXPress MC408x Camera Manual 3.2 Power supply The camera needs a DC supply voltage between 12 … 24V at a power consumption of 7 Watt max. The power supply unit is connected to a dedicated connector at the back side of the camera. -
Page 11: Getting Started
Before starting to operate the camera, make sure that the following equipment is available: Camera MC408x C-Mount/F-Mount lens Mikrotron Support CD Image processing system, e.g.: PC and software Completely installed CoaXPress frame grabber (Device Driver, Software,...) CoaXPress ® cable according to the CoaXPress specification ... -
Page 12: Initial Setup
Initial setup CoaXPress MC408x Camera Manual 5 Initial setup The MC408x is delivered with initial parameters and therefore does not need to be configured via the host software. 5.1 Serial number and firmware revision Serial number and firmware revision is provided in MC408x non volatile memory. Use the ac- cording GenICam feature to read the serial number and firmware revision from the camera (see feature list below). -
Page 13: Configuration
XML file and read out the camera feature list. This features are also a part of the CoaXPress specification. The boot reg - isters are the only camera registers that have the same address for a specific register on ev- ery CXP compliant camera, no matter who manufactured it. -
Page 14: Bootstrap Registers
® compliant Devices must support a number of bootstrap registers as defined in this chapter. In contrast to other CXP camera features, each bootstrap register is assigned to a fixed camera address which is defined in the CoaXPress ® specification. -
Page 15: Standard
IInteger TestErrorCount 0x00004024 IInteger [TestErrorCountSelector] Start of manufacturer specific register space 0x00006000 6.2.1 Standard ® Description: This register provides a magic number indicating the Device implements the CoaXPress stan- dard. Access Read Type: Unsigned integer Out: 0xC0A79AE5 Remark: 6.2.2 Revision... -
Page 16: Xmlmanifestselector
Configuration CoaXPress MC408x Camera Manual 6.2.4 XmlManifestSelector Description: This register selects the required XML manifest registers. It holds a number between 0 and XmlManifestSize – 1. Access Read / Write Type: Unsigned integer 0 … XmlManfiesSize-1 Out: 0 … XmlManfiesSize-1 Remark: A link reset sets the value to 0x00000000. -
Page 17: Xmlurladdress[ Xmlmanifestselector ]
Configuration CoaXPress MC408x Camera Manual 6.2.7 XmlUrlAddress[ XmlManifestSelector ] Description: This register provides the address of the start of the URL string referenced by register XmlManifestSelector. Access Read Type: Unsigned integer Out: Register address Remark: Reading from the returned register address returns N chars representing the name, the register address and the length of the GenICam XML file stored in the flash memory of the camera. -
Page 18: Devicevendorname
Configuration CoaXPress MC408x Camera Manual 6.2.9 DeviceVendorName Description: This register provides the name of the manufacturer of the Device as a NULL-terminated string. Access Read Type: String[0...32] Out: Vendor name Remark: Example: “Mikrotron GmbH” 6.2.10 DeviceModelName Description: DeviceModelName Access Read Type: String[0...32]... -
Page 19: Deviceversion
Configuration CoaXPress MC408x Camera Manual 6.2.12 DeviceVersion Description: This register provides the version of the camera hardware as a NULL-terminated string. Access Read Type: String[0...32] Out: Device version string Remark: Format of the version string (Byte numbers from left to right):... -
Page 20: Devicefirmwareversion
Configuration CoaXPress MC408x Camera Manual 6.2.13 DeviceFirmwareVersion Description: This register provides the version of the firmware in the Device as a NULL-terminated string. Access Read Type: String[0...32] Out: Firmware version string Remark: Format of the version string (Byte numbers from left to right):... -
Page 21: Deviceuserid
Configuration CoaXPress MC408x Camera Manual 6.2.15 DeviceUserID Description: This register provides a user-programmable identifier for the camera as a NULL-terminated string. Access Read / Write Type: String[0...16] User ID Out: User ID Remark: The User ID can free defined by the user. -
Page 22: Masterhostlinkid
Configuration CoaXPress MC408x Camera Manual 6.2.18 MasterHostLinkID Description: This register holds the Host Link ID of the Host link connected to the Device Master link. Access Read/Write Type: Unsigned integer Host Link ID Out: Host Link ID Remark: The value 0x00000000 is reserved to indicate an unknown Host ID. -
Page 23: Linkconfig
Configuration CoaXPress MC408x Camera Manual 6.2.21 LinkConfig Description: This register holds a valid combination of the Device link speed and number of active links. Writ- ing to this register sets the link speeds on the specified links. Access Read / Write... -
Page 24: Linkconfigdefault
Configuration CoaXPress MC408x Camera Manual 6.2.22 LinkConfigDefault Description: This register provides the value of the LinkConfig register that allows the Device to operate in its default mode. This feature is not supported in the current version. Access Read Type: Unsigned integer... -
Page 25: Testerrorcount[ Testerrorcountselector ]
Configuration CoaXPress MC408x Camera Manual 6.2.25 TestErrorCount[ TestErrorCountSelector ] Description: This register provides the current link error count for the Device Link ID stored in register TestErrorCountSelector. Access Read / Write Type: Unsigned Integer 0x00000000 Out: Error count Remark: Writing 0x00000000 to this register resets the error count for the Device Link ID stored in register TestErrorCountSelector to zero. -
Page 26: Acquisition Control
Configuration CoaXPress MC408x Camera Manual 6.3 Acquisition Control Name Access Length(bytes) Interface Chapter AcquisitionMode IEnumeration AcquisitionStart ICommand AcquisitionStop ICommand ExposureMode IEnumeration ExposureTime IInteger ExposureTimeMax IInteger AcquisitionFrameRate IInteger AcquisitionFrameRateMax IInteger TriggerMode iEnumeration TriggerSource IEnumeration SoftwareTrigger ICommand 6.3.1 AcquisitionMode Description: This feature controls the acquisition mode of the Device. -
Page 27: Exposuremode
Configuration CoaXPress MC408x Camera Manual 6.3.4 ExposureMode Description: This feature sets the operation mode of the Exposure. It defines how a picture gets exposed if the camera is in triggered mode. Access Read / Write Type: Enumeration Enumeration Description Timed In this mode sets the camera to free running mode. -
Page 28: Acquisitionframerate
Max. frame rate Remark: The max. frame rate depends on the currently defined frame size, on the used link speed and on the number of CoaXPress lines used for image streaming. 6.3.9 TriggerSelector Description: This feature selects the trigger type to configure. -
Page 29: Triggermode[ Triggerselector ]
Configuration CoaXPress MC408x Camera Manual 6.3.10 TriggerMode[ TriggerSelector ] Description: This feature activates or deactivates the selected trigger type.. Access Read / Write Type: Enumeration Enumeration Description This sets the camera to triggered mode. In triggered mode, the camera waits for a trigger signal to take a picture. -
Page 30: Triggeractivation[ Triggerselector ]
Configuration CoaXPress MC408x Camera Manual 6.3.12 TriggerActivation[ TriggerSelector ] Description: This feature defines the activation mode for a selected trigger type. Access Read / Write Type: Enumeration Enumeration Description RisingEdge The camera will start to capture frames on the arrival of a CXP 'trigger rising edge' trigger packet. -
Page 31: Testimageselector
Configuration CoaXPress MC408x Camera Manual 6.3.2 TestImageSelector Description: This feature selects the type of test image that is sent by the camera. It also activates/deactivates a frame counter who gets superimposed into each captured image. Access Read / Write Type:... -
Page 32: Device Control
Configuration CoaXPress MC408x Camera Manual 6.4 Device Control Name Access Length(bytes) Interface Chapter DeviceReset ICommand 6.4.1 DeviceReset Description: Resets the device to its power up state. Access Write Type: Unsigned Integer 0x00000001 Out: Remark: 6.5 Image Format Name Access Length(bytes) -
Page 33: Height
Configuration CoaXPress MC408x Camera Manual 6.5.2 Height Description: This feature provides the image height in lines. Access Read / Write Type: Unsigned Integer 2 … HeightMax Out: Image height Remark: The image height must be incremented in 2 lines increments. -
Page 34: Decimationhorizontal
Configuration CoaXPress MC408x Camera Manual 6.5.5 DecimationHorizontal Description: Horizontal sub-sampling of the image. Access Read / Write Type: Unsigned Integer 1 … 2 Out: Current horizontal decimation factor Remark: This value defines that each Nth image pixels in horizontal direction must be sampled to build the image. -
Page 35: Sensorwidth
Configuration CoaXPress MC408x Camera Manual 6.5.7 SensorWidth Description: Effective width of the sensor in pixels. Access Read Type: Unsigned Integer Out: Sensor width Remark: 6.5.8 SensorHeight Description: Effective height of the sensor in lines. Access Read Type: Unsigned Integer Out:... -
Page 36: Pixelformat
Configuration CoaXPress MC408x Camera Manual 6.5.11 PixelFormat Description: This feature returns the format the camera uses for one pixel. Access Read/Write Type: Enumeration Enumeration Description Available for Camera type Mono8 Monochrome, 8 bit/pixel monochrome, color Mono10 Monochrome, 10 bit/pixel Monochrome, color... -
Page 37: Image2Streamid
Configuration CoaXPress MC408x Camera Manual 6.5.14 Image2StreamID Description: This gives the Stream ID of the secondary image stream from the Device. Access Read Type: Unsigned Integer Out: 0x00000000 Remark: Not used 6.6 User Set Control Name Access Length(bytes) Interface Chapter... -
Page 38: Usersetload[Usersetselector]
Configuration CoaXPress MC408x Camera Manual 6.6.2 UserSetLoad[UserSetSelector] Description: Loads the User Set specified by UserSetSelector to the device and makes it active. Access Write Type: Command Out: Remark: Loads the User Set selected by selector UserSetSelector from the camera flash memory to the camera registers as the current configuration. -
Page 39: Analog Controller
Configuration CoaXPress MC408x Camera Manual 6.7 Analog Controller Name Access Length(bytes) Interface Chapter Gain IInteger BlackLevel IInteger 6.7.1 Gain Description: The Gain defines an amplification of the video signal in %. Access Read / Write Type: Integer 50...1000 Out: Current Gain. -
Page 40: Deviceinformationselector
Configuration CoaXPress MC408x Camera Manual 6.8.1 DeviceInformationSelector Description: This feature selects one of the elements from the device information list Access Read / Write Type: Enumeration Enumeration Description InfoSnr Serial number of the camera (same as feature DeviceID) InfoType Camera type / model... -
Page 41: Deviceinformation[Deviceinfoselector]
Configuration CoaXPress MC408x Camera Manual 6.8.2 DeviceInformation[DeviceInfoSelector] Description: This feature returns a value of the device information list selected by feature DeviceInfoSelector. Access Read / Write Type: Unsigned Integer Out: Device information values Selector Description Sample InfoSnr Serial number of the camera (same as feature... -
Page 42: Customsensorclkenable
On/Off Remark: The 4CXP camera defines a default sensor clock for each CoaXPress link speed to run the cam- era in an optimal frame rate / image quality relation. With the custom sensor clock feature this default value can be overwritten by a customer selected value (see feature 'CustomSensorClk' below). -
Page 43: Firmware Update
Firmware update CoaXPress MC408x Camera Manual 7 Firmware update Our 4CXP camera hardware is based on a number of programmable logical units. This allows us to modify and update the firmware of the camera on an easy and fast way. The flexibility of this concept guaranties you always to have an 'up to date' product. -
Page 44: Technical Data
Technical Data CoaXPress MC408x Camera Manual 8 Technical Data MC 4080 Monochrome MC 4081 Color (Bayer Filter) Resolution 2336 x 1728 Sensor type CMOS sensor Pixel depth 8 Bit / 10 Bit monochrome or RGB (Bayer Filter) Pixel size 7 x 7 µm Active area 16.35 (H) x 12.10 (V) mm / 20.34 mm (diagonal) -
Page 45: Resolution And Speed
Technical Data CoaXPress MC408x Camera Manual Resolution and Speed The table below shows a number of possible camera resolution and their max. speed for this resolution for an 8 bpp image and 4 CXP Coax Lines. Please note, that the max. speed that fi- nally can be achieved depends on the selected transfer rate (CXP-6/CXP-3) and the number of CXP links used. -
Page 46: Spectral Response
Technical Data CoaXPress MC408x Camera Manual 8.1 Spectral response The charts below show the sensitivity of the monochrome and the color sensor with a bayer pattern filter on the sensor glass lid. The color camera is by default equipped with a UV/IR cut filter with a transmittance of 370-670nm resulting in a sensitivity shown in the second chart. -
Page 47: Bayer Pattern Filter
Internet which handle the Bayer Pattern thematic. The Bayern Patter filter of the MC408x consists of a number small red, green and blue filter el- ements, each covering exactly one pixel on the sensor. A matrix of 2 x 2 filter elements build a filter element matrix. -
Page 48: Connectors
Technical Data CoaXPress MC408x Camera Manual 8.3 Connectors ® 8.3.1 CoaXPress connector 5W5 All signals according to CoaXPress ® specification 8.3.2 Circular power connector, 6-pin Signal Signal DGND* STRB *DGND ... digital GND for signal STROBE_OUT Manufacturer: Hirose Order no.:... -
Page 49: Mechanical Dimensions
Technical Data CoaXPress MC408x Camera Manual 8.4 Mechanical dimensions 4CX camera body F - Mount C - Mount...
