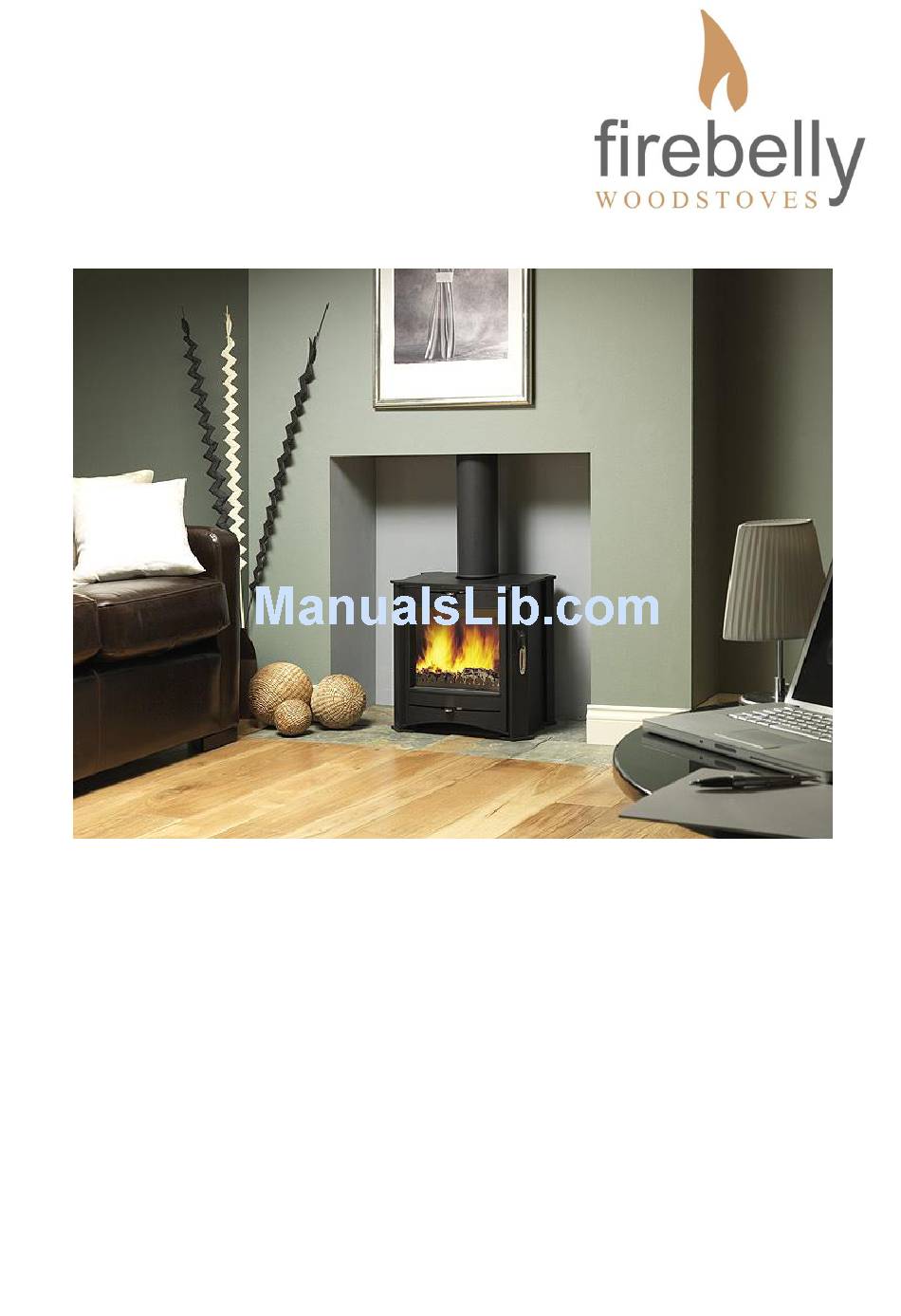

Operating & Installation Instructions
Firebelly T1 – 4 kW
Firebelly Production Facility:
Unit 16 Upper Mills,
Canalside
Slaithwaite
Huddersfield
West Yorkshire
U.K.
HD7 5HA
Email: sales@firebellystoves.com – Website: www.firebellystoves.com
Firebelly Sales Office and Showroom:
Units 6 & 7
Riverside Shopping Centre
Huddersfield Road
Holmfirth
West Yorkshire
U.K.
HD9 3AZ
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Firebelly T1

  • Page 1 Operating & Installation Instructions Firebelly T1 – 4 kW Firebelly Sales Office and Showroom: Firebelly Production Facility: Units 6 & 7 Unit 16 Upper Mills, Riverside Shopping Centre Canalside Huddersfield Road Slaithwaite Holmfirth Huddersfield West Yorkshire West Yorkshire U.K. U.K.
  • Page 2: Important Points

    5. No unauthorised changes to the construction of this appliance must be carried out. 6. Firebelly recommended that the chimney or flue be checked and swept annually and the appliance must be maintained on an annual basis by a competent engineer.
  • Page 3: Lighting The Appliance

    2. Leave the top Air Control fully open to begin with and then control the rate of burn by adjusting this control. Please note, Firebelly recommend that the top air control is not run fully shut for any length of time in order to avoid the glass door becoming discoloured.
  • Page 4 Running the Appliance (cont…) 5. Do Not over fuel the appliance. 6. If the stove has not been used for a long period of time, Firebelly recommends that the flue connector is checked prior to light up by a visual inspection.
  • Page 5: Maintenance And Cleaning

    2. Use a soft brush or vacuum to clean the external parts of the stove, do not use abrasives or spirit based substances, as this will remove the paint finish. 3. Touch up paint can be purchased through your approved Firebelly dealer. Do not use the spray paint on a hot appliance.
  • Page 6: Technical Specification

    Firebelly T1 – 4 kW Technical Specification Model – Firebelly T1 Weight – 60 kgs Nominal Heat Output – 4.8 kW CO emission (@13% Oxygen) – 0.68 Flue Gas Temperature – 203 Degrees Celcius Flue Gas Mass Flow (g/s) – 5.1 Minimum Flue Draught for Nominal Heat Output –...
  • Page 7: Installation

    After installation the installer must always check the flue draught with all windows and doors closed and any extraction fans operating at maximum speed. Ventilation The Firebelly T1 stove is rated at 4.8 kW output so therefore in normal conditions does not require purpose made ventilation into the room it is installed in. Hearth Requirements The Firebelly T1 requires a non-combustoible hearth of at least 12mm thick and the minimum dimensions shown.
  • Page 8 Firebelly T1 – 4 kW Requirements for Walls The walls constructed around the stove must be of a non combustible material and must be at least 150mm away from the stove at any point. Safe distance from combustible material is 500mm to rear of appliance and 400mm to side of appliance.
  • Page 9 7. Clean the glass door with a good quality glass cleaner. Do not use an abrasive pad to remove any deposits. 8. Replace the liners and grate taking care not to damage the liners in this process. 9. Always use genuine Firebelly parts when replacing any components. Firebelly Sales Office and Showroom: Firebelly Production Facility: Units 6 &...
