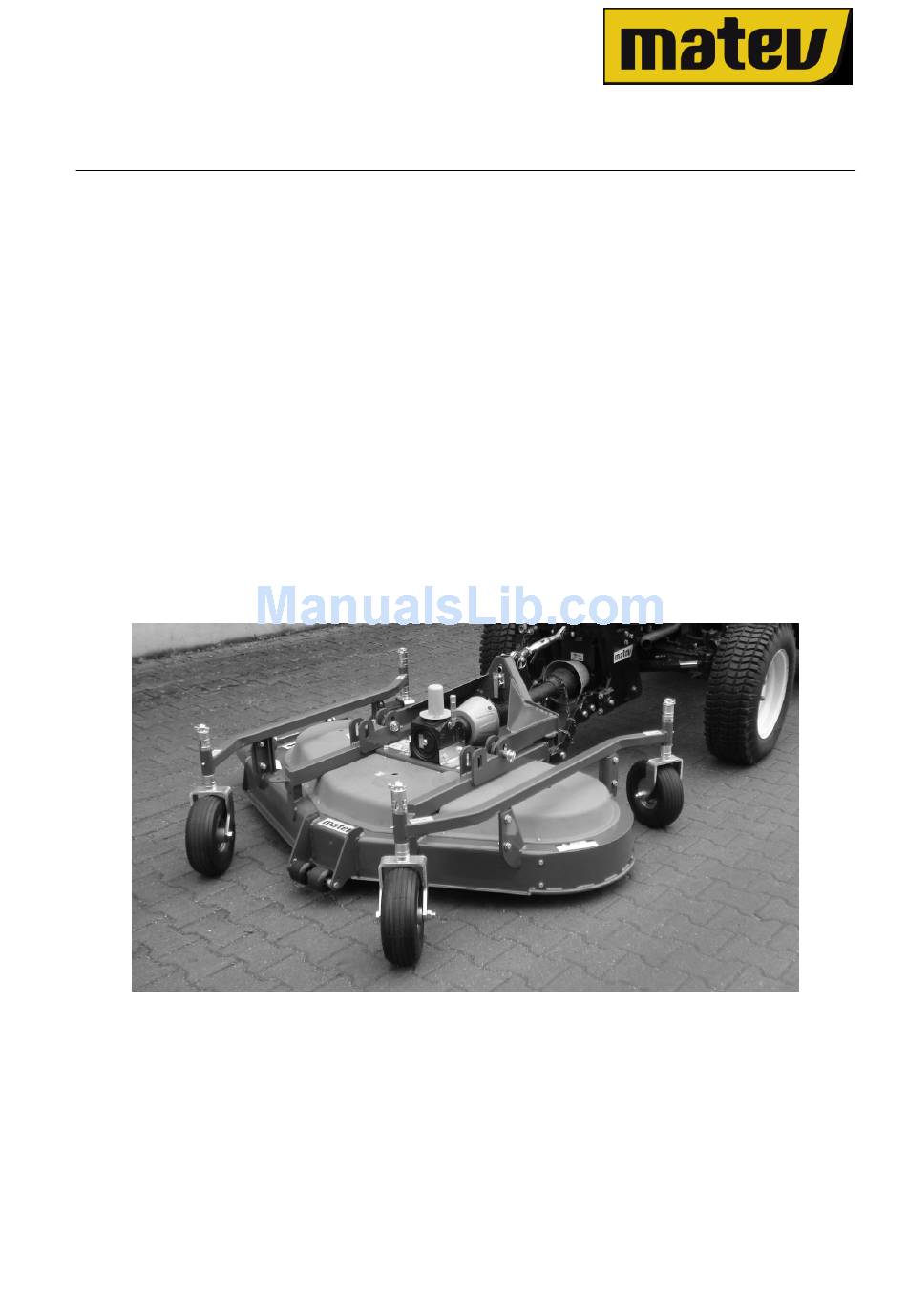

- Page 1 GmbH Nürnberger Str. 50 90579 Langenzenn T +49 (0) 9101 9087 -0 F +49 (0) 9101 9087 -20 info@matev.eu www.matev.eu Original Operating Manual MOW-H/M 140 FM Front Mower MOW-H/M 160 FM Front Mower MOW-H/M 190 FM Front Mower Version 06/2014...
-
Page 2: Table Of Contents
Contents Table of contents About this operating manual ..................3 Safety ......................... 4 Intended use ....................... 4 Qualifications of personnel ..................4 General safety instructions ..................4 Special safety notices ....................4 Task and use ......................7 Task ..........................7 Function ........................ -
Page 3: About This Operating Manual
About this operating manual About this operating manual Dear customer! Dear customer! Thank you for purchasing this implement, we appreciate your trust. Prior to using this implement for the first time, read this operating manual carefully and conscientiously all the way through. Keep this operating manual where it is easily accessible. -
Page 4: Safety
The implements are developed for municipal tractors, or carrier vehicles with the following power ratings: MOW-H/M 140 FM for tractors from 12 kW to 23 kW MOW-H/M 160 FM for tractors from 17 kW to 35 kW ... - Page 5 Safety Attention! Prior to performing maintenance and repair tasks, turn off the engine and remove the key! Attention! Do not position yourself in the area of the drive shaft. Danger of injury! (For mowers with mechanical drive) Attention! Injuries due to fluid escaping under high pressure. Comply with the instruction in the operating manual.
- Page 6 Safety Attention! During operation, maintain a sufficient distance to the mowing blade! Attention! Implement is only suitable for a PTO shaft speed of 2000 rpm! Attention! Implement is only suitable for a PTO shaft speed of 1000 rpm! Attention! Implement is only suitable for a PTO shaft speed of 540 rpm! Attention! Implement is only suitable for clockwise PTO shaft rotation! Attention!
-
Page 7: Task And Use
Task and use Task and use Task The rotary mower is used for mowing green areas. The area of application extends from manicured lawns, to matted grass to uncultivated land. Function The front mower works with three rotating blades and it is powered by the tractor via the front PTO shaft or the hydraulic system. -
Page 8: Mounting The Implement
Mounting the implement Fig. 2: Irregular area Divide irregular areas into smaller sections. Change the mowing pattern frequently; do not always work in the same pattern. Fig. 3: Large area Mow large free areas as shown on Fig. 3. Fig. 4: Small area If you do not use a collection container, mow small areas as shown in Fig. -
Page 9: Mounting The Front Mower On The Tractor Vehicle
Mounting the implement Enter the vehicle chassis number of the rotary mower in section 6.5 of this operating manual. Mounting the front mower on the tractor vehicle Fastening screw on the coupling support. Fig. 5: Mount the mower on the tractor vehicle The following optional attachment possibilities are available for the mower: ... -
Page 10: Fig. 6: Mark The Piece That Will Be Sawn Off
Mounting the implement When attaching and detaching particularly note: Switch off the tractor en- gine and remove the ignition key. Only use the supplied material. Comply with the instructions specified in the operating manual provided by the manufacturer of the universal joint shaft. ... -
Page 11: Mounting The Universal Joint Shaft
Mounting the implement Fig. 8: Saw off the profile tube Deburr the sawn edges (see Fig. 9). Fig. 9: Deburr the sawn edges Repeat steps 4 to 7 on the other half of the universal joint shaft. Grease the profile tube (see Fig. 10). Fig. -
Page 12: Dismounting The Universal Joint Shaft
Mounting the implement Fig. 11: Safety chain on the universal joint shaft 4.2.3 Dismounting the universal joint shaft Detach the safety chain on both sides. Press the locking pin on the outer fork and keep it depressed. Pull the outer fork down from the profile stub of the PTO shaft on the tractor. Release the locking pin. -
Page 13: Fig. 12: Suction Port Mounted
Mounting the implement Stop nuts Port plug Hinge strip Suction port Fig. 12: Suction port mounted Hold the suction port with the hinge strip on the mower discharge. Connect the suction port with the port plug on the mower. Secure the support plug with the provided stop nut. The suction port simultaneously serves as protection against rock impact. -
Page 14: Operation
Operation Operation Before starting up the implement, read the instructions on safety and han- dling for operation of the entire implement and connection to the tractor. To get a clean cutting pattern, the speed and the direction of rotation of the ... -
Page 15: Adjusting The Air Intake
Operation Fig. 14: Caster on the rotary mower Hold the caster firmly and remove the linch pin. Pull the wheel downward slightly. Pull out the required number of spacer rings from the lower flattened surface, and fit them on again on top. OR Take off the required number of spacer rings from the top and slide them on again on the flattened point on the bottom. -
Page 16: Maintenance
Maintenance Turn the air regulating disks in such a manner that the air openings on the disk agree with the air openings on the bearing block. Tighten the fastening nuts of the air regulating disks. Mount the plastic covers. Do not operate the mower without the protective cover over the belt drive. ... -
Page 17: Sharpening The Mower Blades
Maintenance Fig. 16: MOW-H/M 140 FM - mounting the V-belt Fig. 17: MOW-H/M 160 FM - mounting the V-belt Fig. 18: MOW-H/M 190 FM - mounting the V-belt Attention! The springs of the tension pulley are tensioned. Ensure that both ends of the springs are hooked in correctly. -
Page 18: Faults
Maintenance The fastening screw of the mower blade must be lightly oiled and tightened with a torque wrench as specified below: MOW-H/M 140 FM - 115 Nm MOW-H/M 160 FM – 250 Nm MOW-H/M 190 FM – 250 Nm. -
Page 19: Disposal
Take the parts to the collection points for residual waste, special waste, or recycle them depending on material. Matev GmbH does not provide any disposal services. Guarantee The General Terms & Conditions of matev GmbH provide information on the guarantee conditions. matev GmbH Nürnberger Str. 50... -
Page 20: List Of Illustrations
Fig. 14: Caster on the rotary mower ......................15 Fig. 15: Adjusting the air intake ........................15 Fig. 16: MOW-H/M 140 FM - mounting the V-belt ..................17 Fig. 17: MOW-H/M 160 FM - mounting the V-belt ..................17 Fig. 18: MOW-H/M 190 FM - mounting the V-belt ..................17... -
Page 22: Ec Declaration Of Conformity
The manufacturer matev GmbH Nürnberger Str.50 90579 Langenzenn declares that the machines MOW-H/M 140 FM MOW-H/M 160 FM MOW-H/M 190 FM comply with the provisions of the Machinery Directive 2006/42/EC and with the implementing national statutory regulations. The signer is authorized to compile the technical documents.
