OPERATION

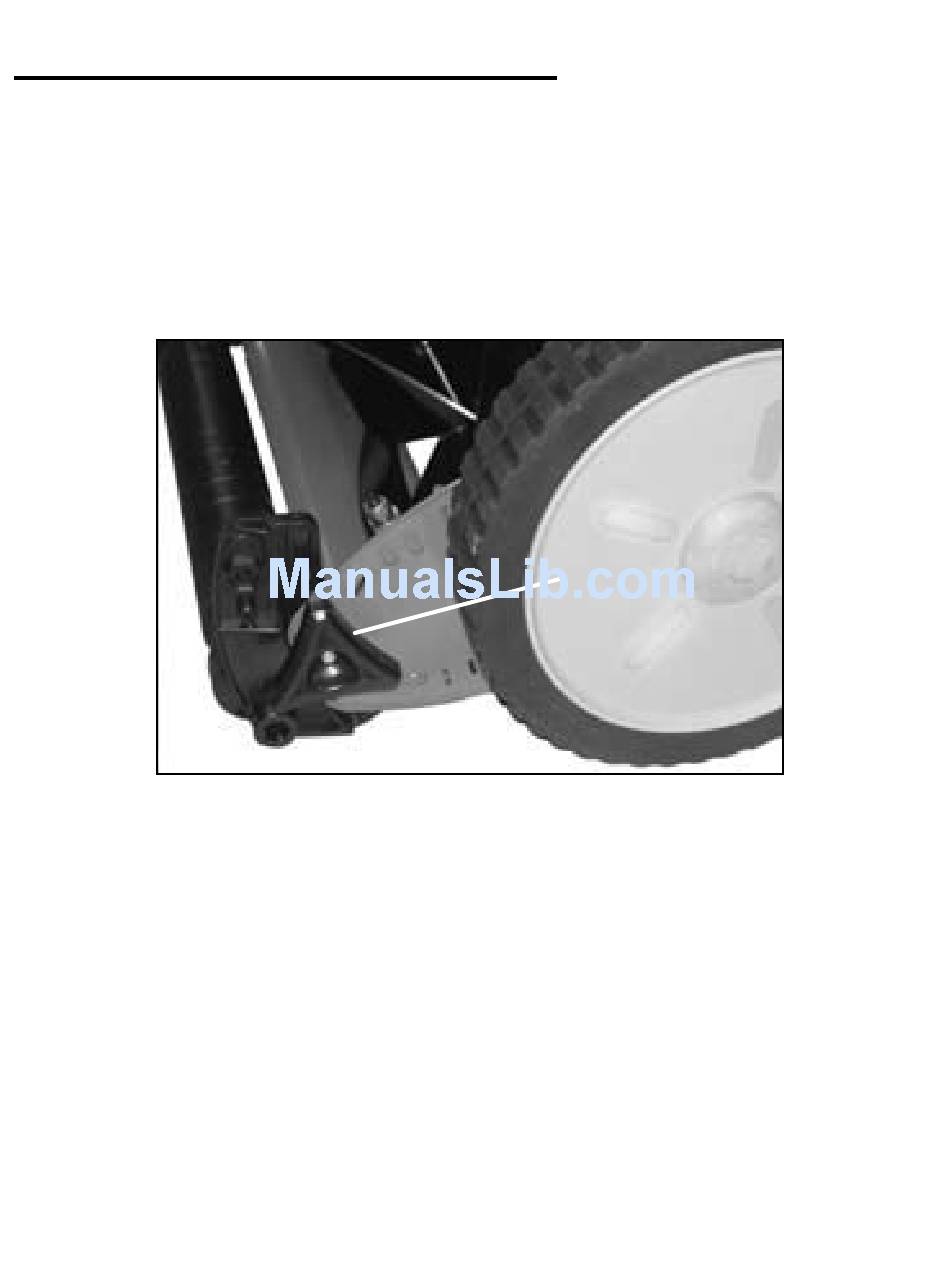

CUTTING HEIGHT ADJUSTMENT: (Fig. 3)
1. The cutting height of the 16 in. reel mower can be adjusted from 5/8 – 1-7/8 in. using the roller assembly.
2. For the lowest cutting position, loosen and remove the adjust ment nuts on both sides of roller assembly. Position
bolt through the bottom hole of the plastic roller bracket and t op hole of the mower side plate.
3. For highest cutting position, loosen and remove the adjustment nuts on both sides of roller assembly. Position bolt
through the top hole of the plastic roller bracket and the bottom hole of the mower side plate.
4. For other cutting heights, position bolts through the preset height locations.
Height
adjustment nut
Fig. 3
6
