ASSEMBLY INSTRUCTIONS
Before attempting to assemble, empty carton and compare parts with parts list below.
Note:
• Carefully remove the parts from the box.
• Inspect the parts to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until all parts are examined.
• If any parts are damaged or missing, please call 1-800-444-6742 for assistance.
PACKING LIST
1-Top handle,
2-Center handle pieces,
2-Lower handle pieces,
8-Knobs,
8-Bolts,
8-Washers,
1-Reel mower body

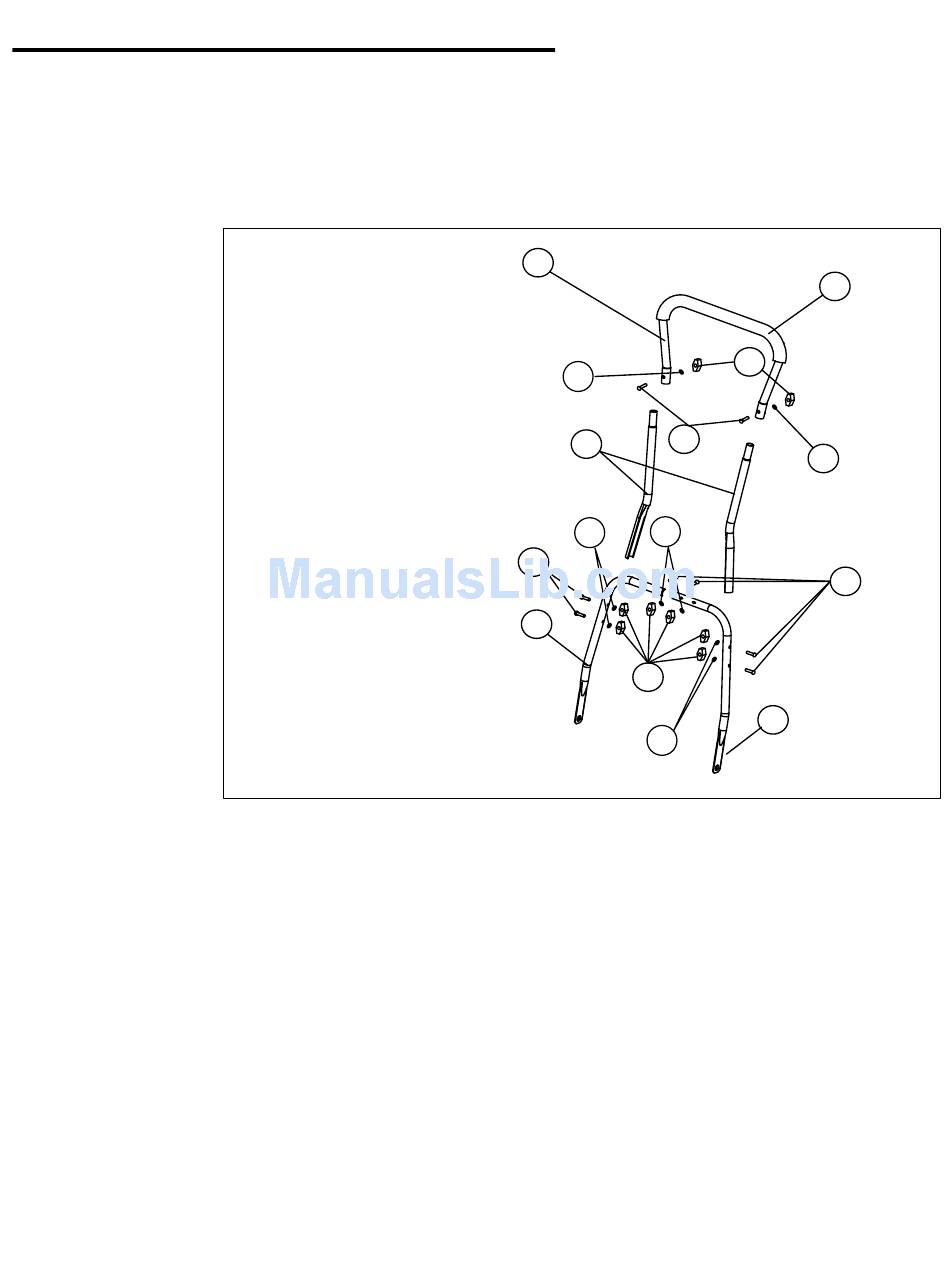

ASSEMBLING THE HANDLE: (Fig.1)
NOTE: Do not completely tighten bolts until assembly is complete.
1. Insert the two center handle pieces (2) into the left and right side of the top handle (1) and secure with two
1- 3/8in. bolts (6) , flat washer (7) and wing nuts (8) provided.
2. Connect the right lower handle (4) with the left lower handle (3) and secure with two 1-3/8in. bolts (6), flat
washer (7) and wing nuts (8) provided.
3. Attach the top handle subassembly previously assembled, to the lower handle subassembly using four
1-3/8in. bolts (6),flat washer (7) and wing nuts (8) provided.
4. Tighten all the wing nuts on the joints of the handle assembly.
1.
Top handle
2.
Center handle pieces
3.
Left lower handle
4.
Right lower handle
5.
Foam grip
6.
1- 3/8 in. bolts
7.
Flat washer
8.
Wing nut
Tools Required
Pliers (Not included)
4
1
7
6
2
7
7
6
3
8
7
14
8
7
6
4
Fig. 1
