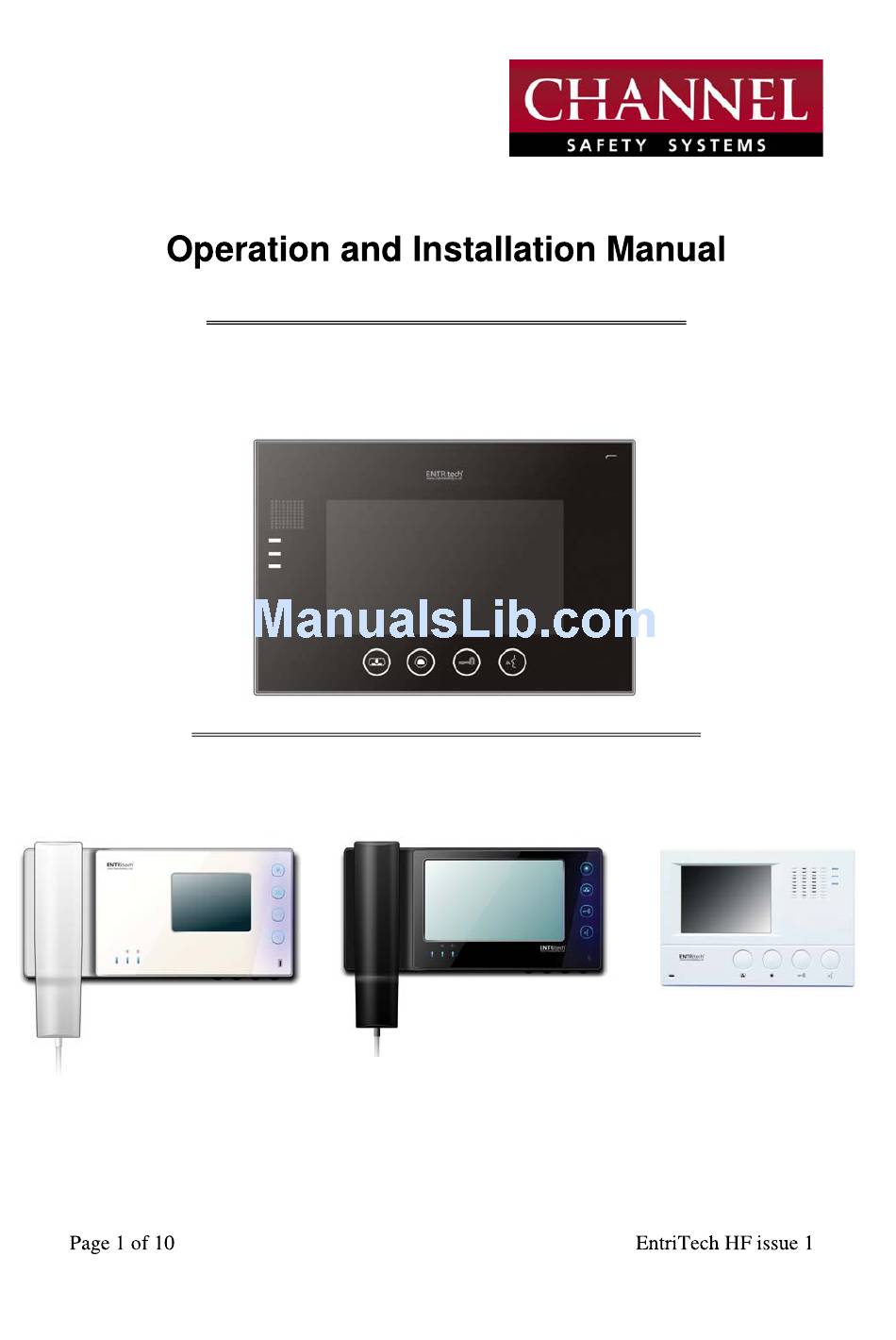

- Page 1 For EntriTech series hands free /handset indoor monitors...
-
Page 2: Table Of Contents
Contents Indoor monitor & controls…..………………………………………………..3 Specification & connection details..………………………………………...4 Link setting for multiple monitor systems…………………………………..5 Installation instruction………………………………………………………...6 Wiring diagram………………………………………………………………...7 Two entrance system wiring…………….……………………………………8 Operation……………………………………………………………………….9 Note…………………………………………………………………………….10 Page 2 of 10 EntriTech HF issue 1... -
Page 3: Indoor Monitor & Controls
NO. Function TFT screen Unlock (button) Speaker Talk (button) Power & in use indicator Microphone Door 1 calling indicator Brightness Door 2 calling indicator Colour Monitor ( button) Volume Call (button) Ring adjust Page 3 of 10 EntriTech HF issue 1... - Page 4 600mA & 4” 400mA 7”≤ Mode Dual transmission Talking time 2 minutes Connection detail The main video monitor(s) are connected to the system by use of pre-wire sockets. - Ve J2, J1, J3 Page 4 of 10 EntriTech HF issue 1...
- Page 5 J2 linked---amplifies the video signal. If you connect 2 or more indoor monitors, link the jumper J2 of the farthest monitor and remove the jumper J2 on the other monitors. J3 linked---Call button illuminated Multiple monitor link settings MONITOR MONITOR MONITOR MONITOR LINK LINK LINK Page 5 of 10 EntriTech HF issue 1...
-
Page 6: Installation Instruction
2. Use the bracket to mark the position of the holes 3. Use screws/plugs to fix the bracket to the wall. 4. Connect as shown in wiring diagram. 5. Attach the unit to the bracket. Plug Clip Page 6 of 10 EntriTech HF issue 1... - Page 7 The Power supply unit requires a 230vAC 50Hz supply which should be protected by a suitable fuse or MCB. 230vAC Power Supply Monitor Connection Details 1. Red Audio 2. Blue 3. Yellow 4. White Video Page 7 of 10 EntriTech HF issue 1...
-
Page 8: Two Entrance System Wiring
Two entrance system Page 8 of 10 EntriTech HF issue 1... -
Page 9: Operation
To call other monitors press the Call button To answer press the Talk button Press the to end a conversation/call press the Talk button Page 9 of 10 EntriTech HF issue 1... - Page 10 Do not install the unit in hot environments, away from potential causes of damage or near sources of heat Do not open the unit. There are no user Do not use wet or abrasive cleaners serviceable parts. Page 10 of 10 EntriTech HF issue 1...
