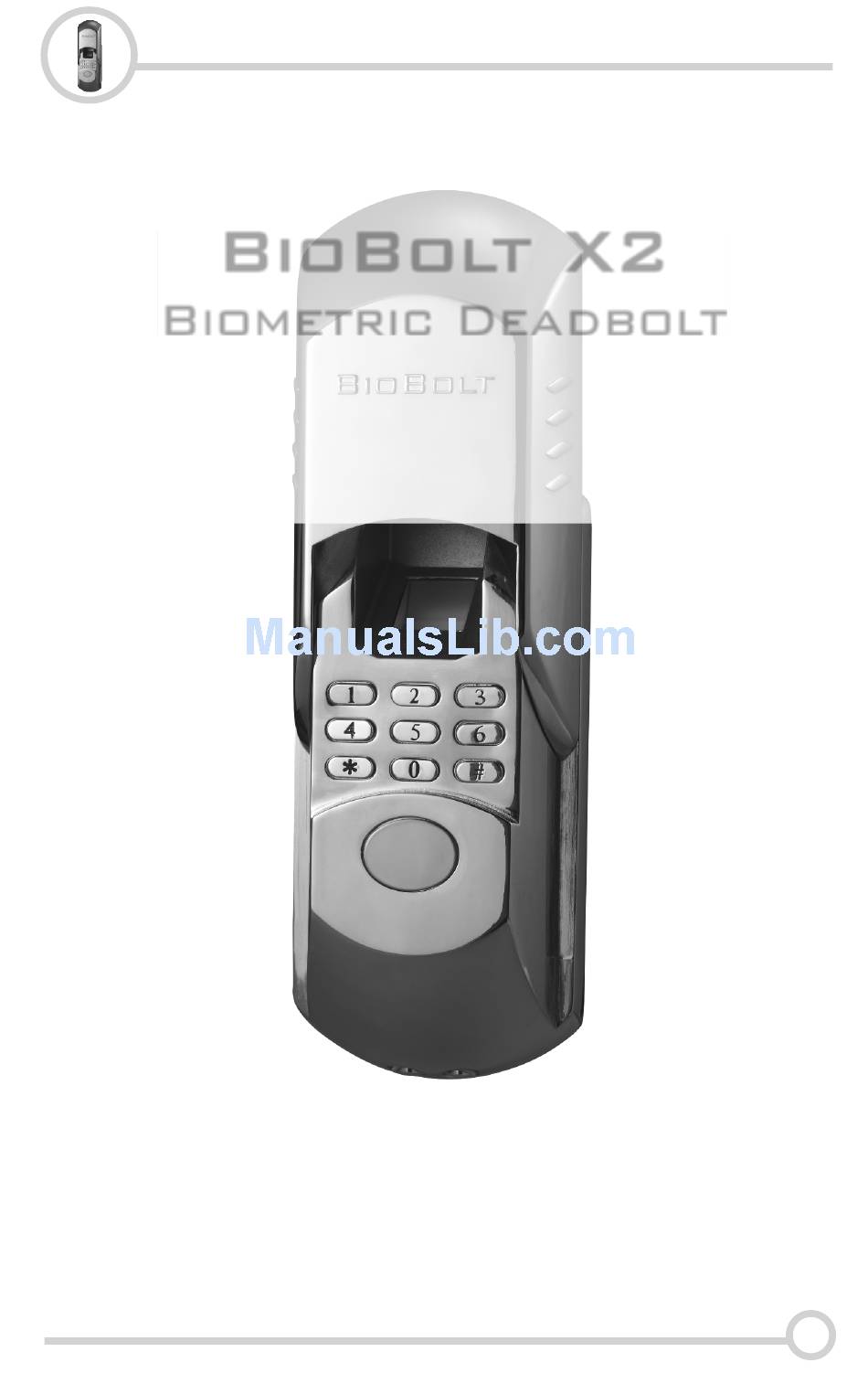

- Page 1 BioBolt X2 Biometric Deadbolt Installation Manual BioBolt X2 Biometric Deadbolt Installation Manual For more installation information visit: http://video.fingerprintdoorlocks.com Intelligent Biometric Controls, Inc.
- Page 2 BioBolt X2 Biometric Deadbolt Installation Manual Preparing a Standard US Preparation for Lock Installation This manual assumes that the door has been prepared for a US standard deadbolt lock. If the door has not been prepared, please refer to the documentation that came with the door cutting hardware.
- Page 3 BioBolt X2 Biometric Deadbolt Installation Manual Adjusting the Tailpiece for the Proper Door Thickness Measure the thickness of the door. The BioBolt often requires the tailpiece that turns the deadbolt be the trimmed to the appropriate length for the thickness of the door.
- Page 4 BioBolt X2 Biometric Deadbolt Installation Manual Installing the BioBolt on a US Standard Preparation Door Place the Rubber Gaskets (A) on the rear potions of the front and back lock bodies. A small lip should surround the lock bodies. The potion of the gasket that makes contact with the door should be smooth and flat.
