Summary of Contents for Minib NU1

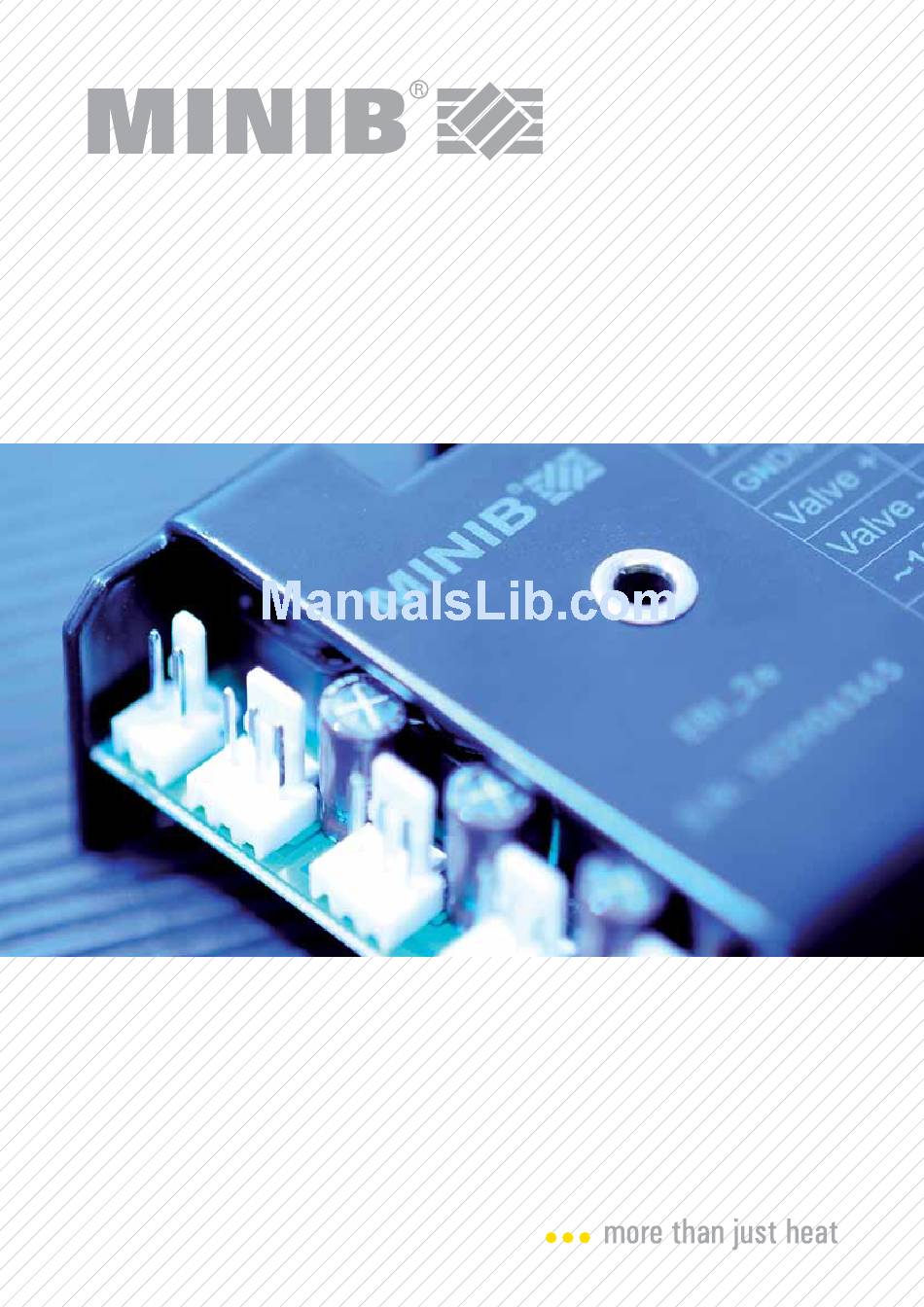

  • Page 1 CONTROL, ACCESSORIES, INSTALLATION MANUALS...
  • Page 2 The company also offers granite front panels. changers and our stainless-steel convector vats. MINIB can satisfy any individual, non-standard requirements of MINIB holds an ISO 9001:2008 certifi cate in addition to numerous uti- its customers such as angular or arc-shaped convectors with lity models and patents.
  • Page 3 1. UNIT DESCRIPTION These are wall mounted unit types NU1, NU2, NW 170, NW340, NP1, NP2 (based on the natural convection principle) and NK1, NK2, which are equipped with fans. Since the units fully use the laws of physics in the area of thermodynamics, they represent the most effi cient means of interior heating.
  • Page 4 14. SEALING - seals joints between valves, hoses, and exchangers 5. EXCHANGER - copper pipes with pressed-on aluminum fi ns through (KLEGERSIL C4400). MINIB, s.r.o. recommends this sealing as an which the heating water fl ows. optimum sealing solution, as other materials (rubber, NBR, silicon) do not have suffi...
  • Page 5 5. INSTALLATION 4.2 Convector Position A MINIB Wall mounted convector is intended for installation on walls under windows or window sills. Install the convector approximate- ly 100 mm under the window frame. Observe the rule according to which the gap between the fl...
  • Page 6 wall mounted convectors - installation manuals Figure 7: Turn the adjustment stoppers to middle position. Screw the bearing plate to the dowels. Do not tighten the screws completely. Figure 11: Connect fi ttings. Inlet – thermostatic valve. Outlet – screw fi tting. The inlet is always at the bottom.
  • Page 7 installation manuals - wall mounted convectors Figure 14 7. UNIT DEAERATION Deaerate the unit by opening the deaerating valve during the fi rst use. Figure 14: Adjust the vertical position of the convector using the adjustment The deaerating valve is located near the water inlet on the heat ex- screws at the bottom of the convector body.
  • Page 8 REGISTERED OFFICE OF THE COMPANY MINIB,a.s. Střešovická 465/49, 162 00 Prague 6 Czech Republic Tel.: +420 220 180 780 Fax: +420 220 180 779 Email: export@minib.cz, www.minib.cz MANUFACTURING Manufacturing premises MINIB,a.s. Býkev u Mělníka 84, 276 01 Býkev Czech Republic...

This manual is also suitable for:

Nu2Nw340Nw170Np1Np2Nk1 ... Show all
