Summary of Contents for Techno-Bloc BRANDON

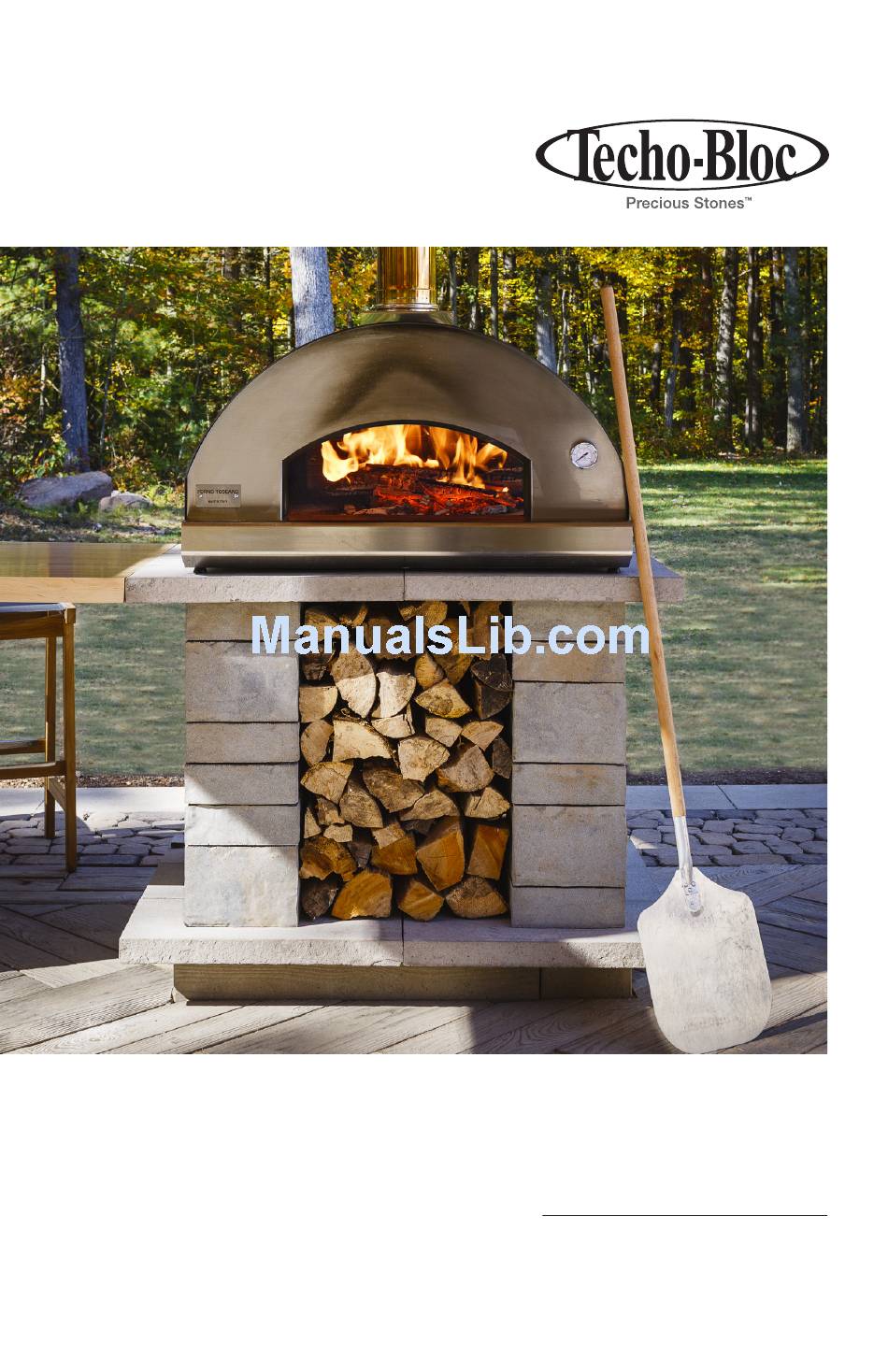

- Page 1 BRANDON P IZZ A OV E N I NSTAL LAT I O N GU IDE AN D OWNE R’ S M ANUAL...
-
Page 2: Table Of Contents
TABL E O F CONTENTS COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 OVERALL DIMENSIONS . -
Page 3: Components
This Pizza Oven is for OUTDOOR USE ONLY. Check with your municipality for minimum clearance distances. Make sure that there is nothing directly above the pizza oven area that can be a potential fire and/or injury hazard. COMPONENTS A. Brandon 180 B. Brandon C*. Brandon D*. Piedimonte cap... -
Page 4: Overall Dimensions
OVERALL DIMENSIONS Below are the overall dimensions of the pizza oven . The height shown is the total height (including buried portion) . The pizza oven should be buried 4" below finished grade. PLAN VIEW ELEVATION A ELEVATION B ELEVATION C ELEVATION D... -
Page 5: Positioning Reference Per Layer
POSITIONING REFERENCE PER LAYER CONCRETE PAD PREPARATION The following drawings are NOT ENGINEERED DRAWINGS. They are provided as a general guidance for the consideration of the installer. Concrete tubes extending to frost line may be required as per local code. Check your local building codes before installing. -
Page 6: Installation Of Blocks
INSTALLATION OF BLOCKS LAYER 1 Apply concrete adhesive and fix the blocks onto the concrete pad as shown on the drawing . Make sure that this layer and each subsequent layer is level . LAYER 1 LAYER 2 TO 11 Apply concrete adhesive at each layer and install as shown on the drawing . - Page 7 LAYER 8 LAYER 9 LAYER 10 LAYER 11 LAYER 12 Place the Forno appliance by hanging it directly on the blocks . LAYER 12...
-
Page 8: Operation Instructions
OPERATION INSTRUCTIONS WARNINGS • The wood fired oven is designed for outdoor use only . • Always place the oven on a flat surface and out of strong winds . • Always keep children and pets away from the oven when in use . The temperatures could be extremely high and cause serious burns . -
Page 9: Maintenance And Cleaning
IGNITION Fire must be lighted with small pieces of wood arranged radially above a paper pellet placed in the center of the cooking surface . Feed the fire for about 20 minutes adding medium cut wood, wait until the temperature of the thermometer reaches about 400°C, then move all the embers on the left side with the poker supplied and hold them with the special accessory included, taking care not to extinguish the fire, also using the smoke exit valve situated on the chimney flue . -
Page 10: Warranty
WARRANTY For FORNO appliance, please visit: https://www.techo-bloc.com/products/forno/ For warranty details and exclusions on TECHO-BLOC PRODUCTS, please visit our website at: https://www.techo-bloc.com/contact-us/about-us/ R E D E F I N I N G L A N D S C A P E P R O D U C T S CANADA 5255, Albert-Millichamp street, St-Hubert, Québec J3Y 8Z8 USA.
