Summary of Contents for Crystal Pressure XP2i-DP

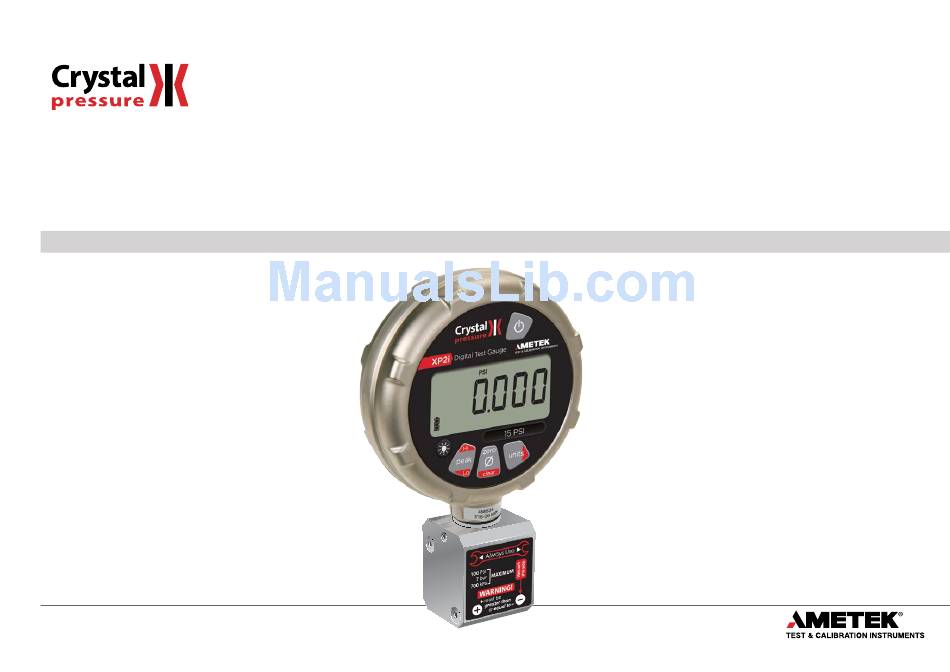

- Page 1 XP 2 i Operation Manual for XP2i-DP Digital Test Gauge...
-
Page 2: Table Of Contents
Contents Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 3: Overview
OPERATING INSTRUCTIONS The XP2i-DP operates just like all the XP2i Series products. The uniqueness of the differential pressure capability comes from the integration of the differen- tial sensor and process fitting system. The keypad and remote functions are the same as on all XP2i Series products. For further details about these common... -
Page 4: Specifications
2.03602 inches of mercury (mercury at 0° C [32° F]) 51.7149 millimeters of mercury (mercury at 0° C [32° F]) 703.087 millimeters of water column (water at 4° C [39.2° F]) 0.070307 kilograms per square centimeter 68.948 millibar 6.8948 kilopascals 0.068948 bar 0.006895 megapascals XP2i-DP Operation Manual... -
Page 5: Power
Batteries ......Three size AA (LR6) batteries. WARNING: Do not remove or change the batteries in hazardous locations. XP2i-DP Operation Manual... - Page 6 Specifications Approved Batteries The XP2i-DP is Intrinsically Safe only if powered by one of the following battery types: Approved Battery Type Marking Rayovac Max Plus 815 -20 to 50° C Ex ia IIC T4 Ga Energizer E91 Energizer EN91 -20 to 50°...
-
Page 7: Pressure Ranges, Display Scales, And Resolution
• An XP2i-DP will indicate pressure up to 10% above its stated pressure rating. Above 110%, the XP2i-DP display will flash, indicating that the applied pressure exceeds the calibrated pressure range. If the calibrated pressure range is exceeded, the pressure displayed may not be accurate. -
Page 8: Applications
The XP2i-DP may be used to determine accurate differential pressure measurements across a range of applications or installations such as filters, orifice plates, valves, etc. For example, in a piping system with an upstream static pressure of approximately 80 psig, the XP2i-DP may be used to determine the 10 psid pressure drop across the device under test (DUT). -
Page 9: Continuous Vacuum
Note: When connected in this orientation, the XP2i-DP display will invert the sign on the gauge display. For example, a pressure of -12 psi on the negative port will display +12 psi. To invert the sign to read -12 psi, use ConfigXP Software (V 2.4 or later). -
Page 10: Safety & Certifications
Crystal Engineering declares that the XP2i-DP is in accordance with the ATEX Directive, the Electromagnetic Compatibility Directive, and the Pressure Equipment Directive per our declaration(s). This XP2i-DP is approved for use as a portable test instrument for Marine use and complies with Det Norsjke Veritas’ Rules for Classification of Ships, High Speed & Light Craft, and Offshore Standards. -
Page 11: Support
OPTIONS Panel Mounting (Option F4) A panel mount flange allows an XP2i-DP to fit in a 4½" gauge cutout. An XP2i-DP with the F4 option can also be adapted to 6 or 8½" gauge cutouts. Rear Port Fitting (Option RP) The rear port fitting may be ordered separately, but is included automatically with the panel mount flange option (F4). -
Page 12: Accessories
AC Adapter Kit Permits operation of an XP2i-DP from an AC supply of 90 - 264 VAC and 47 - 63 Hz . Includes interchangeable international plugs (for USA, Europe, U . K . , and Australia) . Adapter will not charge batteries, but in the event of AC power loss, XP2is will automatically revert to battery operation . -
Page 13: Contact Us
WARRANTY Crystal Engineering Corporation warrants the XP2i-DP Digital Test Gauge to be free from defects in material and workmanship under normal use and service for one (1) year from date of purchase to the original purchaser. It does not apply to batteries or when the product has been misused, altered or damaged by accident or abnormal conditions of operation. - Page 14 © 2015 Crystal Engineering Corporation 708 Fiero Lane, Suite 9, San Luis Obispo, California 93401-8701 4871. F...
