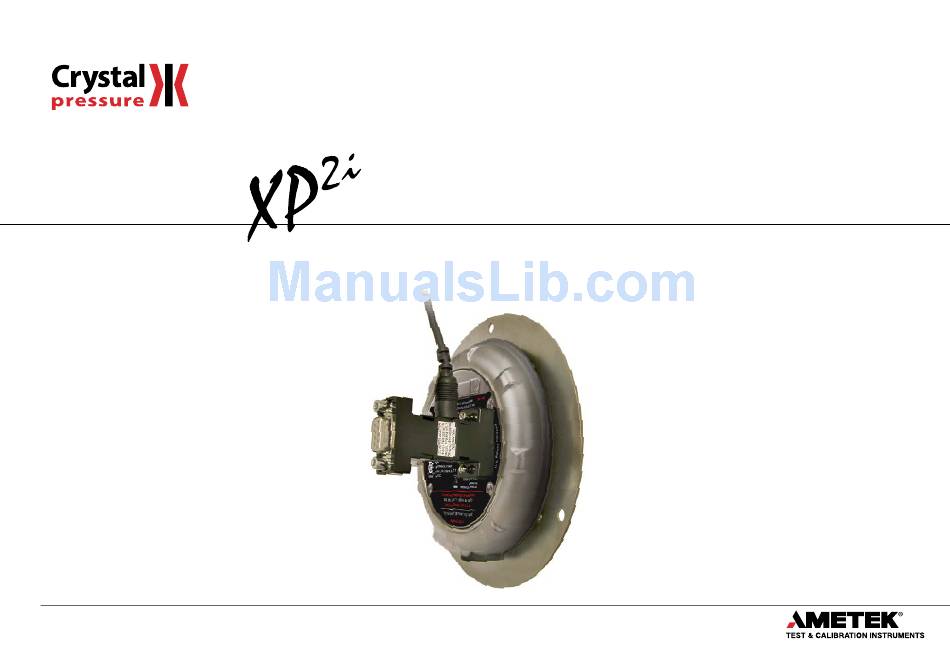

- Page 1 External Power Supply Operation Manual for XP2i Digital Test Gauge...
- Page 2 Contents Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
- Page 3 IntroductIon Although the XP2i was designed to operate for many hours on a set of 3 AA size batteries, there are times when even this may not be sufficient. For example, if your XP2i is mounted in a test stand, bench or panel, the battery access cover may be inconvenient, or even difficult to reach.
- Page 4 InstallatIon Remove the (red) protective cover from DB9 connector on the back of the XP2i. (Save the cover—if you don’t need to use the RS-232 interface, you can use the cover to protect the DB9 connector on the computer side of the adapter). Connect the side of the DB9 pass-through connector with the captive screws to the XP2i (Figure 1).
- Page 5 Power On Indicator ... . Green LED DC Output Cord/Connector ..1.8 meter (70.8 inches) 2.1mm x 5.5mm Coaxial Plug, Center Positive WARNING: do not operate serial interface within a hazardous atmosphere. XP2i External Power Supply Operation Manual...
- Page 6 Crystal Engineering Corporation warrants the XP2i External Power Supply to be free from defects in material and workmanship under normal use and service for one (1) year from date of purchase to the original purchaser. It does not apply to batteries or when the product has been misused, altered or damaged by accident or abnormal conditions of operation.
- Page 7 © 2013 Crystal Engineering Corporation 708 Fiero Lane, Suite 9, San Luis Obispo, California 93401-8701 3023. D...
