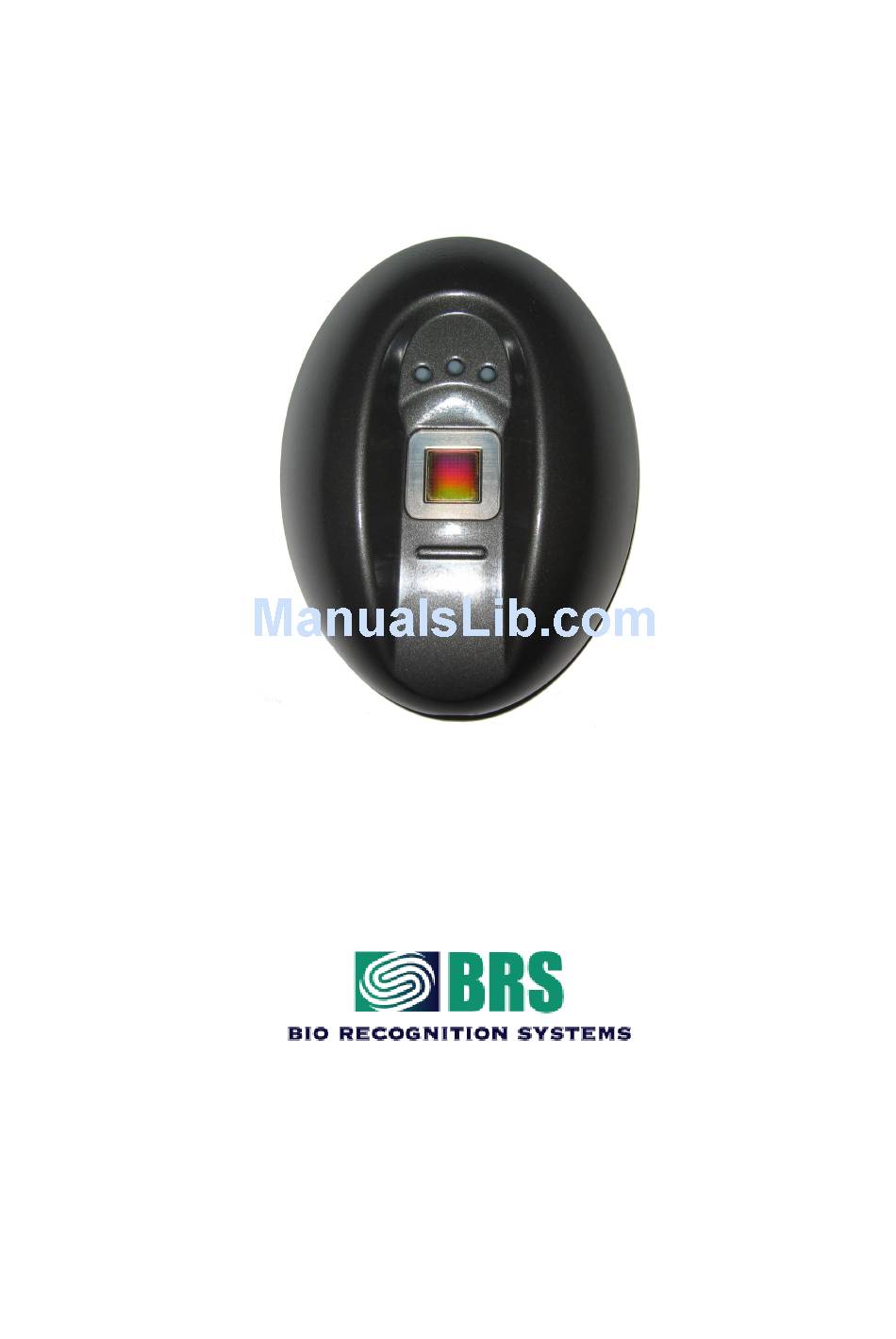

  • Page 1 ® ® Bio Recognition Systems Pty Ltd Unit 11, Building F, 16 Mars Rd, Lane Cove NSW, Australia 2066 Ph: +61 2 9882-8600 Fax: +61 2 9427-2503...

  • Page 2: Disclaimer

    MAKE ANY WARRANTIES, INCLUDING, FOR EXAMPLE, WITH RESPECT TO MERCHANTABILITY, TITLE, OR FITNESS FOR ANY PARTICULAR PURPOSE. Trademarks ® ® BioLock , BioKey are all registered trademarks of Bio Recognition Systems Pty Ltd. Microsoft, Windows NT and MS-DOS are registered trademarks of Microsoft Corporation.

  • Page 3: Table Of Contents

    ELETING SERS ................18 ELETING SERS ..................18 ERIFYING SERS ................... 18 ACTORY EFAULT USING BIOLOCK ................19 Centering the Core ................20 Identification Errors ................20 False Acceptance ................20 False Rejection .................. 20 GLOSSARY..................23 USER COMMENTS................25...

  • Page 5: Bio Recognition Systems Pty Ltd Services

    C h a p t e r ® Bio Recognition Systems Pty Ltd are pleased that you have chosen ‘BioLock ’ - our New Keyless Finger Print Unit system - to help you to run your business/office or home more efficiently. Our aim has been to develop the most technologically advanced BioMetric Products at realistic prices.

  • Page 6: Hardware Support

    Hardware Support Bio Recognition Systems Pty Ltd (BRS) currently provides hardware support between the hours of 9am and 5pm (EST), Monday through Friday. In addition, we provide annual hardware support programs. Warranty Support ® BioLock is warranted for a period of 12 months, within this period if the unit...

  • Page 7: International Biometrics Standards Compliance

    International Biometrics Standards Compliance The product has been tested and has compliance to the following standards:  BioAPI Compliant (ANSI / INCITS 358-2002)  CBEFF - Common Biometric Exchange File Format Compliant (NISTIR 6529-2001)

  • Page 8: Introduction

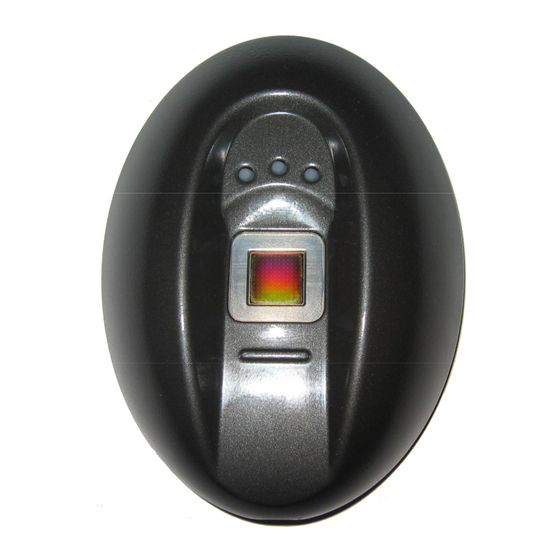

    BioLock can be installed outdoors as it is weather rated to IP65 which means it can handle water jets of low to medium pressure directly without the concerns of damage or ingress into electronic circuitry.

  • Page 9: Hardware Installation

    The Red Led indicates a failed scan has taken place and Is also used for assistance with enrolments. Power Requirements The BioLock Device requires power from an external power supply. The product ships with a 9V DC Plug Pack style power supply.
  • Page 10 Drill a large hole in the mounting location to enable passing the BioLock II Cable (BRS-819-29) RJ45 socket through the opening.
  • Page 11 After you have attached the wall bracket to the wall you are ready to connect the cable to the front housing and finalise the installation. 8 Way Cable is connected here Outer rim seal After connecting the cable to the 8 way socket, gentle bring the front housing and the metal bracket together, making sure to gently push back the cable through the grommet as you close both parts together.
  • Page 12 STEP 2 – Configure Network Address & Settings You must now configure the BioLock device and give it a network address. **NOTE** you must be on the same subnet as 192.168.0.x to be able to do Please ensure you have configured your PC correctly.
  • Page 13 Install the software to a location on your computer that you wish to have it operate and run from. Please note the BioLock software requires no installation or dependencies therefore the software installer is only just copying files to a location you specify.
  • Page 14 The wizard will now prompt you to enter the unit details Enter a Unit Name, ID and the correct IP address you have assigned. You may now enrol a user and template. Now you are required to enrol a user template.
  • Page 15 Once a Unit and User are Configured the Main Form will show.
  • Page 16 STEP 4 – Install Optional Secure I/O Configuration and installation of Secure I/O PCB Once you select OK The system is now ready to operate. Any person enrolled who touches the BioLock device, as long as they have rights then the Secure Relay Board will operate.

  • Page 17: Hardware Programming

    Connecting the Secure Relay Board The Secure Relay Boards become known to the BioLock units automatically as soon as they are connected to the RS485 Data wires out of the BioLock unit. No further configuration is required. ®...

  • Page 18: Adding Users

    If accepted the reader will light the green verify success led  If failed the reader will light the red fail led Factory Default You may return the BioLock device to the original factory default settings by doing the following;  Remove the front housing from the bracket ...

  • Page 19: Using Biolock

    This central area is the “core” of the fingerprint. Typically, this core is opposite the point that the fingernail emerges from the cuticle. While the matching algorithm of the BioLock system is quite tolerant to non- optimum finger placement, centering the core on the sensor will give the best possible performance.

  • Page 20: Centering The Core

    False Acceptance In biometric systems in general, false acceptance errors are the less frequent of the two problems. In the case of the BioLock sensor, false acceptance is extremely rare, and so far always the result of a bad enrollment.
  • Page 21 it operates below the surface, in the subdermal layer. Internal Sensor Outer sensor Array array, silver finish approx 3 mm wide Fingerprint Core under nail cuticle Finger Please ensure that the finger is placed across the two opposite sides of the sensor, making sure that the fingerprint core is kept as centered as possible.

  • Page 23: Glossary

    A p p e n d i x For future use...

  • Page 25: User Comments

    Bio Recognition Systems Pty Ltd (BRS) would welcome your comments and suggestions about our manuals. Please send your comments to the below address, fax or email: Bio Recognition Systems Pty Ltd Unit 11, Building F, 16 Mars Rd Lane Cove NSW AUSTRALIA 2066...
