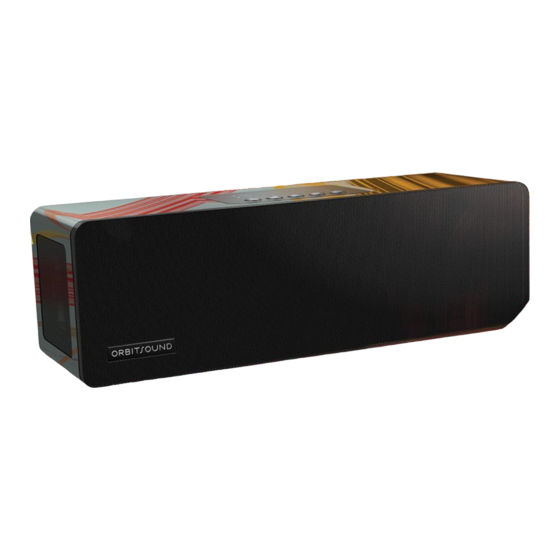

- Page 1 M9 airSOUND BAR Compact High Performance Spatial Soundbar with Wireless Subwoofer and Bluetooth® Handbook v4...
-
Page 2: Table Of Contents
This instruction booklet covers important safety and setup information as well as advice on how to get the most out of your orbitsound M9. Orbitsound contact information UK & Rest of World Tel: +44 (0)8456 521 219 Email: support@orbitsound.com... -
Page 3: Package Contents
BLUE: On OFF: Power off IR receiver The orbitsound M9 soundbar produces most of the sound that you hear. It produces the main signal and spatial information that combine in your listening area to create a panorama of sound. Remote control... -
Page 4: Control Panel Overview
The subwoofer (Back shown) Subwoofer Volume: Normal: Normal volume Max: +8dB volume Min: Minimum volume Wireless STATUS: OFF: No connection / No power / Low power state ON: Good sync / connection Flash: Bad connection The subwoofer is a wireless active loudspeaker that produces powerful Hi-Fi bass. -
Page 5: Getting Started
Getting Started Set up - Connect, power on, check subwoofer volume POWER OPTICAL Compact Spatial Soundbar with Bluetooth and Wireless Subwoofer ©2013 Orbitsound ltd. Model: M9 AUX IN Approved components used CAUTION: WIRELESS To prevent electric shock, do not remove screws. - Page 6 AUDIO OUT AUDIO IN VIDEO IN <CLICK> POWER OPTICAL <CLICK> Compact Spatial Soundbar with Bluetooth and Wireless Subwoofer ©2013 Orbitsound ltd. Model: M9 AUX IN Approved components used WIRELESS CAUTION: To prevent electric shock, do not remove screws. No User serviceable parts inside.
-
Page 7: Aux Input
2. To pair a new device: Press and hold the Bluetooth pairing button for 3 seconds. The Bluetooth source light will flash quickly to show that pairing mode has started. Look on your device for ‘Orbitsound’ in the Bluetooth device list, and pair with it. When a device is paired, the soundbar Bluetooth source light will change to solid blue. -
Page 8: Advanced Setup & Use
The Soundbar status light will flash blue when mute is enabled. To re- sume play, press mute again: BASS TREB BASS TREB Advanced Setup & Use The orbitsound M9 is easy to set up and enjoy, but even better sound BASS TREB BASS TREB may be achieved by following these guidelines. BASS... -
Page 9: Wireless
IMPORTANT: The areas marked need to be clear of obstacles in order for the spatial stereo sound field to work properly. HINT: Because Orbitsound produces a uniform sound field, the sound- bar does not need to be placed directly in front of the listener. There- fore, placing the soundbar conveniently so that the sides are not ob- structed is more important than central placement, i.e. - Page 10 To change channel - Make sure the soundbar AND subwoofer are switched on: POWER OPTICAL Compact Spatial Soundbar with Bluetooth and Wireless Subwoofer ©2013 Orbitsound ltd. Model: M9 AUX IN Approved components used WIRELESS CAUTION: To prevent electric shock, do not remove screws.
-
Page 11: Other Features
2. Long press the soundbar pair button to enter pairing mode. The soundbar pairing STATUS will slow flash to show it has entered pairing mode. 3. Short press the subwoofer pair button for it to join the soundbar. The LED will change it’s flashing pattern to acknowledge. 4. -
Page 12: Maintenance
Bluetooth resume / grab If you have previously paired your phone/tablet, there is no need to re- pair the device. Simply choose the Bluetooth source, then short press the Bluetooth button on the control panel. The soundbar will seek a previously paired device, and resume playback. - Page 13 Check the output format of the optical signal from the playing device. Choose ‘normal’ or ‘PCM’ format. Refer to the TV manufacturer’s handbook for more information. You can also contact Orbitsound for advice, see contact help line in this handbook and on the packaging.
-
Page 14: Specifications
Stereo Line level -10dBu 3.5mm jack and RCA. TOSLINK optical digital input Bluetooth (wireless) Output(s) Orbitsound 2.4GHz audio Recommended placement Bar, in front of television Sub, floor, port facing wall Dimensions (H x W x D) [mm] 90 x 300 x 100mm (sound-...
